BOSCH

Bosch 0986479U40 Brake Disc

SKU: 0986479U40

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£42.37 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DODGE

CALIBER

Description	Cylinder Capacity	Horse Power	Year
1.8	1798 CCM	150 HP	06/2006 - 10/2010
2.0	1998 CCM	156 HP	From 06/2006
2.4	2359 CCM	170 HP	From 10/2006
2.0 CRD	1968 CCM	140 HP	From 06/2006
2.4 Turbo	2359 CCM	295 HP	From 12/2007
2.2 CRD	2143 CCM	163 HP	07/2010 - 11/2011
2.4 AWD	2359 CCM	170 HP	From 10/2006
2.0 CRD	1968 CCM	136 HP	06/2006 - 11/2011
2.0 CRD	1968 CCM	120 HP	06/2006 - 11/2011

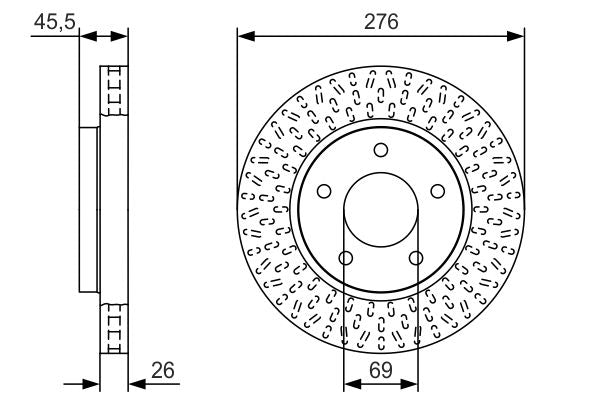

The Bosch 0986479U40 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 276 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 276

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24.4

Height [mm] : 45.5

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13

BLUE PRINT : ADC443104
BLUE PRINT : ADC443119
BORG & BECK : BBD4622
BORG & BECK : BBD4752
BREMBO : 09.B647.20
BREMBO : 09.B647.21
DELPHI : BG4258
FEBI BILSTEIN : 31275
HELLA : 8DD 355 116-241
MINTEX : MDC2225
TEXTAR : 92197403
TRW : DF4933
