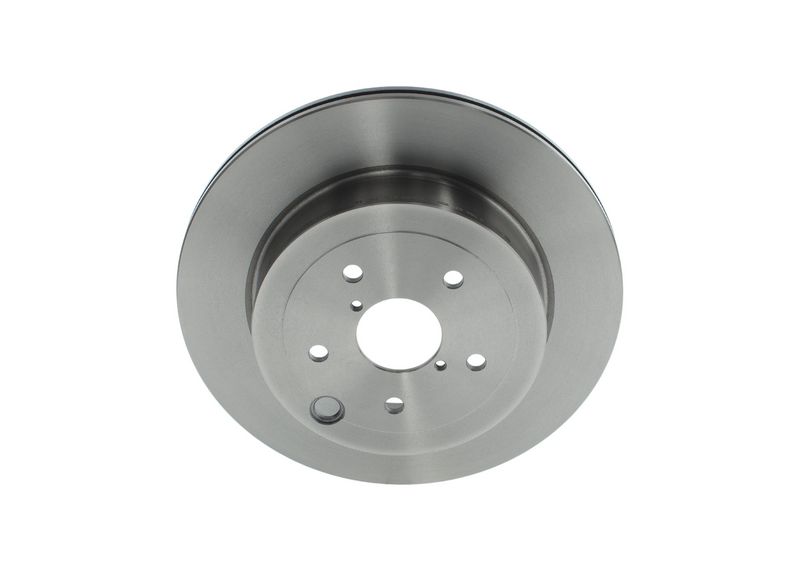

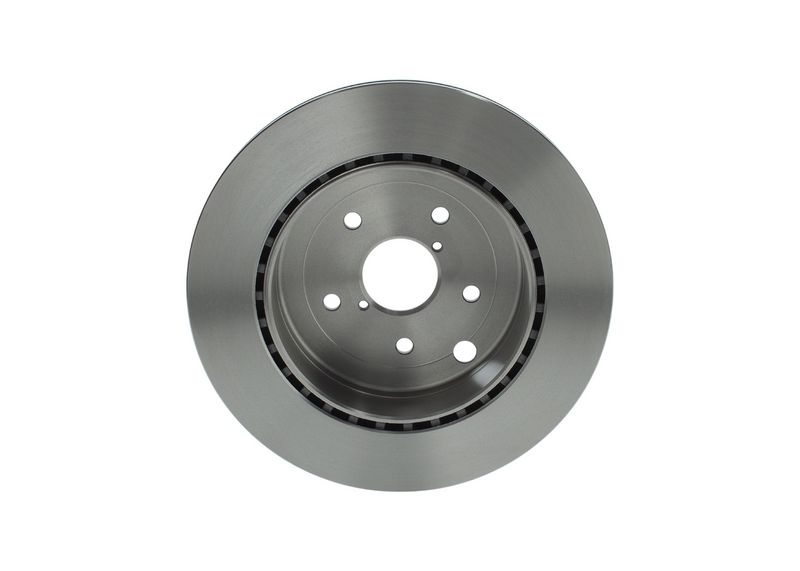

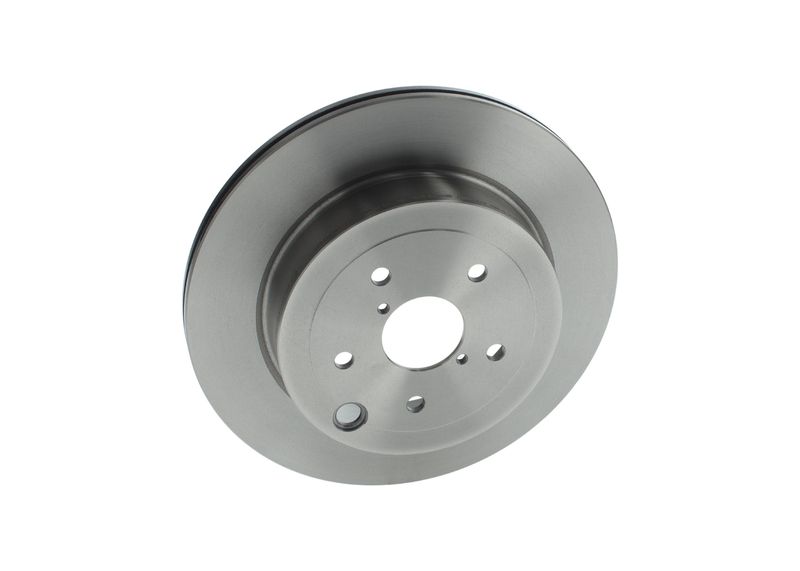

Bosch 0986479V05 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479V05

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£107.69 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUBARU
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
2.5 WRX STi AWD (GVF) 2457 CCM 301 HP From 01/2011
2.5 AWD (GVB) 2457 CCM 310 HP 09/2010 - 12/2015
2.5 AWD 2457 CCM 320 HP 02/2007 - 12/2007
IMPREZA Hatchback (GR, GH, G3)
Description Cylinder Capacity Horse Power Year
2.5 WRX STi AWD (GRF) 2457 CCM 301 HP 01/2008 - 08/2013
2.5 WRX STI AWD 2457 CCM 305 HP 06/2012 - 08/2013
2.5 AWD 2457 CCM 310 HP 09/2010 - 08/2013
2.5 WRX STI 330S AWD 2457 CCM 330 HP 05/2009 - 12/2010
WRX Hatchback (GP)
Description Cylinder Capacity Horse Power Year
STi 2.5 AWD 2457 CCM 300 HP 10/2010 - 12/2014
WRX Saloon (GJ)
Description Cylinder Capacity Horse Power Year
STi 2.5 AWD 2457 CCM 309 HP From 09/2011
STi 2.5 AWD 2457 CCM 301 HP From 06/2014

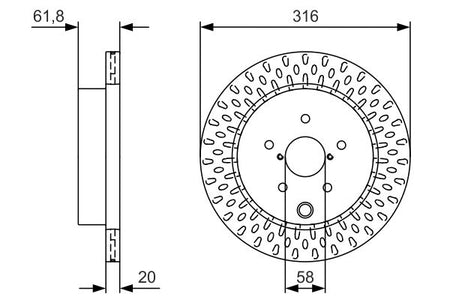

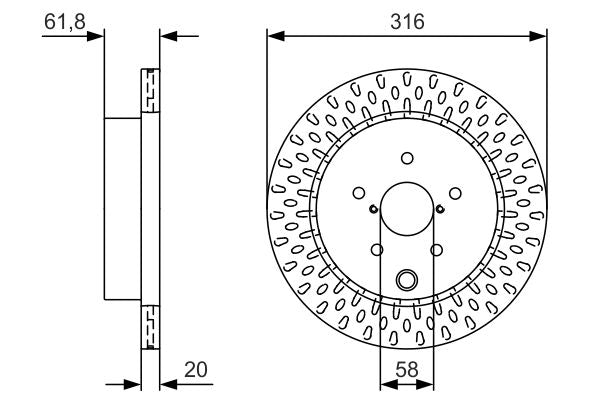

The Bosch 0986479V05 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 316 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 18
Height [mm] : 63.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 58
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479V05
  • Barcode 4047025355971
  • SUBARU : 26700 FG010
  • APEC : DSK3224
  • BLUE PRINT : ADS74338
  • BORG & BECK : BBD5378
  • BREMBO : 09.A198.11
  • BREMBO : 09.A198.1S
  • BREMBO : 09.A198.1X
  • DELPHI : BG4287
  • HELLA : 8DD 355 118-451
  • MINTEX : MDC2398
  • National : NBD1851
  • TEXTAR : 92243703
  • BOSCH : BD2403
  • BOSCH : E1 90R-02C0876/1914
