BOSCH

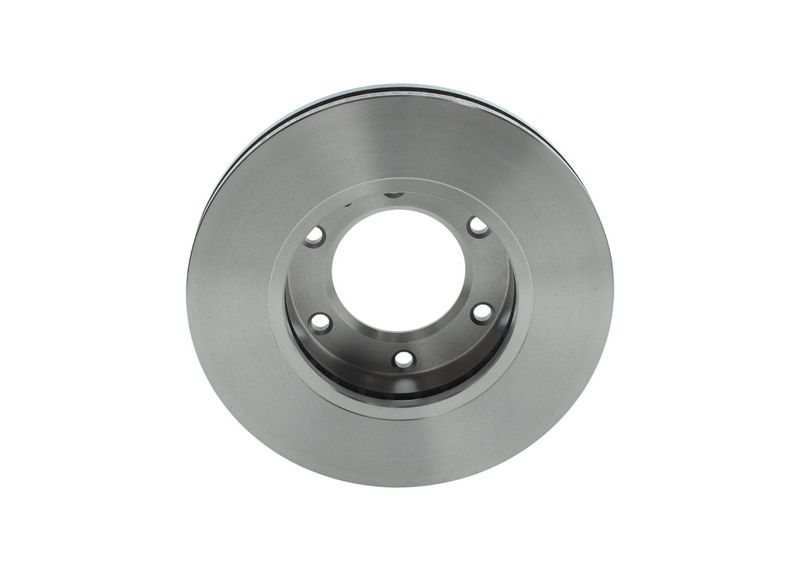

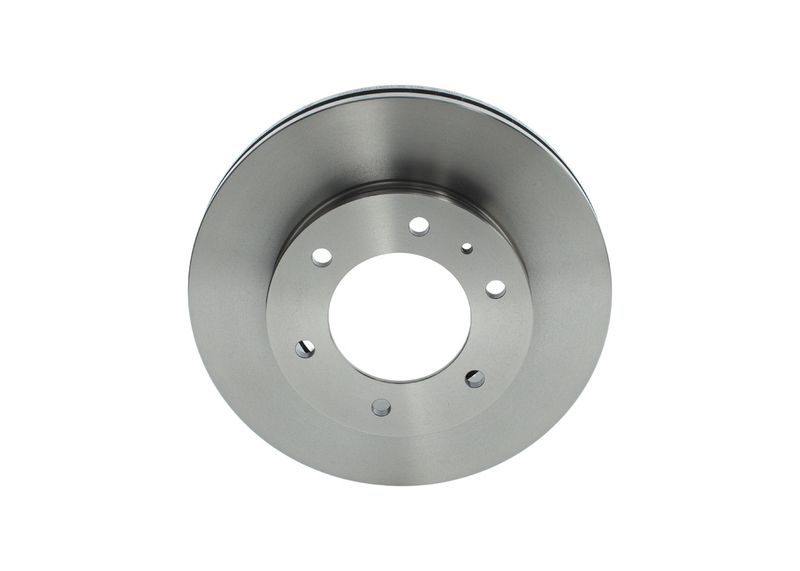

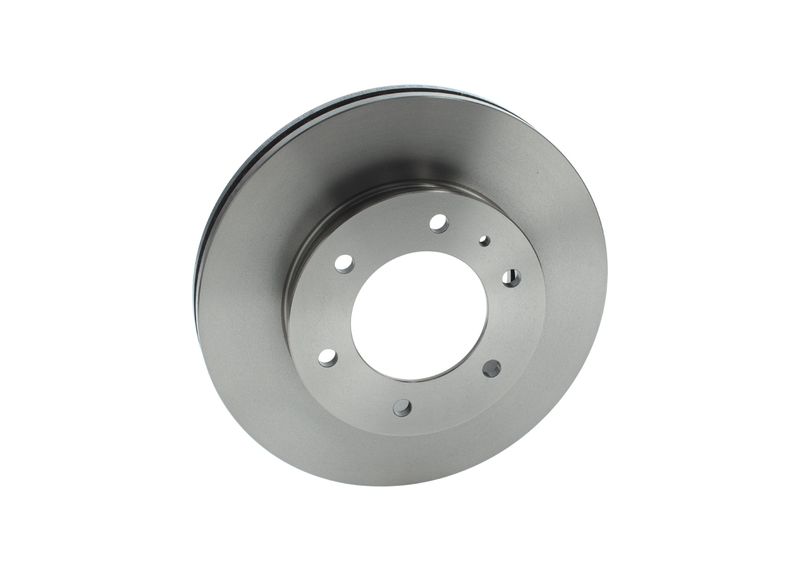

Bosch 0986479V32 Brake Disc

SKU: 0986479V32
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£57.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (TKE)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 125 HP From 04/2011
2.2 TDCi 4x4 2198 CCM 125 HP From 04/2011
2.2 TDCi 4x4 2198 CCM 150 HP From 04/2011
3.2 TDCi 4x4 3198 CCM 200 HP From 04/2011
2.5 i 4x4 2488 CCM 166 HP From 11/2011
2.2 TDCi 2198 CCM 150 HP From 11/2011
2.2 TDCi 2198 CCM 160 HP From 05/2015
2.2 TDCi 4x4 2198 CCM 160 HP From 05/2015
2.2 TDCi 2198 CCM 131 HP From 05/2015
2.2 TDCi 4x4 2198 CCM 131 HP From 05/2015
2.0 EcoBlue 4x4 1996 CCM 213 HP From 09/2018
2.0 EcoBlue 4x4 1996 CCM 131 HP From 03/2019
2.0 EcoBlue 4x4 1996 CCM 170 HP From 03/2019

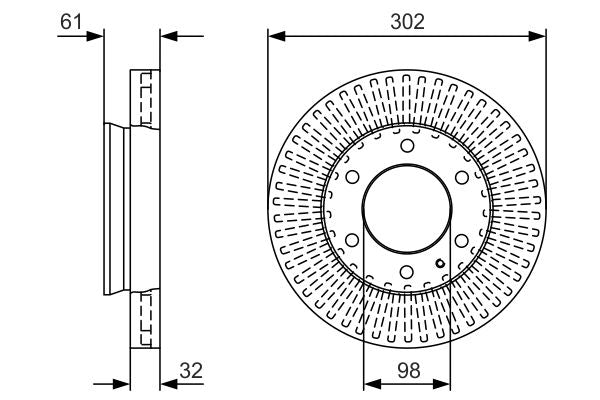

The Bosch 0986479V32 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 32 mm brake disc thickness, 30 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30
Height [mm] : 61
Bolt Hole Circle Ø [mm] : 139.7
Brake Disc Type : Vented
Centering Diameter [mm] : 98
Number of Holes : 6
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.1
  • Vendor BOSCH
  • SKU 0986479V32
  • Barcode 4047025356244
  • FORD : AB311125AB AB311125AC FORAB311125AC UC2B33251B 1727183 1742318 1763037
  • APEC : DSK3009
  • APEC : SDK6754
  • BLUE PRINT : ADM543125
  • BORG & BECK : BBD5403
  • BREMBO : 09.C424.11
  • BREMBO : 09.C424.1S
  • BREMBO : 09.C424.1X
  • DELPHI : BG9140C
  • Fahren : FBD6754
  • FEBI BILSTEIN : 170039
  • HELLA : 8DD 355 119-211
  • MEYLE : 783 521 0048/PD
  • MINTEX : MDC2498
  • NAPA : NBD5649
  • SKF : VKBD 81095 V1
  • TEXTAR : 92253400
  • TEXTAR : 92253403
  • TRW : DF6812S
  • VALEO : 673257
  • BOSCH : BD2266
  • BOSCH : E1 90R-02C0074/1635
