Bosch 0986479V90 Brake Disc

5.0/5 78 reviews
SKU: 0986479V90

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£48.62 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

AUDI
50 (863)
Description Cylinder Capacity Horse Power Year
1.1 1093 CCM 50 HP 08/1974 - 07/1978
1.1 1093 CCM 60 HP 08/1974 - 07/1977
1.3 1272 CCM 60 HP 08/1977 - 07/1978
VW
DERBY (86)
Description Cylinder Capacity Horse Power Year
0.9 895 CCM 40 HP 02/1977 - 09/1981
1.1 1093 CCM 50 HP 02/1977 - 09/1981
1.3 1272 CCM 60 HP 02/1977 - 09/1981
1.3 1272 CCM 58 HP 02/1977 - 09/1981
GOLF   (17)
Description Cylinder Capacity Horse Power Year
1.1 1093 CCM 50 HP 04/1974 - 07/1983
1.1 1093 CCM 52 HP 08/1976 - 07/1980
1.3 1272 CCM 60 HP 08/1979 - 07/1983
1.5 1457 CCM 70 HP 08/1977 - 07/1983
1.5 1471 CCM 70 HP 04/1974 - 12/1975
1.6 1588 CCM 75 HP 08/1975 - 02/1984
1.6 GTI 1588 CCM 110 HP 08/1976 - 07/1982
1.8 GTI 1781 CCM 112 HP 08/1982 - 12/1983
1.5 D 1471 CCM 50 HP 08/1976 - 07/1980
1.6 D 1588 CCM 54 HP 08/1980 - 07/1983
1.6 TD 1588 CCM 70 HP 03/1982 - 07/1983
1.3 1272 CCM 58 HP 08/1982 - 12/1983
POLO (86)
Description Cylinder Capacity Horse Power Year
0.9 895 CCM 40 HP 09/1975 - 09/1981
1.1 1093 CCM 50 HP 03/1975 - 09/1981
1.1 1093 CCM 60 HP 03/1975 - 09/1981
1.3 1272 CCM 60 HP 12/1976 - 09/1981

The Bosch 0986479V90 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 239 mm outer diameter, 8 mm brake disc thickness, 7 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

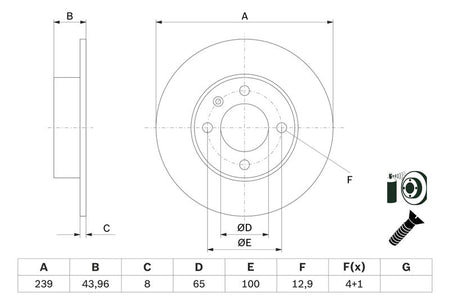

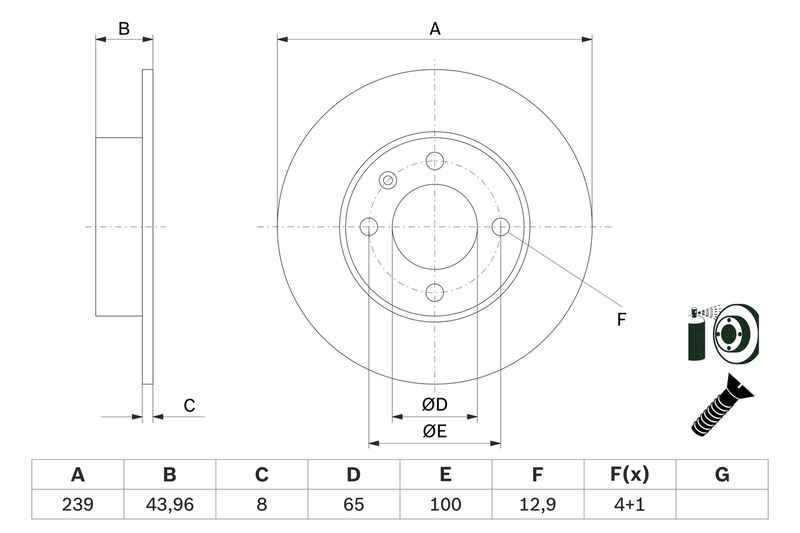

Function : Brake Disc
Outer Diameter [mm] : 239
Brake Disc Thickness [mm] : 8
Minimum thickness [mm] : 7
Height [mm] : 43.6
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 65
Number of Holes : 4
Surface : Coated
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986479V90
  • Barcode 4047026143195
  • AUDI : 861 615 301 B
  • VW : 861 615 301 B
  • BREMBO : 08.2878.10
  • MINTEX : MDC154
  • TEXTAR : 92010500
  • BOSCH : BD 2506
  • BOSCH : E1 90R-02C0605/0080
