BOSCH

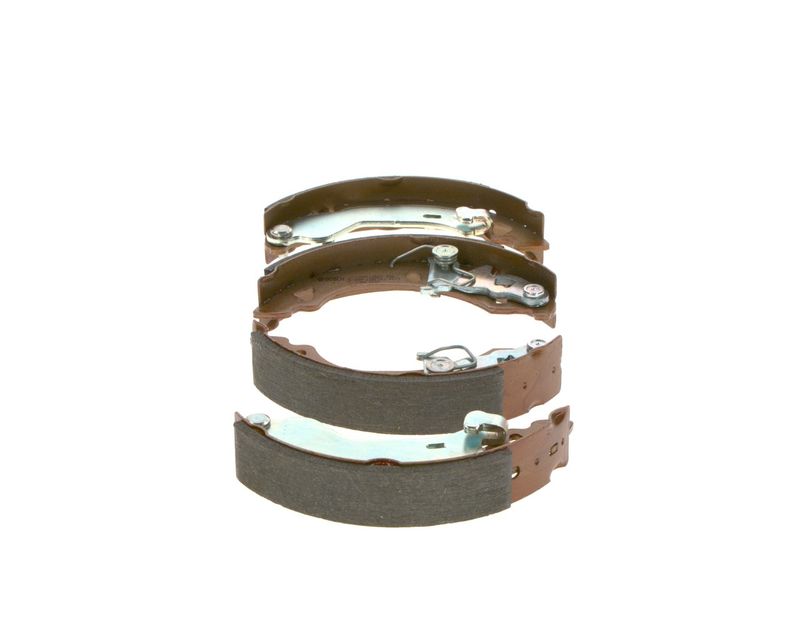

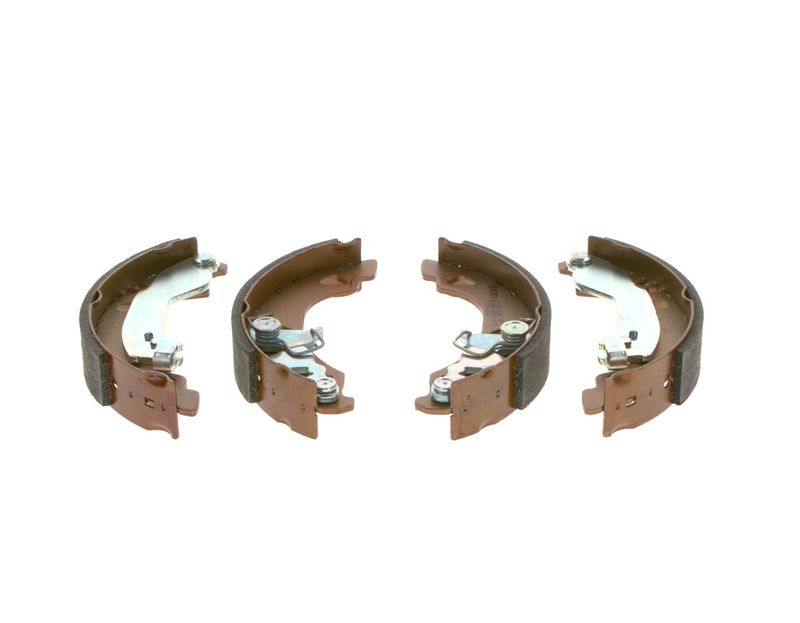

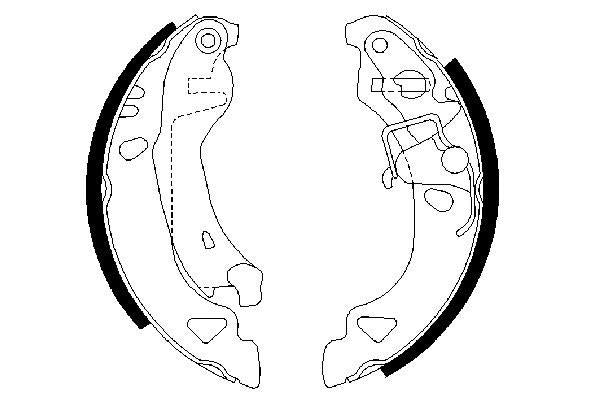

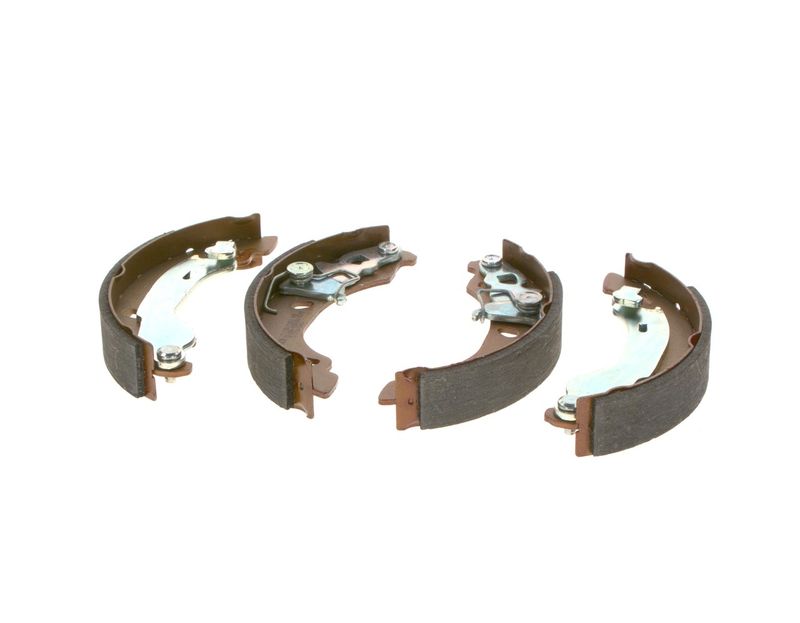

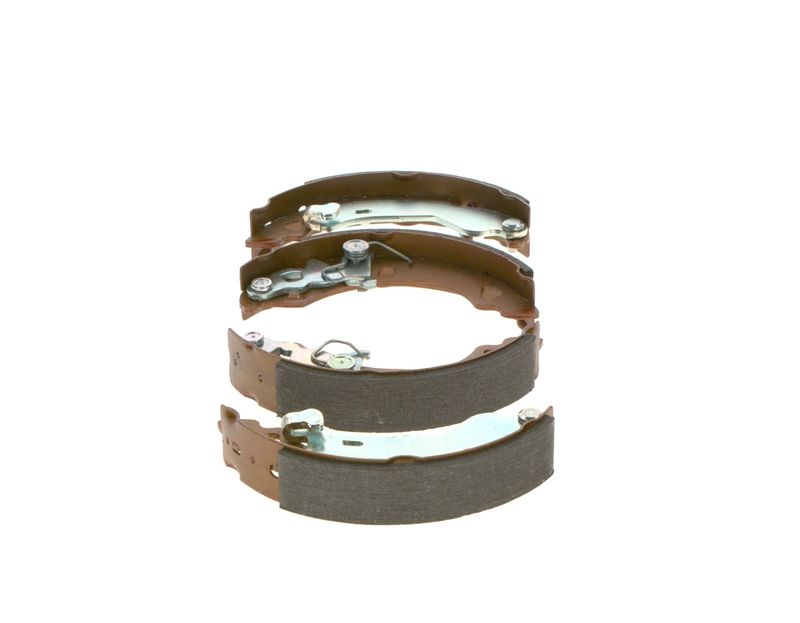

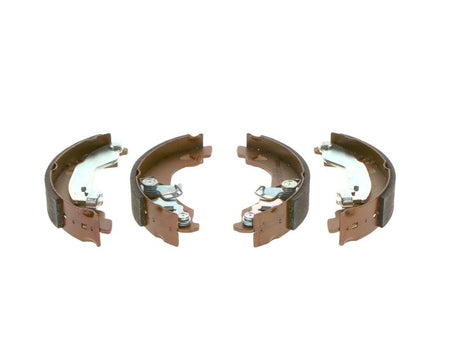

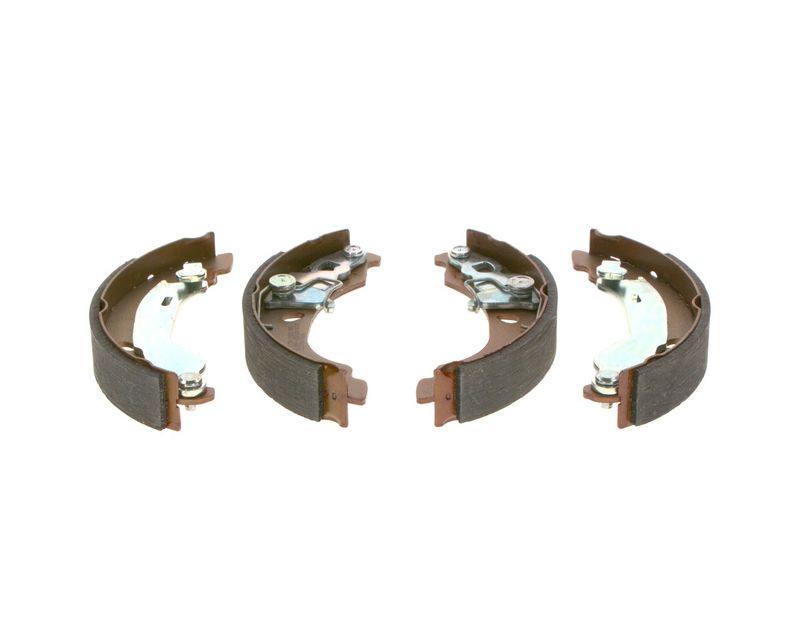

Bosch 0986487317 Brake Shoe Set

SKU: 0986487317

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£18.52 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT

BRAVA (182_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (182.BG)	1370 CCM	75 HP	10/1995 - 10/2001
1.4 12 V (182.BA)	1370 CCM	80 HP	10/1995 - 08/1998
1.9 D	1929 CCM	65 HP	10/1995 - 10/2001
1.2 16V 80	1242 CCM	82 HP	12/1998 - 12/2002
1.2 16V 80	1242 CCM	80 HP	10/2000 - 10/2001

BRAVO I (182_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (182.AG)	1370 CCM	75 HP	10/1995 - 10/2001
1.4 (182.AA)	1370 CCM	80 HP	10/1995 - 10/2001
1.9 D	1929 CCM	65 HP	10/1995 - 10/2001
1.2 16V 80	1242 CCM	82 HP	12/1998 - 10/2000
1.2 16V 80	1242 CCM	80 HP	10/2000 - 10/2001

PUNTO (176_)

Description	Cylinder Capacity	Horse Power	Year
55 1.1	1108 CCM	54 HP	09/1993 - 09/1999
60 1.2	1242 CCM	58 HP	01/1994 - 09/1999
75 1.2	1242 CCM	73 HP	10/1993 - 09/1999
1.7 TD	1698 CCM	71 HP	01/1994 - 09/1999
1.7 TD	1698 CCM	69 HP	01/1994 - 09/1999
60 1.2 (176AP, 176AR, 176AQ, 176BB)	1242 CCM	60 HP	09/1993 - 09/1999
1.6	1581 CCM	88 HP	01/1994 - 04/1997
1.7 TD (176AT)	1698 CCM	63 HP	09/1996 - 09/1999
1.2 16V	1242 CCM	86 HP	04/1997 - 09/1999
1.7 D	1698 CCM	57 HP	04/1994 - 09/1997

PUNTO Convertible (176_)

Description	Cylinder Capacity	Horse Power	Year
60 1.2	1242 CCM	58 HP	04/1994 - 06/2000
90 1.6	1581 CCM	88 HP	04/1994 - 04/1997
60 1.2 (176AR_, 176BR_)	1242 CCM	60 HP	05/1995 - 06/2000
85 16V 1.2	1242 CCM	86 HP	04/1997 - 06/2000

PUNTO Van (176_)

Description	Cylinder Capacity	Horse Power	Year
1.1	1108 CCM	54 HP	04/1996 - 02/2000
1.7 D	1698 CCM	57 HP	04/1996 - 02/2000
1.7 TD	1698 CCM	63 HP	09/1996 - 09/1999

The Bosch 0986487317 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 180 mm inner brake drum diameter, 32 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 180

Width [mm] : 32

Brake Lining : with lining

Manufacturer Restriction : Lockheed System

Construction Year to : 09.2001

Fitting Position : Rear Axle

Braking/Driving Dynamics : for vehicles without ABS

APEC : SHU508
BORG & BECK : BBS6220
BREMBO : S 23 513
DELPHI : LAJ1021
DELPHI : LS1682
DELPHI : LY1214
FEBI BILSTEIN : 38741
FTE : 9100025
HELLA : 8DB 355 001-421
HELLA : 8DB 355 004-311
MEYLE : 214 533 0002/K
MINTEX : MFR405
National : NS4075
TEXTAR : 91049200
TRW : GS8570
VALEO : 562582

Bosch 0986487317 Brake Shoe Set
