BOSCH

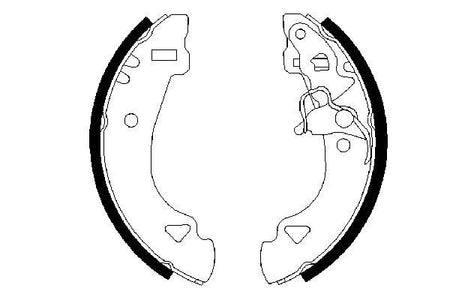

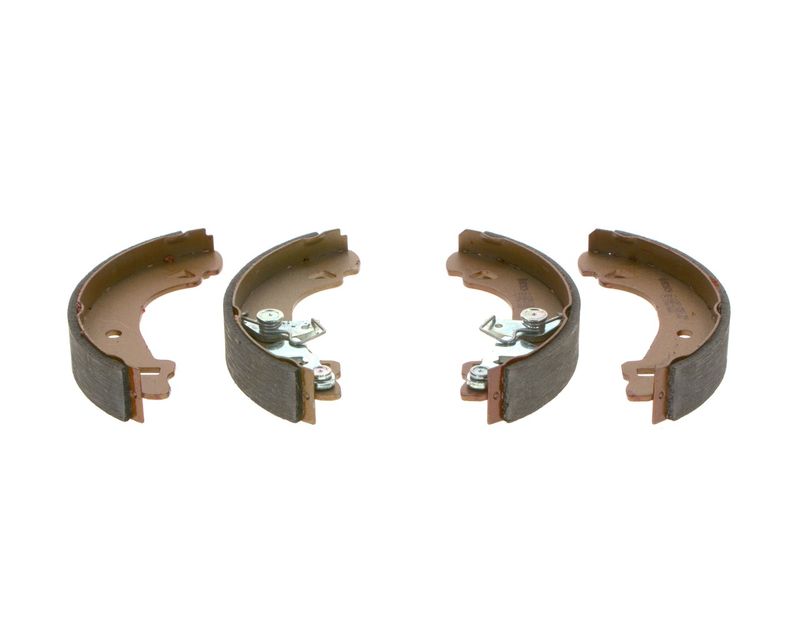

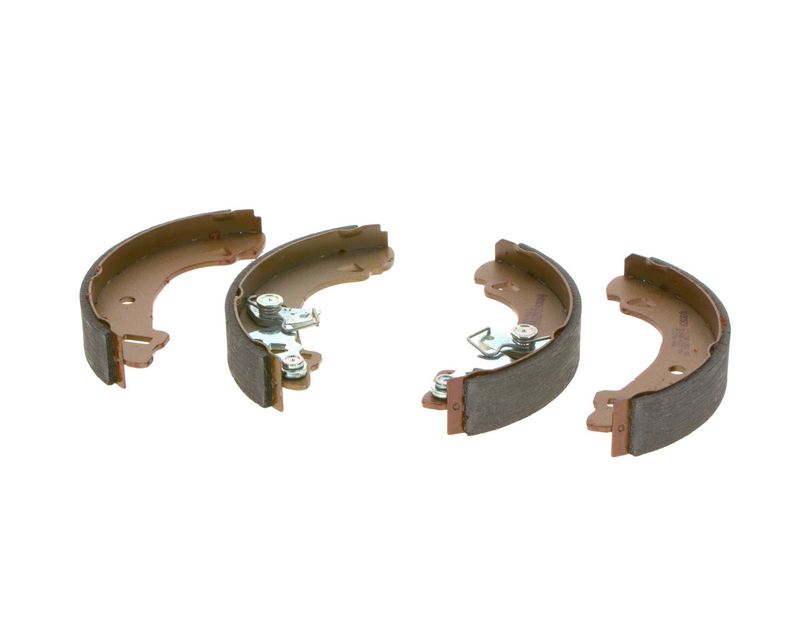

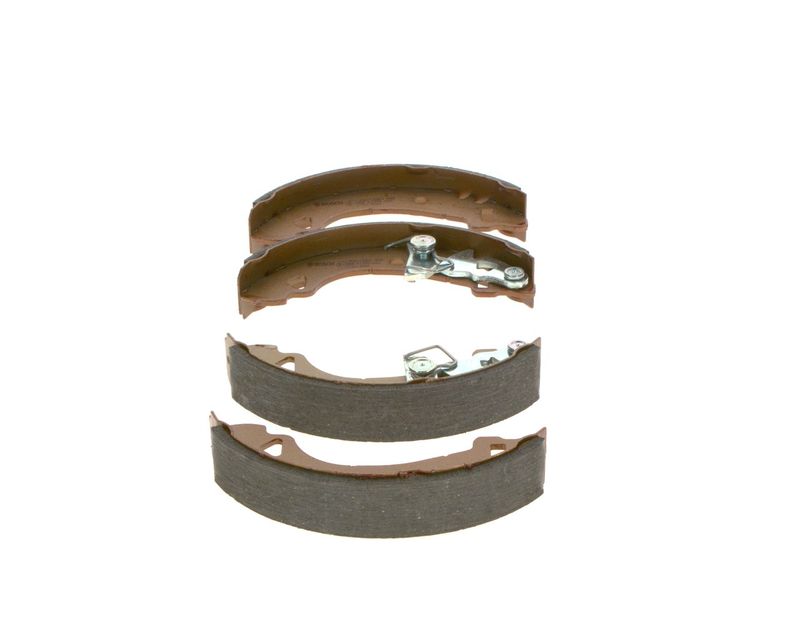

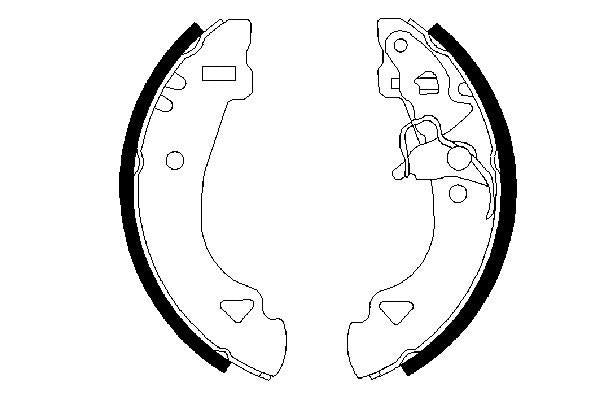

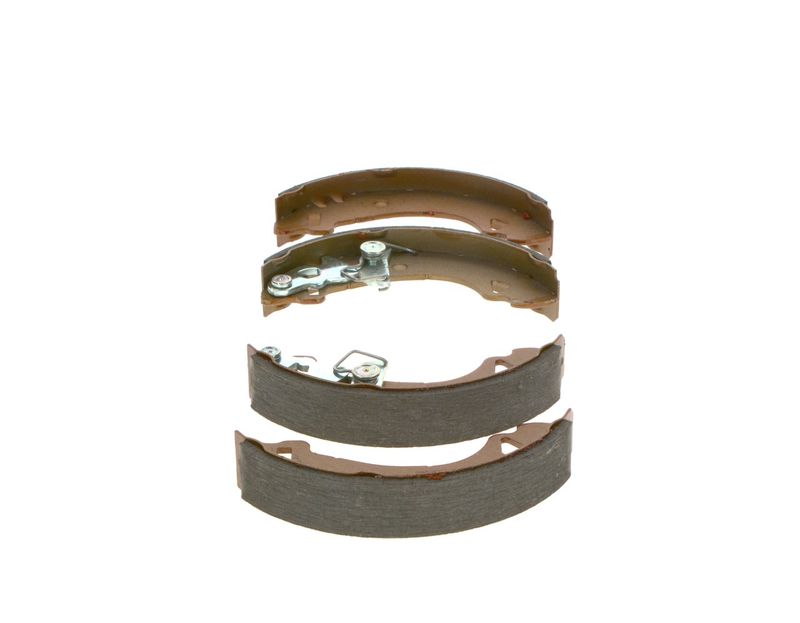

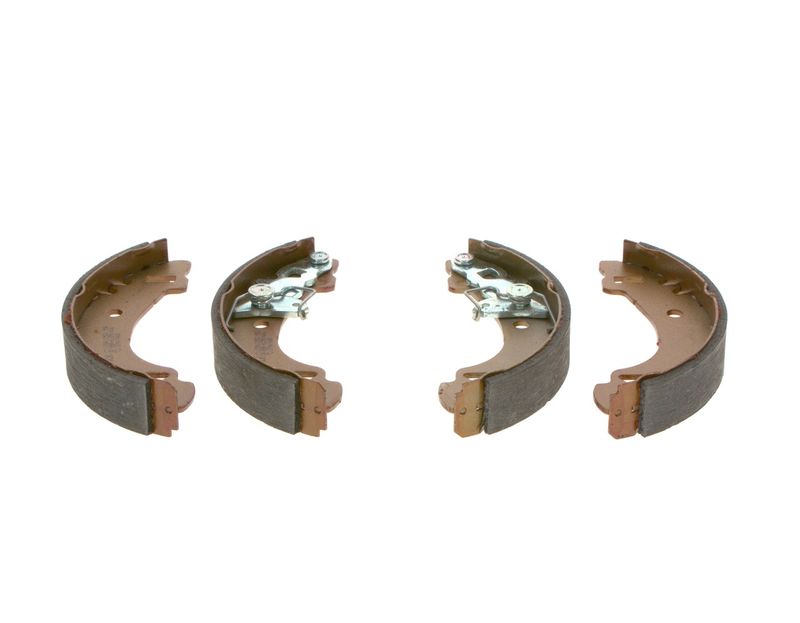

Bosch 0986487331 Brake Shoe Set

SKU: 0986487331

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£19.89 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT

PANDA (141_)

Description	Cylinder Capacity	Horse Power	Year
750	770 CCM	34 HP	01/1986 - 10/2003
900	899 CCM	40 HP	04/1992 - 12/1996
1000 i.e. Cat	999 CCM	45 HP	10/1987 - 08/1998
1100 Trekking 4x4	1108 CCM	50 HP	10/1991 - 07/2004
1100	1108 CCM	50 HP	05/1991 - 12/1999
1100	1108 CCM	54 HP	02/1995 - 09/2003
1100 4x4	1108 CCM	54 HP	02/1995 - 07/2004

PANDA Hatchback Van (141_)

Description	Cylinder Capacity	Horse Power	Year
1000 i.e	999 CCM	45 HP	08/1992 - 02/2004

UNO (146_, 158_)

Description	Cylinder Capacity	Horse Power	Year
45 1.0 (146A.ED)	999 CCM	44 HP	06/1986 - 12/1993
60 Diesel 1.7 (146E)	1698 CCM	57 HP	09/1989 - 12/1993
50 i.e. 1.1	1116 CCM	49 HP	06/1992 - 12/1993
70 i.e. 1.4	1372 CCM	70 HP	09/1989 - 07/1996

UNO Van (146_)

Description	Cylinder Capacity	Horse Power	Year
45 0.9	903 CCM	45 HP	02/1988 - 07/1996

LANCIA

Y10 (156_)

Description	Cylinder Capacity	Horse Power	Year
1.1 i.e. Fire (156AG)	1108 CCM	50 HP	07/1989 - 09/1995

The Bosch 0986487331 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 1 987 475 028, 1 987 475 029, and 1 987 475 118 article number of recommended accessories, 185 mm inner brake drum diameter, 31 mm width, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Article number of recommended accessories : 1 987 475 028

Article number of recommended accessories : 1 987 475 029

Article number of recommended accessories : 1 987 475 118

Article number of recommended accessories : 1 987 475 282

Article number of recommended accessories : 1 987 475 219

Article number of recommended accessories : 1 987 475 266

Article number of recommended accessories : 1 987 475 162

Inner brake drum diameter [mm] : 185

Width [mm] : 31

Brake Lining : with lining

Engine Code : 156 A4.048

Construction Year from : 07.1990

Construction Year to : 08.1999

Fitting Position : Rear Axle

for OE number : 77362291

for OE number : 9945372

APEC : SHU506
BORG & BECK : BBS6079
BREMBO : S 23 512
DELPHI : LS1860
DELPHI : LY1238
FTE : 9100027
HELLA : 8DB 355 001-471
HELLA : 8DB 355 004-331
MINTEX : MFR385
TEXTAR : 91048400
TRW : GS8566
VALEO : 562583

Bosch 0986487331 Brake Shoe Set
