BOSCH

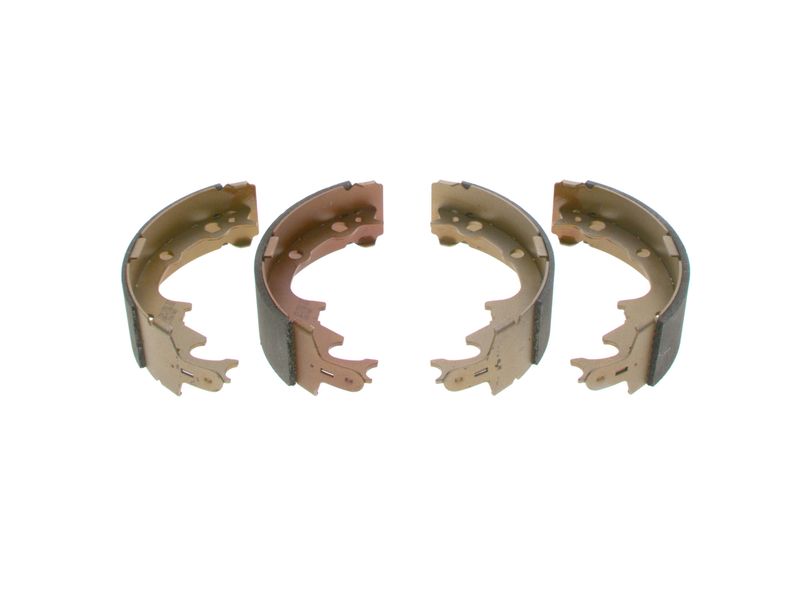

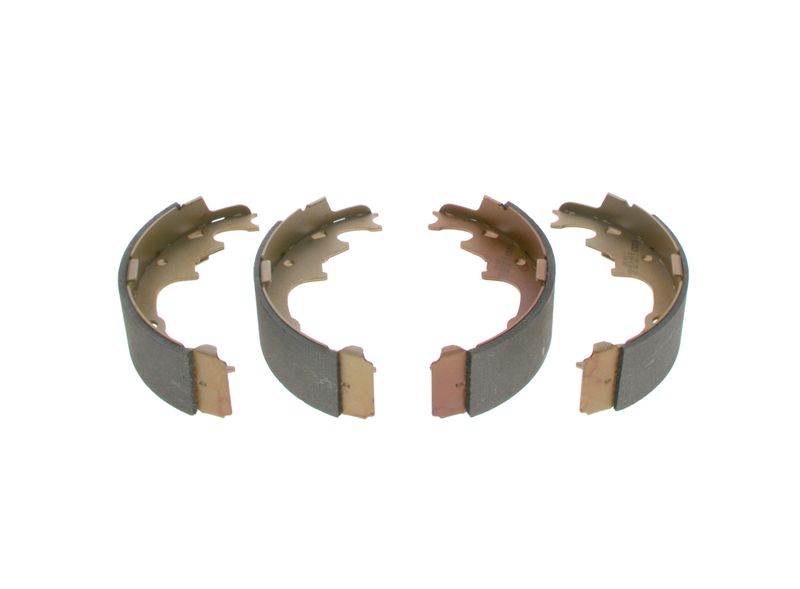

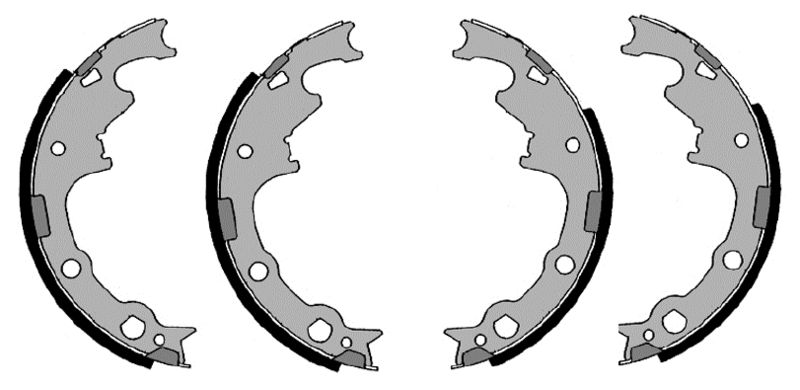

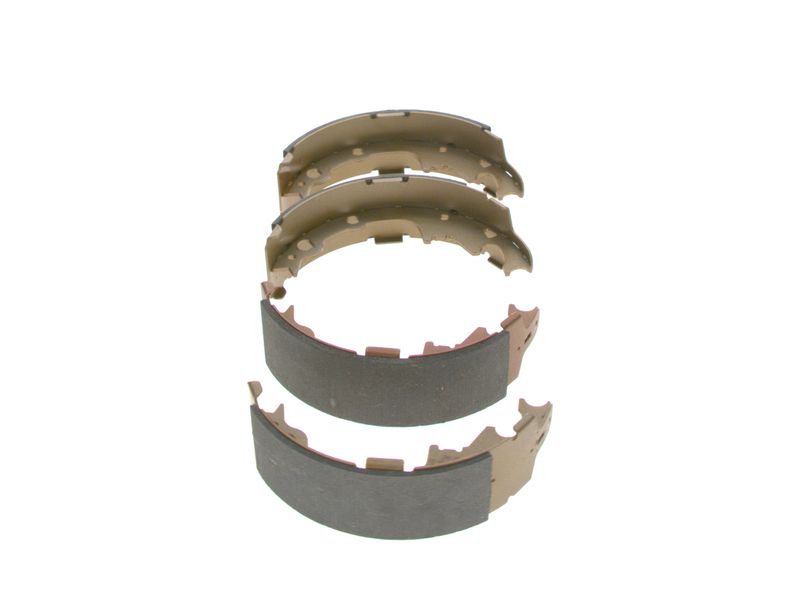

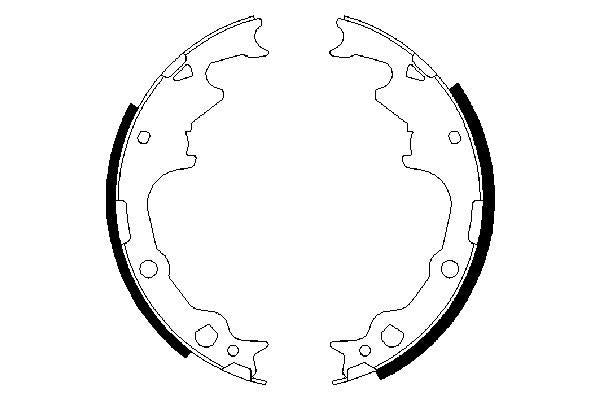

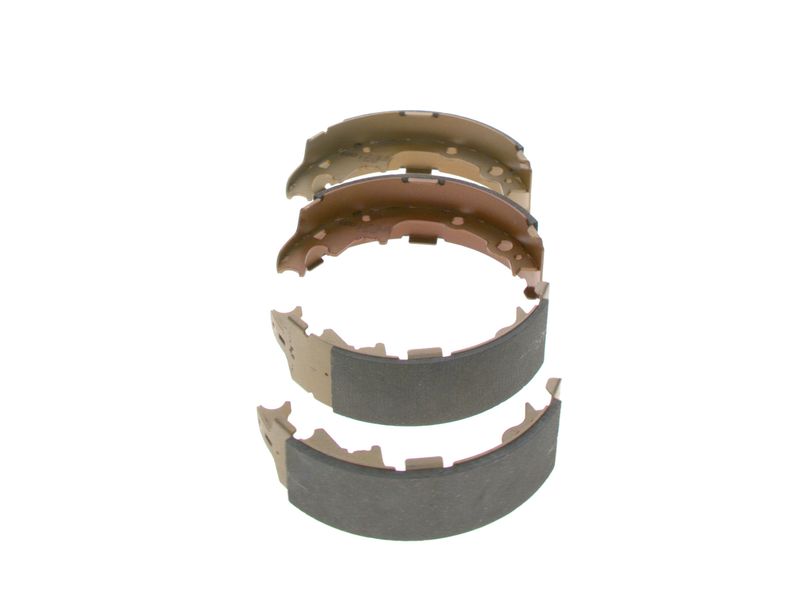

Bosch 0986487396 Brake Shoe Set

SKU: 0986487396

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£33.68 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER

TACUMA Mk II (GS_, NS_)

Description	Cylinder Capacity	Horse Power	Year
2.4 i	2429 CCM	151 HP	01/1995 - 03/2001
3.8 i AWD	3778 CCM	166 HP	01/1995 - 03/2001
2.5 TD	2499 CCM	116 HP	01/1995 - 03/2001
2.0 i	1995 CCM	133 HP	01/1995 - 03/2001
3.8 i AWD	3778 CCM	178 HP	01/1995 - 03/2001

VOYAGER II (ES)

Description	Cylinder Capacity	Horse Power	Year
2.5 i	2501 CCM	98 HP	01/1991 - 09/1995
3.3 i	3301 CCM	150 HP	08/1990 - 09/1995
2.5 i	2501 CCM	101 HP	08/1990 - 09/1995
2.5 TD	2500 CCM	118 HP	01/1992 - 09/1995

VOYAGER III VAN (GS_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (GSHY52)	2429 CCM	151 HP	01/1995 - 03/2001
3.8 AWD (GSHC52)	3778 CCM	166 HP	10/1995 - 09/1997
3.8 AWD (GSHC52)	3778 CCM	178 HP	10/1997 - 03/2001
2.5 TD (GSHY52, GSHZ52)	2499 CCM	116 HP	01/1995 - 03/2001

DODGE

CARAVAN

Description	Cylinder Capacity	Horse Power	Year
2.4 i	2429 CCM	151 HP	01/1995 - 03/2001
3.0	2972 CCM	152 HP	01/1995 - 06/2000
3.8 i AWD	3778 CCM	166 HP	01/1995 - 03/2001
2.5 TD	2499 CCM	116 HP	01/1995 - 03/2001
3.8 i	3778 CCM	166 HP	01/1995 - 03/2001

JEEP

CHEROKEE (XJ)

Description	Cylinder Capacity	Horse Power	Year
2.5 i 4x4	2469 CCM	122 HP	12/1991 - 09/2001
4.0 i	3964 CCM	184 HP	12/1991 - 09/2001
4.0 i	3964 CCM	185 HP	01/1988 - 09/2001
2.1 TD	2068 CCM	87 HP	10/1984 - 09/2001
4.0 i 4x4	3964 CCM	178 HP	01/1995 - 09/2001
4.0 i	3960 CCM	173 HP	07/1998 - 09/2001
4.0 i	3960 CCM	184 HP	02/1999 - 09/2001
2.1 TD	2068 CCM	80 HP	06/1989 - 03/1992
2.5	2464 CCM	122 HP	10/1986 - 09/1990

WRANGLER (YJ, SJ_)

Description	Cylinder Capacity	Horse Power	Year
2.5	2464 CCM	103 HP	01/1988 - 12/1991
2.5	2464 CCM	121 HP	12/1991 - 08/1996
4.0	3964 CCM	178 HP	12/1991 - 08/1996
4.2 2WD	4229 CCM	111 HP	10/1986 - 09/1990
4.0 4x4	3956 CCM	178 HP	10/1986 - 09/1990

WRANGLER Mk II (TJ)

Description	Cylinder Capacity	Horse Power	Year
2.5	2464 CCM	118 HP	08/1996 - 04/2007
4.0	3960 CCM	177 HP	08/1996 - 04/2007
2.4	2429 CCM	143 HP	11/2002 - 04/2007
4.0 Rubicon	3964 CCM	174 HP	04/1997 - 12/2007
4.0	3964 CCM	177 HP	08/1996 - 04/2007

The Bosch 0986487396 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 1 987 475 315 article number of recommended accessories, 228.6 mm inner brake drum diameter, 66 mm width, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Article number of recommended accessories : 1 987 475 315

Inner brake drum diameter [mm] : 228.6

Width [mm] : 66

Brake Lining : with lining

Construction Year from : 04.1992

Fitting Position : Rear Axle

APEC : SHU608
BLUE PRINT : ADA104106
BORG & BECK : BBS6269
BORG & BECK : BBS6472
BREMBO : S 10 502
DELPHI : LS1780
FTE : 9100098
HELLA : 8DB 355 002-371
MINTEX : MFR424
National : NS4112
TEXTAR : 91056500
TRW : GS8705
VALEO : 562768
