BOSCH

Bosch 0986487559 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986487559

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£28.48 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FIAT

MAREA (185_)

Description	Cylinder Capacity	Horse Power	Year
1.6 100 16V	1581 CCM	103 HP	09/1996 - 05/2002
1.6 16V	1581 CCM	102 HP	04/1997 - 02/1999
1.6 100 16V Bipower	1581 CCM	103 HP	04/1999 - 05/2002

MAREA Weekend (185_)

Description	Cylinder Capacity	Horse Power	Year
1.6 100 16V	1581 CCM	103 HP	09/1996 - 05/2002
1.8 115 16V	1747 CCM	113 HP	09/1996 - 05/2002
1.9 TD 75	1910 CCM	75 HP	09/1996 - 05/2002
1.9 TD 100 (185BX_)	1910 CCM	100 HP	09/1996 - 06/2003
1.9 JTD 105 (185BXN1A)	1910 CCM	105 HP	12/1998 - 12/2002
1.9 JTD 110 (185BXT1A)	1910 CCM	110 HP	03/1999 - 02/2003
1.6	1596 CCM	103 HP	09/2000 - 08/2002

MULTIPLA (186_)

Description	Cylinder Capacity	Horse Power	Year
1.6 100 16V (186AXA1A)	1581 CCM	103 HP	04/1999 - 08/2000
1.9 JTD 105 (186AXB1A)	1910 CCM	105 HP	04/1999 - 08/2000
1.6 Blupower (186AMA1A)	1581 CCM	95 HP	04/1999 - 09/2004
1.6 16V Bipower (186AMB1A)	1581 CCM	103 HP	04/1999 - 09/2004
1.9 JTD 110	1910 CCM	110 HP	03/2001 - 07/2002
1.6 16V Bipower (186AXC1A)	1596 CCM	103 HP	10/2001 - 08/2005
1.9 JTD 115	1910 CCM	115 HP	07/2002 - 06/2010
1.6 16V (186AGB1A)	1596 CCM	95 HP	04/2002 - 06/2010
1.9 JTD (186AXE1A)	1910 CCM	120 HP	04/2002 - 06/2010
1.6	1596 CCM	92 HP	05/2004 - 08/2005
1.6 (186AXC1A, 186BMC1A, 186BXC1A)	1596 CCM	103 HP	09/2000 - 06/2010

MULTIPLA VAN (186_)

Description	Cylinder Capacity	Horse Power	Year
1.9 JTD	1910 CCM	110 HP	09/2000 - 03/2002
1.9 JTD	1910 CCM	116 HP	05/2004 - 06/2010
1.9 JTD (186AXG1A, 186BXG1A)	1910 CCM	120 HP	04/2002 - 06/2010
1.6 (186AXC1A, 186BMC1A, 186BXC1A)	1596 CCM	103 HP	09/2000 - 06/2010

PALIO Weekend (178_, 173_, 373_, 374_, 171_)

Description	Cylinder Capacity	Horse Power	Year
1.2	1242 CCM	73 HP	04/1996 - 02/2004
1.6 16V (178DXD1A)	1581 CCM	100 HP	06/1996 - 02/2001
1.7 TD	1698 CCM	70 HP	04/1996 - 03/2001
1.9 D	1910 CCM	63 HP	From 03/2001
1.2 (178DYA1A, 178DXS1A)	1242 CCM	60 HP	07/1997 - 10/2004
1.6 16V	1596 CCM	103 HP	02/2001 - 01/2012
1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT)	1242 CCM	80 HP	09/2001 - 10/2004
1.9 JTD	1910 CCM	80 HP	From 09/2001

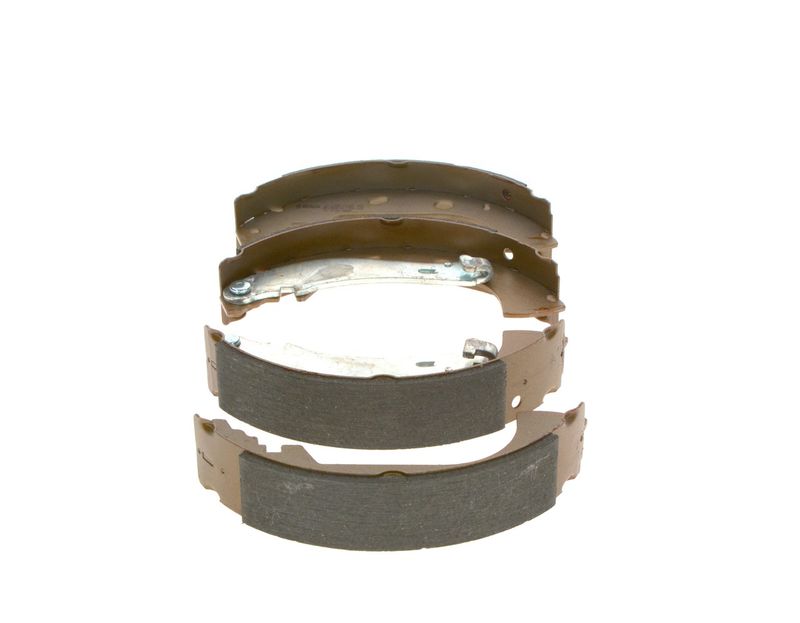

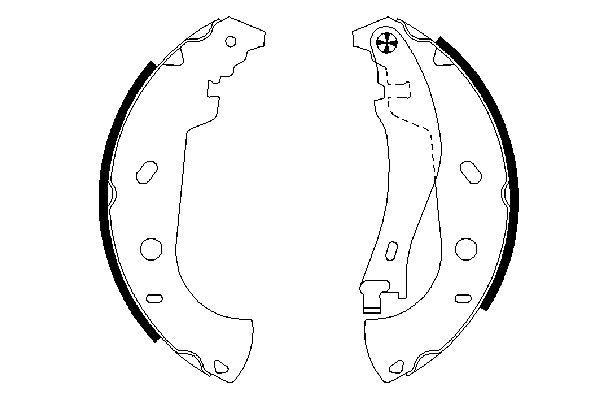

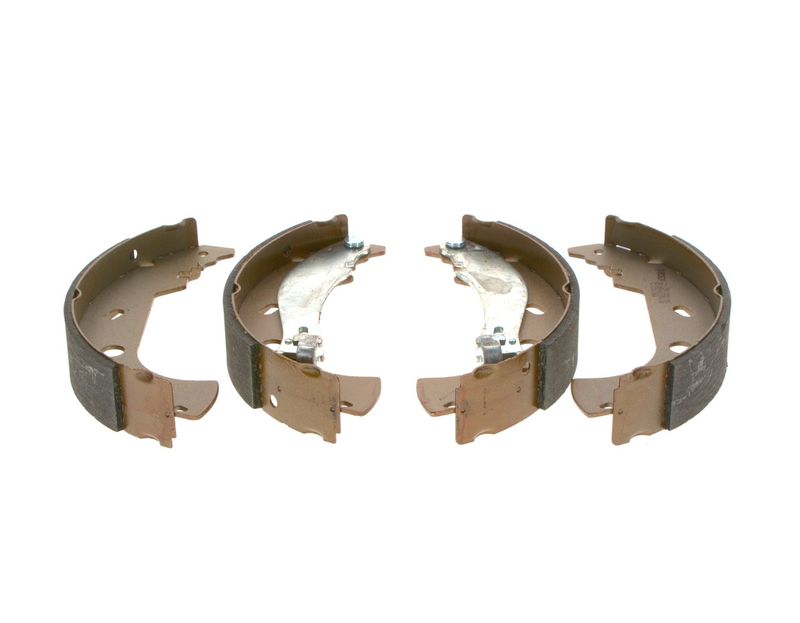

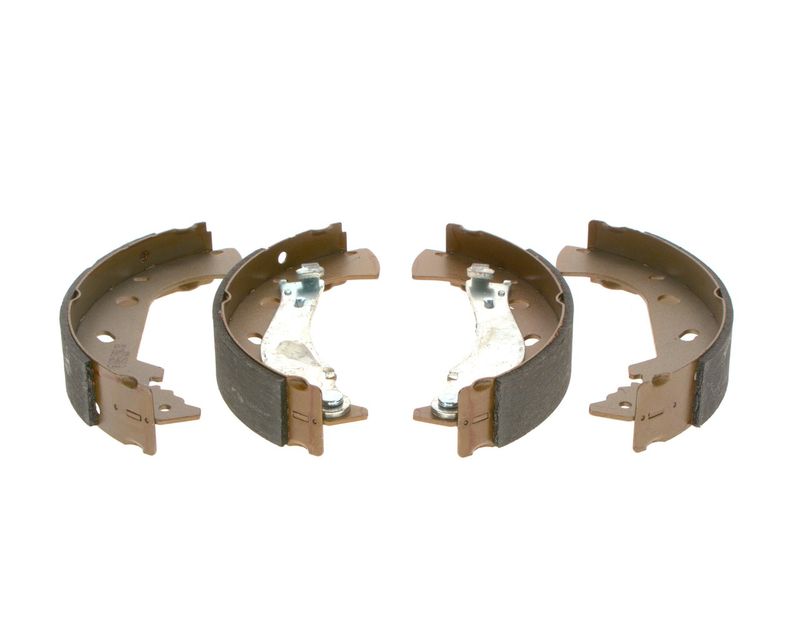

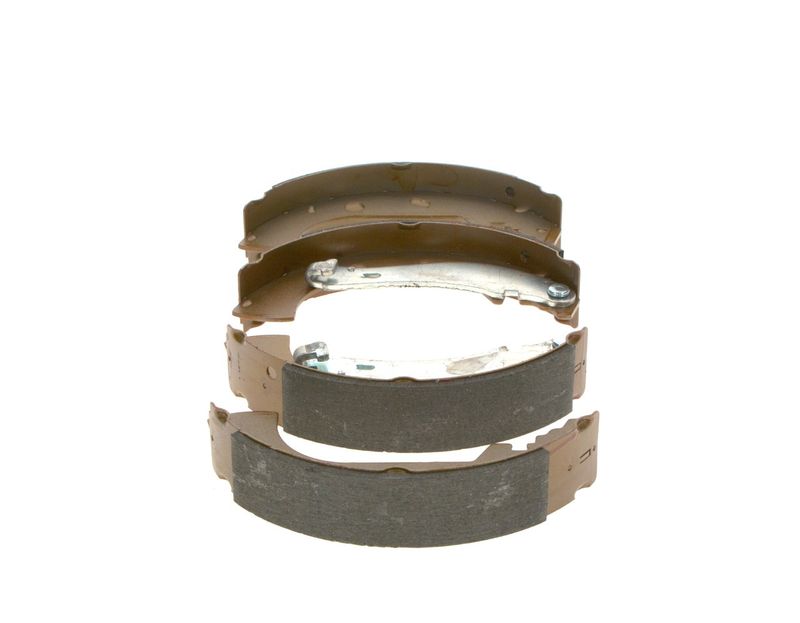

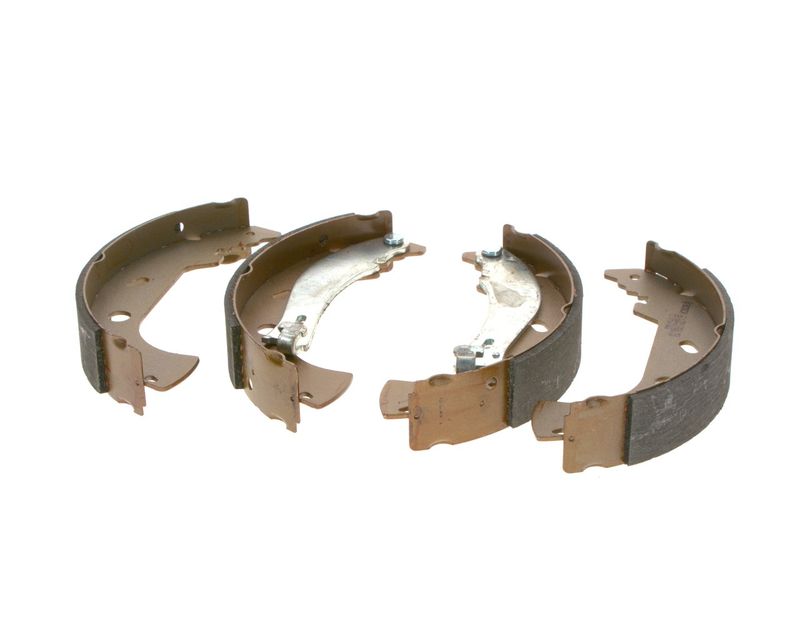

The Bosch 0986487559 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 228.6 mm inner brake drum diameter, 42 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 228.6

Width [mm] : 42

Brake Lining : with lining

Manufacturer Restriction : Lockheed System

Engine Code : 185 A3.000

Construction Year from : 10.1997

Fitting Position : Rear Axle
