BOSCH

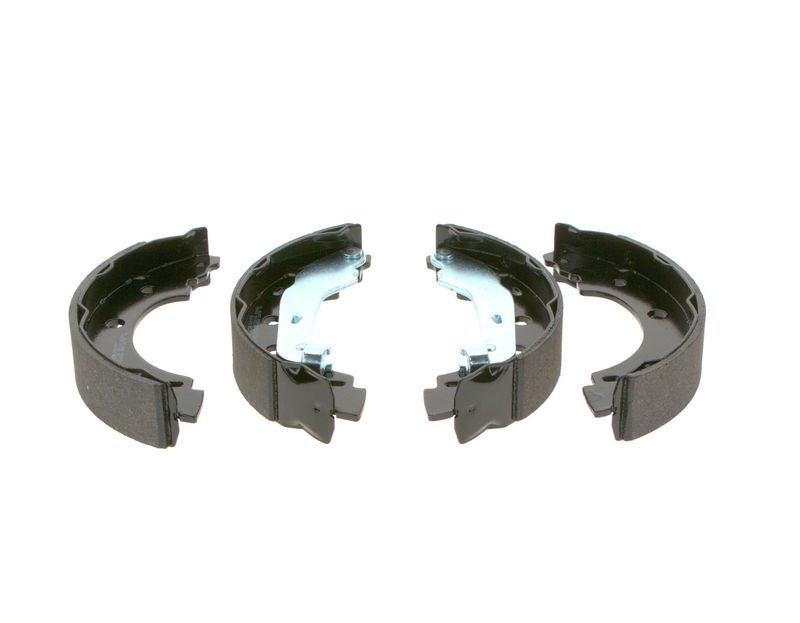

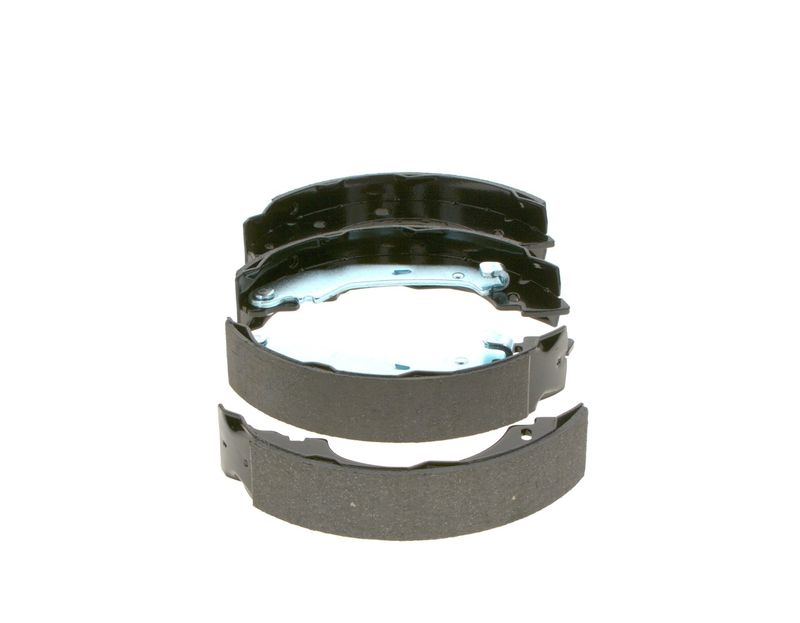

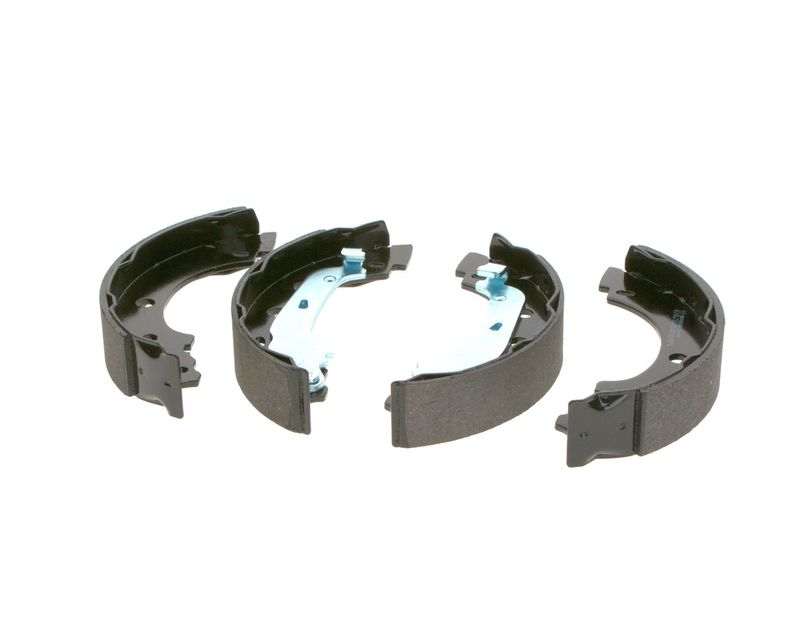

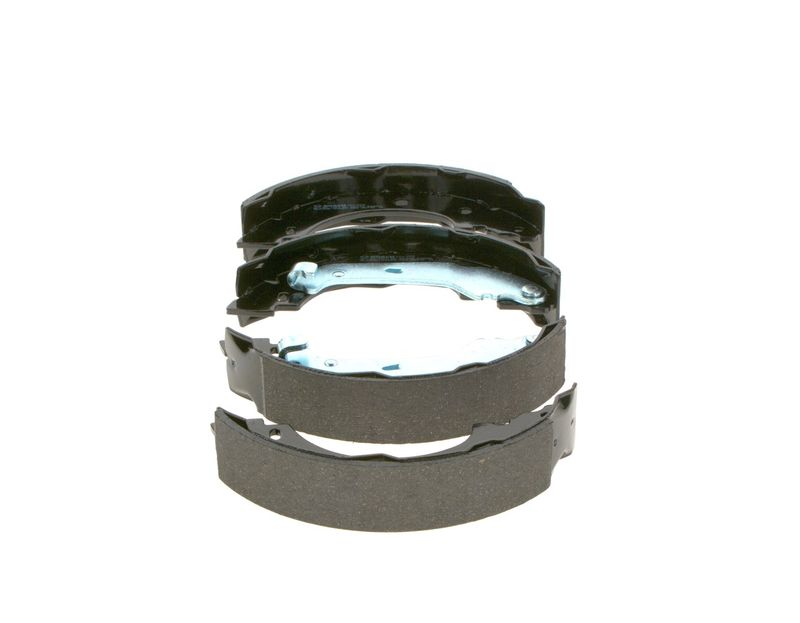

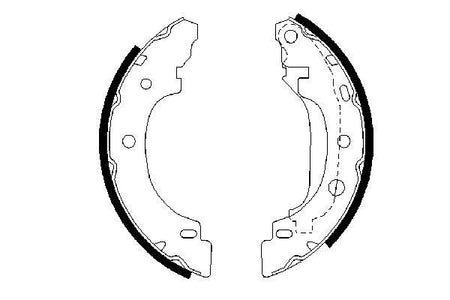

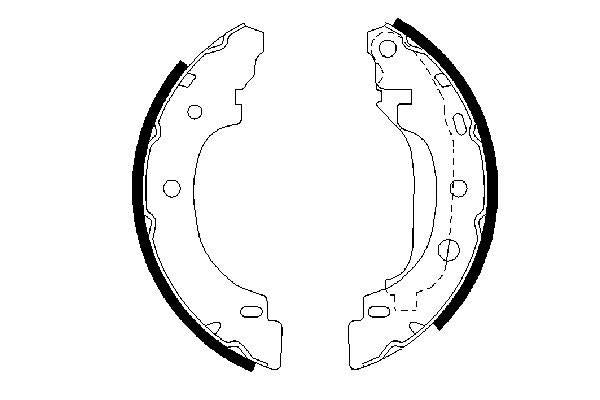

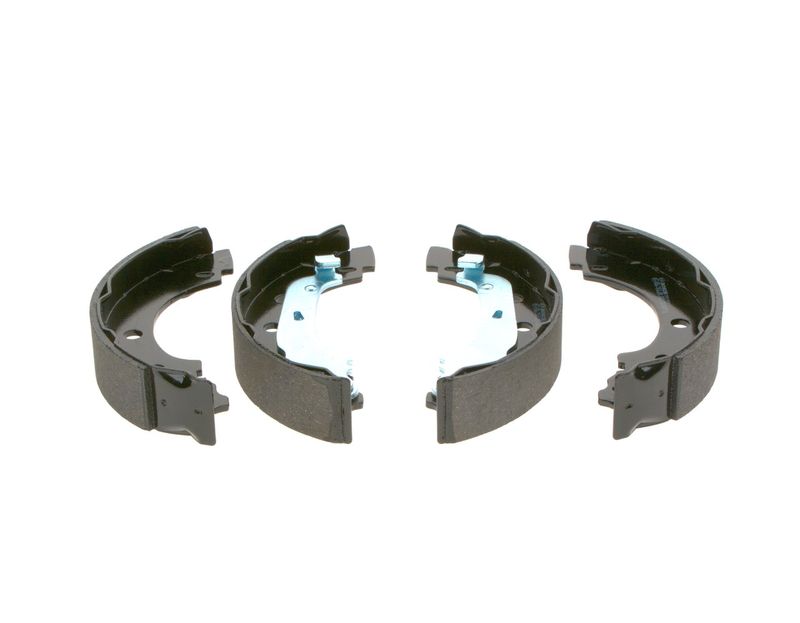

Bosch 0986487570 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986487570

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£22.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN

KUBISTAR Van (X76)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	61 HP	08/2005 - 10/2009
1.2	1149 CCM	60 HP	From 08/2003
1.2 16V	1149 CCM	75 HP	From 04/2006
1.6 16V	1598 CCM	95 HP	08/2003 - 10/2009
1.5 dCi	1461 CCM	65 HP	From 08/2003
1.5 dCi	1461 CCM	82 HP	08/2003 - 10/2009
1.5 dCi 70	1461 CCM	68 HP	09/2005 - 10/2009
dCi 85	1461 CCM	84 HP	04/2006 - 10/2009
1.5 dCi	1461 CCM	57 HP	08/2003 - 10/2009

RENAULT

KANGOO (KC0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (KC0A, KC0K, KC0F, KC01)	1149 CCM	58 HP	From 08/1997
1.4 (KC0C, KC0H, KC0B, KC0M)	1390 CCM	75 HP	From 08/1997
D 55 1.9 (KC0D)	1870 CCM	54 HP	From 08/1997
D 65 1.9 (KC0E, KC02, KC0J, KC0N)	1870 CCM	64 HP	08/1997 - 06/2001
1.9 dTi (KC0U)	1870 CCM	80 HP	From 02/2000
1.6 16V	1598 CCM	95 HP	06/2001 - 03/2018
1.2 16V (KC05, KC06, KC03, KC0T, KC0W, KC1D)	1149 CCM	75 HP	From 06/2001
1.5 dCi (KC07)	1461 CCM	65 HP	From 12/2001
1.5 dCi (KC08, KC09)	1461 CCM	82 HP	From 07/2002
1.5 dCi	1461 CCM	57 HP	From 07/2003
1.6 16V bivalent	1598 CCM	82 HP	From 06/2005
1.5 dCi	1461 CCM	68 HP	From 06/2005

KANGOO Express (FC0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	61 HP	From 10/2005
1.6 16V bivalent	1598 CCM	82 HP	From 06/2005
1.2 (FC01, FC0A, FC0F)	1149 CCM	58 HP	From 08/1997
1.4 (FC0C, FC0B, FC0H, FC0M)	1390 CCM	75 HP	08/1997 - 06/2008
D 55 1.9 (FC0D)	1870 CCM	54 HP	From 08/1997
D 65 1.9 (FC0E, FC02, FC0J, FC0N)	1870 CCM	64 HP	From 08/1997
1.9 dTi (FC0U)	1870 CCM	80 HP	From 02/2000
1.2 16V (FC05, FC0W, FC1D, FC1P, FC1K, FC0T)	1149 CCM	75 HP	From 10/2001
1.6 16V	1598 CCM	95 HP	10/2001 - 03/2018
1.5 dCi (FC07, FC1R)	1461 CCM	65 HP	From 12/2001
1.5 dCi (FC1R)	1461 CCM	57 HP	From 12/2002
1.5 dCi (FC08, FC09)	1461 CCM	82 HP	From 04/2003
1.9 dCi (FC0V)	1870 CCM	84 HP	From 07/2003

The Bosch 0986487570 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 203.2 mm inner brake drum diameter, 39 mm width, and with lining brake lining. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 203.2

Width [mm] : 39

Brake Lining : with lining

APEC : BSH1017
APEC : SHU586
BLUE PRINT : ADN14159
BORG & BECK : BBS6287
BREMBO : S 68 523
DELPHI : LAJ1000
DELPHI : LS1842
DELPHI : LY1261
HELLA : 8DB 355 002-241
HELLA : 8DB 355 004-401
MEYLE : 16-14 533 0002
MEYLE : 16-14 533 0024/K
MINTEX : MFR438
MINTEX : MSP145
NAPA : NBS1037
TEXTAR : 84052800
TEXTAR : 91052800
TRW : GS8650
VALEO : 562642
