BOSCH

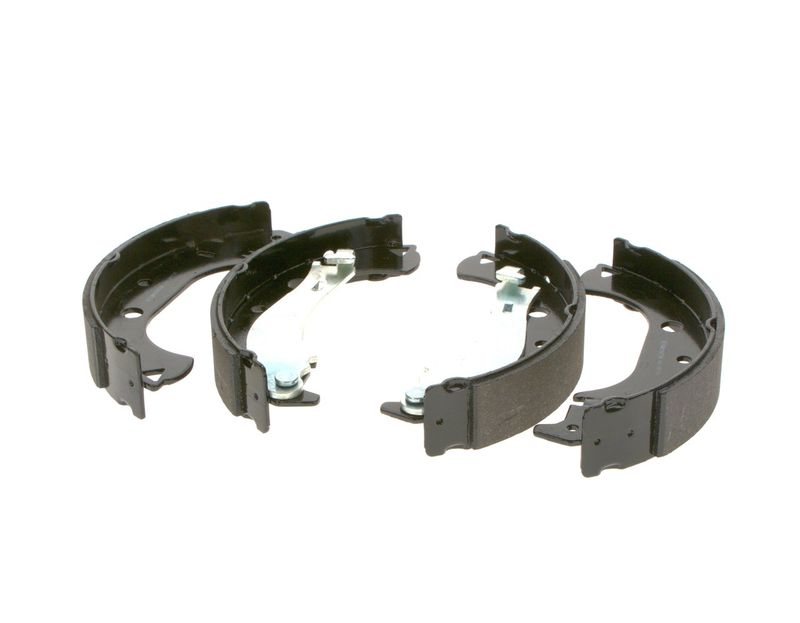

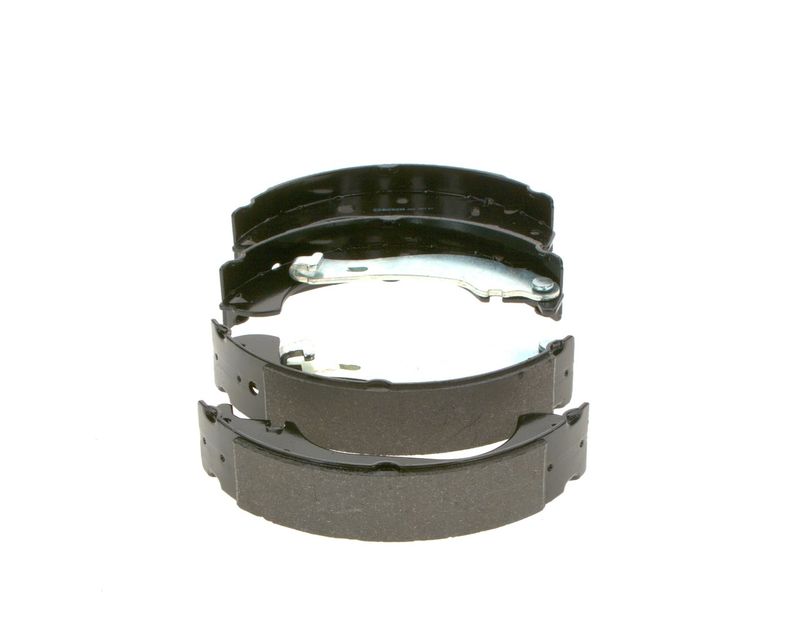

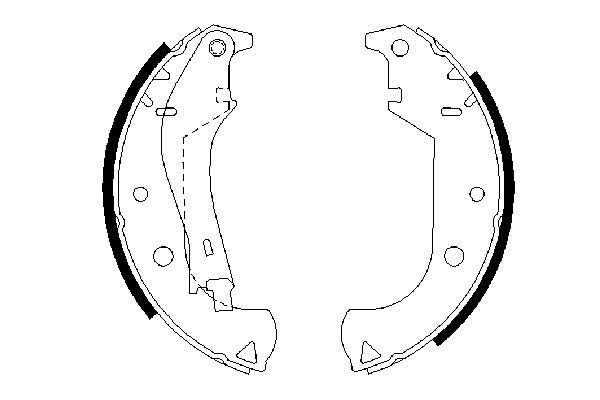

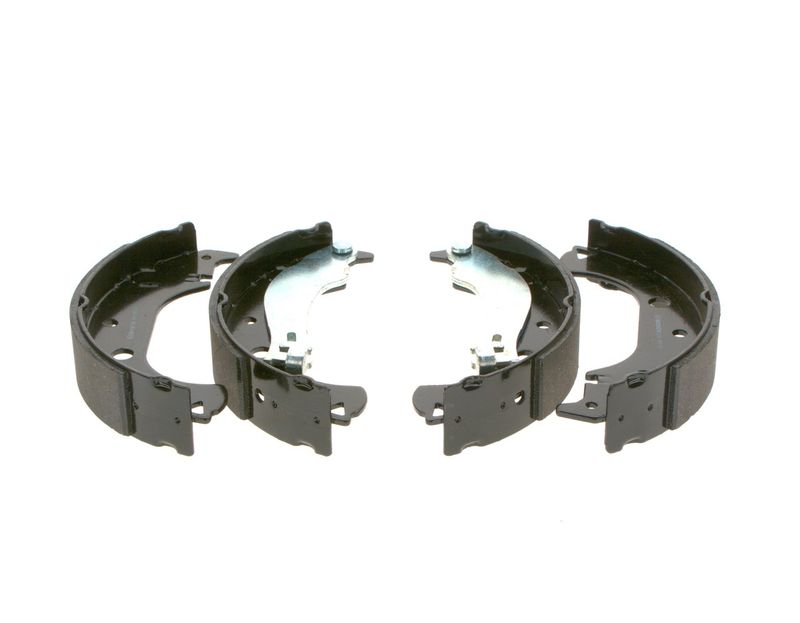

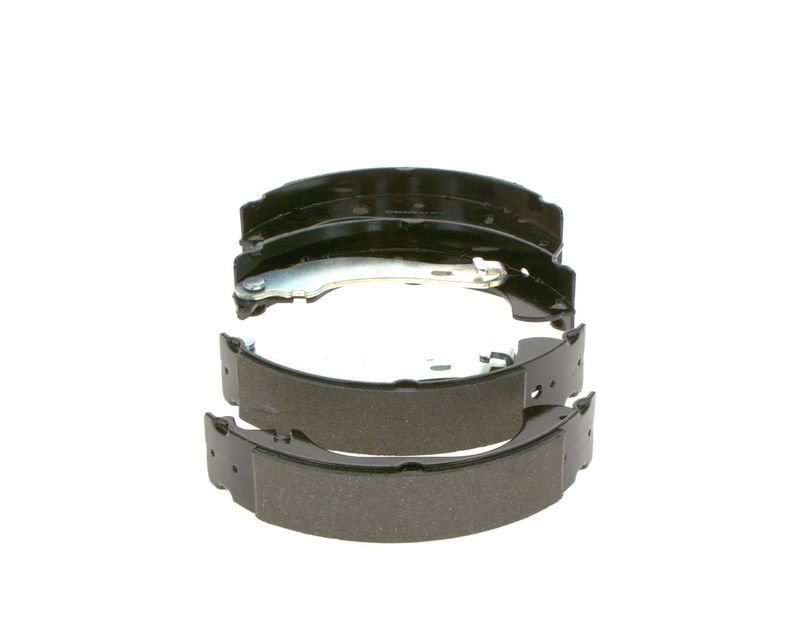

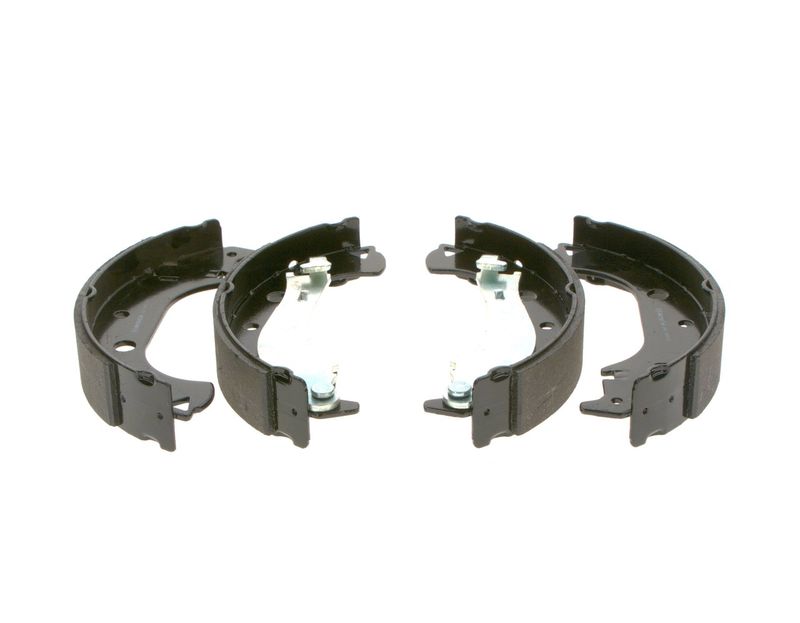

Bosch 0986487626 Brake Shoe Set

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986487626

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£25.02 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FIAT
DOBLO Box Body/MPV (223_)
Description Cylinder Capacity Horse Power Year
1.2 (223ZXA1A) 1242 CCM 65 HP 03/2001 - 01/2004
1.9 D (223ZXB1A) 1910 CCM 63 HP From 03/2001
1.6 16V (223ZXD1A) 1596 CCM 103 HP From 10/2001
1.9 JTD (223ZXE1A) 1910 CCM 100 HP From 10/2001
1.9 JTD 1910 CCM 105 HP From 07/2003
1.3 JTD 16V 1248 CCM 70 HP 05/2004 - 12/2006
1.6 Natural Power 1596 CCM 103 HP From 09/2002
DOBLO MPV (119_, 223_)
Description Cylinder Capacity Horse Power Year
1.2 (223AXA1A) 1242 CCM 65 HP From 03/2001
1.9 D (223AXB1A) 1910 CCM 63 HP From 03/2001
1.9 JTD (223AXE1A) 1910 CCM 100 HP From 10/2001
1.6 16V (223AXD1A) 1596 CCM 103 HP From 10/2001
1.9 JTD 1910 CCM 105 HP From 07/2003
1.6 Natural Power 1596 CCM 103 HP From 09/2002
1.3 JTD 16V 1248 CCM 70 HP 12/2004 - 05/2005
SIENA (178_, 172_, 372_)
Description Cylinder Capacity Horse Power Year
1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) 1242 CCM 60 HP 09/2001 - 12/2012
1.6 (178CYC1AAT) 1596 CCM 103 HP 11/2000 - 12/2012
1.4 1368 CCM 77 HP 01/2007 - 12/2009

The Bosch 0986487626 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 228.6 mm inner brake drum diameter, 42 mm width, rear axle fitting position, and ATE brake-system specification. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Inner brake drum diameter [mm] : 228.6
Width [mm] : 42
Brake Lining : with lining
Construction Year to : 09.2005
Fitting Position : Rear Axle
Brake System : ATE
  • Vendor BOSCH
  • SKU 0986487626
  • Barcode 4047026851359
  • FIAT : 7082149 77362452 98845054
  • APEC : BSH1112
  • APEC : SHU642
  • BLUE PRINT : ADBP410020
  • BORG & BECK : BBS1152K
  • BORG & BECK : BBS6317
  • BREMBO : S 23 524
  • DELPHI : LS1916
  • DELPHI : LY1301
  • FEBI BILSTEIN : 170972
  • FTE : 9100074
  • HELLA : 8DB 355 002-611
  • HELLA : 8DB 355 004-851
  • HELLA : 8DB 355 038-261
  • MEYLE : 214 533 0005
  • MINTEX : MFR515
  • TEXTAR : 91059900
  • TRW : GS8442
  • VALEO : 562806
  • BOSCH : BS861
