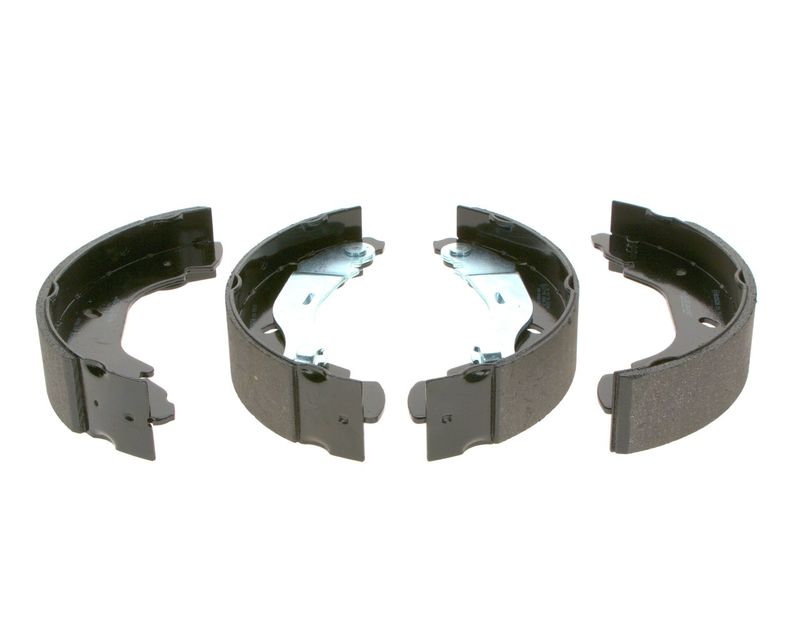

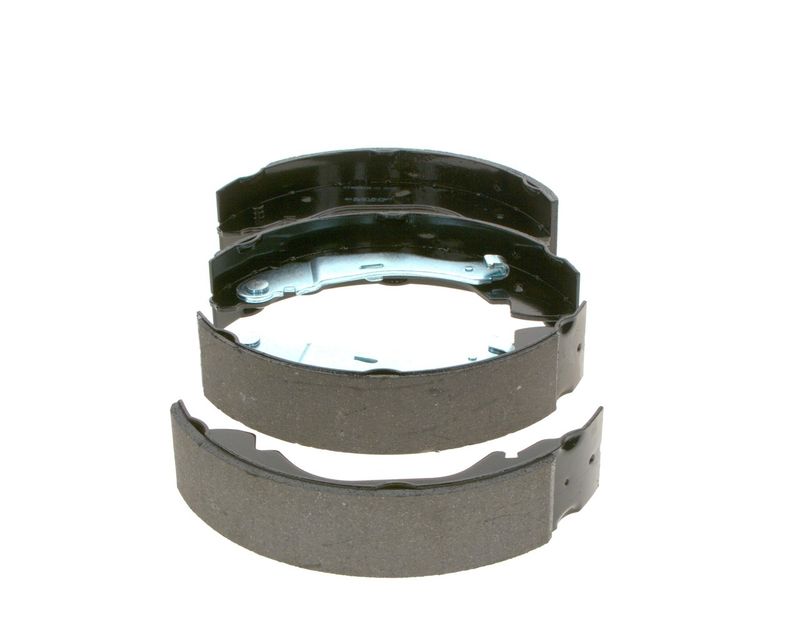

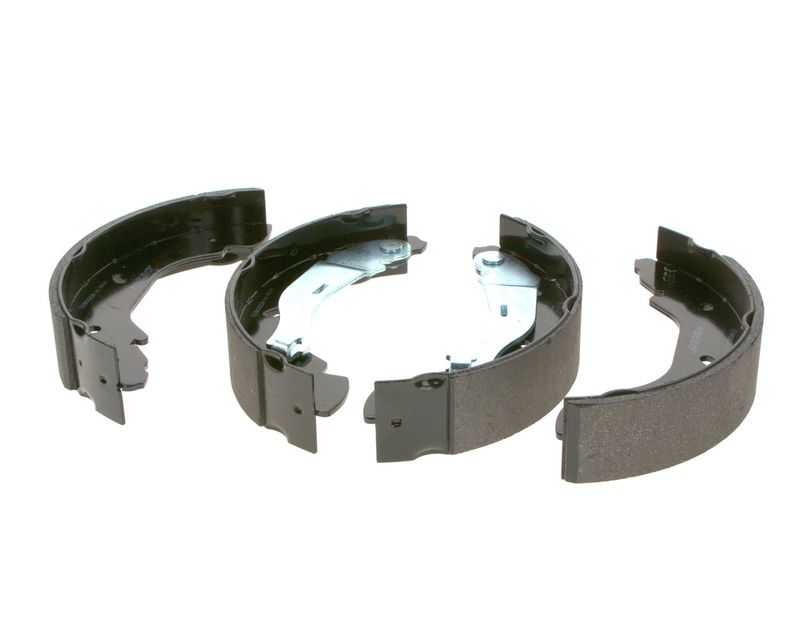

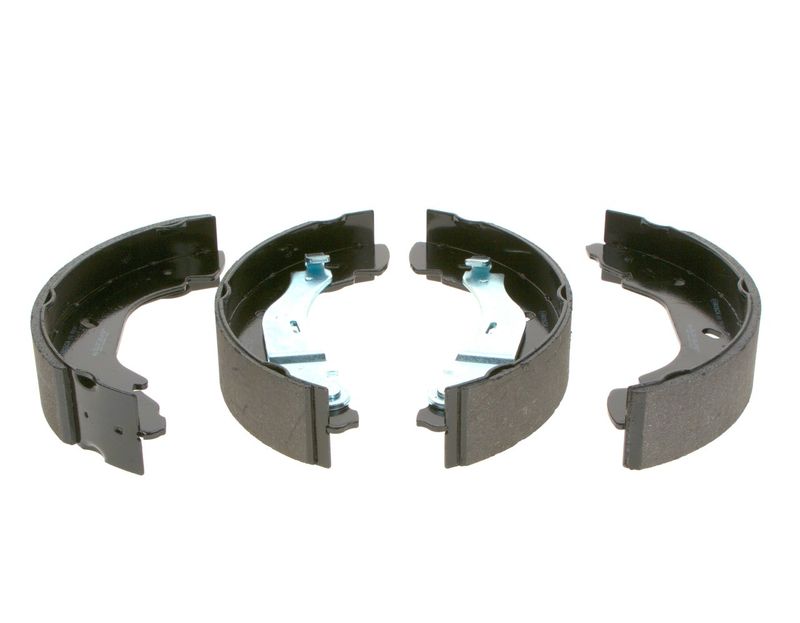

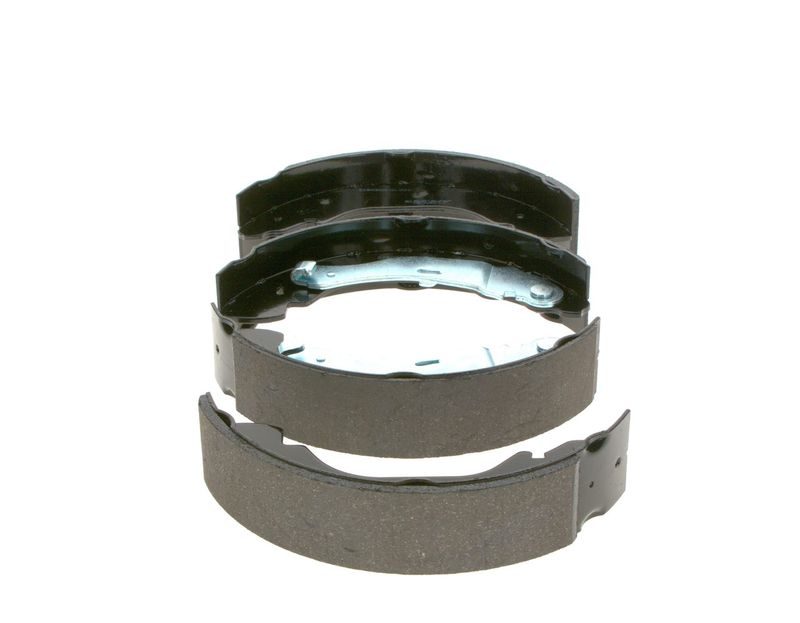

Bosch 0986487660 Brake Shoe Set

Position: Check fitment
5.0/5 78 reviews
SKU: 0986487660

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £43.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003
2.0 1998 CCM 101 HP 06/2000 - 03/2005
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014

The Bosch 0986487660 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 254 mm inner brake drum diameter, 52 mm width, and with lining brake lining. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Inner brake drum diameter [mm] : 254
Width [mm] : 52
Brake Lining : with lining
  • Vendor BOSCH
  • SKU 0986487660
  • Barcode 4047026850543
  • FORD : 1C152200AC 1227045 4095038 4110585 4540771
  • APEC : BSH1028
  • APEC : SHU637
  • BLUE PRINT : ADBP410023
  • BORG & BECK : BBS6314
  • BREMBO : S 24 538
  • DELPHI : LAJ1009
  • DELPHI : LS1915
  • DELPHI : LY1302
  • FEBI BILSTEIN : 170977
  • FTE : 9100071
  • HELLA : 8DB 355 002-511
  • HELLA : 8DB 355 005-081
  • MEYLE : 714 533 0006
  • MEYLE : 714 533 0022/K
  • MINTEX : MFR483
  • NAPA : NBS1045
  • National : NS4021
  • TEXTAR : 91059100
  • TRW : GS8689
  • VALEO : 564023
  • BOSCH : BS883
