BOSCH

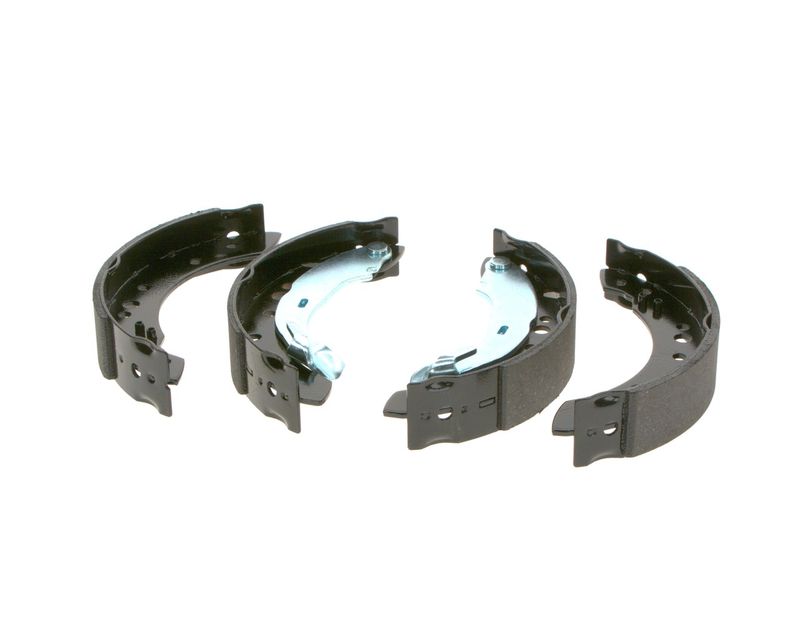

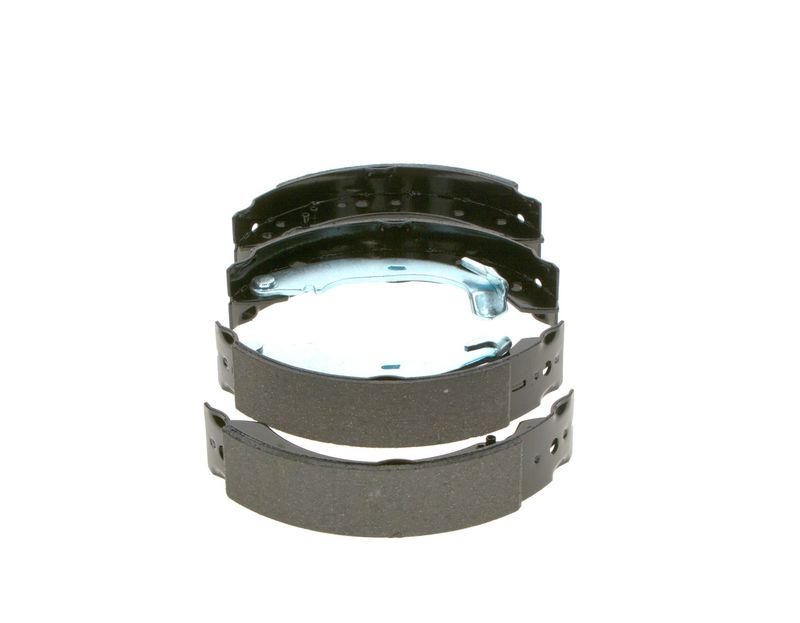

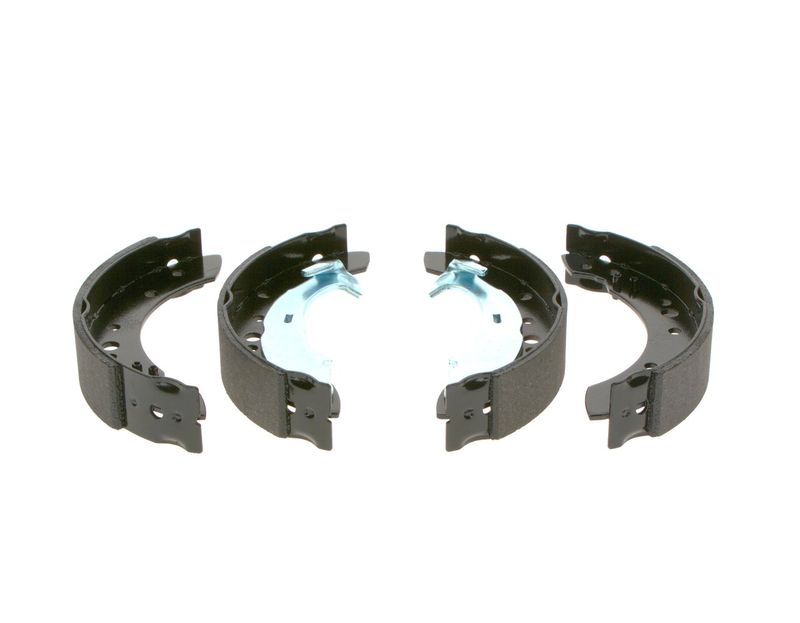

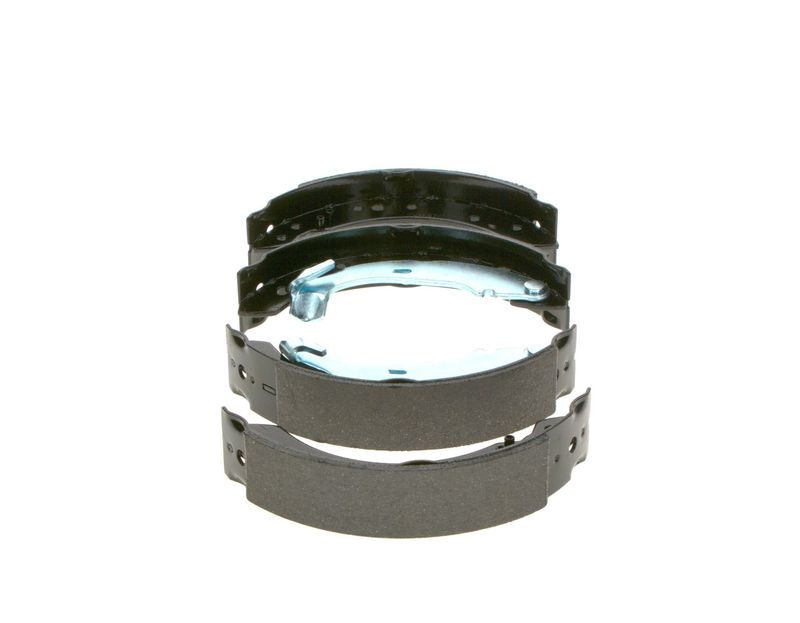

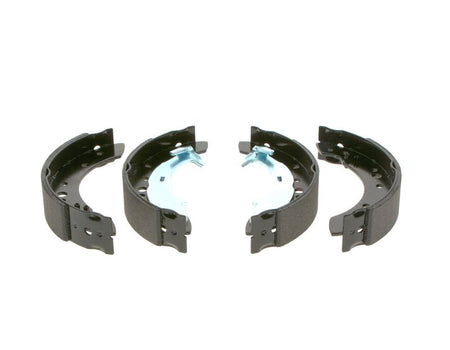

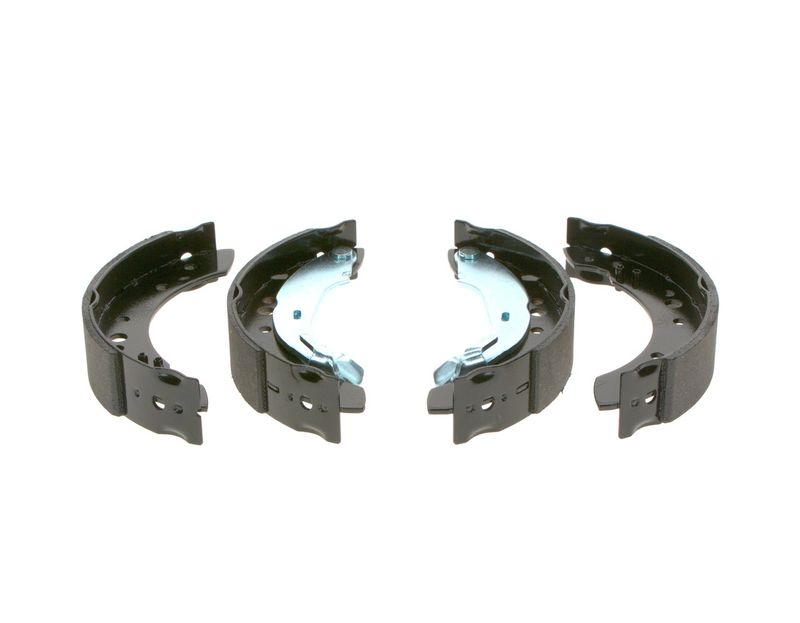

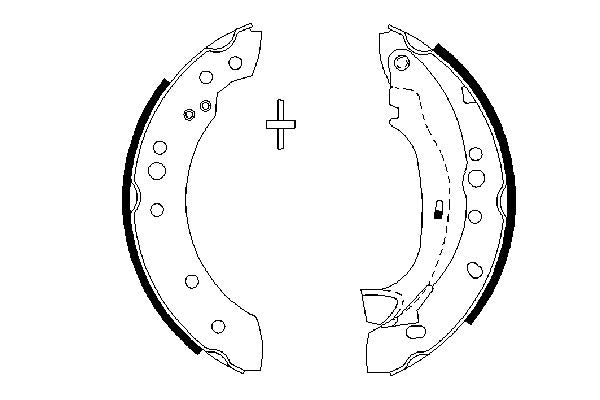

Bosch 0986487664 Brake Shoe Set

SKU: 0986487664
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£23.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C2 (JM_)
Description Cylinder Capacity Horse Power Year
1.1 1124 CCM 60 HP 09/2003 - 09/2012
1.4 1360 CCM 73 HP 09/2003 - 12/2009
1.4 HDi 1398 CCM 68 HP 07/2003 - 12/2009
1.4 16V 1360 CCM 90 HP 04/2005 - 12/2009
1.4 1360 CCM 75 HP 10/2006 - 12/2009
1.4 HDi 1398 CCM 69 HP 09/2003 - 04/2005
C2 ENTERPRISE (JG_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 68 HP 09/2006 - 12/2009
1.4 HDi 1398 CCM 69 HP 11/2003 - 04/2005
1.1 1124 CCM 60 HP 11/2003 - 12/2009
C3 I (FC_, FN_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 70 HP 04/2002 - 02/2011
1.1 i 1124 CCM 60 HP 08/2002 - 12/2010
1.4 HDi 1398 CCM 68 HP 02/2002 - 12/2009
1.4 i Bivalent 1360 CCM 73 HP 02/2002 - 12/2009
1.6 16V 1587 CCM 109 HP 02/2002 - 08/2010
1.4 16V HDi 1398 CCM 90 HP 02/2002 - 06/2008
1.4 16V 1360 CCM 88 HP 12/2003 - 08/2010
1.6 16V HDi 1560 CCM 90 HP 10/2005 - 12/2009
1.4 i 1360 CCM 73 HP 04/2002 - 12/2006
1.4 HDi 1398 CCM 75 HP 05/2005 - 12/2009
C3 Pluriel (HB_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 73 HP From 05/2003
1.4 HDi 1398 CCM 68 HP From 04/2004
1.4 1360 CCM 75 HP From 07/2003
PEUGEOT
1007 (KM_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 75 HP From 04/2005
1.4 HDi 1398 CCM 68 HP From 04/2005
1.4 16V 1360 CCM 88 HP From 10/2005

The Bosch 0986487664 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 203.2 mm inner brake drum diameter, 38 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Inner brake drum diameter [mm] : 203.2
Width [mm] : 38
Brake Lining : with lining
Engine Code : HFX (TU1JP)
Construction Year to : 12.2009
Fitting Position : Rear Axle
Manufacturer Restriction : LUCAS
  • Vendor BOSCH
  • SKU 0986487664
  • Barcode 4047026851304
  • CITROËN : 4241 L0
  • PEUGEOT : 4241 L0
  • APEC : BSH1029
  • APEC : SHU638
  • BLUE PRINT : ADBP410012
  • BORG & BECK : BBS6335
  • BREMBO : S 61 526
  • DELPHI : LAJ1003
  • DELPHI : LS1921
  • DELPHI : LY1304
  • FEBI BILSTEIN : 170885
  • FTE : 9100075
  • HELLA : 8DB 355 002-601
  • HELLA : 8DB 355 004-731
  • HELLA : 8DB 355 004-741
  • MEYLE : 11-14 533 0019
  • MEYLE : 11-14 533 0023/K
  • MINTEX : MFR590
  • NAPA : NBS1046
  • National : NS4032
  • TEXTAR : 91059800
  • TRW : GS8467
  • BOSCH : BS885
