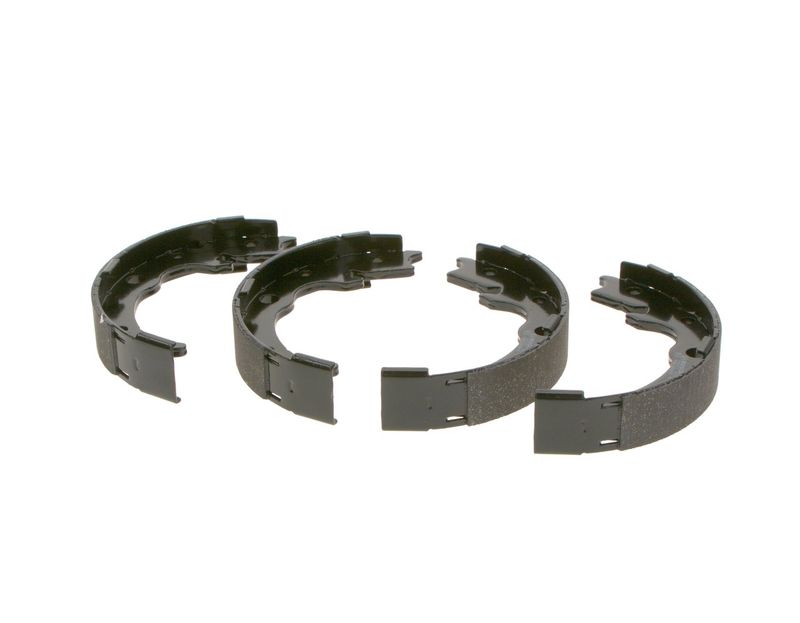

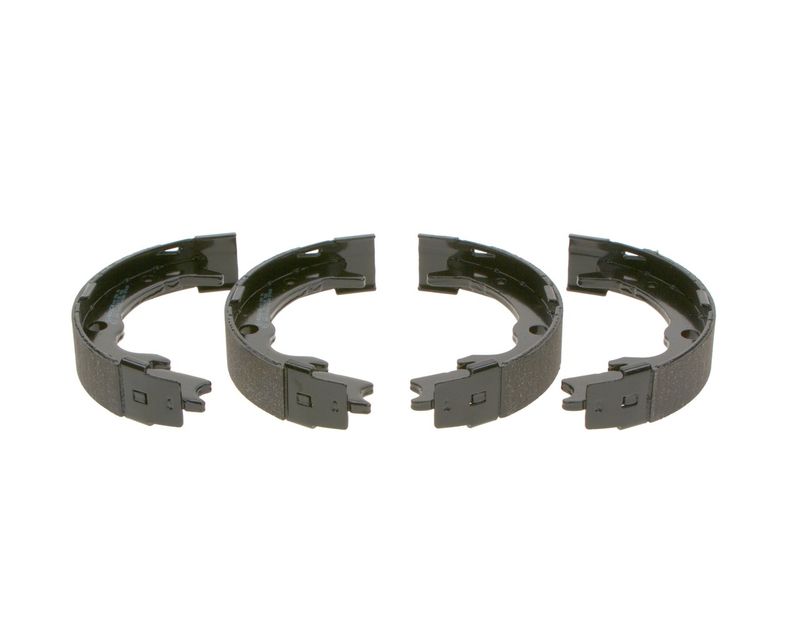

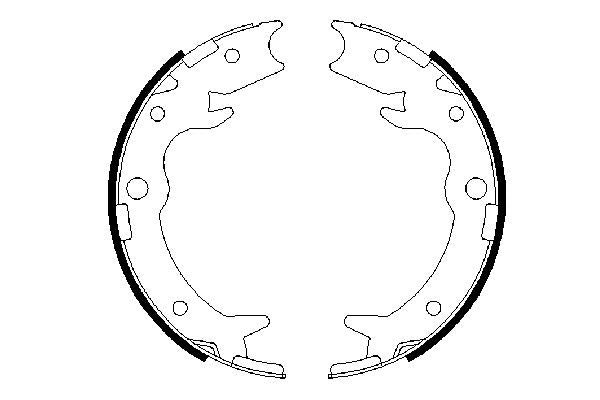

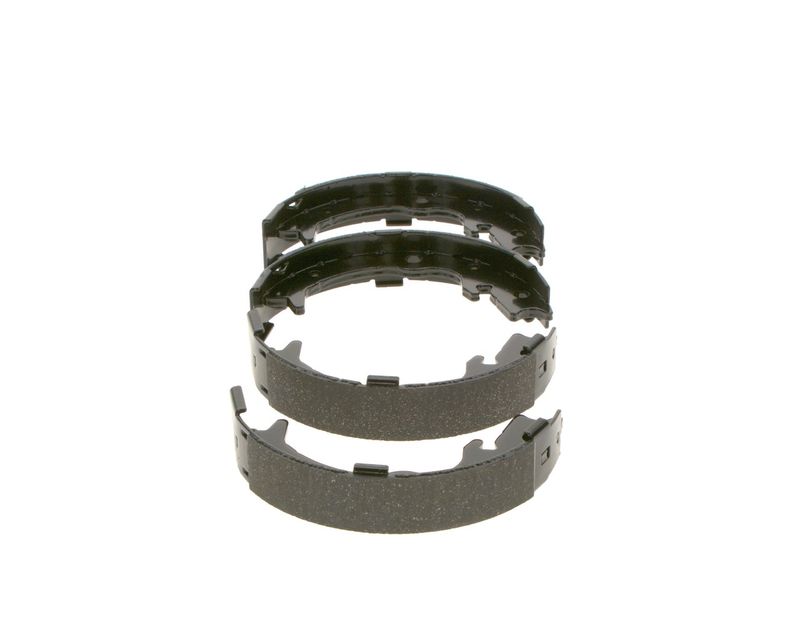

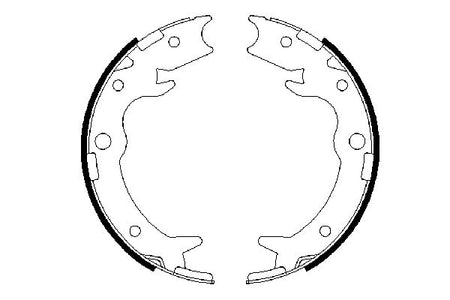

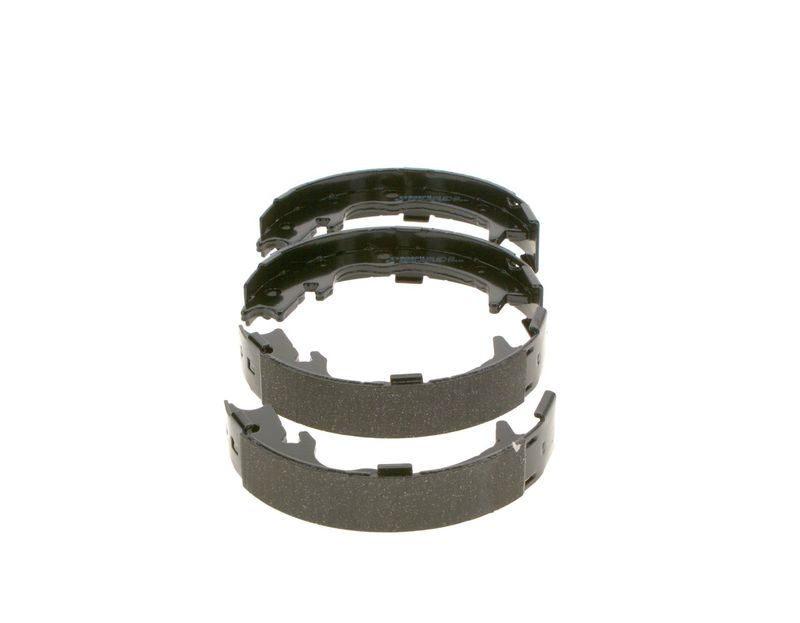

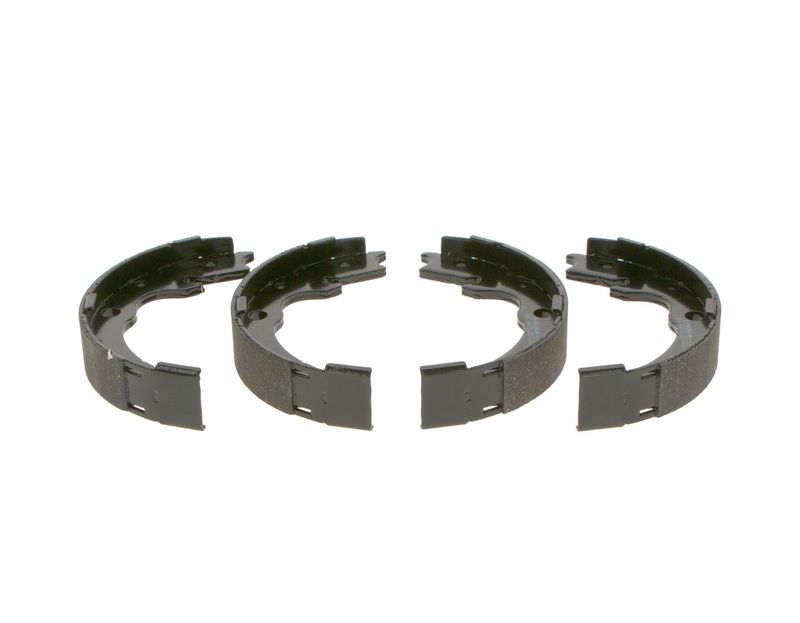

Bosch 0986487686 Handbrake Shoe Set

SKU: 0986487686

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£25.33 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA

FR-V (BE)

Description	Cylinder Capacity	Horse Power	Year
2.2 i CTDi (BE5)	2204 CCM	140 HP	07/2005 - 12/2009
2.0 (BE3)	1998 CCM	150 HP	02/2005 - 12/2006
1.7 (BE1)	1668 CCM	125 HP	08/2004 - 09/2006
1.8 (BE1)	1799 CCM	140 HP	01/2007 - 12/2009

STREAM (RN)

Description	Cylinder Capacity	Horse Power	Year
1.7 16V (RN1)	1668 CCM	125 HP	05/2001 - 09/2006
2.0 16V (RN3)	1998 CCM	156 HP	05/2001 - 09/2006

The Bosch 0986487686 Handbrake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 32 mm width, 167.4 mm inner brake drum diameter, and rear axle fitting position. It is listed in the brake Shoe Set, parking brake product category. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set, parking brake

Width [mm] : 32

Inner brake drum diameter [mm] : 167.4

Fitting Position : Rear Axle

APEC : BSH1123
APEC : SHU699
BLUE PRINT : ADH24116
BORG & BECK : BBS6321
BREMBO : S 28 516
DELPHI : LS1900
DELPHI : LY1351
FTE : 9100152
HELLA : 8DA 355 050-621
MINTEX : MFR613
NAPA : NBS5021
TEXTAR : 91062800
TRW : GS8697
