BOSCH

Bosch 0986487697 Brake Shoe Set

SKU: 0986487697

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£23.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

GETZ (TB)

Description	Cylinder Capacity	Horse Power	Year
1.3	1341 CCM	83 HP	09/2004 - 06/2009
1.5 CRDi	1493 CCM	82 HP	03/2003 - 09/2005
1.6	1599 CCM	106 HP	09/2002 - 09/2005
1.3 i	1341 CCM	82 HP	09/2002 - 03/2004
1.1	1086 CCM	63 HP	09/2002 - 09/2005
1.3	1341 CCM	85 HP	10/2002 - 09/2005
1.1	1086 CCM	67 HP	09/2005 - 06/2009
1.4 i	1399 CCM	97 HP	08/2005 - 12/2010
1.5 CRDi	1493 CCM	88 HP	08/2005 - 06/2009
1.5 CRDi GLS	1493 CCM	110 HP	08/2005 - 06/2009
1.6	1599 CCM	106 HP	06/2005 - 06/2009

SOLARIS Saloon (HCR, HCI)

Description	Cylinder Capacity	Horse Power	Year
1.6	1591 CCM	122 HP	From 01/2017
1.6	1591 CCM	121 HP	From 01/2017

KIA

RIO IV (YB, SC, FB)

Description	Cylinder Capacity	Horse Power	Year
1.25	1248 CCM	84 HP	From 01/2017
1.4	1368 CCM	99 HP	From 01/2017
1.0 T-GDI 100	998 CCM	101 HP	From 01/2017
1.0 T-GDI 120	998 CCM	120 HP	From 01/2017
1.4 CRDi 77	1396 CCM	78 HP	From 01/2017
1.4 CRDi 90	1396 CCM	90 HP	From 01/2017
1.25 LPG	1248 CCM	82 HP	From 05/2019
1.0 T-GDI 120 Eco-Dynamics+	998 CCM	120 HP	08/2020 - 04/2023
1.2 CVVT	1197 CCM	84 HP	From 05/2020
1.0 T-GDI 100 Eco-Dynamics+	998 CCM	101 HP	08/2020 - 04/2023

STONIC (YB)

Description	Cylinder Capacity	Horse Power	Year
1.2 CVVT	1248 CCM	84 HP	07/2017 - 12/2025
1.4 CVVT	1368 CCM	99 HP	07/2017 - 12/2025
1.0 T-GDi	998 CCM	120 HP	From 07/2017
1.6 CRDi	1582 CCM	110 HP	07/2017 - 12/2025
1.4 LPG	1368 CCM	97 HP	11/2018 - 12/2025
1.0 T-GDi Eco-Dynamics+	998 CCM	120 HP	From 07/2020
1.0 T-GDi Eco-Dynamics+	998 CCM	101 HP	From 01/2021
1.0 T-GDi 48V	998 CCM	116 HP	From 09/2025

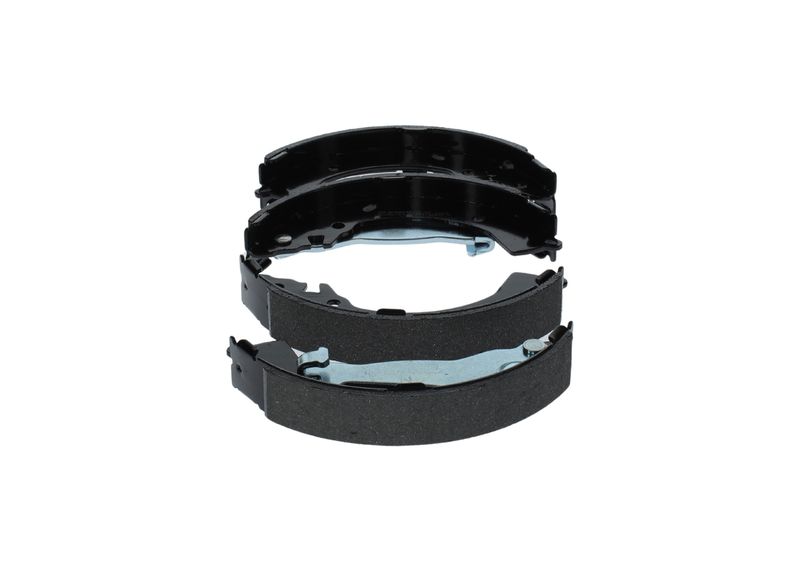

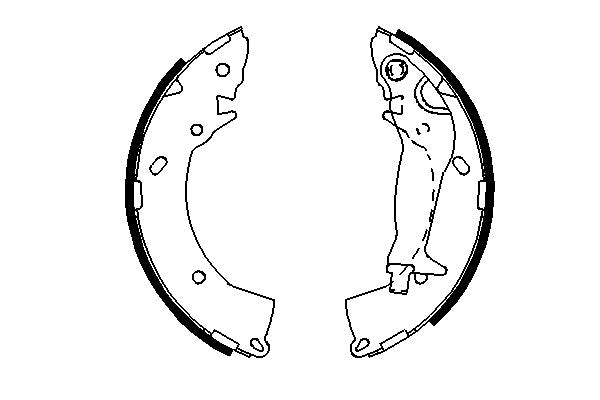

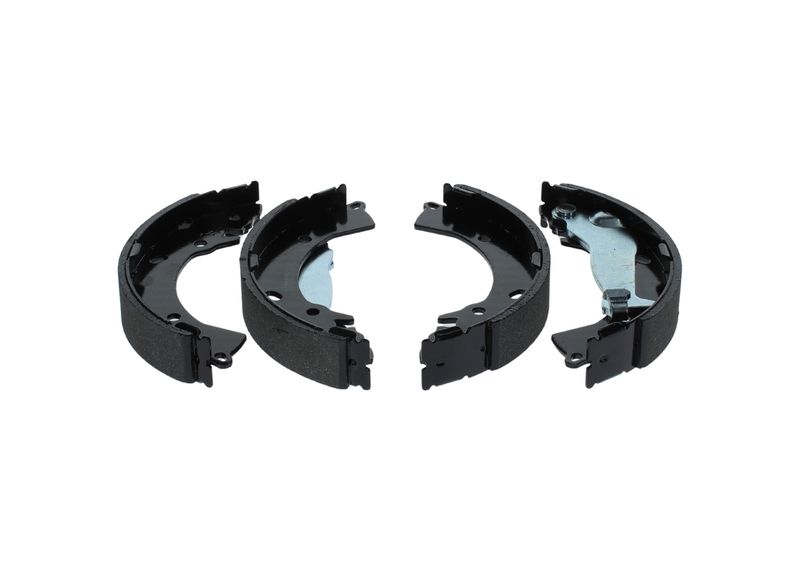

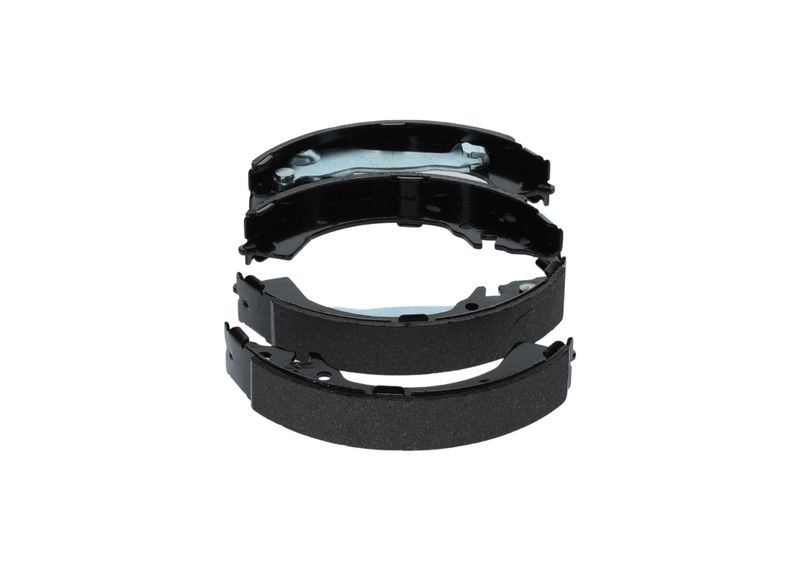

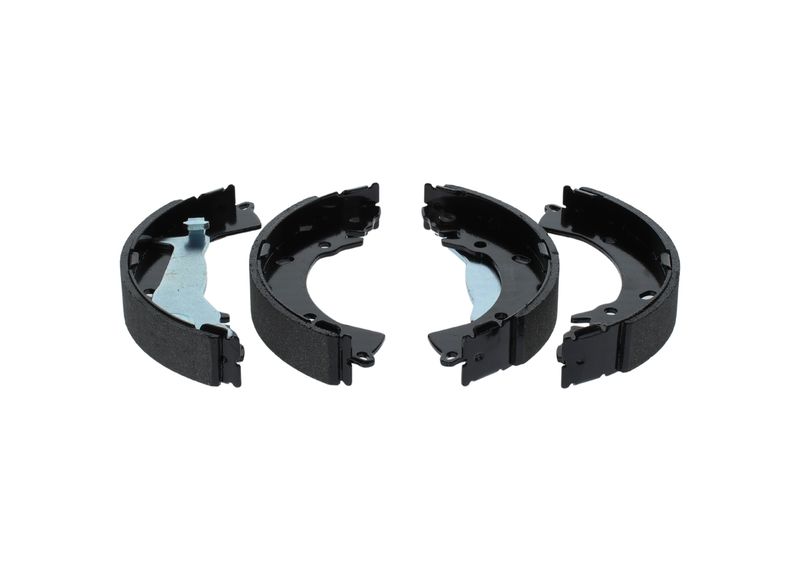

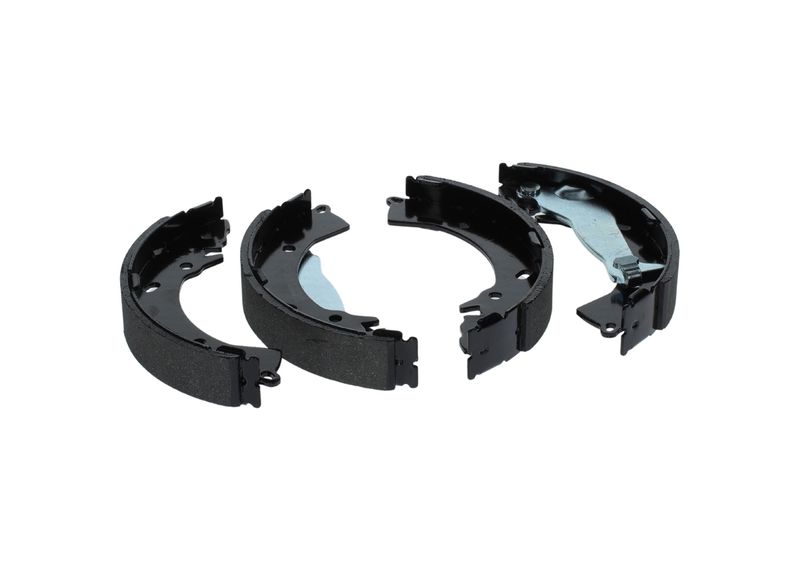

The Bosch 0986487697 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 203.2 mm inner brake drum diameter, 31.5 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 203.2

Width [mm] : 31.5

Brake Lining : with lining

Engine Code : G4HD

Fitting Position : Rear Axle

Braking/Driving Dynamics : for vehicles with ABS

APEC : BSH1117
APEC : SHU679
BLUE PRINT : ADG04140
BORG & BECK : BBS6345
BREMBO : S 30 519
DELPHI : LAJ1017
DELPHI : LS1966
DELPHI : LS2150
DELPHI : LY1375
DELPHI : LY1438
FTE : 9100104
HELLA : 8DB 355 002-821
HELLA : 8DB 355 022-611
MEYLE : 37-14 533 0002
MEYLE : 37-14 533 0002/K
MINTEX : MFR559
MINTEX : MSP327
TEXTAR : 84063300
TEXTAR : 91063300
TRW : GS8707
TRW : GS8737
VALEO : 564090
VALEO : 564091

Bosch 0986487697 Brake Shoe Set
