BOSCH

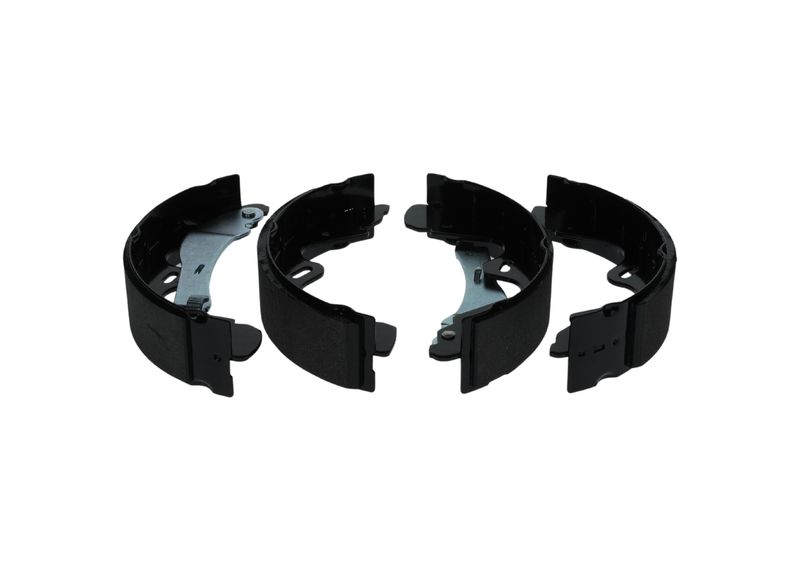

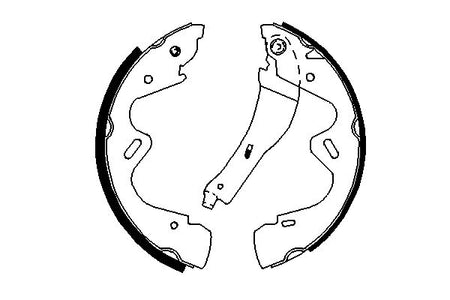

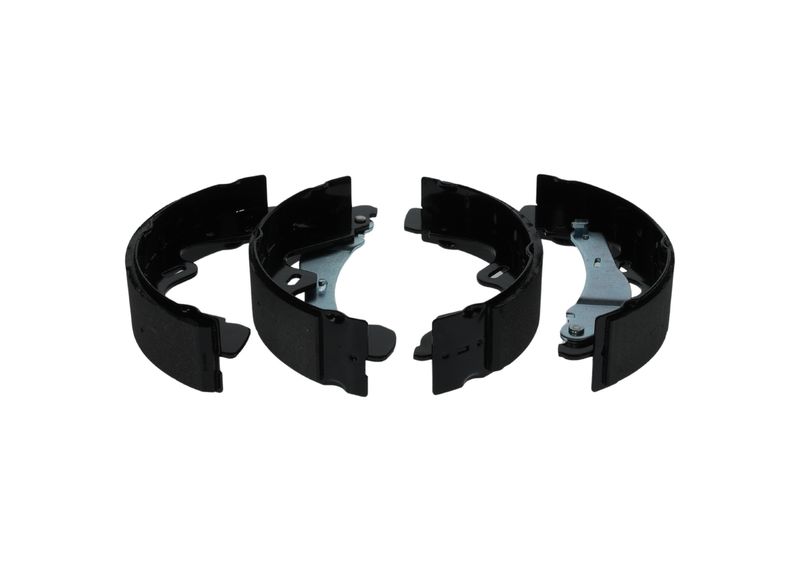

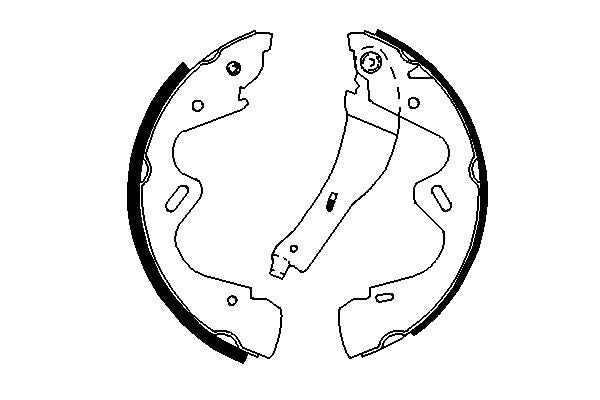

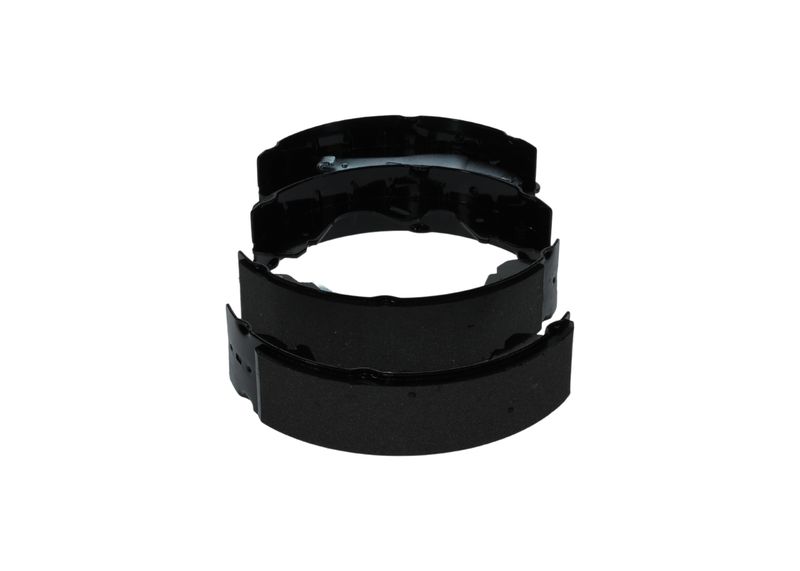

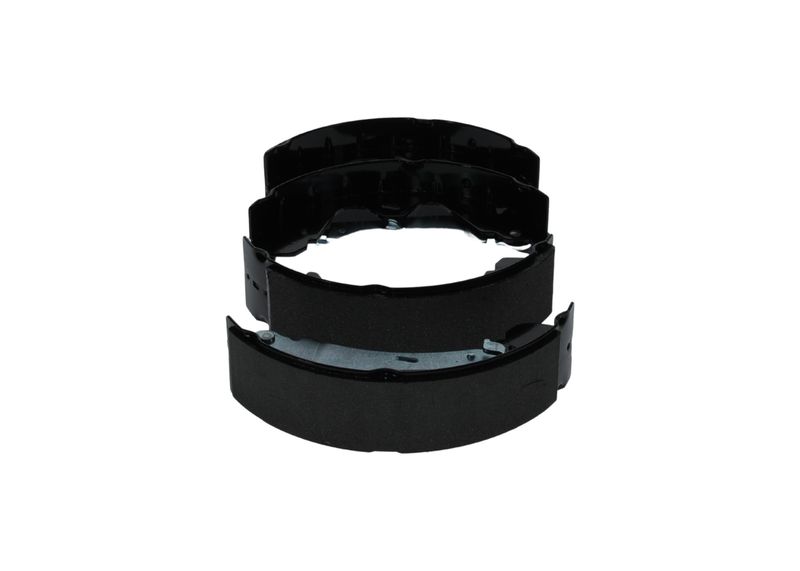

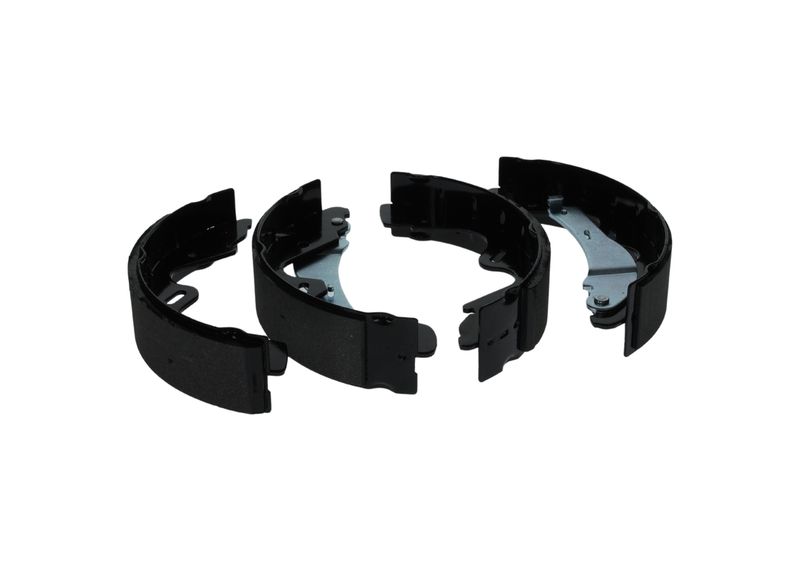

Bosch 0986487700 Brake Shoe Set

SKU: 0986487700

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£42.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

CABSTAR E (TL_, VL_)

Description	Cylinder Capacity	Horse Power	Year
3.0 110.35 (TL0)	2953 CCM	110 HP	09/2000 - 04/2004
105.35, 110.35, 110.45 (TL0)	2953 CCM	106 HP	10/1998 - 10/2006
120.35, 120.45 (TL0)	2953 CCM	120 HP	10/1998 - 10/2006
125.35, 125.45 (TL0, VL0)	2953 CCM	125 HP	10/1998 - 10/2006
28.10, 32.10	2953 CCM	105 HP	01/2004 - 11/2006

TERRANO II (R20)

Description	Cylinder Capacity	Horse Power	Year
2.7 TD 4WD	2664 CCM	101 HP	02/1993 - 01/2002
2.4 4WD	2389 CCM	116 HP	05/1996 - 01/2002
2.4 4WD	2389 CCM	118 HP	05/1996 - 09/2007
2.7 TDi 4WD	2664 CCM	125 HP	05/1996 - 09/2007
3.0 Di 4WD	2953 CCM	154 HP	05/2002 - 09/2007

TERRANO II Van (R20)

Description	Cylinder Capacity	Horse Power	Year
2.7 TDi 4WD	2664 CCM	125 HP	06/1998 - 09/2007
3.0 Di 4WD	2953 CCM	154 HP	04/2003 - 09/2007

The Bosch 0986487700 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 280 mm inner brake drum diameter, 65 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 280

Width [mm] : 65

Brake Lining : with lining

Construction Year from : 11.1999

Fitting Position : Rear Axle

APEC : BSH1118
APEC : SHU682
BORG & BECK : BBS6355
BREMBO : S 56 517
DELPHI : LS2019
DELPHI : LY1302
FTE : 9100158
HELLA : 8DB 355 002-941
HELLA : 8DB 355 022-991
MEYLE : 36-14 533 0014
MINTEX : MFR588
MINTEX : MSP329
NAPA : NBS1056
National : NS4064
TEXTAR : 84065100
TEXTAR : 91065100
TRW : GS8483
VALEO : 564100

Bosch 0986487700 Brake Shoe Set
