BOSCH

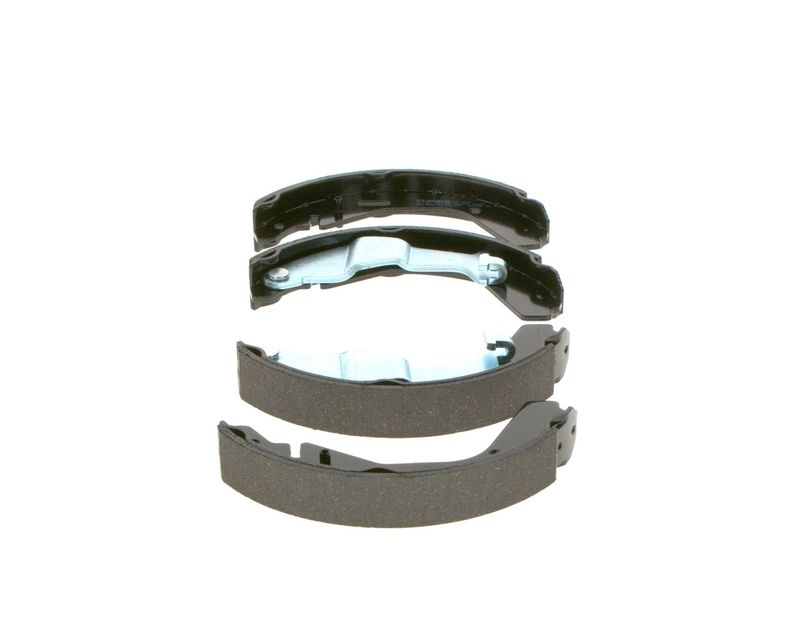

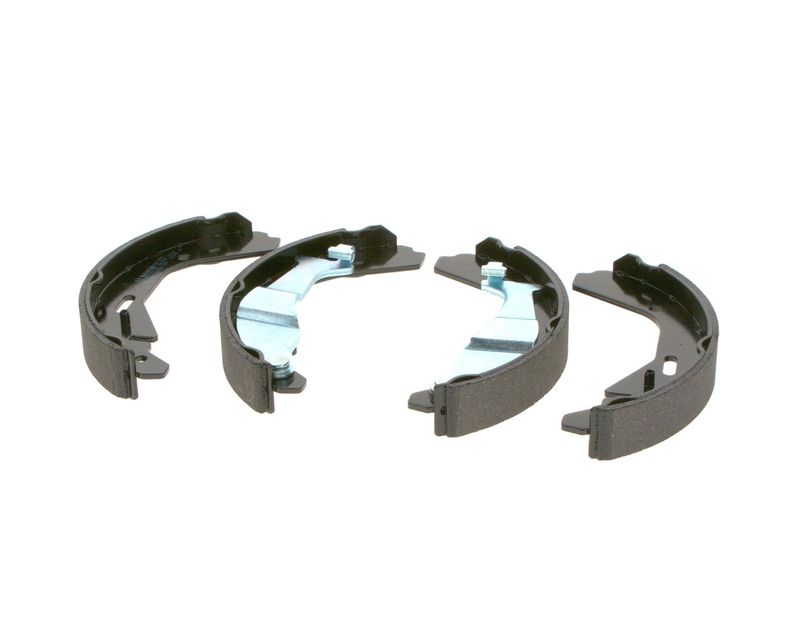

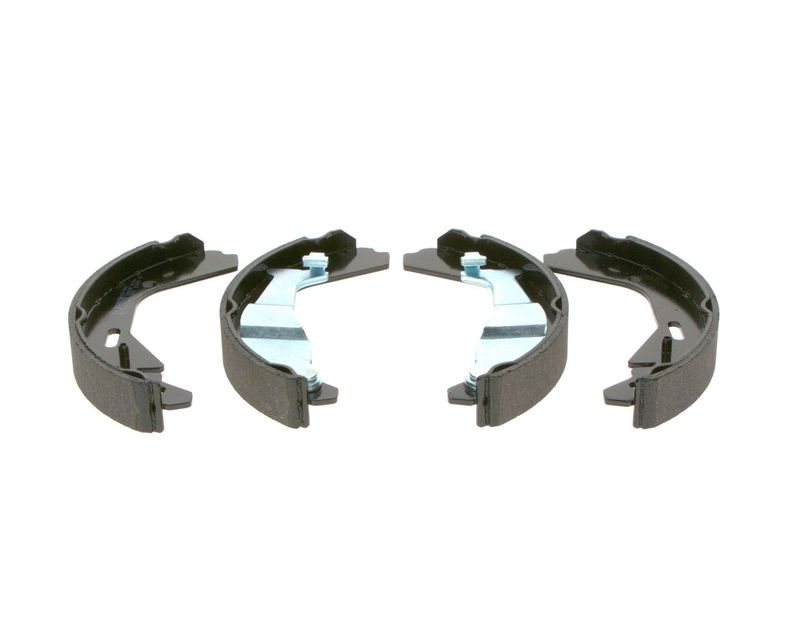

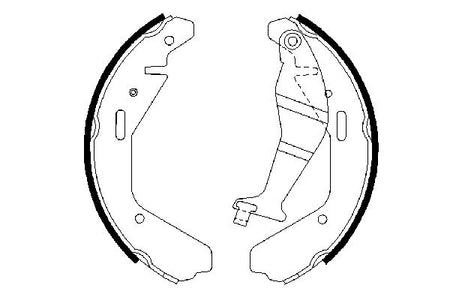

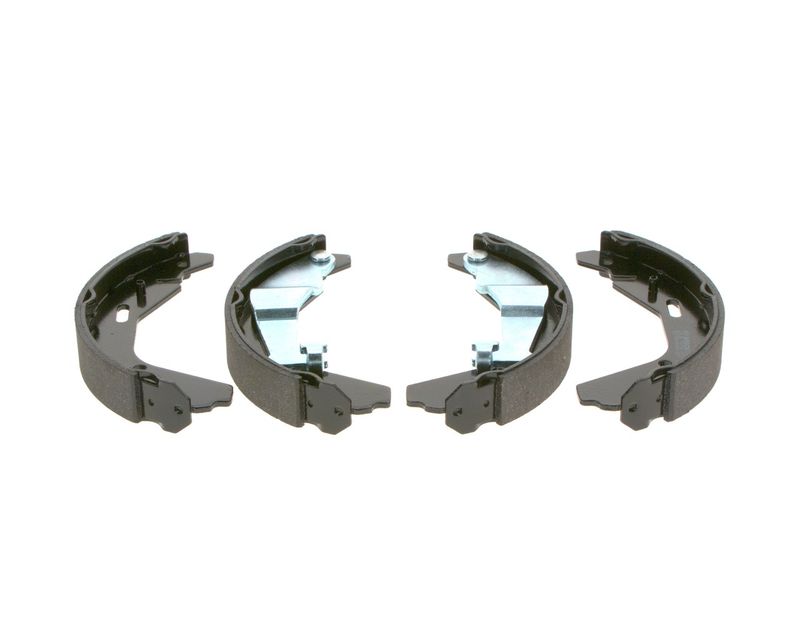

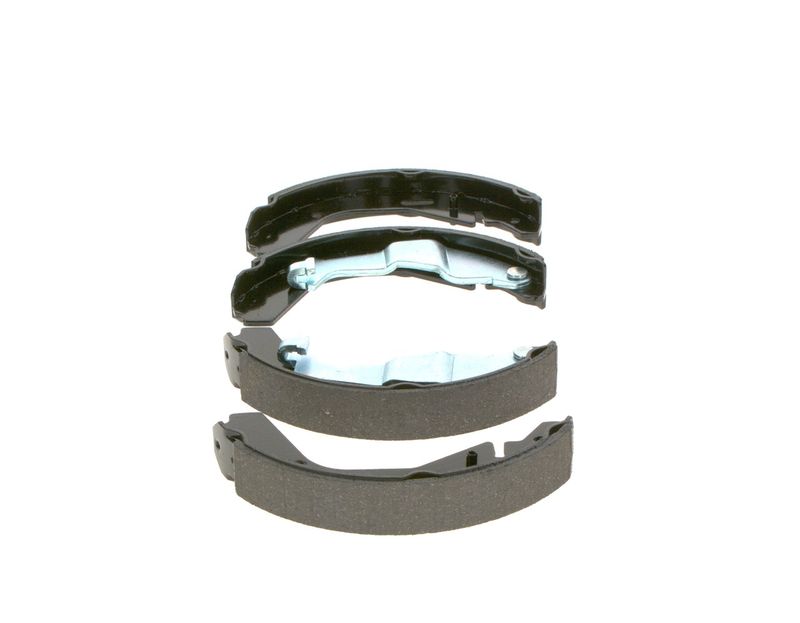

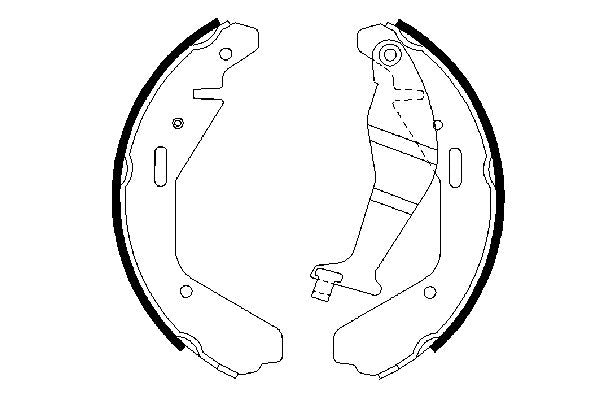

Bosch 0986487707 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986487707

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£26.43 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

OPEL

AGILA A (H00)

Description	Cylinder Capacity	Horse Power	Year
1.0 12V (F68)	973 CCM	58 HP	09/2000 - 12/2007
1.2 16V (F68)	1199 CCM	75 HP	09/2000 - 12/2007
1.0 (F68)	998 CCM	60 HP	08/2003 - 12/2007
1.3 CDTI (F68)	1248 CCM	70 HP	08/2003 - 12/2007
1.2 16V Twinport (F68)	1229 CCM	80 HP	07/2004 - 12/2007

SUBARU

JUSTY III (G3X)

Description	Cylinder Capacity	Horse Power	Year
1.3 AWD (G3X413)	1328 CCM	94 HP	From 09/2003
1.5 AWD (G3X413)	1490 CCM	99 HP	From 09/2003

SUZUKI

IGNIS II (MH)

Description	Cylinder Capacity	Horse Power	Year
1.3 (RM413)	1328 CCM	94 HP	From 09/2003
1.5 (RM415)	1490 CCM	99 HP	From 09/2003
1.5 4x4 (RM415)	1490 CCM	99 HP	From 09/2003
1.3 DDiS (RM413D)	1248 CCM	70 HP	From 09/2003
1.3 4x4 (RM413)	1328 CCM	94 HP	From 09/2003

WAGON R+ (MA)

Description	Cylinder Capacity	Horse Power	Year
1.3 (RB413)	1298 CCM	76 HP	05/2000 - 12/2004
1.3 4WD (RB413)	1298 CCM	76 HP	From 10/2001
1.3 (RB413)	1328 CCM	94 HP	09/2003 - 08/2006
1.3 DDiS (RB413D)	1248 CCM	70 HP	From 09/2003
1.3 4WD (RB413)	1328 CCM	94 HP	From 09/2003
1.2 (RB 412)	1229 CCM	80 HP	01/2005 - 12/2008

WAGON R (MH21, MH22)

Description	Cylinder Capacity	Horse Power	Year
1.2	1229 CCM	80 HP	06/2004 - 08/2005
1.3 (RB413)	1328 CCM	88 HP	09/2003 - 12/2010

VAUXHALL

AGILA Mk I (A) (H00)

Description	Cylinder Capacity	Horse Power	Year
1.0 12V	973 CCM	58 HP	09/2000 - 08/2005
1.2 16V	1199 CCM	75 HP	09/2000 - 03/2008
1.0 12V	998 CCM	60 HP	02/2000 - 11/2006
1.2 16V Twinport	1229 CCM	80 HP	07/2004 - 11/2006

The Bosch 0986487707 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 200 mm inner brake drum diameter, 29 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 200

Width [mm] : 29

Brake Lining : with lining

Construction Year to : 08.2003

Fitting Position : Rear Axle

Vehicle Identification Number (VIN) from : 3G000001
