BOSCH

Bosch 0986487745 Brake Shoe Set

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986487745

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£71.00 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

RENAULT

CLIO Mk II (BB_, CB_)

Description	Cylinder Capacity	Horse Power	Year
1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,...	1149 CCM	75 HP	06/2001 - 08/2016

TWINGO II (CN0_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi 75	1461 CCM	75 HP	10/2010 - 08/2014
1.5 dCi 90	1461 CCM	86 HP	10/2010 - 09/2014
1.2 TCe 100 (CN0P)	1149 CCM	102 HP	02/2011 - 08/2013
1.2 Turbo (CN0C, CN0F)	1149 CCM	100 HP	03/2007 - 09/2014
1.2 (CN0D)	1149 CCM	58 HP	03/2007 - 09/2014
1.2 16V (CN0K, CN0V, CN0A)	1149 CCM	76 HP	03/2007 - 10/2010
1.5 dCi (CN0E)	1461 CCM	64 HP	03/2007 - 09/2014
1.5 dCi (CN0U)	1461 CCM	84 HP	04/2008 - 09/2014
1.2 16V (CN04, CN0B)	1149 CCM	75 HP	03/2007 - 09/2014
1.2 16V	1149 CCM	75 HP	03/2008 - 09/2014

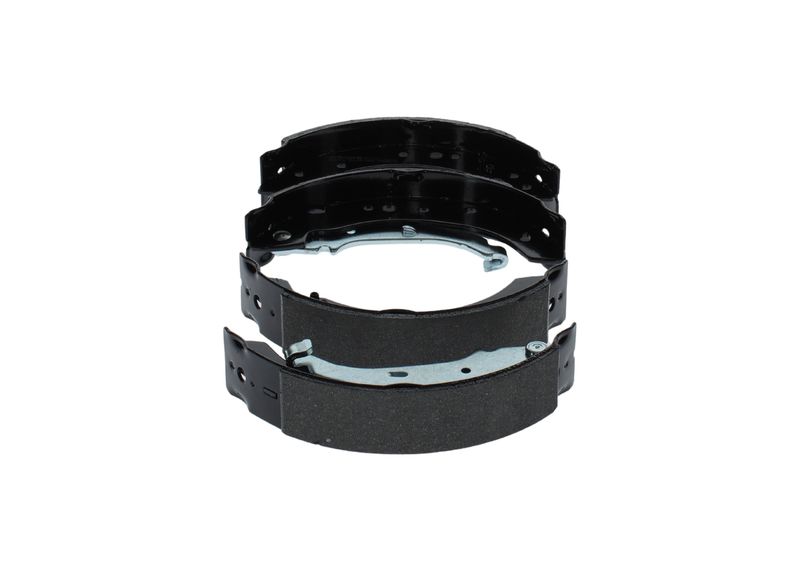

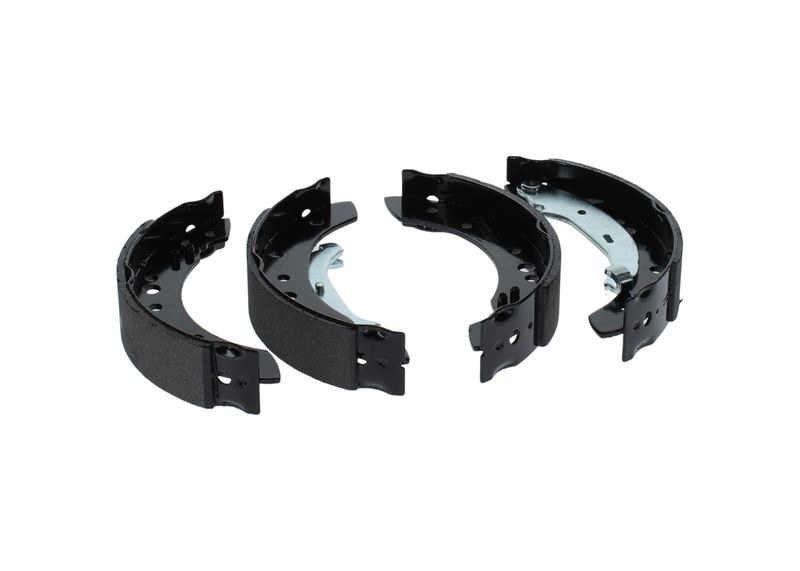

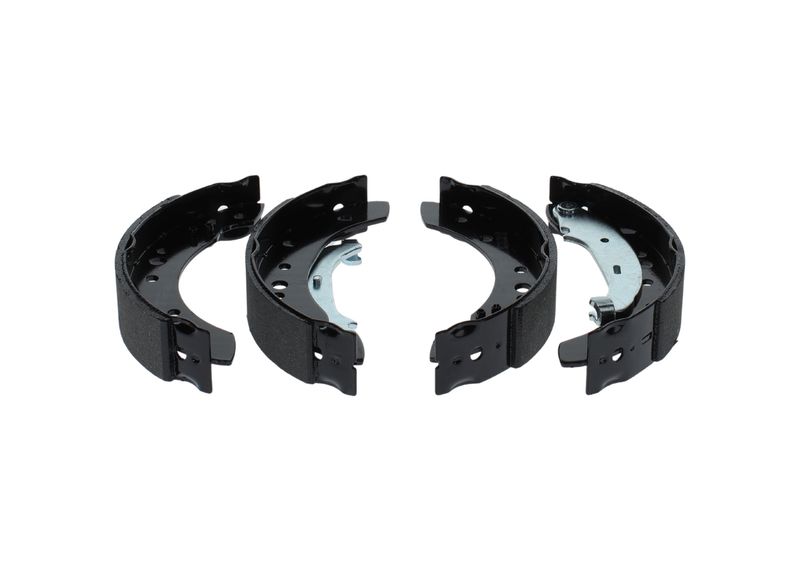

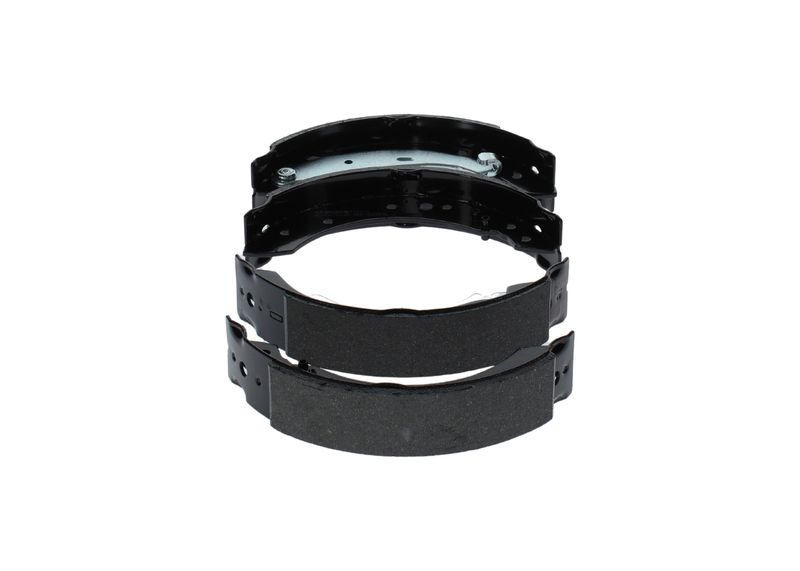

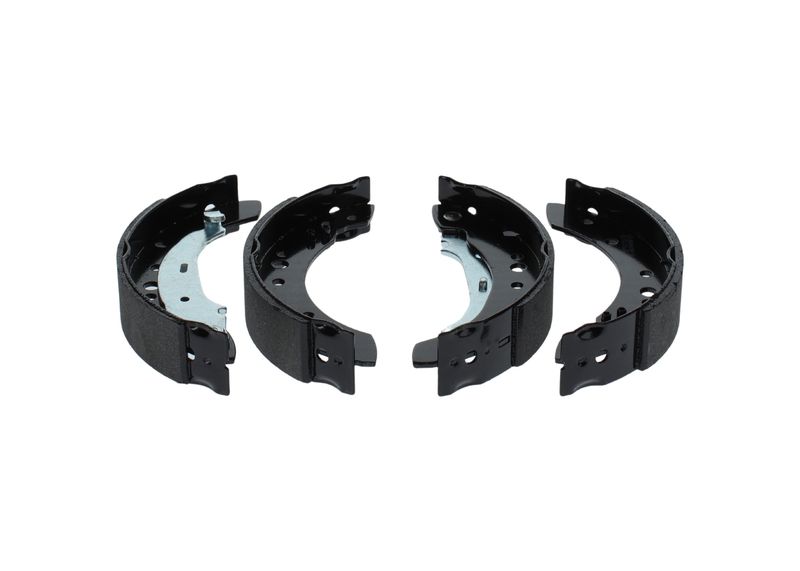

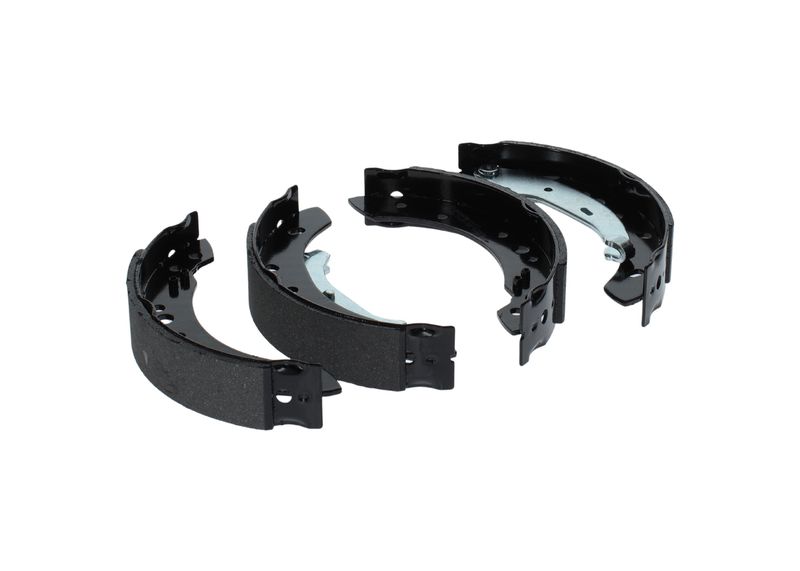

The Bosch 0986487745 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 203.2 mm inner brake drum diameter, 39 mm width, rear axle fitting position, and Lucas-Girling brake-system specification. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 203.2

Width [mm] : 39

Brake Lining : with lining

Engine Code : D4F 722

Construction Year from : 11.2007

Construction Year to : 12.2015

Fitting Position : Rear Axle

Brake System : Lucas-Girling

Braking/Driving Dynamics : for vehicles with ABS
