BOSCH

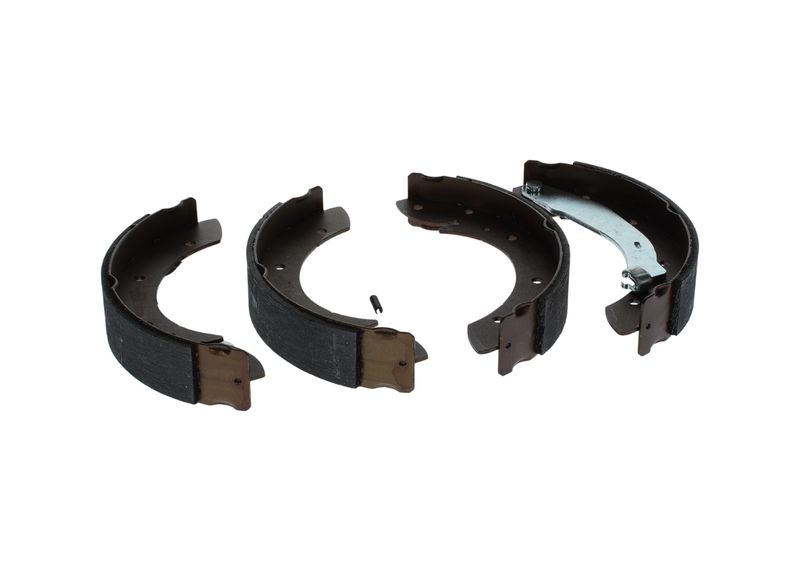

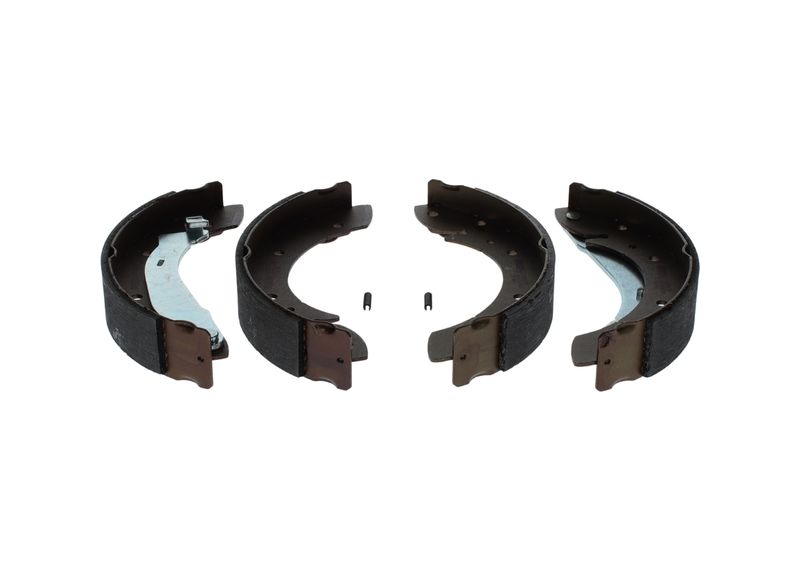

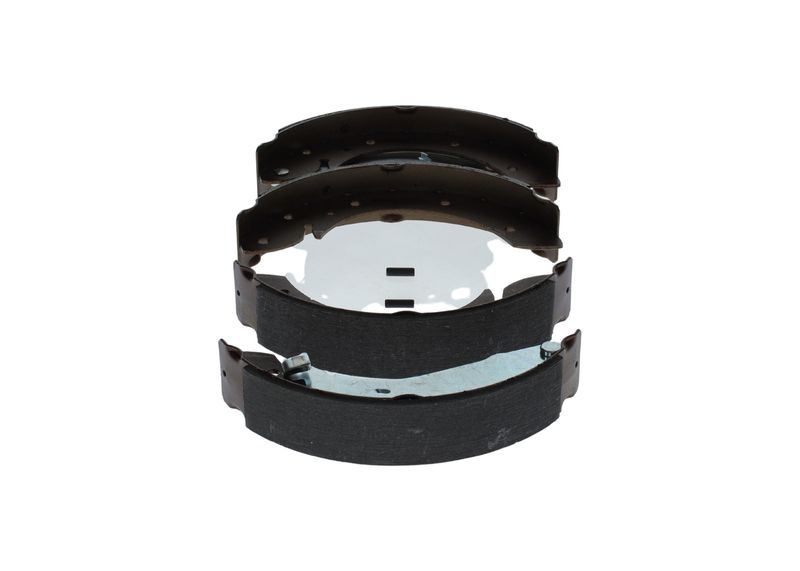

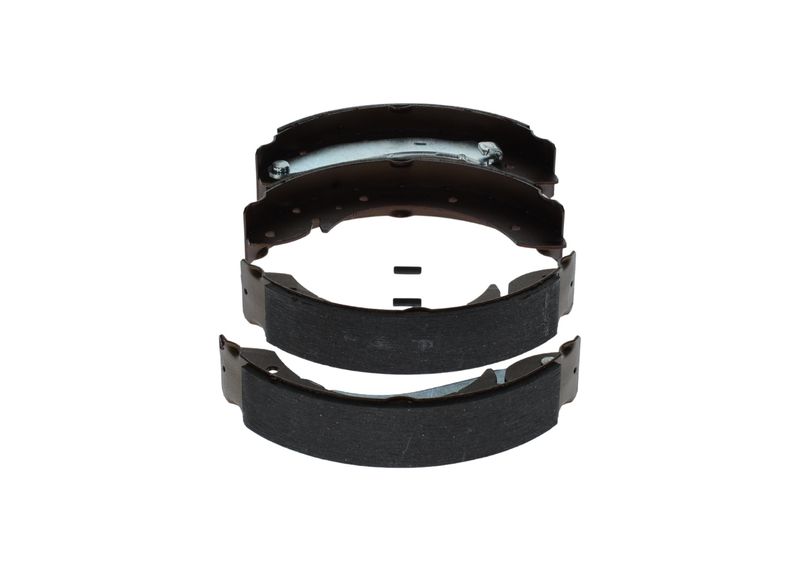

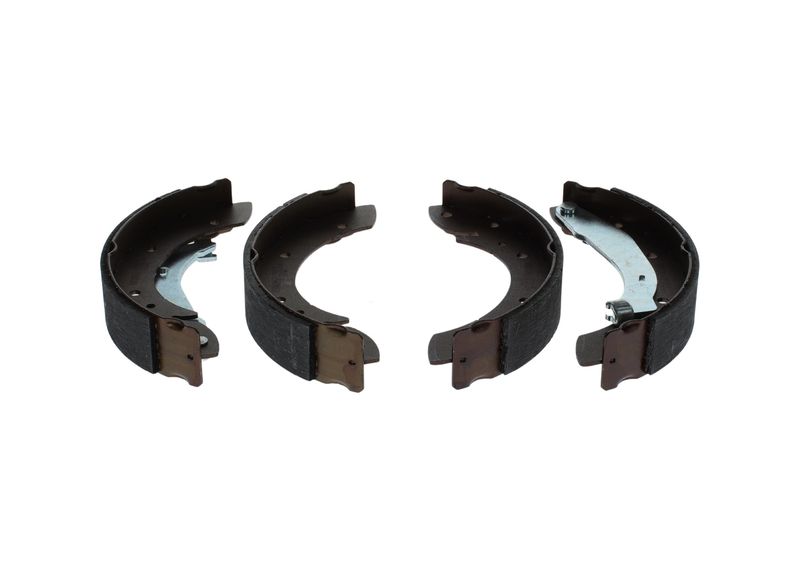

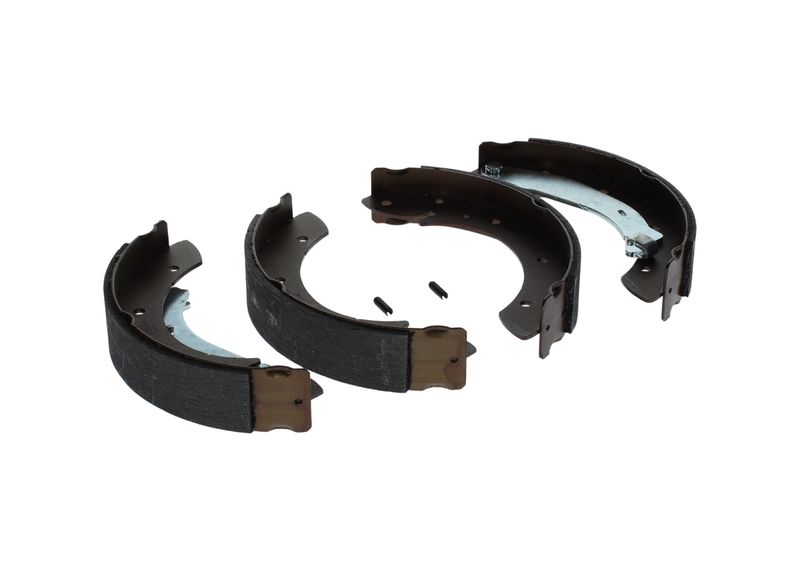

Bosch 0986487749 Brake Shoe Set

SKU: 0986487749

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£25.11 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PEUGEOT

405 Mk II (4B)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	08/1992 - 10/1995
1.9 TD	1905 CCM	90 HP	08/1992 - 10/1995
1.4	1360 CCM	75 HP	08/1992 - 10/1995
1.6	1580 CCM	88 HP	08/1992 - 10/1995
1.8	1761 CCM	101 HP	08/1992 - 10/1995
1.9 D	1905 CCM	68 HP	06/1994 - 10/1995
1.6	1580 CCM	92 HP	08/1992 - 08/1994
1.9 TD	1905 CCM	94 HP	08/1992 - 05/1997
1.9 D	1905 CCM	69 HP	08/1992 - 08/1994

405 II Estate Van (4E_)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	69 HP	08/1992 - 12/1995

405 Mk II Estate (4E)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	08/1992 - 10/1996
1.9 TD	1905 CCM	90 HP	08/1992 - 10/1996
1.4	1360 CCM	75 HP	08/1992 - 10/1996
1.6	1580 CCM	88 HP	08/1992 - 10/1996
1.8	1761 CCM	101 HP	08/1992 - 10/1996
1.9 D	1905 CCM	68 HP	06/1994 - 10/1996
1.9 D	1905 CCM	69 HP	09/1993 - 12/1995
1.6	1580 CCM	92 HP	08/1992 - 08/1994
1.9 TD	1905 CCM	93 HP	08/1992 - 10/1996
1.9 D	1905 CCM	71 HP	08/1992 - 10/1998
1.6	1580 CCM	90 HP	08/1992 - 05/1997

RENAULT

ESPACE Mk III (JE0_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (JE0A)	1998 CCM	114 HP	11/1996 - 10/2000
2.2 12V TD (JE0E, JE0H, JE0P)	2188 CCM	113 HP	11/1996 - 10/2000
1.9 dTi (JE0M)	1870 CCM	98 HP	02/1999 - 10/2002
2.2 D	2188 CCM	114 HP	11/1997 - 01/2000

The Bosch 0986487749 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 228.6 mm inner brake drum diameter, 41.5 mm width, rear axle fitting position, and Lucas-Girling brake-system specification. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 228.6

Width [mm] : 41.5

Brake Lining : with lining

Fitting Position : Rear Axle

Brake System : Lucas-Girling

Manufacturer Restriction : Bosch

Braking/Driving Dynamics : for vehicles with ABS

APEC : SHU559
BLUE PRINT : ADBP410019
BLUE PRINT : ADC44147
BORG & BECK : BBS6285
BREMBO : S 61 522
DELPHI : LAJ1008
DELPHI : LS1838
DELPHI : LY1231
DELPHI : LY1232
FEBI BILSTEIN : 170971
FEBI BILSTEIN : 183761
FTE : 9100050
MEYLE : 11-14 533 0001
MEYLE : 11-14 533 0050/K
MINTEX : MFR434
TEXTAR : 91053900
TRW : GS8620
TRW : GS8635
VALEO : 562634

Bosch 0986487749 Brake Shoe Set
