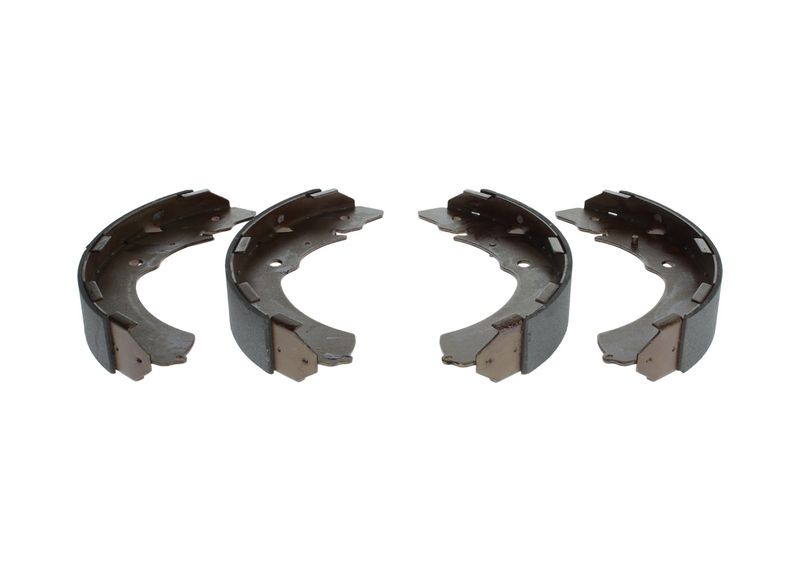

Bosch 0986487758 Brake Shoe Set - 1

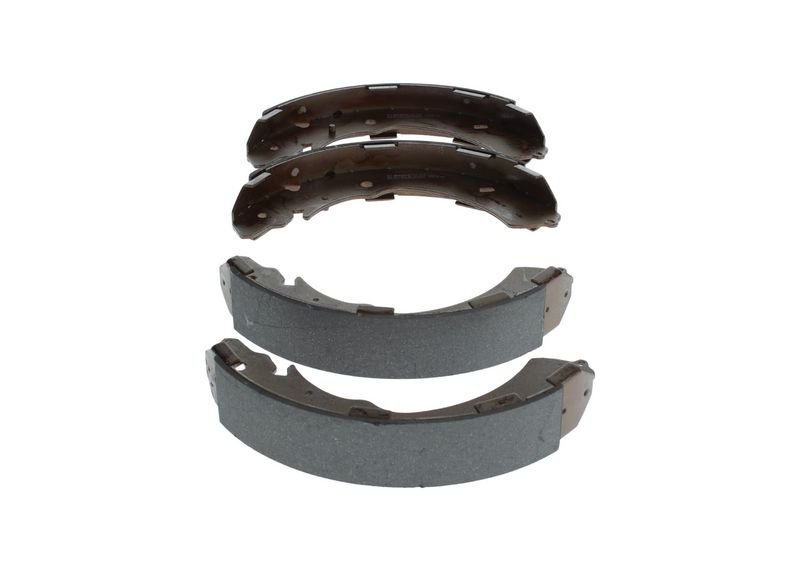

Bosch 0986487758 Brake Shoe Set - 2

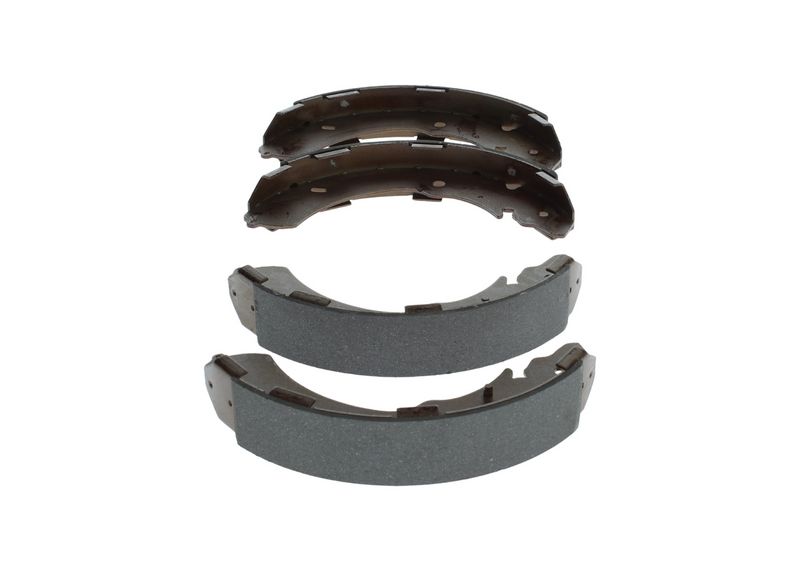

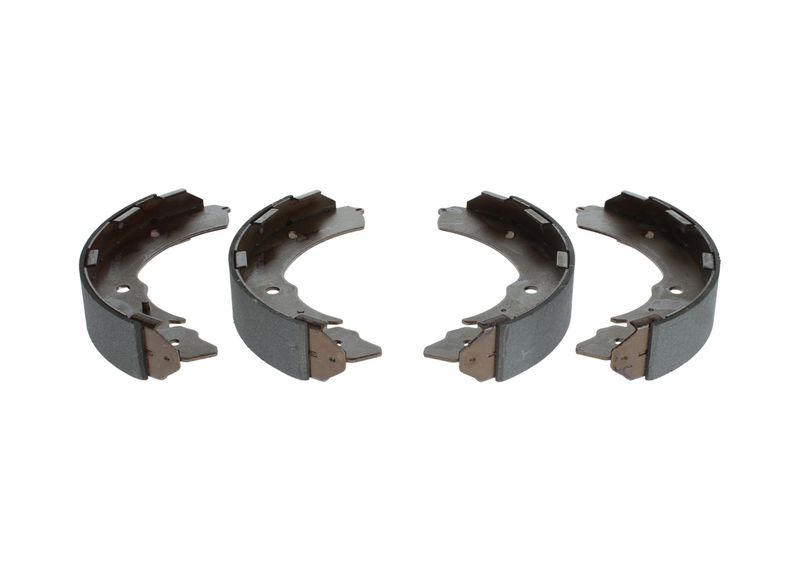

Bosch 0986487758 Brake Shoe Set - 3

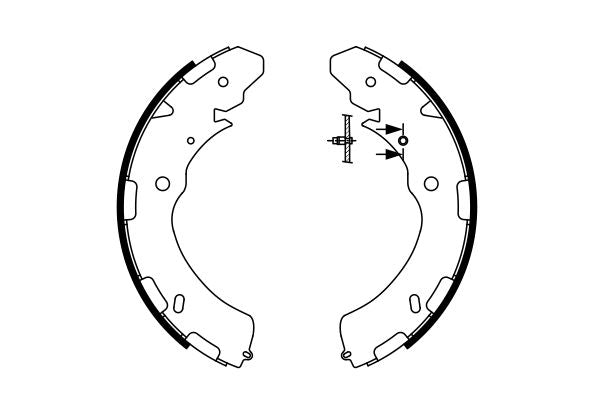

Bosch 0986487758 Brake Shoe Set - 4

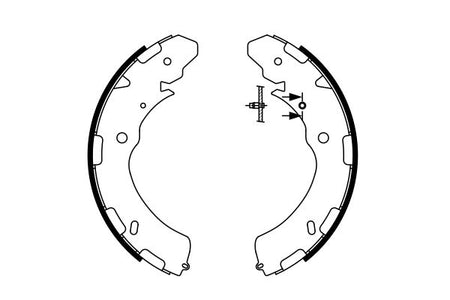

Bosch 0986487758 Brake Shoe Set - 5

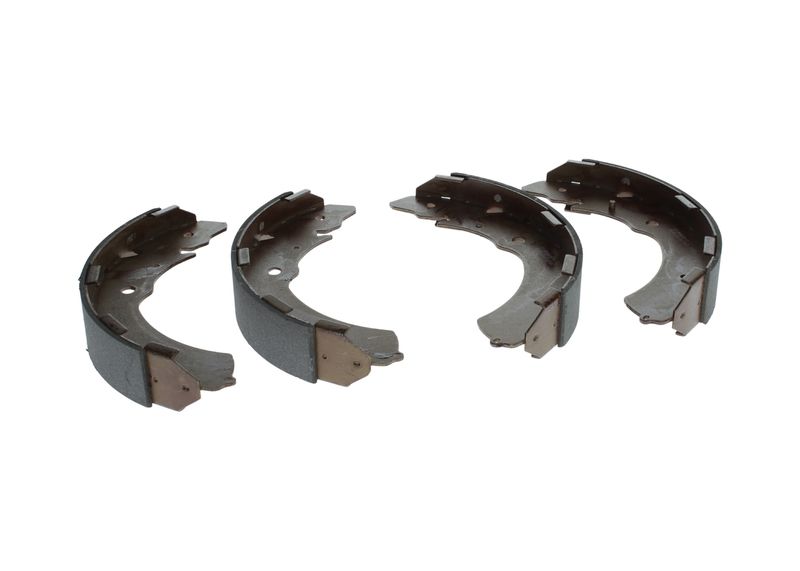

Bosch 0986487758 Brake Shoe Set - 6
Bosch 0986487758 Brake Shoe Set - 1
Bosch 0986487758 Brake Shoe Set - 2
Bosch 0986487758 Brake Shoe Set - 3
Bosch 0986487758 Brake Shoe Set - 4
Bosch 0986487758 Brake Shoe Set - 5
Bosch 0986487758 Brake Shoe Set - 6
BOSCH

Bosch 0986487758 Brake Shoe Set

SKU: 0986487758
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£36.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D 16V 4WD 2477 CCM 133 HP 04/2007 - 12/2015
L200 / TRITON Platform/Chassis (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 128 HP 08/2007 - 12/2015
L200 / TRITON (KJ_, KK_, KL_)
Description Cylinder Capacity Horse Power Year
2.4 DI-D 4WD (KL1T) 2442 CCM 181 HP From 11/2014
2.4 DI-D 4WD (KJ0T) 2442 CCM 154 HP From 09/2015
2.4 DI-D (KJ0T) 2442 CCM 154 HP From 09/2015
2.2 DI-D 4WD 2268 CCM 150 HP From 07/2019
2.2 DI-D 2268 CCM 150 HP From 07/2019
PAJERO SPORT II (KH_, KG_)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD 3200 CCM 165 HP From 07/2008

The Bosch 0986487758 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 295 mm inner brake drum diameter, 51 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Inner brake drum diameter [mm] : 295
Width [mm] : 51
Brake Lining : with lining
Construction Year to : 03.2015
Fitting Position : Rear Axle
  • Vendor BOSCH
  • SKU 0986487758
  • Barcode 4047026835571
  • MITSUBISHI : 4600A106 4600A122
  • APEC : BSH1069
  • APEC : SHU772
  • BLUE PRINT : ADC44143
  • BORG & BECK : BBS6435
  • BREMBO : S 54 523
  • DELPHI : LS2064
  • DELPHI : LY1382
  • FTE : 9100175
  • HELLA : 8DB 355 000-421
  • MINTEX : MFR653
  • NAPA : NBS1072
  • National : NS4056
  • TEXTAR : 91073000
  • TRW : GS8768
  • BOSCH : BS978
