BOSCH

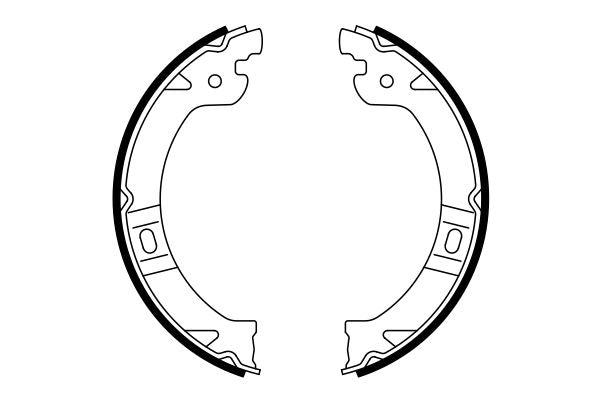

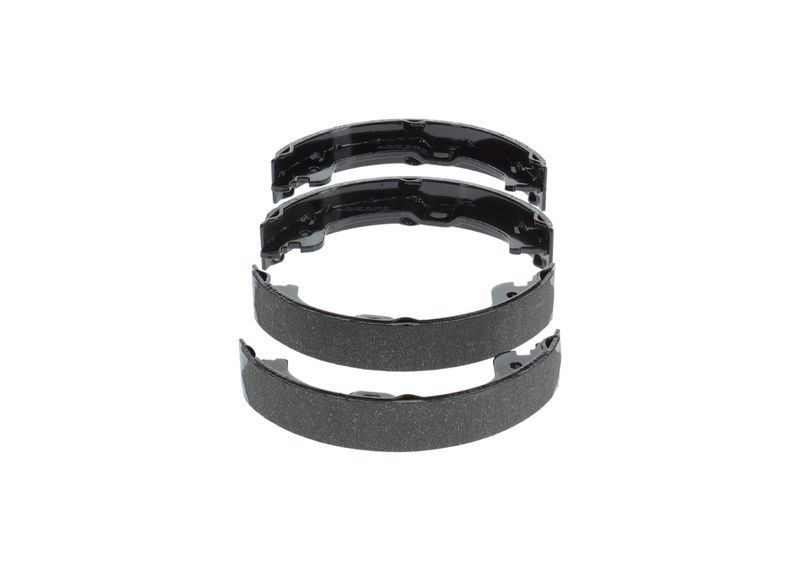

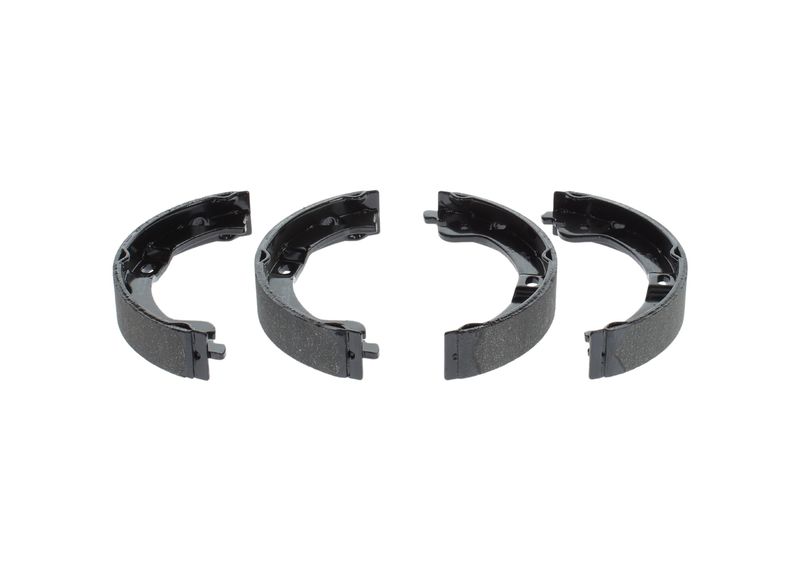

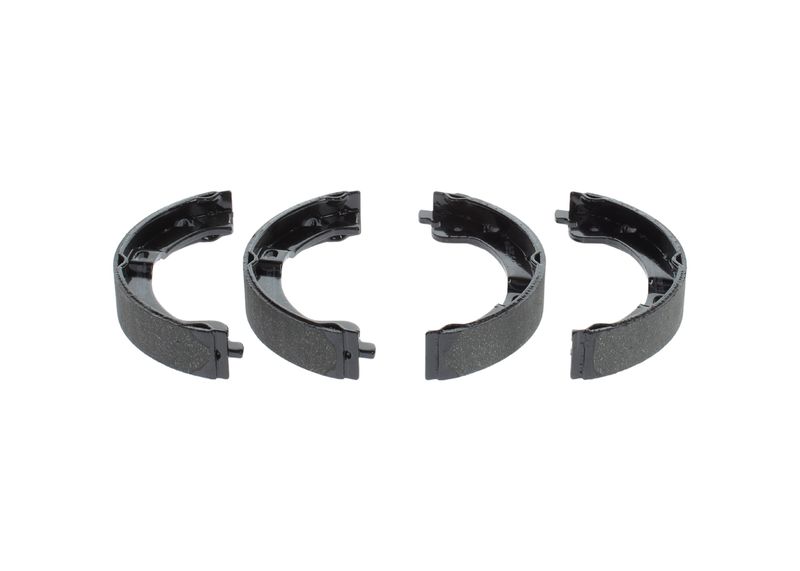

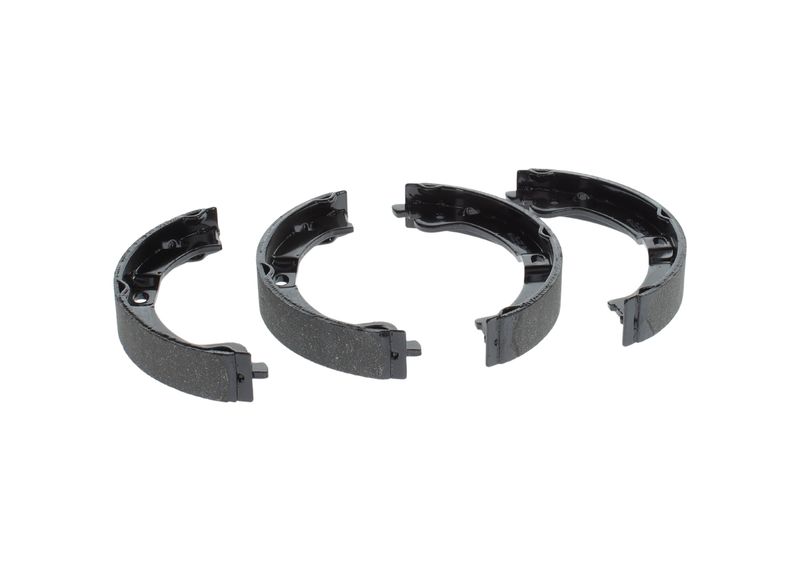

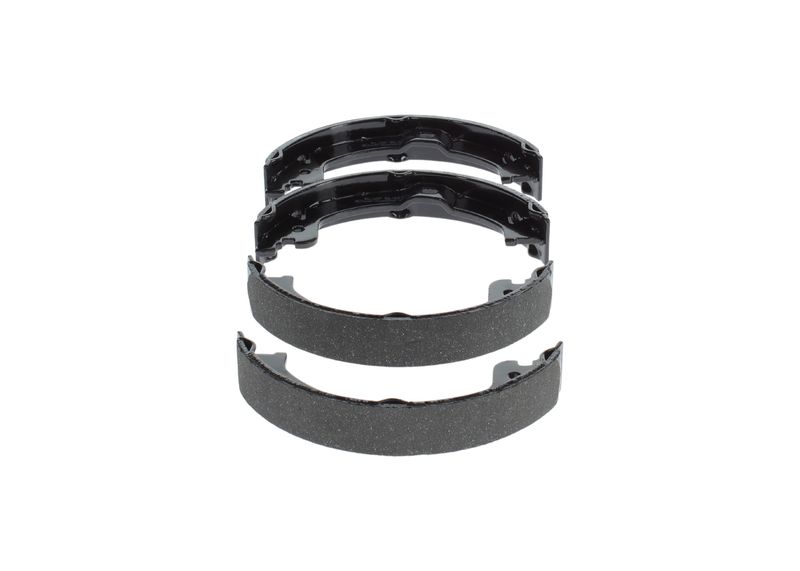

Bosch 0986487919 Handbrake Shoe Set

SKU: 0986487919

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£25.33 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER

VOYAGER Mk III (RG, RS)

Description	Cylinder Capacity	Horse Power	Year
2.4	2429 CCM	147 HP	02/2000 - 12/2008
3.3	3301 CCM	174 HP	02/2000 - 12/2008
2.5 CRD	2499 CCM	141 HP	02/2000 - 12/2008
3.8	3778 CCM	218 HP	02/2000 - 12/2008
3.8 AWD	3778 CCM	218 HP	02/2000 - 12/2008
2.8 CRD	2777 CCM	150 HP	06/2004 - 12/2008
2.4	2429 CCM	151 HP	04/2003 - 12/2007

VOYAGER IV VAN (S_)

Description	Cylinder Capacity	Horse Power	Year
3.3 (SYM53, SYH53)	3301 CCM	174 HP	10/2000 - 06/2007
3.8 (SYX53)	3778 CCM	218 HP	10/2000 - 06/2007
3.8 AWD (SCH53)	3778 CCM	218 HP	10/2000 - 06/2007

VOYAGER / GRAND VOYAGER IV (RG)

Description	Cylinder Capacity	Horse Power	Year
2.5 CRD	2499 CCM	143 HP	01/2001 - 02/2008
3.3	3301 CCM	174 HP	02/2000 - 08/2007

DODGE

CARAVAN (RG_)

Description	Cylinder Capacity	Horse Power	Year
3.3	3301 CCM	174 HP	02/2000 - 12/2007
3.3 AWD	3301 CCM	174 HP	02/2000 - 12/2007
3.8	3778 CCM	218 HP	02/2000 - 12/2007
3.8 AWD	3778 CCM	218 HP	02/2000 - 12/2007
2.4	2429 CCM	152 HP	02/2000 - 12/2007
3.8 AWD	3778 CCM	208 HP	04/2001 - 12/2007

The Bosch 0986487919 Handbrake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 1 987 475 413 article number of recommended accessories, 30 mm width, 180 mm inner brake drum diameter, and rear axle fitting position. It is listed in the brake Shoe Set, parking brake product category. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set, parking brake

Article number of recommended accessories : 1 987 475 413

Width [mm] : 30

Inner brake drum diameter [mm] : 180

Construction Year from : 08.2000

Construction Year to : 12.2007

Fitting Position : Rear Axle

APEC : BSH1043
APEC : SHU683
BLUE PRINT : ADA104108
BORG & BECK : BBS6341
BREMBO : S 11 505
DELPHI : LS1977
DELPHI : LY1363
FTE : 9100096
HELLA : 8DA 355 050-111
MINTEX : MFR643
NAPA : NBS5017
National : NS4026
TEXTAR : 91069600
TRW : GS8759

Bosch 0986487919 Handbrake Shoe Set
