BOSCH

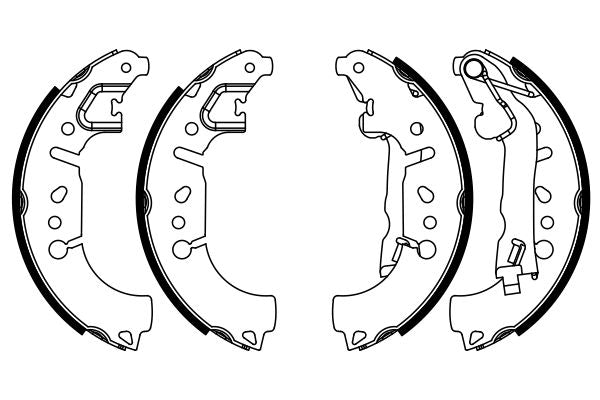

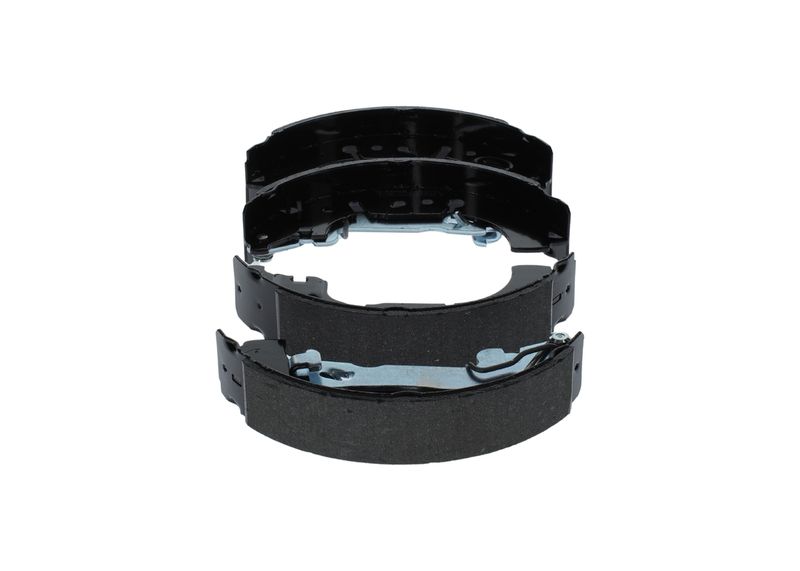

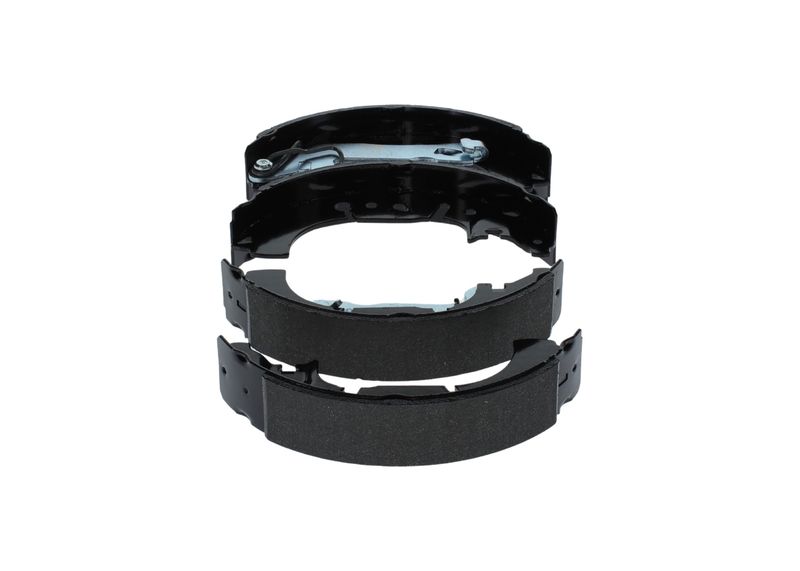

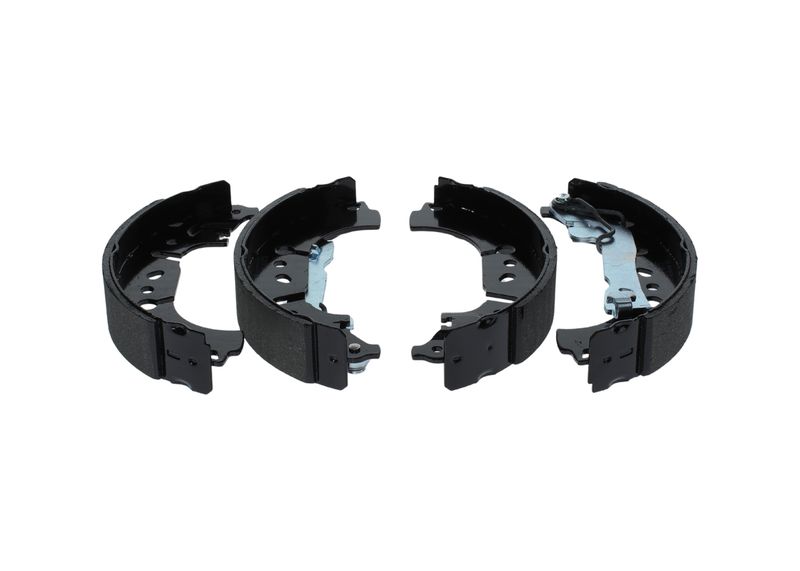

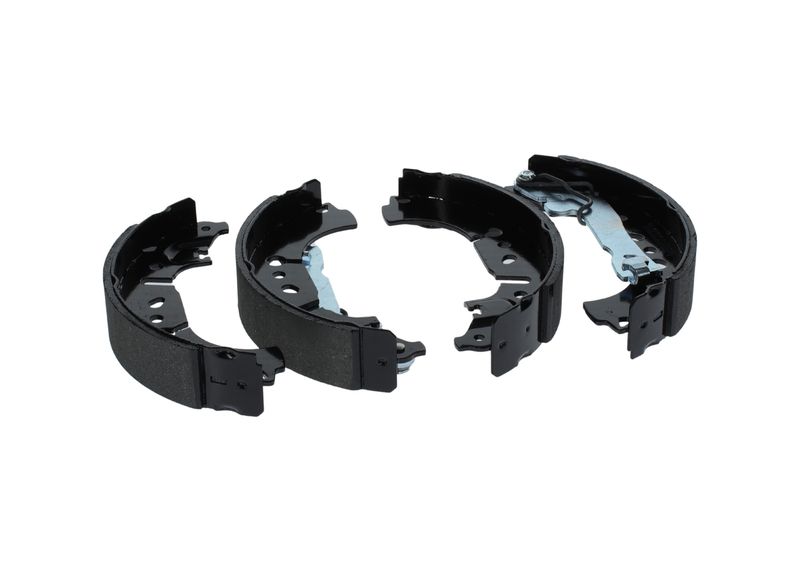

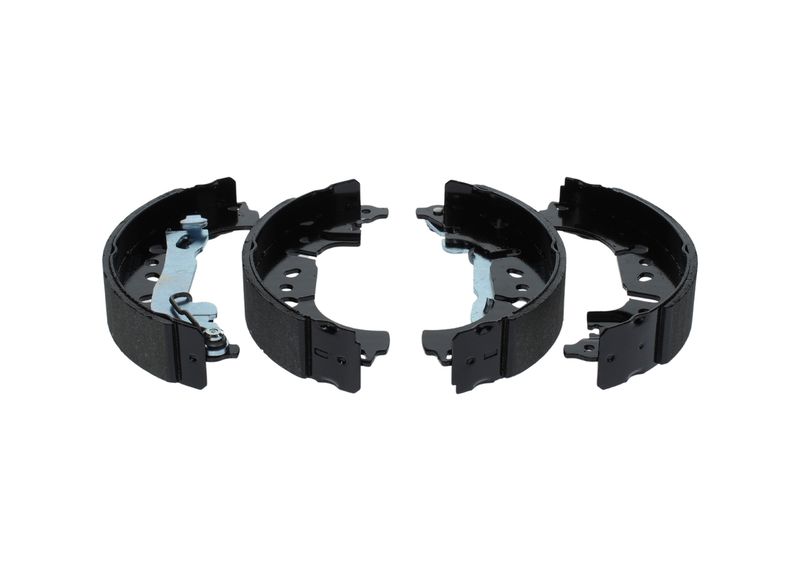

Bosch 0986487956 Brake Shoe Set

SKU: 0986487956

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£35.57 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT

500L (351_, 352_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (199LYB1B)	1368 CCM	95 HP	From 09/2012
0.9 (199LYC1B)	875 CCM	105 HP	From 09/2012
1.3 D Multijet (199LXY1A, 199LXY11)	1248 CCM	84 HP	From 09/2012
0.9 Natural Power (199LYC1B)	875 CCM	86 HP	From 03/2013
1.3 D Multijet (199.LYM11, 199.LYM1A)	1248 CCM	95 HP	From 06/2014
0.9 Natural Power (199LYC1B)	875 CCM	80 HP	From 04/2017

FIORINO Box Body/MPV (225_)

Description	Cylinder Capacity	Horse Power	Year
1.3 D Multijet	1248 CCM	80 HP	From 03/2015
1.4 (225AXA1A, 225BXA1A)	1368 CCM	78 HP	From 10/2009

FIORINO MPV (225_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (225AXA1A)	1368 CCM	77 HP	From 07/2014
1.3 JTD Multijet	1248 CCM	80 HP	From 03/2016

QUBO (225_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (225AXA1A, 225CXA1A)	1368 CCM	78 HP	From 10/2009

TIPO Saloon (356_, 357_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (356SXA1B)	1368 CCM	95 HP	From 10/2015
1.6 (356SXE11)	1598 CCM	110 HP	10/2015 - 10/2020
1.3 D (356SXB1A, 356SXH1A, 356SXD1A)	1248 CCM	95 HP	10/2015 - 10/2020
1.6 D (356SXG1B)	1598 CCM	120 HP	10/2015 - 10/2020
1.4 LPG (356SXF1B)	1368 CCM	120 HP	05/2016 - 10/2020
1.0 (357SXN1A)	999 CCM	101 HP	From 11/2020
1.6 Multijet (357SXG1)	1598 CCM	131 HP	From 11/2020

TIPO Hatchback (356_, 357_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (356HXA1B, 357)	1368 CCM	95 HP	From 03/2016
1.6 D (356HXG1B, 356HXG11)	1598 CCM	120 HP	03/2016 - 10/2020
1.3 D (356HXH1A)	1248 CCM	95 HP	From 03/2016
1.4 (356HXF1B)	1368 CCM	120 HP	03/2016 - 10/2020
1.4 LPG (356HXF1B)	1368 CCM	120 HP	05/2016 - 10/2020
1.6 (356HXE11)	1598 CCM	110 HP	07/2016 - 10/2020
1.0 (357HXN1A)	999 CCM	101 HP	From 11/2020
1.6 Multijet (357HXG1)	1598 CCM	131 HP	From 11/2020

TIPO Estate (356_, 357_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (356WXA1B)	1368 CCM	95 HP	03/2016 - 10/2020
1.6 D (356WXG1B)	1598 CCM	120 HP	03/2016 - 10/2020
1.3 D (356WXH1A)	1248 CCM	95 HP	From 03/2016
1.4 (356WXF1B)	1368 CCM	120 HP	03/2016 - 10/2020
1.4 LPG (356WXF1B)	1368 CCM	120 HP	05/2016 - 10/2020
1.6 (356WXE11)	1598 CCM	110 HP	07/2016 - 10/2020
1.0 (357WXN1A)	999 CCM	101 HP	From 11/2020
1.6 Multijet (357WXG1)	1598 CCM	131 HP	From 11/2020

The Bosch 0986487956 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 228.6 mm inner brake drum diameter, 42.5 mm width, with lining brake lining, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Inner brake drum diameter [mm] : 228.6

Width [mm] : 42.5

Brake Lining : with lining

Manufacturer Restriction : Lockheed System

Construction Year to : 12.2018

Fitting Position : Rear Axle

APEC : SHU846
BORG & BECK : BBS6523
BREMBO : S 23 580
DELPHI : LS2135
DELPHI : LY1301
DELPHI : LY1310
DELPHI : LY1346
DELPHI : LY1369
HELLA : 8DB 355 022-271
MINTEX : MFR731
TEXTAR : 91081500
TRW : GS8866

Bosch 0986487956 Brake Shoe Set
