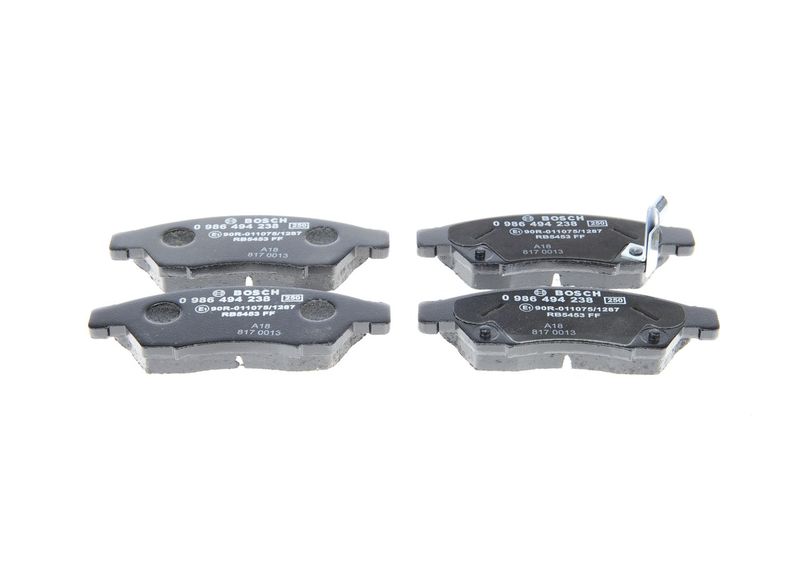

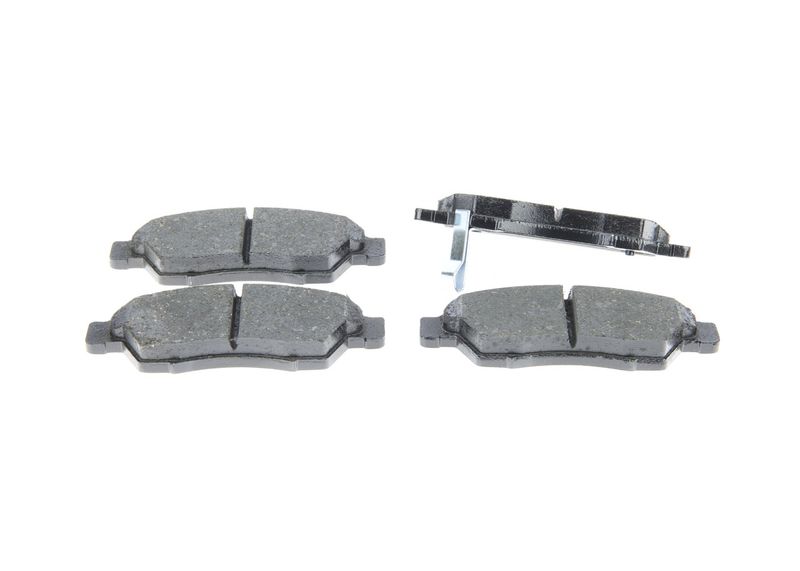

Bosch 0986494238 Brake Pad Set, disc brake - 1
Bosch 0986494238 Brake Pad Set, disc brake - 2
Bosch 0986494238 Brake Pad Set, disc brake - 3
Bosch 0986494238 Brake Pad Set, disc brake - 4
Bosch 0986494238 Brake Pad Set, disc brake - 5
Bosch 0986494238 Brake Pad Set, disc brake - 6
Bosch 0986494238 Brake Pad Set, disc brake - 1
Bosch 0986494238 Brake Pad Set, disc brake - 2
Bosch 0986494238 Brake Pad Set, disc brake - 3
Bosch 0986494238 Brake Pad Set, disc brake - 4
Bosch 0986494238 Brake Pad Set, disc brake - 5
Bosch 0986494238 Brake Pad Set, disc brake - 6
BOSCH

Bosch 0986494238 Brake Pad Set, disc brake

SKU: 0986494238
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£23.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
LIANA Hatchback
Description Cylinder Capacity Horse Power Year
1.3 1328 CCM 90 HP 07/2001 - 12/2007
1.6 (RH416) 1586 CCM 103 HP 07/2001 - 12/2007
1.6 4WD 1586 CCM 103 HP 07/2001 - 12/2007
1.6 i (RH416) 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 106 HP 04/2002 - 12/2007
1.4 DDiS 1398 CCM 90 HP 04/2004 - 12/2007
1.6 4WD 1586 CCM 107 HP 01/2005 - 12/2007
1.6 1586 CCM 107 HP 01/2005 - 08/2007
LIANA (ER, RH_)
Description Cylinder Capacity Horse Power Year
1.3 (RH 413) 1328 CCM 90 HP From 03/2002
1.6 (RH416) 1586 CCM 103 HP From 03/2002
1.6 4WD (RH416) 1586 CCM 103 HP From 03/2002
1.6 i (RH416) 1586 CCM 106 HP From 04/2002
1.6 4WD (RH416) 1586 CCM 106 HP From 04/2002
1.4 DDiS (RH 414D) 1398 CCM 90 HP From 04/2004
1.6 (RH416) 1586 CCM 107 HP From 01/2005
1.6 4WD (RH416) 1586 CCM 107 HP 01/2005 - 12/2007

The Bosch 0986494238 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records with acoustic wear warning, with anti-squeak plate, low-Metallic construction, and test mark ECE-R90. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Wear Warning Contact : with acoustic wear warning
Supplementary Article/Supplementary Info 2 : with anti-squeak plate
Article number of recommended accessories : 1 987 474 425
Material : Low-Metallic
Test Mark : ECE-R90
WVA Number : 23817
Width [mm] : 136.6
Height [mm] : 53.2
Thickness 1 [mm] : 16.4
Thickness 2 [mm] : 17.1
  • Vendor BOSCH
  • SKU 0986494238
  • Barcode 4047024561779
  • SUZUKI : 55810 54G30 000 55810 54G50 000 55810 54G61 000 55810-54G30 55810-54G50 55810-54G60 55810-54G61
  • APEC : PAD1255
  • APEC : PD3558
  • BLUE PRINT : ADK84231
  • BORG & BECK : BBP1802
  • BREMBO : P 79 014
  • DELPHI : LP1739
  • DELPHI : LX0433
  • FTE : 9010504
  • HELLA : 8DB 355 011-081
  • MEYLE : 025 238 1716/W
  • MINTEX : MDB2326
  • National : NP3142
  • SKF : VKBP 80801 A
  • TEXTAR : 2381701
  • TRW : GDB3290
  • VALEO : 301848
  • VALEO : 598848
  • BOSCH : BP1302
  • BOSCH : E1 90R-011075/1287
  • BOSCH : 23817
  • BOSCH : 8315-D1195
