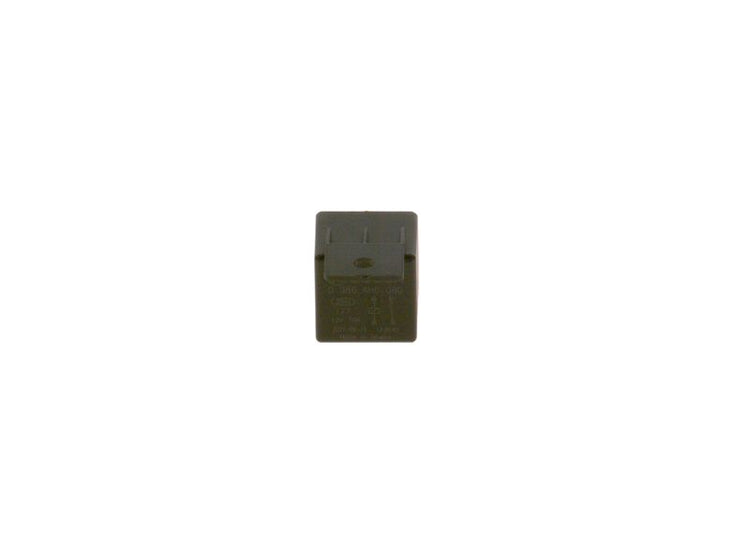

Bosch 0986AH0080 Relay, main current
Your selected vehicle
Regular price
£8.99
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0080 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, -40 °C temperature range from, 125 °C temperature range to, and with holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
70
Voltage [V] :
12
Number of pins :
5
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
125
Supplementary Article/Supplementary Info :
with holder
- Vendor BOSCH
- SKU 0986AH0080
- AUDI : 1KO 951 253 A 4H0951253
- ISUZU : 8-97309-295-0
- SEAT : 1KO 951 253 A 4H0951253
- SKODA : 1KO 951 253 A 4H0951253
- TOYOTA : 90987 02016 90987 02025 90987 02030
- VW : 1KO 951 253 A 4H0951253
- HYUNDAI : 39160 37110 95230 2P010
