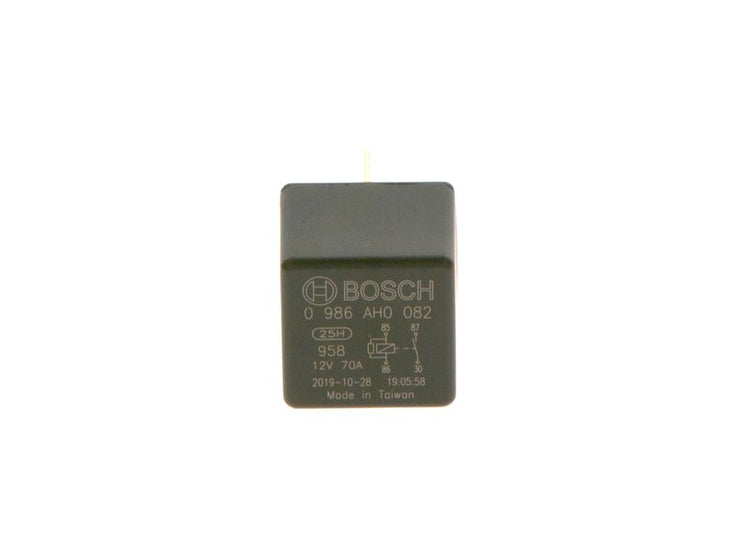

Bosch 0986AH0082 Relay, main current
Your selected vehicle
Regular price
£11.30
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0082 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, -40 °C temperature range from, 125 °C temperature range to, and without holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
70
Voltage [V] :
12
Number of pins :
4
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
125
Supplementary Article/Supplementary Info :
without holder
Resistor [Ohm] :
90
- Vendor BOSCH
- SKU 0986AH0082
- AUDI : 019 193 750 3 443 951 253 J 7M0 951 253 A 8D0951253
- FIAT : 51395260
- FORD : 1425754 5M5T14B192EA
- ISUZU : 8-97309-295-0
- MERCEDES-BENZ : A 002 542 26 19 A 002 542 26 19 64 002 542 26 19 002 542 26 19 64
- OPEL : 12 38 612 90226846
- SEAT : 019 193 750 3 7M0 951 253 A
- SKODA : 019 193 750 3 7M0 951 253 A
- TOYOTA : 90987 02016 90987 02030 90987 04010
- VW : 019 193 750 3 171 937 503 A 443 951 253 J 7M0 951 253 A 8D0951253 8E0951253
- HYUNDAI : 36860 4X000 39160 37110 95230 2P010
- KIA : 36860 4X000 39160 37110
- FENDT : 3387326M2 4270844M1
- JOHN DEERE : AL 20 737 6 AL81719
- SMART : 0025422619
- LAND ROVER : AMR3773 YWB500220
- FEBI BILSTEIN : 34751
- HELLA : 4RA 007 793-031
- HELLA : 4RA 933 332-531
