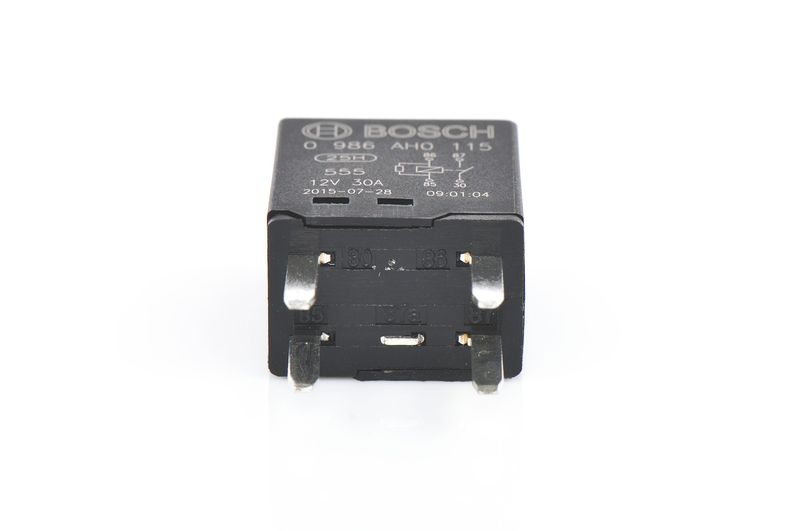

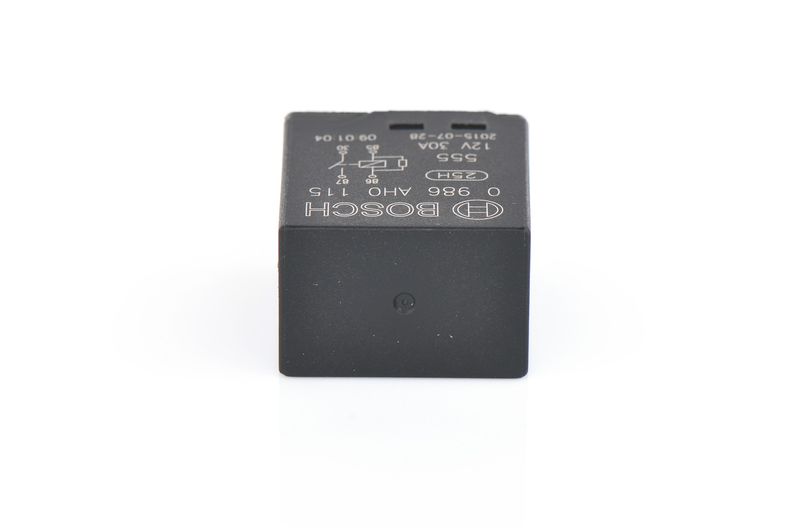

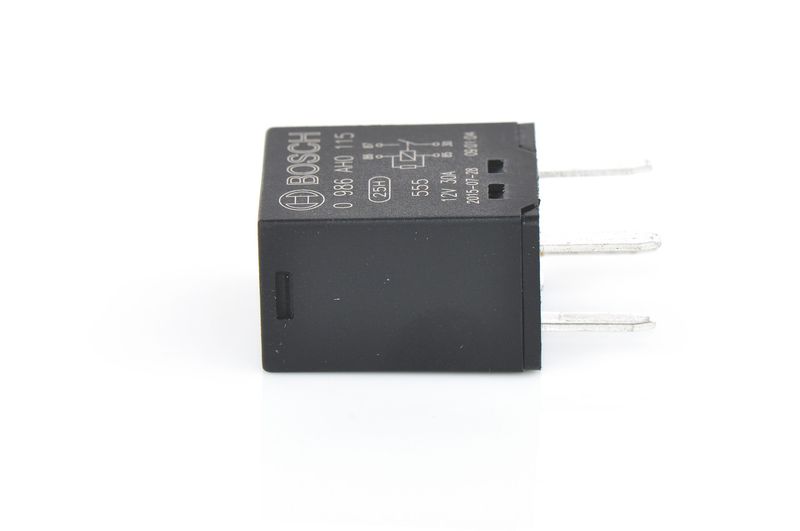

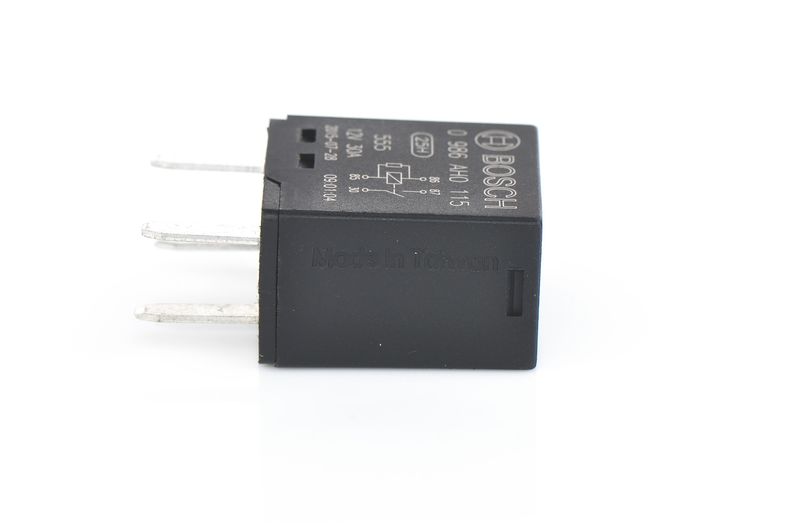

Bosch 0986AH0115 Relay, fuel pump
Your selected vehicle
Regular price
£6.79
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 0986AH0115 Relay, fuel pump is a replacement fuel-delivery component that meters, pumps or controls fuel within the engine supply system. Its catalogue specification records 12 V electrical rating, -40 °C temperature range from, 100 °C temperature range to, and 15.4 mm length. Confirm the reference, fuel type, pressure or operating mode, connections and engine application before fitting; depressurise the system and follow appropriate fuel-handling precautions.
Function :
Relay, fuel pump
Current Strength [A] :
30
Voltage [V] :
12
Number of pins :
4

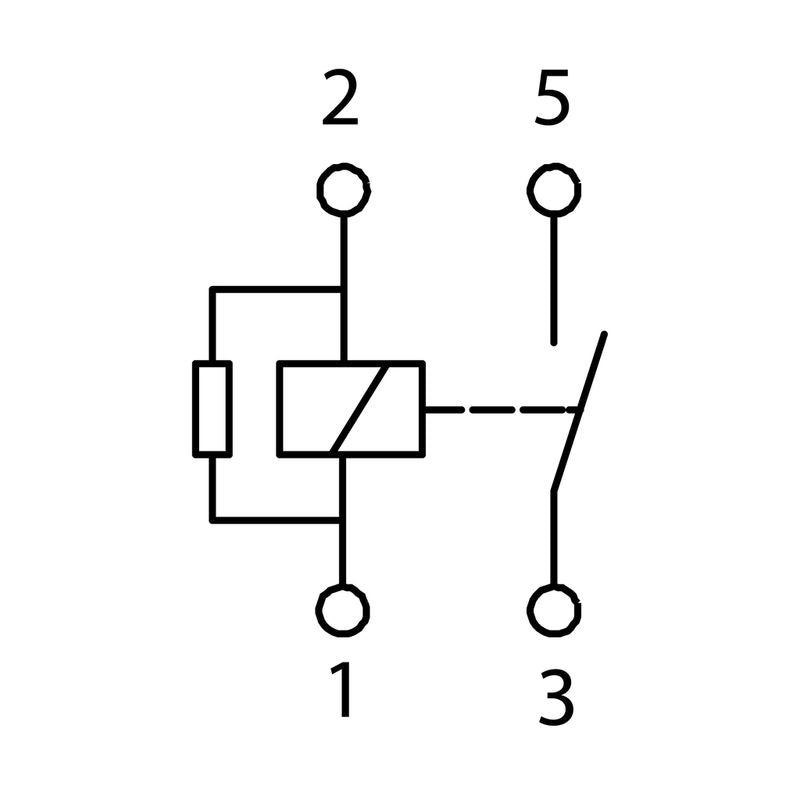

Relay function :
Normally open contact
Switch Function :
Normally Open Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
109

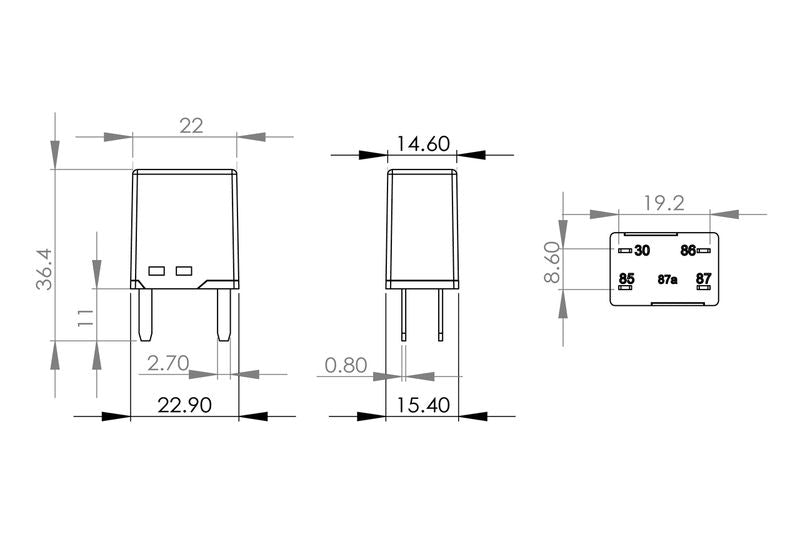

Length [mm] :
15.4
Width [mm] :
22.9
Height [mm] :
36.4
- Vendor BOSCH
- SKU 0986AH0115
