Bosch 0986AH0204 Relay, main current
Your selected vehicle
Regular price
£6.96
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0204 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, -40 °C temperature range from, 85 °C temperature range to, and without holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
20
Voltage [V] :
24
Number of pins :
5
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Supplementary Article/Supplementary Info :
without holder
Resistor [Ohm] :
295

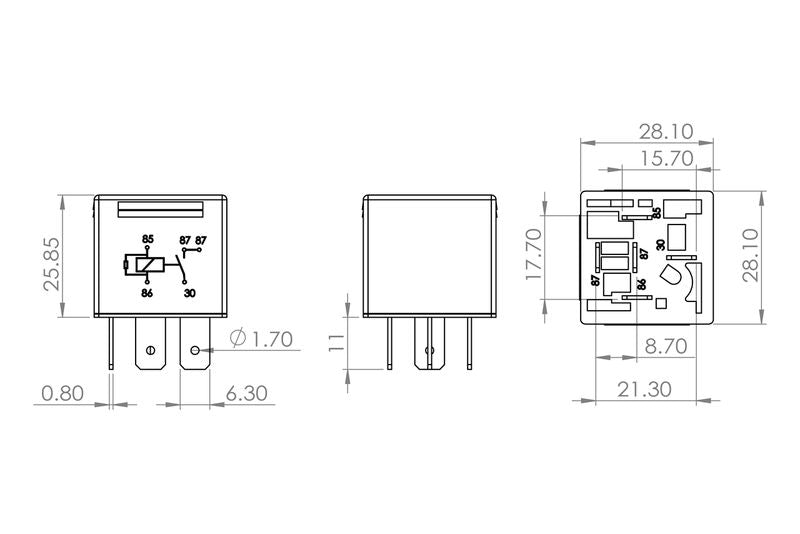

Length [mm] :
28.1
Width [mm] :
28.1
Height [mm] :
36.85
- Vendor BOSCH
- SKU 0986AH0204
- DAF : 1523982 1527511
- MAN : 69 20058 0015 81 25902 0058 81 25902 0109 81 25902 0156 81 25902 0236 81 25902 0410 81 25902 0439 81 25902 0459 81 25902 0473 81 25902 0561
- MERCEDES-BENZ : A 000 545 72 05 A 001 542 11 19 A 001 542 56 19 A 002 542 09 19 A 004 545 14 05 000 545 72 05 001 542 11 19 001 542 56 19 002 542 09 19 004 545 14 05
- RENAULT : 50 00 560 865
- SCANIA : 433294
- VOLVO : 1501833
- NEOPLAN : 0150552100 150552100
- STEYR : 69200580015
- SMART : A0025420919 0025420919
- HELLA : 4RA 965 400-141
