Bosch 0986AH0251 Relay, main current
Your selected vehicle
Regular price
£8.22
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0251 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, -40 °C temperature range from, 85 °C temperature range to, and without holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
30
Voltage [V] :
12
Number of pins :
5

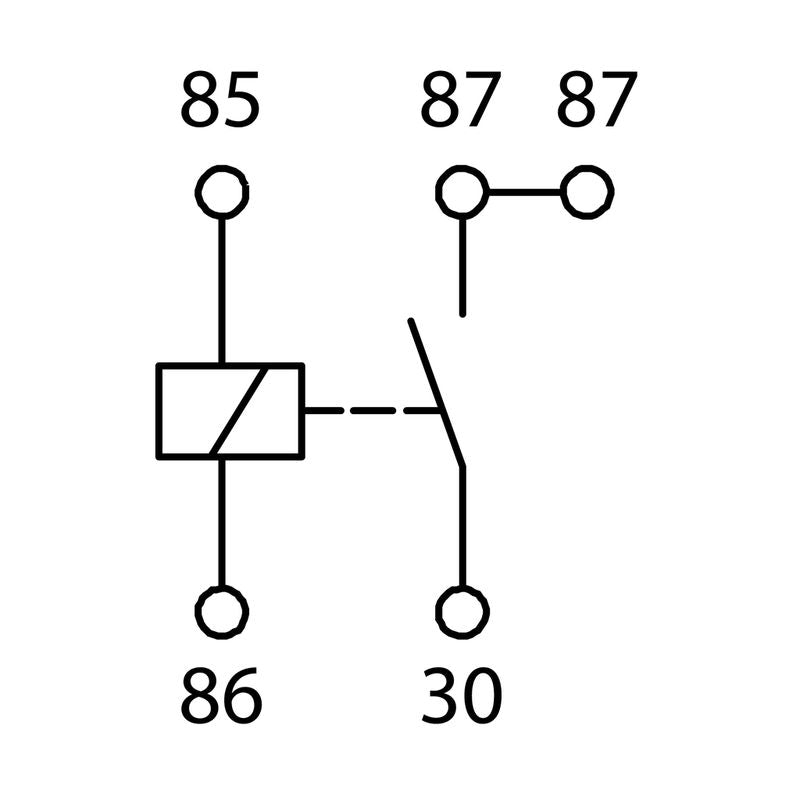

Relay function :
Normally open contact
Switch Function :
Normally Open Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Resistor [Ohm] :
90

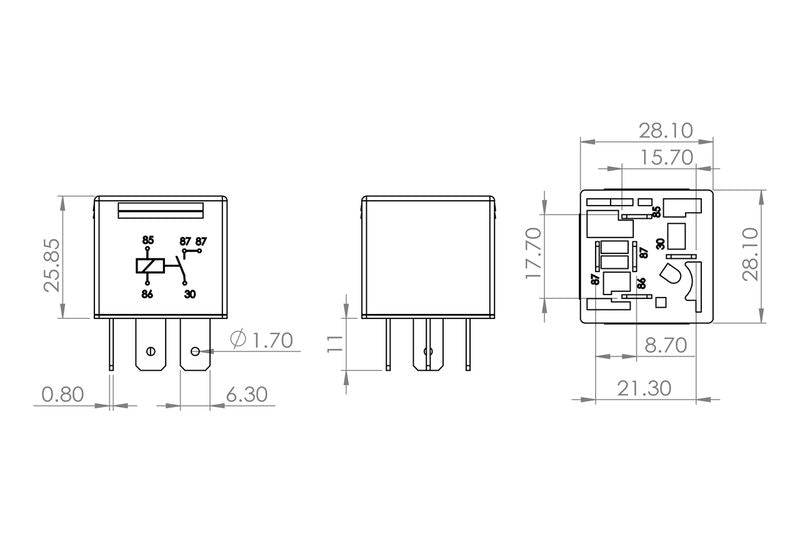

Length [mm] :
28
Width [mm] :
28
Height [mm] :
37
Supplementary Article/Supplementary Info :
without holder
- Vendor BOSCH
- SKU 0986AH0251
- ALFA ROMEO : 116106513500 116106513507 116965135000 4339372 533702 605012000 605070600 7612321
- AUDI : 1H0959142 141 951 253 B 171 919 505 A 311 906 061 C 431 951 253 H
- BMW : 01243207 1 243 207 1 373 156 61 31 1 243 207 61 31 1 373 156
- CITROËN : 92 526 538 92 526 538 80
- DAIMLER : A0015423219
- FIAT : 4320629 4339372 6050706 60507060 60805422 60812059 7612321 76123210 7615576 7619302
- INTERNATIONAL HARV. : 3221235R1
- IVECO : 4320625 4320629 7615576 7686773 98452428
- LANCIA : 4320629 4339372 60812059 7612321 7615576
- MAGIRUS-DEUTZ : 01164015 01172943 116 4015 117 2943
- MAN : 39 90058 0029
- MERCEDES-BENZ : A 000 545 80 05 A 001 542 32 19 A 001 542 43 19 A 001 542 55 19 A 002 545 19 05 000 545 80 05 001 542 32 19 001 542 43 19 001 542 55 19 002 545 19 05
- OPEL : 12 38 604 17 76 155 34 40 489 40 12 053 90296182
- PEUGEOT : 92 526 538 92 526 538 80
- PORSCHE : 0171937503 141951253B 171937503 928 615 117 00 999 657 009 90
- SAAB : 85 22 310
- SEAT : 1H0959142 141 951 253 B 171 919 505 A
- SKODA : 1H0959142 141 951 253 B 171 919 505 A
- VOLVO : 1235893 1259925 1501832 839367
- VW : 1H0959142 111 963 141 C 141 951 253 A 141 951 253 B 171 919 505 A 171937503 311 906 061 C 431 951 253 H
- STEYR : 39900580029
- HYUNDAI : 39160 25000 95225 3B100
- KIA : 0K011 18811 0K9A0 18811
- CASE IH : 82003697
- MASSEY FERGUSON : 3539 335 M92
- FERRARI : 0313320134 04 01 30 07 110350 110356 313320134 40 13 00 07
- FENDT : D45060021 X 830 250 011 000 3539335M92 3906604M1
- JOHN DEERE : AZ26996
- ABG : 45022
- HAMM : 2058138
- PUCH : 721 1 85 227 0
- VM : 48642037F
- NEW HOLLAND : 82003697
- FEBI BILSTEIN : 34751
- FEBI BILSTEIN : 45399
