Bosch 0986AH0253 Relay, main current
Your selected vehicle
Regular price
£6.67
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0253 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, -40 °C temperature range from, 100 °C temperature range to, and with holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
20
Voltage [V] :
24

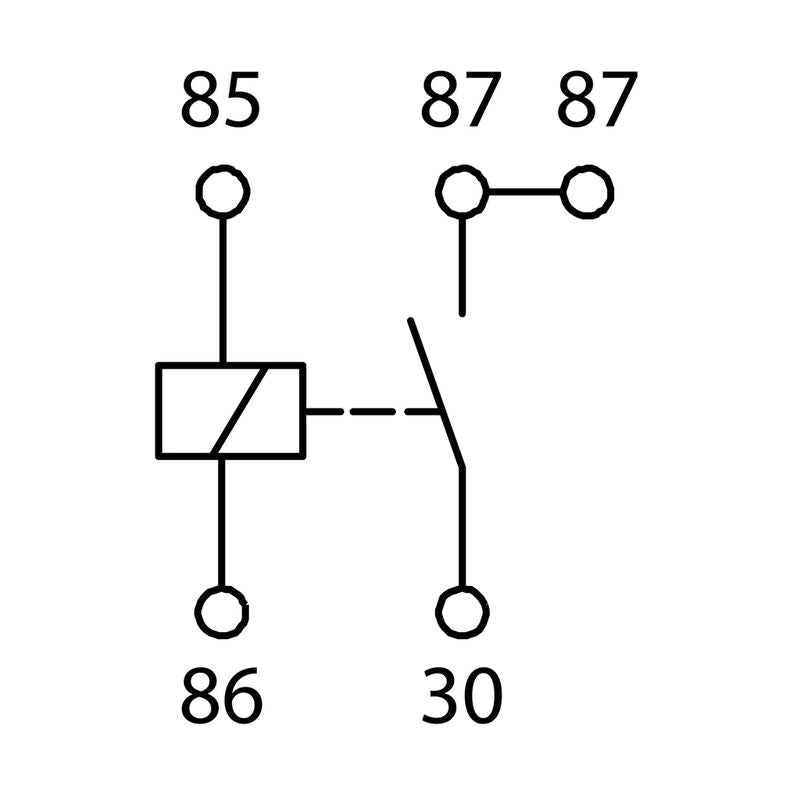

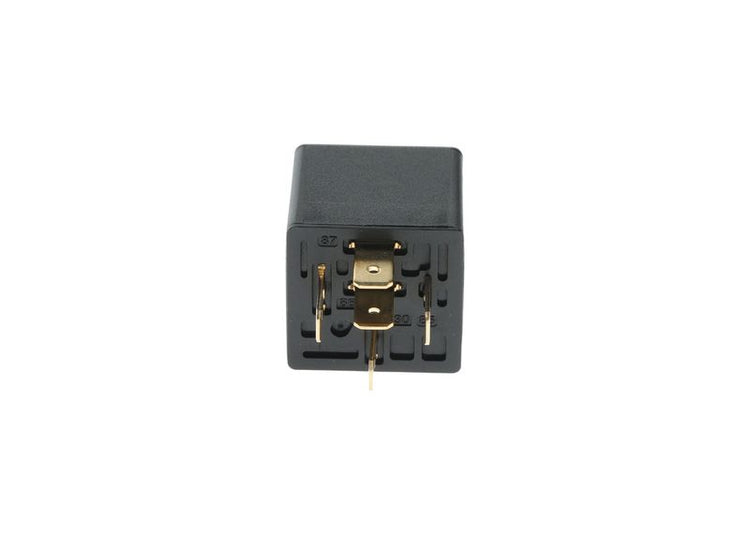

Number of pins :
5
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Supplementary Article/Supplementary Info :
with holder
Resistor [Ohm] :
330

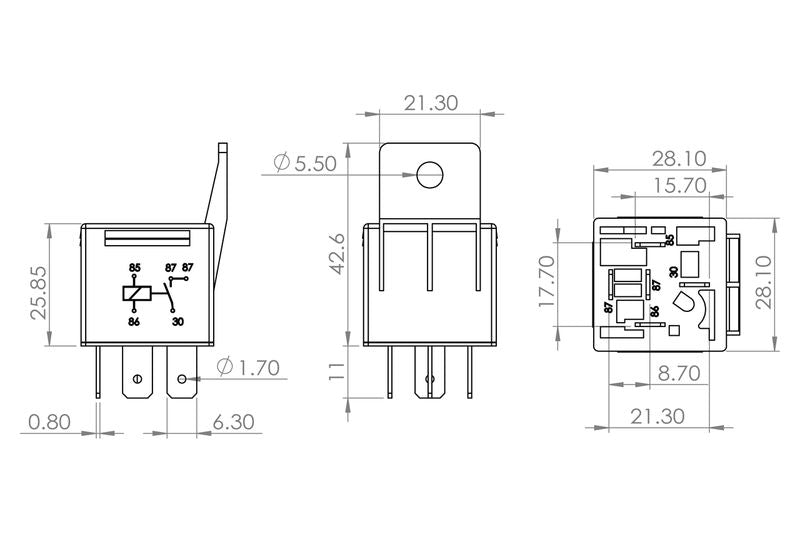

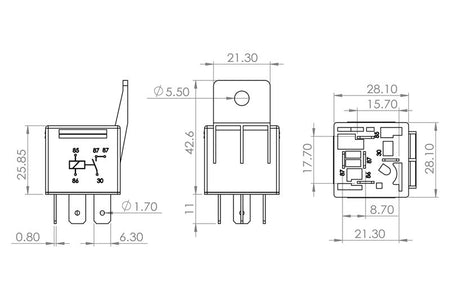

Length [mm] :
28.1
Width [mm] :
28.1
Height [mm] :
53.6
- Vendor BOSCH
- SKU 0986AH0253
- MERCEDES-BENZ : A 000 542 17 19 000 542 17 19
