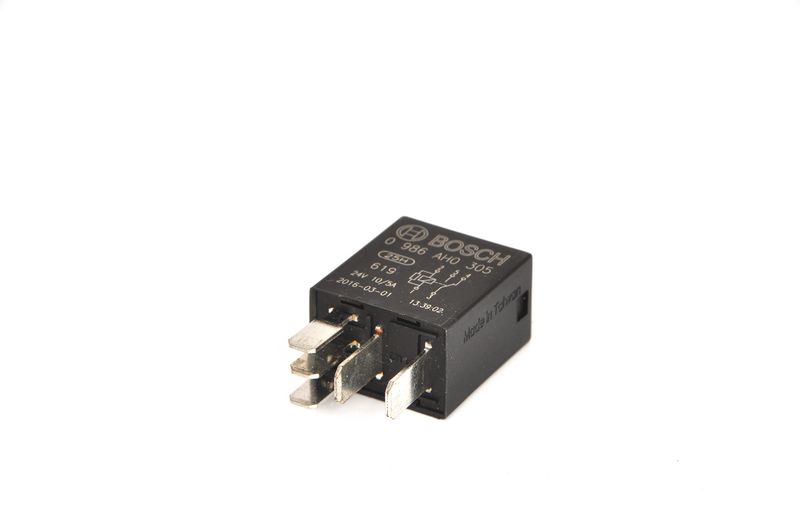

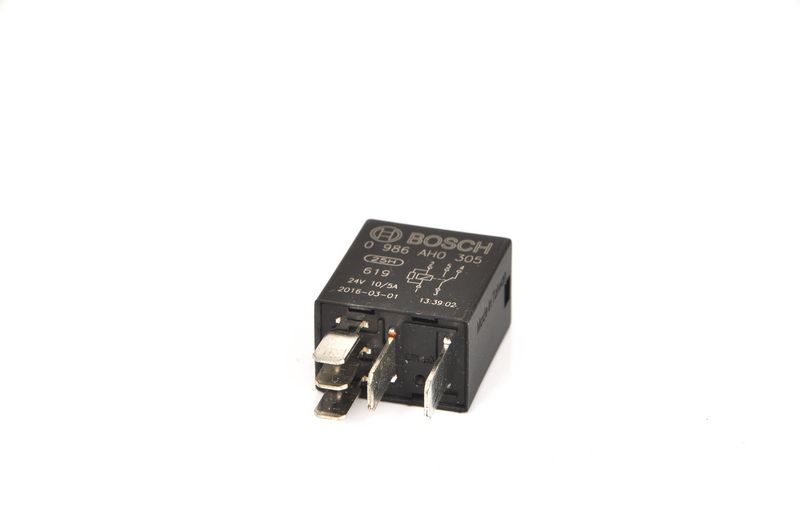

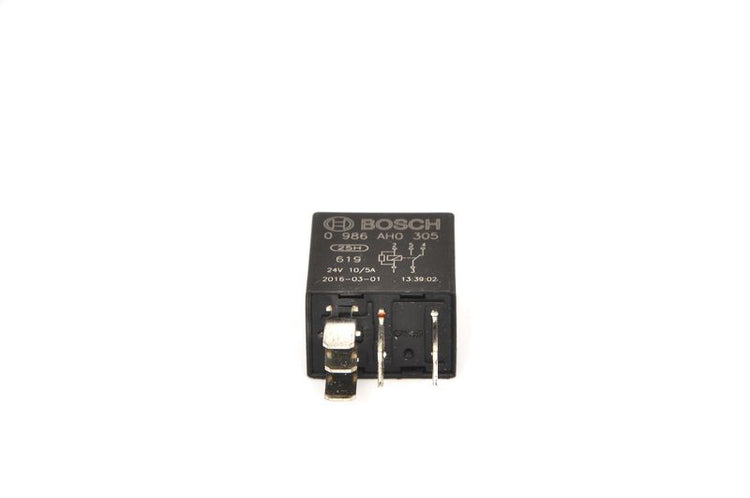

Bosch 0986AH0305 Relay, main current
Your selected vehicle
Regular price
£20.03
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0305 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, -40 °C temperature range from, 85 °C temperature range to, and without holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
10
Voltage [V] :
24
Number of pins :
5
Relay function :
Alternator
Switch Function :
Changeover Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Supplementary Article/Supplementary Info :
without holder
- Vendor BOSCH
- SKU 0986AH0305
- DAF : 1301879 1448174 1670141 3845427119 98444017
- MAN : 81 25902 0476
- VOLVO : 1078690 10786903
- FEBI BILSTEIN : 37688
- HELLA : 4RD 933 319-061
- BOSCH : MR0305
