Bosch 0986AH0322 Relay, main current
Your selected vehicle
Regular price
£6.79
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0322 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, -40 °C temperature range from, 125 °C temperature range to, and without holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current

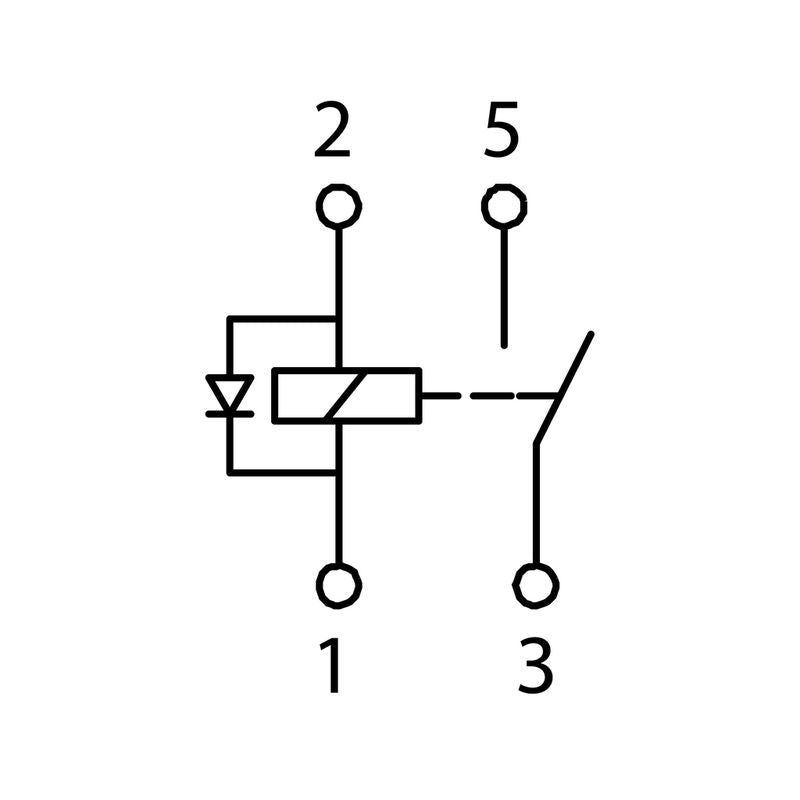

Switch Function :
Normally Open Contact
Current Strength [A] :
30
Voltage [V] :
12
Number of pins :
4
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
125
Supplementary Article/Supplementary Info :
without holder
Resistor [Ohm] :
90

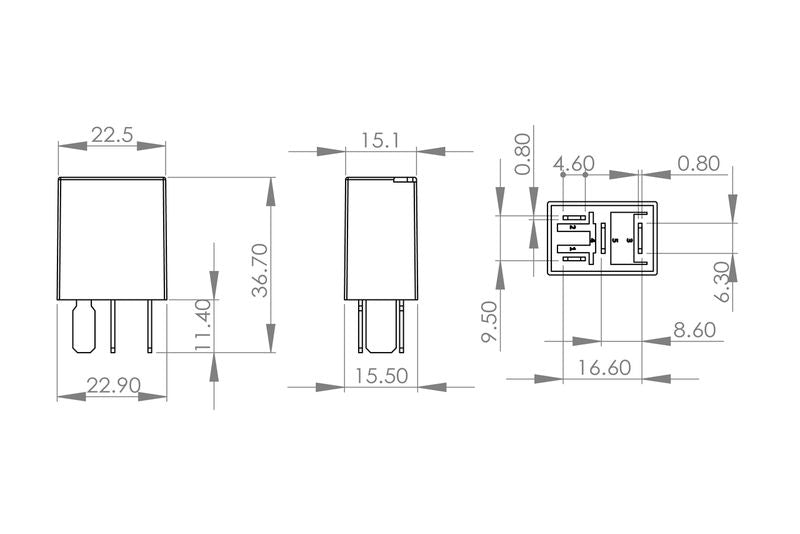

Length [mm] :
15.6
Width [mm] :
22.9
Height [mm] :
36.7
- Vendor BOSCH
- SKU 0986AH0322
- TOYOTA : 90987 02012
- HYUNDAI : 95224 2D000 95224 2D700 95224 29800 95224 29850 95224 3E500 95230 2P020
- KIA : 95224 2D000 95224 29850
