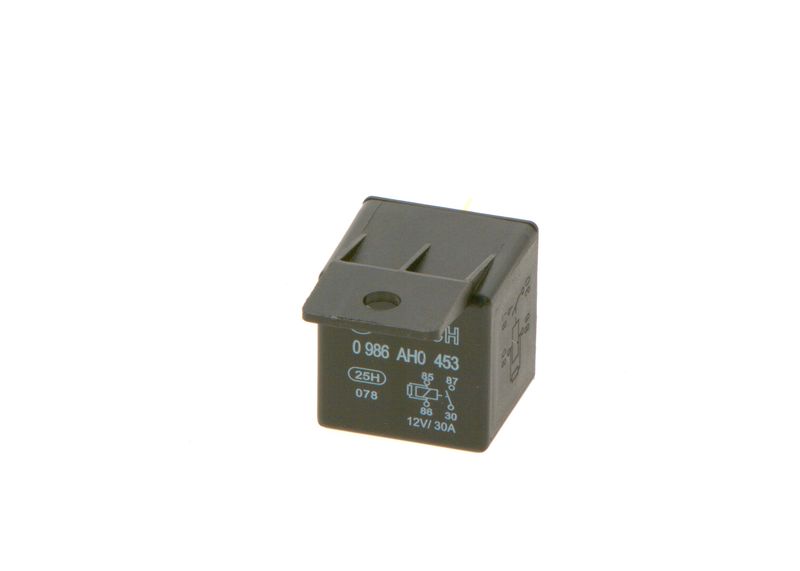

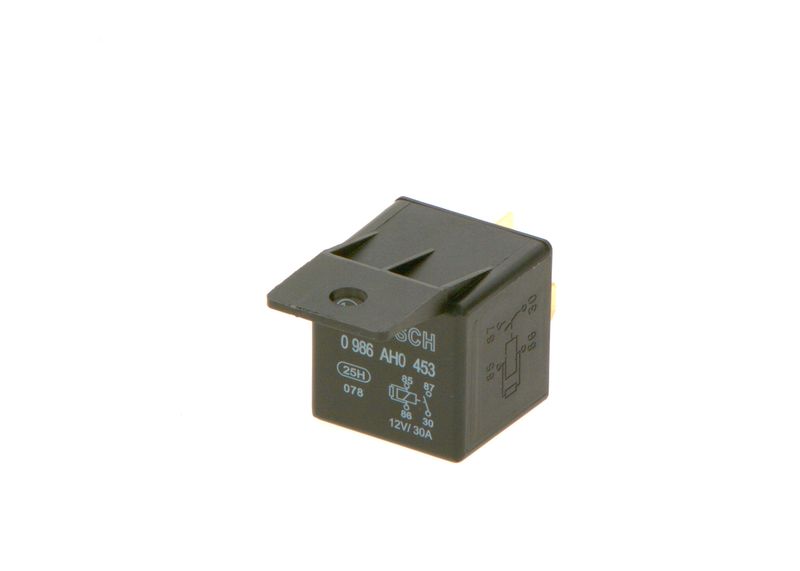

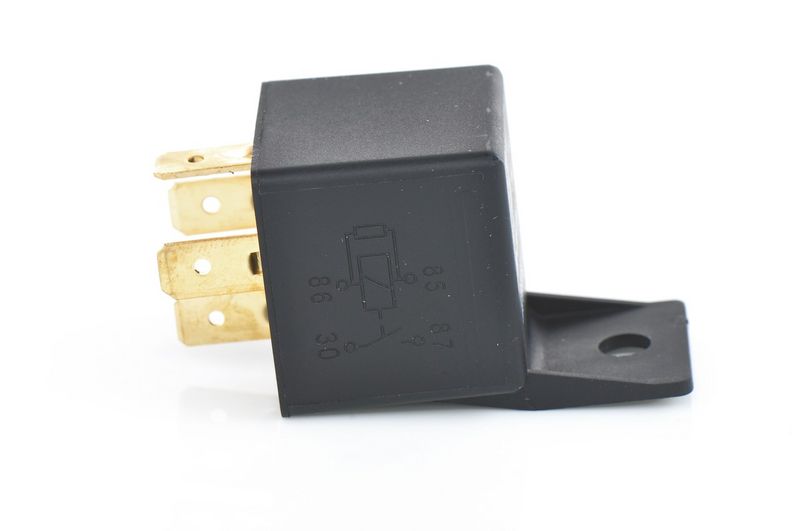

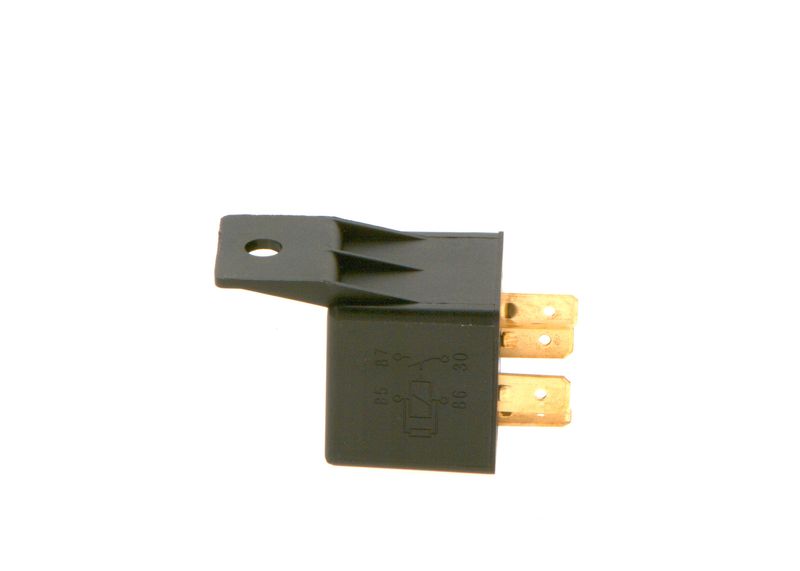

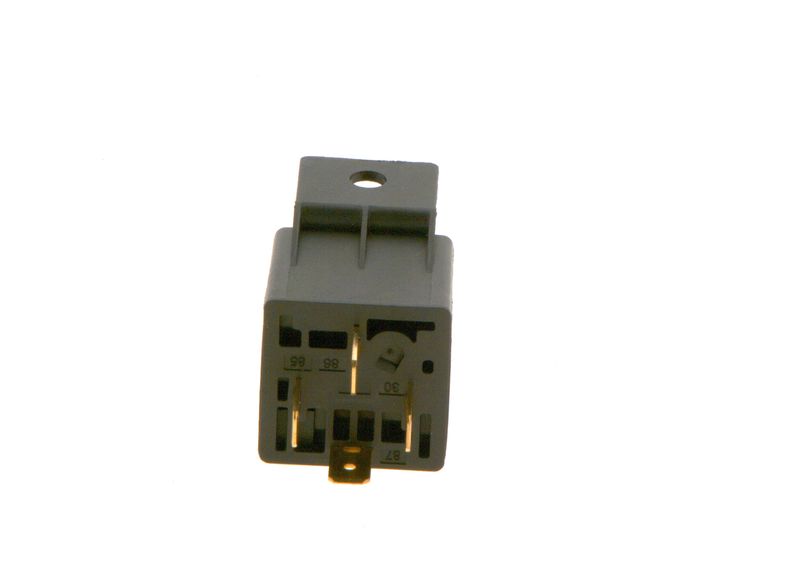

Bosch 0986AH0453 Relay, main current
Your selected vehicle
Regular price
£16.31
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0453 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, -40 °C temperature range from, 100 °C temperature range to, and 28.5 mm length. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
30
Voltage [V] :
12
Number of pins :
4
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
16
Length [mm] :
28.5
Width [mm] :
28.5
Height [mm] :
53.5
- Vendor BOSCH
- SKU 0986AH0453
- AUDI : KDWHLO9402 014 195 125 3 141951253
- BMW : 1 351 317 1 353 789 1 358 193 1 360 877 1 372 537 1 373 585 1 373 588 1354393A 1372538A 61 31 1 351 317 61 31 1 353 789 61 31 1 373 585 61 31 1 373 588 61 31 8 650 184
- DAF : 0867513 0906180
- DAIMLER : A0025420719
- GMC : 90464759
- IVECO : 60193651
- MERCEDES-BENZ : A 000 542 09 19 A 001 542 47 19 A 002 542 07 19 000 542 09 19 001 542 47 19 002 542 07 19
- MITSUBISHI : Z1519800
- OPEL : 01238621 12 38 611 12 38 621 12 38 631 12 81 218 43206400 62 38 522 62 38 525 90511178
- PORSCHE : 928 615 117 02
- TRIUMPH : 2500155
- VAUXHALL : 06238522 06238525 12 38 621 90511178
- VOLVO : 20002813702 263230 2813702 30652083 3542997 672599
- VW : KDWHLO9402 014 195 125 3 141951253
- FREIGHTLINER : HAL87106 HAL965400001
- HYUNDAI : 95224 38050
- KIA : 0K934 18821 95224 38050
- CASE IH : 1133948R1
- O&K : 145 28 07
- CLAAS : 11355740
- FENDT : D45075200 X 830 250 024 000
- JOHN DEERE : AZ55251
- STILL : 7916291272
- HAKO : 90 12655 8
- CATERPILLAR : 0814330
- LINDE : FM5005016 7916291272
- IRMSCHER : 0077512520
- KRONE : 03022170 3021811 515001750
- SCHMITZ CARGOBULL : 980042
- HYDREMA : 585205
- BOSCH : 0 332 019 453
- FEBI BILSTEIN : 33689
- HELLA : 4RA 965 400-001
