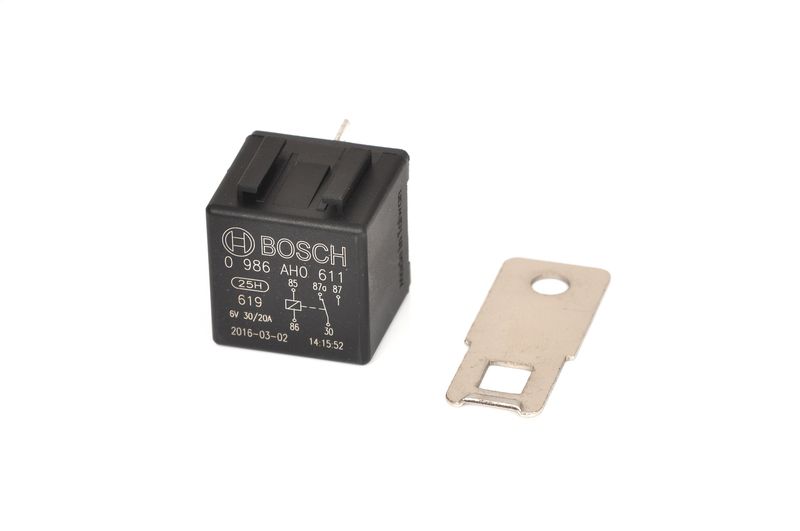

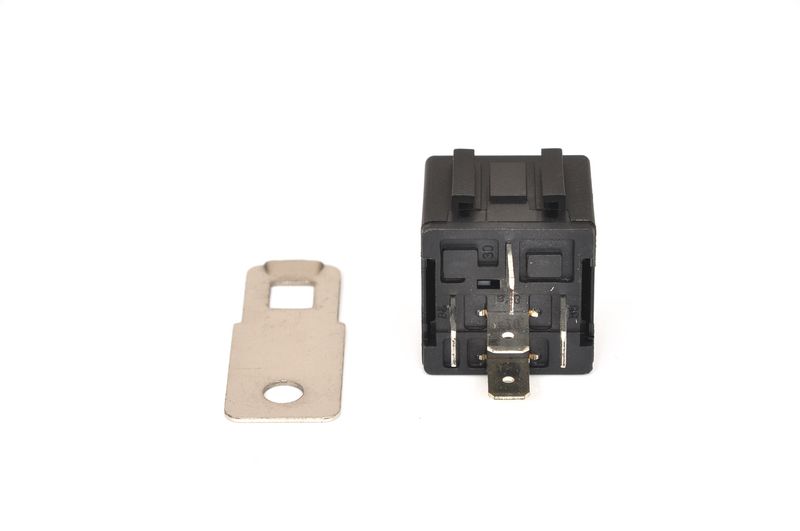

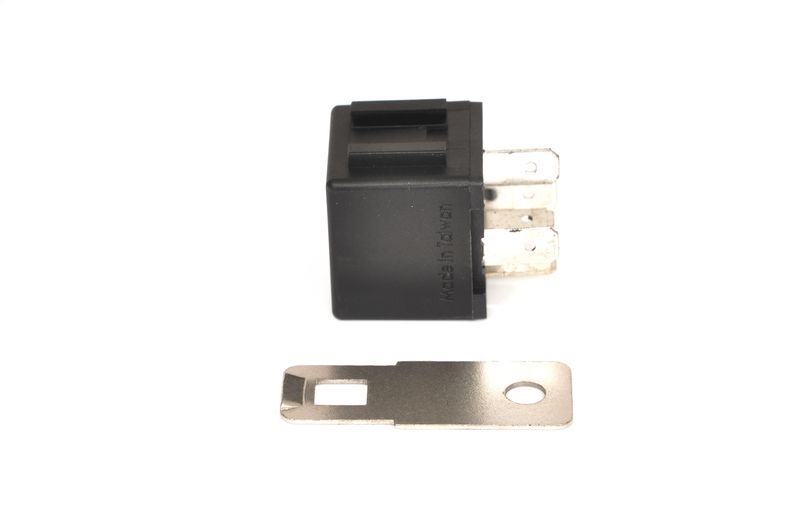

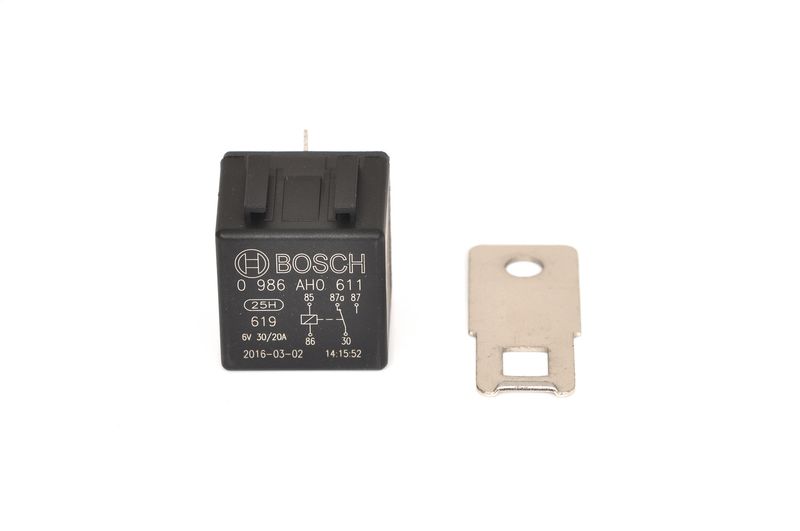

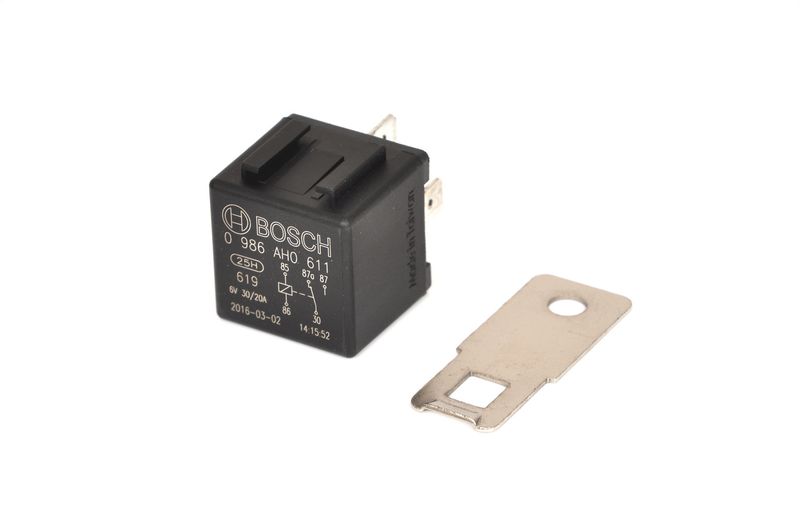

Bosch 0986AH0611 Relay, main current
Your selected vehicle
Regular price
£98.46
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0611 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 6 V electrical rating, -40 °C temperature range from, 100 °C temperature range to, and with holder. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
30
Voltage [V] :
6
Number of pins :
5
Relay function :
Alternator
Switch Function :
Changeover Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
22
Supplementary Article/Supplementary Info :
with holder
- Vendor BOSCH
- SKU 0986AH0611
- ALFA ROMEO : 4339372 7612321
- BMW : 01243207 61 31 1 243 207
- FIAT : 4339372 7612321
- FORD : 82003697
- LANCIA : 4339372 7612321
- MAN : 39 90058 0029
- MERCEDES-BENZ : A 000 545 80 05 A 001 542 32 19 A 002 545 02 45 A 002 545 19 05 000 545 80 05 001 542 32 19 002 545 02 45 002 545 19 05
- OPEL : 12 28 501
- PORSCHE : PCG61510100 999 657 009 90
- KIA : 0K011 18811 0K9A0 18811
- CASE IH : 82003697
- FERRARI : 0313320134 04 01 30 07
- FENDT : X 830 250 011 000
- JOHN DEERE : AR91168 AZ26996
- MASERATI : 7612321
- NEW HOLLAND : 82003697
- FEBI BILSTEIN : 45399
