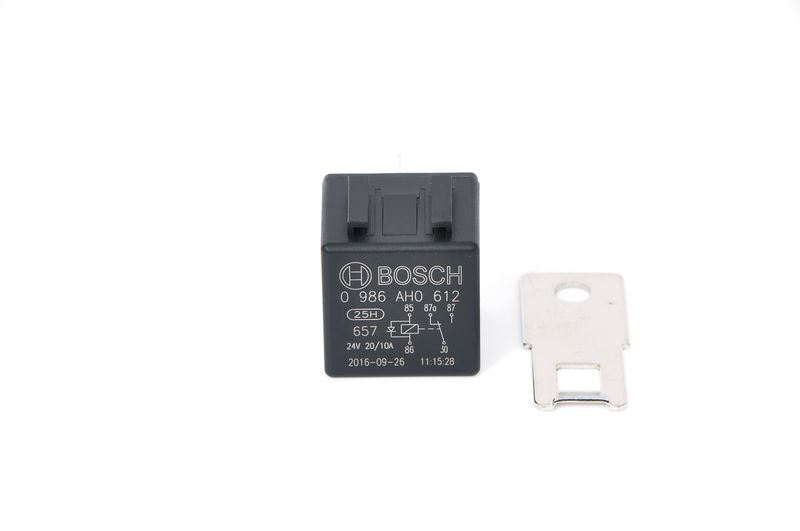

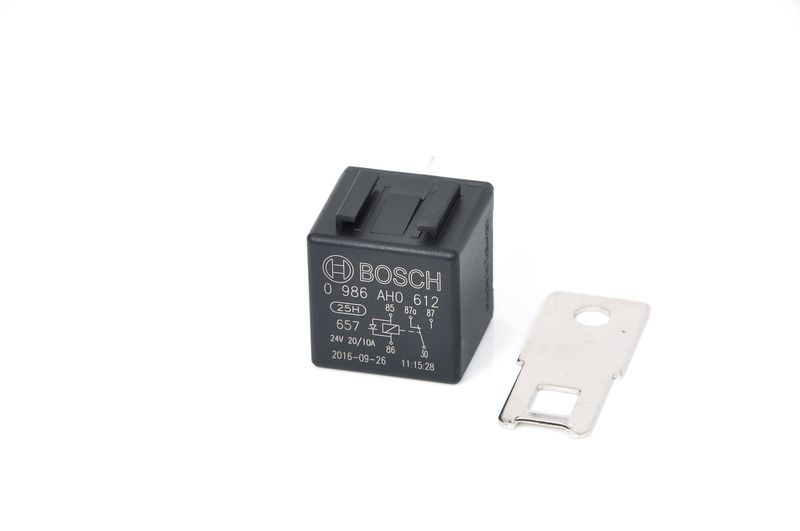

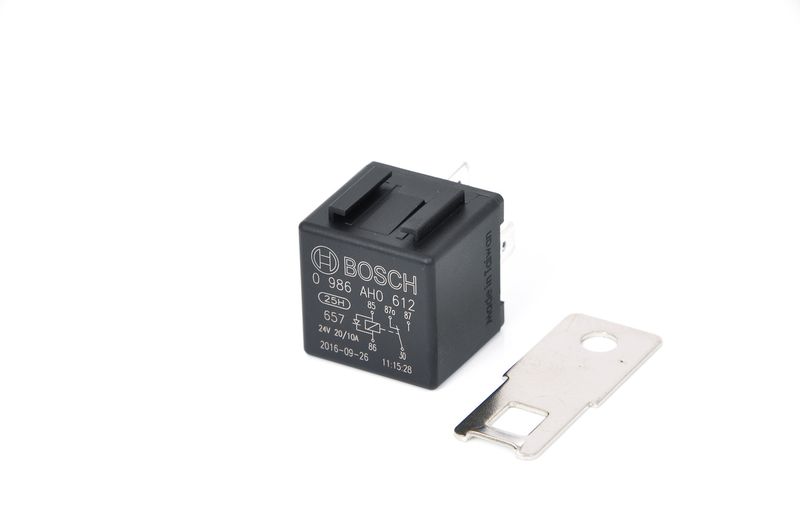

Bosch 0986AH0612 Relay, main current
Your selected vehicle
Regular price
£63.08
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0612 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, Synthetic Material Housing housing type, -40 °C temperature range from, and 100 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
10
Voltage [V] :
24
Number of pins :
5
Relay function :
Alternator
Housing Type :
Synthetic Material Housing
Switch Function :
Changeover Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
360
Supplementary Article/Supplementary Info :
with suppression diode
Housing Colour :
black
- Vendor BOSCH
- SKU 0986AH0612
- HANOMAG : 3097003ML 3097003M1
- MACK : 438187427B
- VOLVO : 14026371
- FAUN : 99707034820
- STEINBOCK : 0051139816
- GOLDHOFER : 153833
- JCB : 71611100
- KÖGEL : 134306
- HAKO : 90 24987 1
- AHLMANN : 23132687
- HYSTER : 1616235
- KOMATSU : 20K0632130
- KRONE : 0505821657
- LANGENDORF : 1204689
- TEREX : 1186320
- JUNGHEINRICH : 51139816
- SOLARIS : 1570050000
- DOOSAN : 0095449001
- FEBI BILSTEIN : 45400
