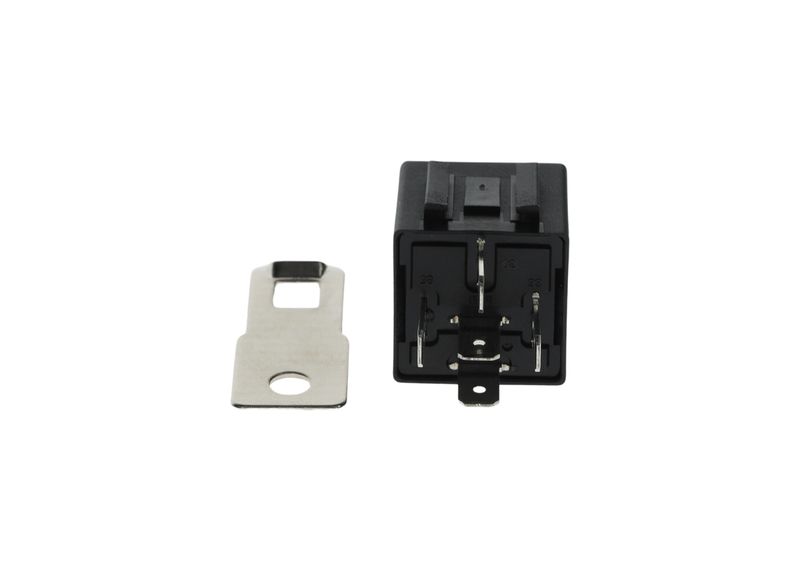

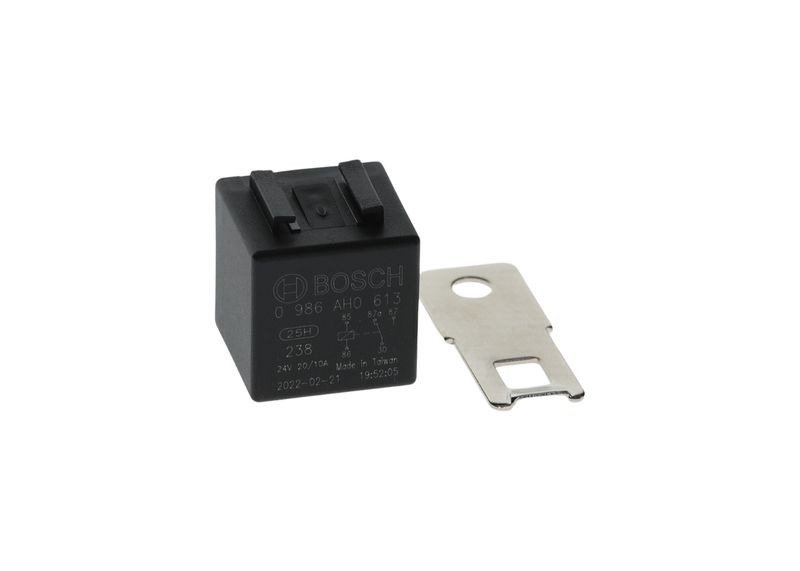

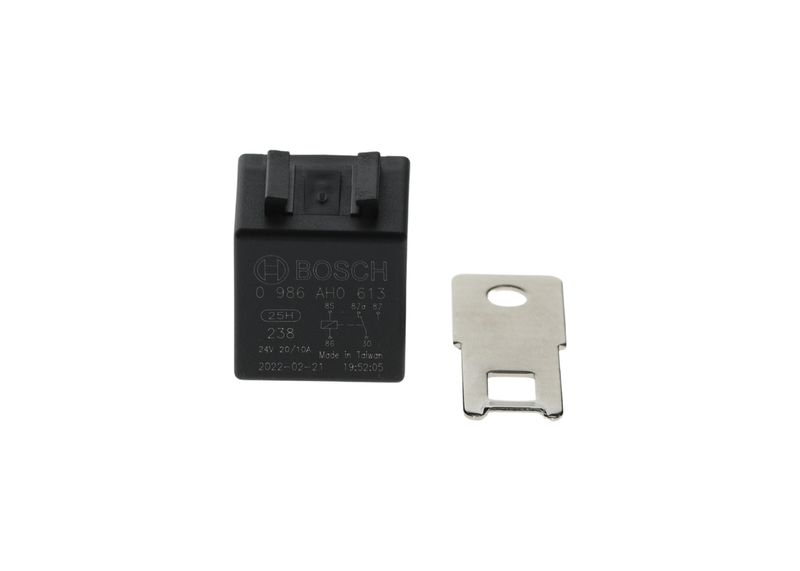

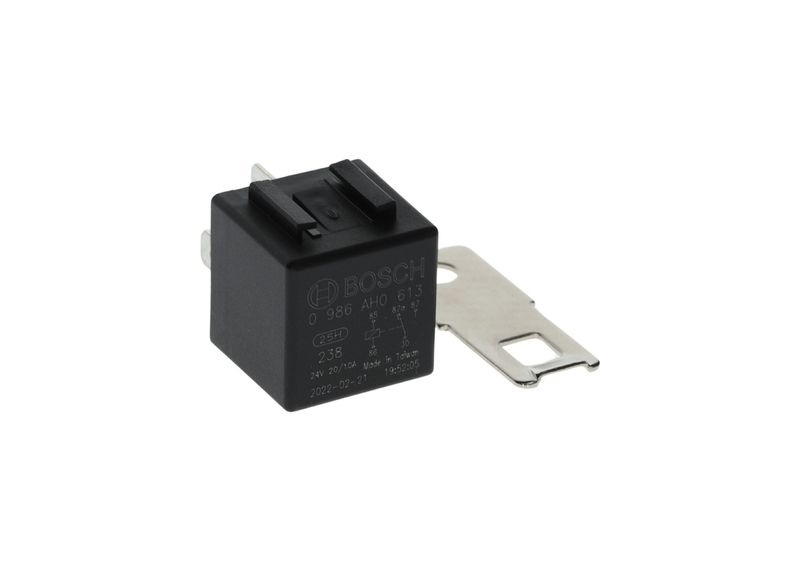

Bosch 0986AH0613 Relay, main current
Your selected vehicle
Regular price
£41.23
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0613 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, Synthetic Material Housing housing type, -40 °C temperature range from, and 100 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
20
Voltage [V] :
24
Number of pins :
5
Relay function :
Alternator
Housing Type :
Synthetic Material Housing
Switch Function :
Changeover Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
360
Length [mm] :
28.5
Width [mm] :
28.5
Height [mm] :
53.5
Housing Colour :
black
- Vendor BOSCH
- SKU 0986AH0613
- AEBI : 2010219694
- BMW : 7 920 100
- CHRYSLER : 04864 0025A 4864 0025A
- DAF : 0118159 0867517 0907335 118159 1403871 1519523 533912
- DAIMLER : A0005458705 A0008201710
- FIAT : 1164018 71904877 79042848
- HANOMAG : 2949075M1 3227 799 M91
- HENSCHEL : 1 085 506
- INTERNATIONAL HARV. : 3219177R1
- IVECO : 02471298EE 1164018 32190845 41040442 42530143 4718222 5158609
- KÄSSBOHRER : 7375109000 7375124000
- MAGIRUS-DEUTZ : 01161141 01164018 116 1141 116 4018
- MAN : 81 25902 0100 81 25902 0102 81 25902 0130 81 25902 0165 81 25902 0171 81 25902 0234 81 25902 0248 81 25902 0250 81 25902 0435 81 25902 0461 81 25902 0474 88 25902 0005
- MERCEDES-BENZ : A 000 545 54 05 A 000 545 84 05 A 000 545 87 05 A 000 820 17 10 A 000 982 21 26 A 001 531 02 60 A 001 542 05 19 A 001 542 21 19 A 001 545 10 05 A 002 542 24 19 000 545 54 05 000 545 84 05 000 545 87 05 000 820 17 10 000 982 21 26 001 531 02 60 001 542 05 19 001 542 21 19 001 545 10 05 002 542 24 19
- OPEL : V03436400
- RENAULT : X752280150 54 30 025 965 55 16 038 408
- SAURER : 244 0670 028
- SAVIEM : 5516038408
- SCANIA : 1391322 1431781 2077837 237722 243460 400782
- UNIC-SIMCA : 1 164 018
- VAUXHALL : V03436400
- VOLVO : 1259926 1504951 233931 837878
- FAUN : 1731 105 1731 134 4901654M1
- STEYR : 680 58 0126 99000580236 99000580238 99000580265
- MWM : 3 0712 02 9 0130 6 0742 40 6 0045
- O&K : 524 342 542 342
- STEINBOCK : 020792
- LIEBHERR : 620 00 82 630 160 214 630 160 805
- JCB : 71602500
- KÖGEL : 78006
- STILL : 4014372 503848
- CATERPILLAR : 5W 2661
- DRESSER : 3219177R1
- KAELBLE : 860 08100 27
- ZETTELMEYER : 21138001
- LINDE : 9731311
- PUCH : 713 1 66 246 0
- SCHMITZ CARGOBULL : 066534 1112624
- TEREX : 5050247310
- JUNGHEINRICH : 28520140
- MTU : 0008201710 0025313060
- FEBI BILSTEIN : 11931
- FEBI BILSTEIN : 35475
- FEBI BILSTEIN : 45400
- HELLA : 4RD 933 332-061
- HELLA : 4RD 933 332-067
- BOSCH : RW0613
