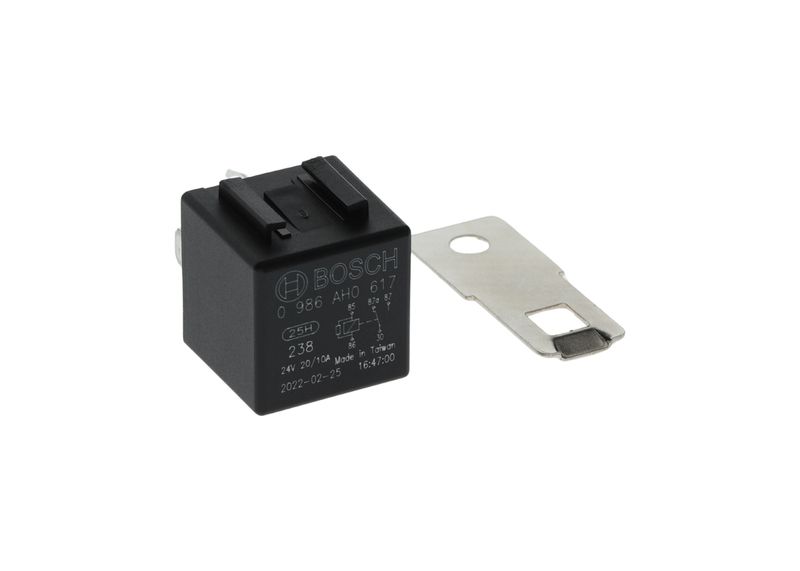

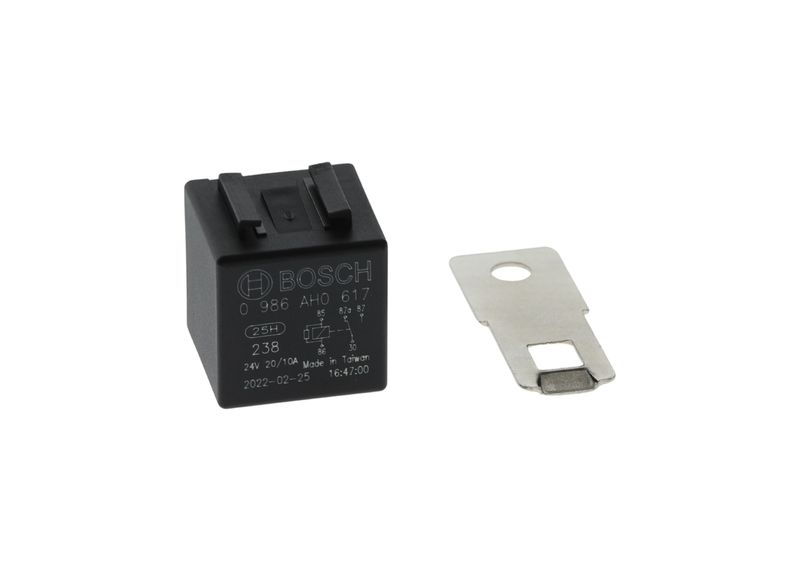

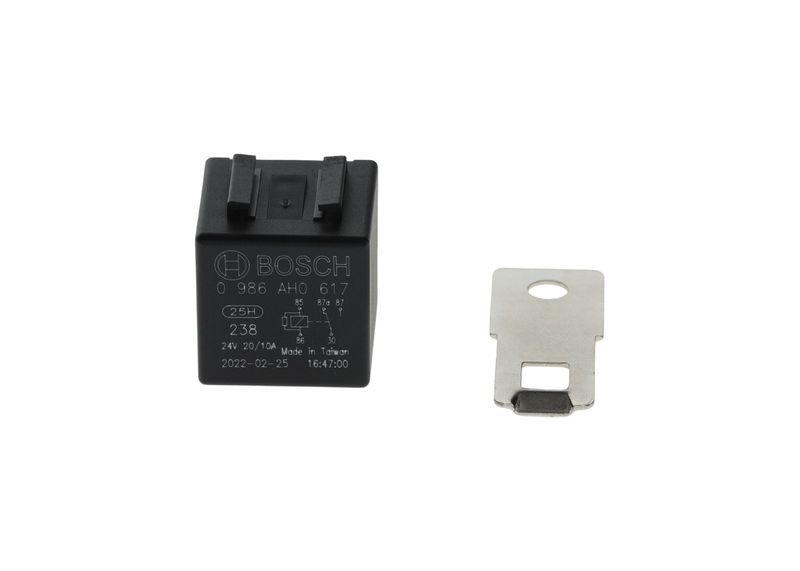

Bosch 0986AH0617 Relay, main current
Your selected vehicle
Regular price
£43.38
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0617 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, Synthetic Material Housing housing type, -40 °C temperature range from, and 100 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
20
Voltage [V] :
24
Number of pins :
5
Relay function :
Alternator
Housing Type :
Synthetic Material Housing
Switch Function :
Changeover Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
317
Supplementary Article/Supplementary Info :
with holder
Housing Colour :
black
- Vendor BOSCH
- SKU 0986AH0617
- DAF : 0515912 118159 1670140 1745069 265401 515912
- FIAT : 1164018
- IVECO : 1164018
- MAN : 81 25902 0102 81 25902 0460 81 25902 0461
- MERCEDES-BENZ : A 000 820 17 10 A 000 821 95 47 000 820 17 10 000 821 95 47
- SCANIA : 237722
- VOLVO : 3171420
- FEBI BILSTEIN : 11931
- FEBI BILSTEIN : 35475
- FEBI BILSTEIN : 45400
