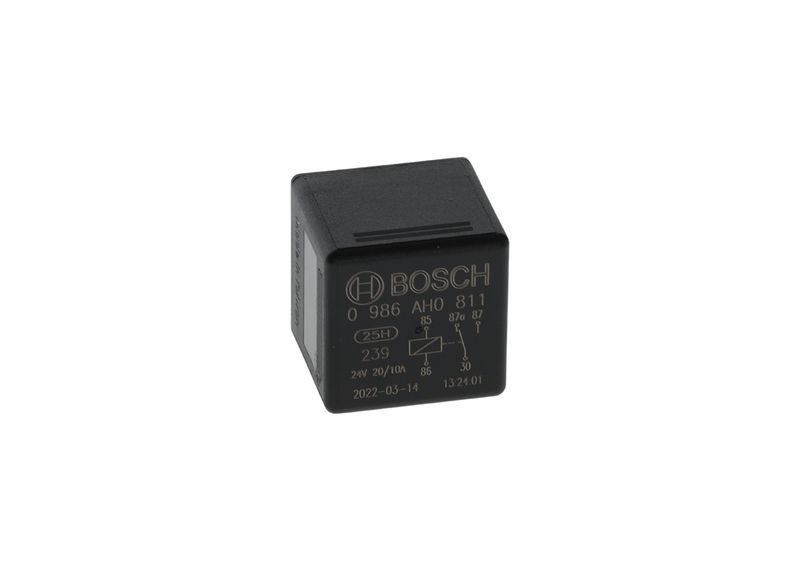

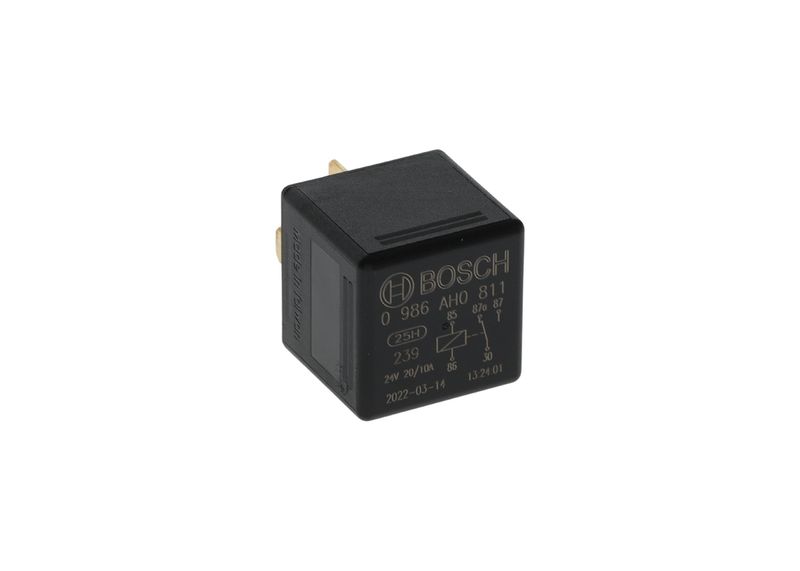

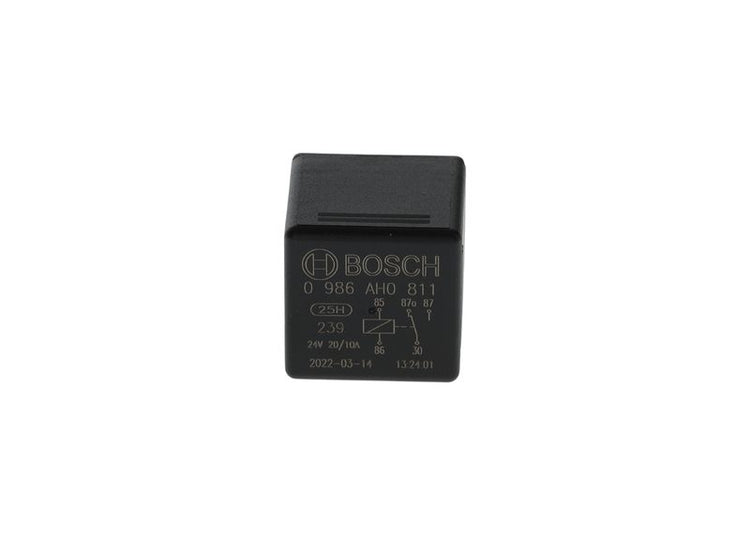

Bosch 0986AH0811 Multifunctional Relay
Your selected vehicle
Regular price
£16.62
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986AH0811 Multifunctional Relay is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, Housing with Plastic Lid housing type, IP54 protection type (ip code), and -40 °C temperature range from. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Multifunctional Relay
Relay function :
Normally open contact
Current Strength [A] :
20
Voltage [V] :
24
Number of pins :
5
Housing Type :
Housing with Plastic Lid
Switch Function :
Changeover Contact
Protection Type (IP Code) :
IP54
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Supplementary Article/Supplementary Info :
without holder
- Vendor BOSCH
- SKU 0986AH0811
- DAF : 0867515 118159 1403871
- FIAT : 1164018
- IVECO : 0041040442 1164018 4718222
- MAN : 81 25902 0102 81 25902 0130 81 25902 0171 81 25902 0199 81 25902 0248 81 25902 0435 81 25902 0461 81 25902 0474
- MERCEDES-BENZ : A 000 545 84 05 A 000 545 84 25 A 000 820 17 10 A 001 531 02 60 000 545 84 05 000 545 84 25 000 820 17 10 001 531 02 60
- RENAULT : 50 00 084 772
- SCANIA : 237722 243460 243879 400782
- FAUN : 99700589082
- NEOPLAN : 0150551300 11025696
- CASE IH : 198161A1
- LIEBHERR : 06002153 06202511
- FENDT : R1863700014
- SCHMITZ CARGOBULL : 1123 62864
- MANITOU : 681116
- SOMMER : 2801566001
- SCHWARZMÜLLER : 251713
- FEBI BILSTEIN : 11931
- FEBI BILSTEIN : 35475
- FEBI BILSTEIN : 45400
- BOSCH : MR0811
