BOSCH

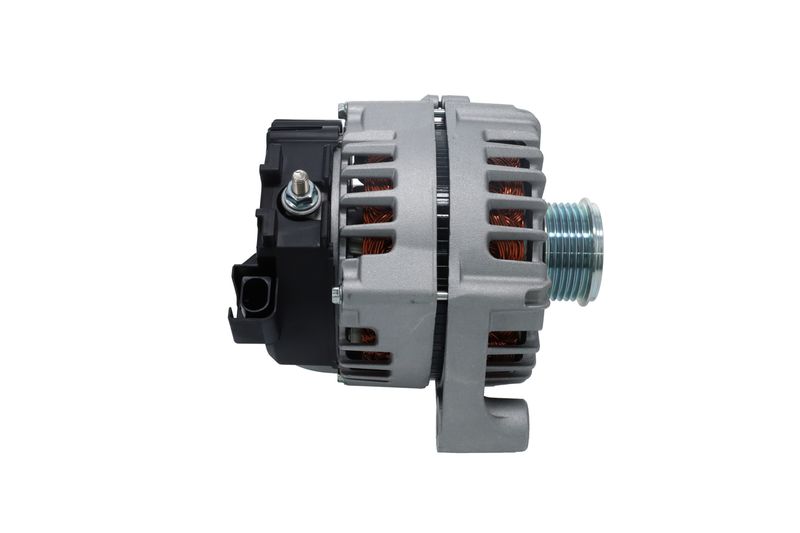

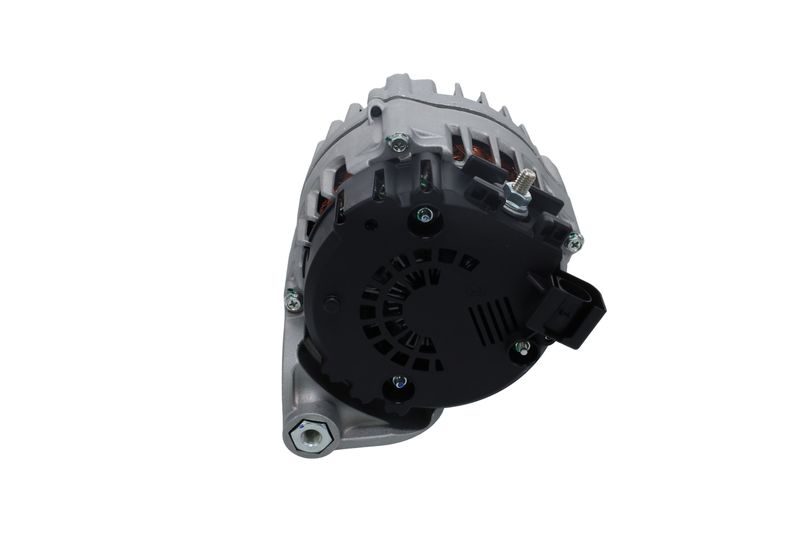

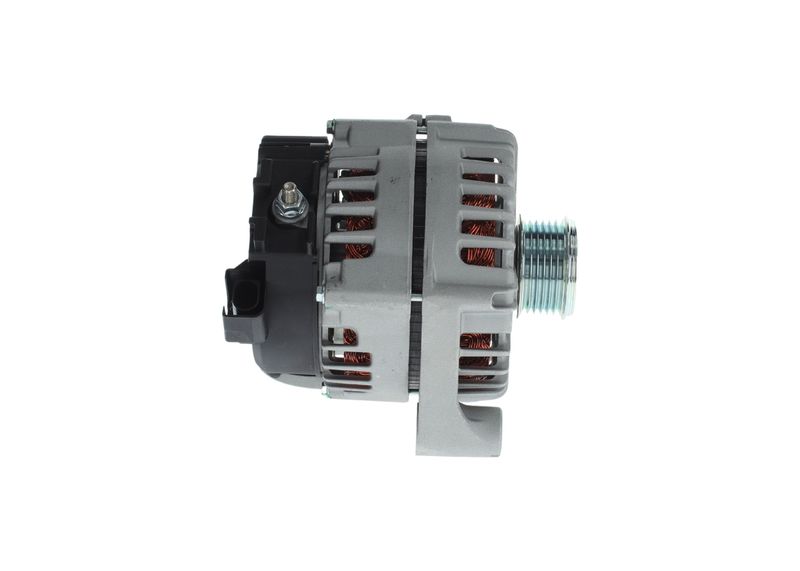

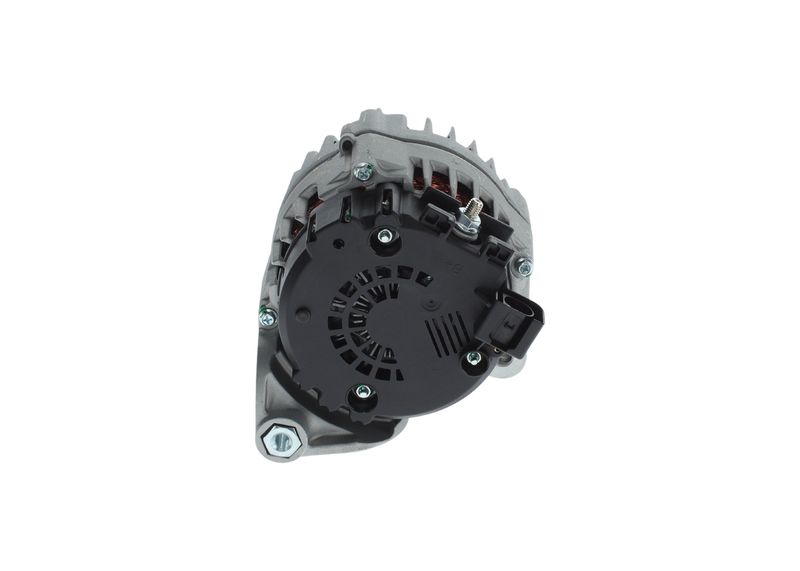

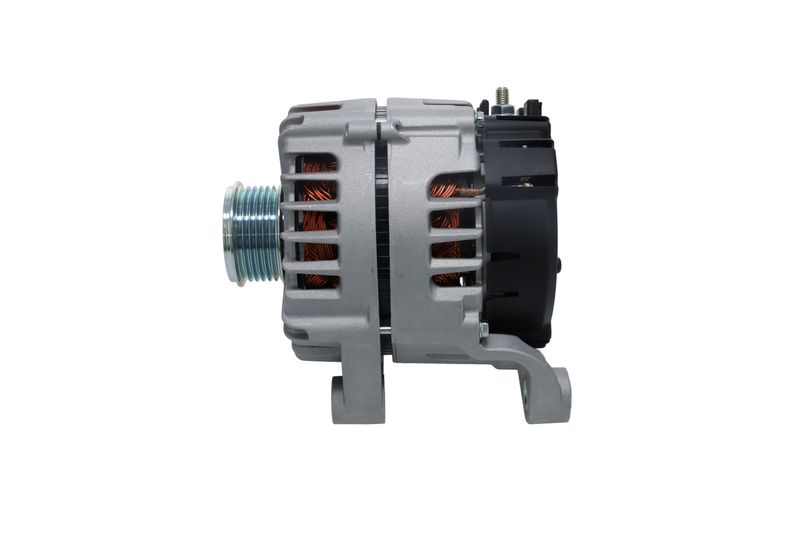

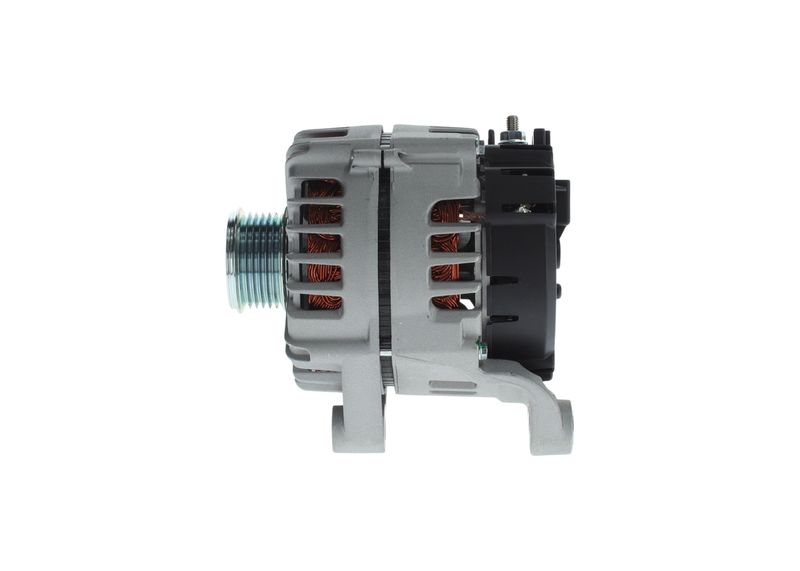

Bosch 1986A00627 Alternator

SKU: 1986A00627

Your selected vehicle

Out of stock

Out of Stock

£501.29 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

3 (F30, F80)

Description	Cylinder Capacity	Horse Power	Year
335 d xDrive	2993 CCM	313 HP	07/2013 - 10/2018

3 Gran Turismo (F34)

Description	Cylinder Capacity	Horse Power	Year
330 d xDrive	2993 CCM	258 HP	From 03/2014
330 d	2993 CCM	258 HP	From 03/2014
335 d xDrive	2993 CCM	313 HP	From 03/2014

3 Touring (F31)

Description	Cylinder Capacity	Horse Power	Year
330 d	2993 CCM	258 HP	07/2012 - 06/2019
330 d xDrive	2993 CCM	258 HP	03/2013 - 06/2019

4 Coupe (F32, F82)

Description	Cylinder Capacity	Horse Power	Year
435 d xDrive	2993 CCM	313 HP	11/2013 - 06/2020
430 d	2993 CCM	258 HP	11/2013 - 06/2020
430 d xDrive	2993 CCM	258 HP	03/2014 - 06/2020

4 Convertible (F33, F83)

Description	Cylinder Capacity	Horse Power	Year
430 d	2993 CCM	258 HP	07/2014 - 07/2020
435 d xDrive	2993 CCM	313 HP	07/2014 - 07/2020
430 d	2993 CCM	286 HP	07/2014 - 07/2020

4 Gran Coupe (F36)

Description	Cylinder Capacity	Horse Power	Year
430 d	2993 CCM	258 HP	07/2014 - 12/2020
430 d xDrive	2993 CCM	258 HP	07/2014 - 12/2020
435 d xDrive	2993 CCM	313 HP	07/2014 - 12/2020
430 d	2993 CCM	286 HP	07/2014 - 12/2020
430 d xDrive	2993 CCM	286 HP	07/2014 - 12/2020

X5 (F15, F85)

Description	Cylinder Capacity	Horse Power	Year
M 50 d	2993 CCM	381 HP	12/2013 - 07/2018
xDrive 30 d	2993 CCM	258 HP	08/2013 - 07/2018
xDrive 40 d	2993 CCM	313 HP	12/2013 - 07/2018
xDrive 30 d	2993 CCM	277 HP	08/2013 - 07/2018
xDrive 25 d	2993 CCM	218 HP	04/2014 - 07/2018

X6 (F16, F86)

Description	Cylinder Capacity	Horse Power	Year
xDrive 30 d	2993 CCM	258 HP	08/2014 - 07/2019
M 50 d	2993 CCM	381 HP	08/2014 - 07/2019
xDrive 30 d	2993 CCM	211 HP	08/2014 - 07/2019
xDrive 40 d	2993 CCM	313 HP	12/2014 - 07/2019
xDrive 30 d	2993 CCM	277 HP	08/2014 - 07/2019
xDrive 30 d	2993 CCM	249 HP	12/2014 - 07/2019

The Bosch 1986A00627 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 125 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 220

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 57.2

Rotation Direction : Clockwise rotation

Pulleys : with multi-belt pulley

Number of grooves : 6

Belt Pulley Ø [mm] : 53.5

Clamp : B+(M8)

Plug Type ID : 125

Length [mm] : 186

Recommended additional repairs : V-Belt/V-ribbed Belt

Bosch 1986A00627 Alternator
