BOSCH

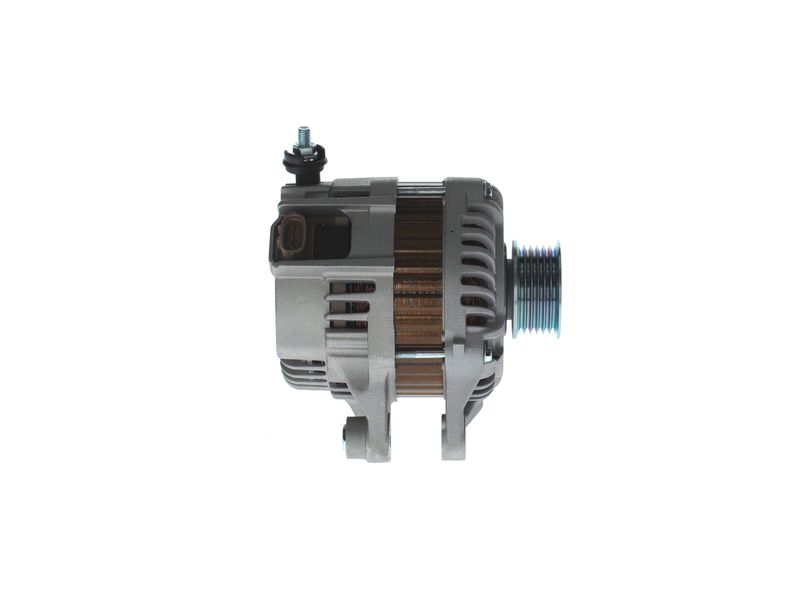

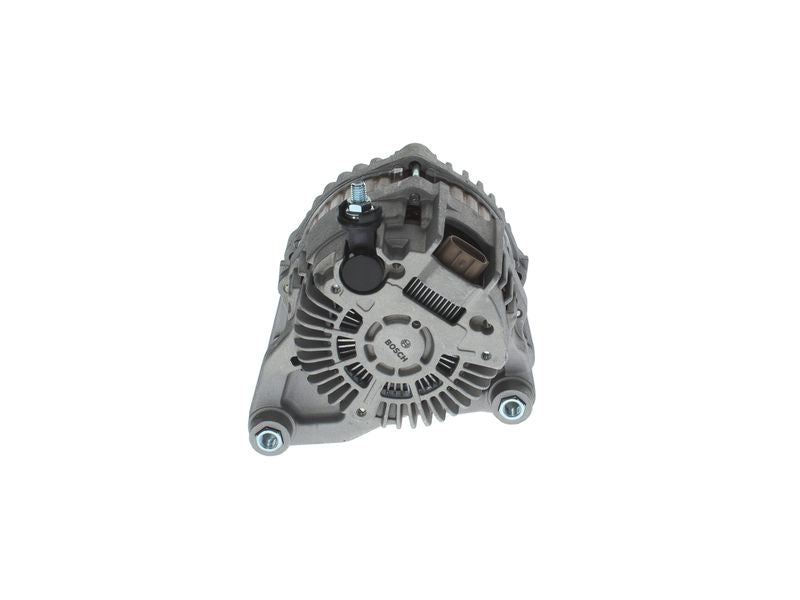

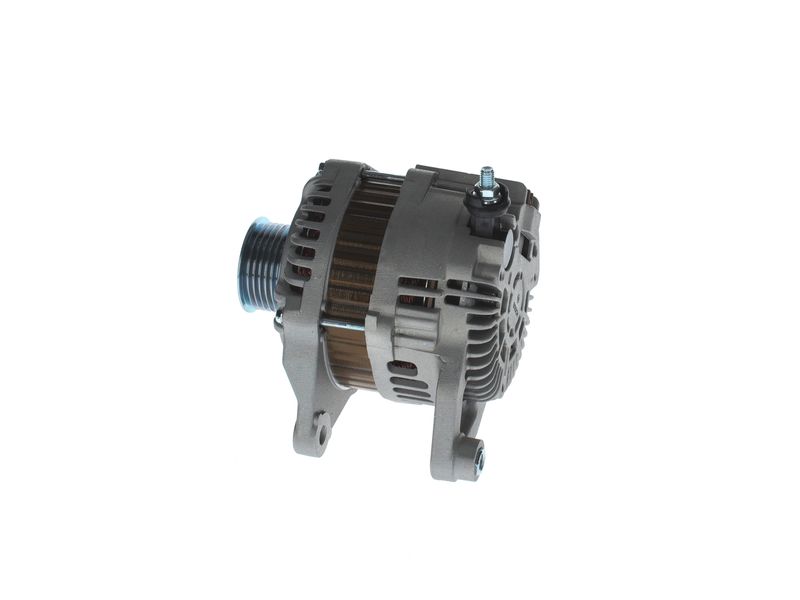

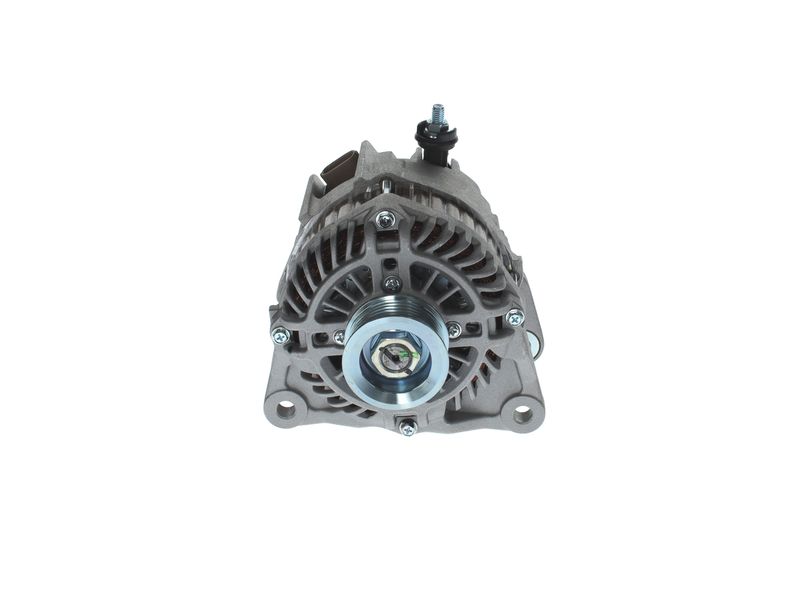

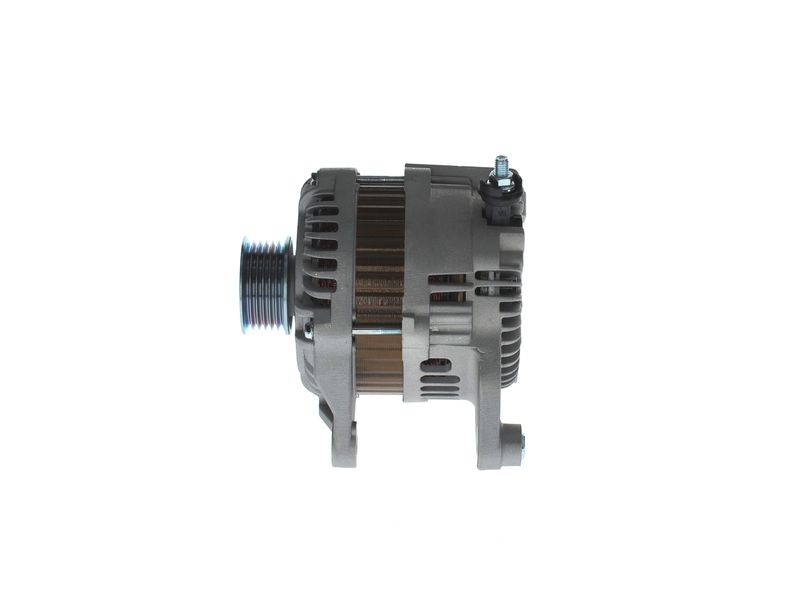

Bosch 1986A00631 Alternator

SKU: 1986A00631

Your selected vehicle

Out of stock

Out of Stock

£307.11 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

2 Hatchback (DL, DJ)

Description	Cylinder Capacity	Horse Power	Year
1.5 SKYACTIV-G (DJLFS)	1496 CCM	115 HP	From 08/2014
1.5	1496 CCM	75 HP	From 08/2014
1.5 SKYACTIV-G	1496 CCM	90 HP	From 08/2014
1.5 (DJ2HA)	1496 CCM	107 HP	From 11/2014

3 (BM, BN)

Description	Cylinder Capacity	Horse Power	Year
1.5	1496 CCM	100 HP	09/2013 - 05/2019
2.0	1998 CCM	120 HP	09/2013 - 05/2019
2.0	1998 CCM	165 HP	07/2013 - 05/2019
1.5	1496 CCM	120 HP	10/2013 - 05/2019

3 Saloon (BM_, BN_)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	120 HP	09/2013 - 05/2019
2.0	1998 CCM	165 HP	11/2014 - 05/2019
1.5	1496 CCM	100 HP	10/2014 - 05/2019
1.5	1496 CCM	120 HP	10/2013 - 05/2019

6 Estate (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GJEFW)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFW)	1998 CCM	165 HP	From 01/2013
2.5	2488 CCM	192 HP	From 12/2012
2.5	2488 CCM	194 HP	From 03/2018

6 Saloon (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GJ2, GL2, GL6)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFP)	1998 CCM	165 HP	From 01/2013
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	192 HP	From 01/2013
2.0	1998 CCM	150 HP	12/2012 - 02/2018
2.5	2488 CCM	194 HP	From 03/2018
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	190 HP	From 03/2018

CX-3 (DK)

Description	Cylinder Capacity	Horse Power	Year
2.0 SKYACTIV-G (DK5W, DK6W)	1998 CCM	120 HP	From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW)	1998 CCM	150 HP	From 05/2015
2.0 SKYACTIV-G	1998 CCM	121 HP	From 02/2018
2.0 SKYACTIV-G (DK2W7, DKEFW)	1998 CCM	150 HP	From 05/2018

CX-5 (KE, GH)

Description	Cylinder Capacity	Horse Power	Year
2.0 (KEEFW)	1998 CCM	165 HP	11/2011 - 02/2017
2.0 AWD (KEEAW)	1998 CCM	160 HP	11/2011 - 02/2017
2.5 AWD	2488 CCM	192 HP	02/2015 - 02/2017

CX-5 (KF)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	165 HP	From 05/2017
2.0 AWD	1998 CCM	160 HP	From 05/2017
2.5 AWD	2488 CCM	194 HP	From 05/2017
2.0 AWD	1998 CCM	165 HP	From 06/2018
2.0	1998 CCM	150 HP	From 03/2018
2.0 AWD	1998 CCM	150 HP	From 03/2018
2.0 SKYACTIV-G	1998 CCM	163 HP	From 03/2018
2.0 SKYACTIV-G AWD	1998 CCM	163 HP	From 03/2018

MX-5 IV (ND__)

Description	Cylinder Capacity	Horse Power	Year
1.5 (ND2E, ND5R)	1496 CCM	131 HP	From 06/2015
2.0 (ND2E, ND6E)	1998 CCM	160 HP	From 06/2015
1.5 (ND6E, ND5RC)	1496 CCM	132 HP	From 05/2018

MX-5 RF Targa (ND)

Description	Cylinder Capacity	Horse Power	Year
2.0 (ND2E)	1998 CCM	160 HP	From 12/2016
1.5	1496 CCM	131 HP	From 08/2017
1.5 (ND6E)	1496 CCM	132 HP	From 05/2018

The Bosch 1986A00631 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 139 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator

Voltage [V] : 12

Alternator Charging Current [A] : 100

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 44.1

Rotation Direction : Clockwise rotation

Pulleys : with multi-belt pulley

Number of grooves : 6

Belt Pulley Ø [mm] : 51

Clamp : B+(M8)

Plug Type ID : 139

Length [mm] : 161

Recommended additional repairs : V-Belt/V-ribbed Belt

Engine Code : P5Y5

Engine Code : P5Y8

Engine Code : P5X0

Engine Code : P5X2

Engine Code : P5Z7

Engine Code : P5Z8

Engine Code : P5Z9

Construction Year from : 03.2018

Construction Year to : 01.2023

Left-/right-hand drive vehicles : for left-hand drive vehicles

Vehicle Equipment : for vehicles without brake energy recovery

Construction Year from : 10.2014

Construction Year to : 12.2019

Left-/right-hand drive vehicles : for right-hand drive vehicles

Construction Year from : 07.2021

Manufactured in : Japan

Engine Code : P5Y6

Engine Code : P5Z2

Engine Code : P5Z3

Construction Year from : 01.2015

Construction Year to : 03.2018

Bosch 1986A00631 Alternator
