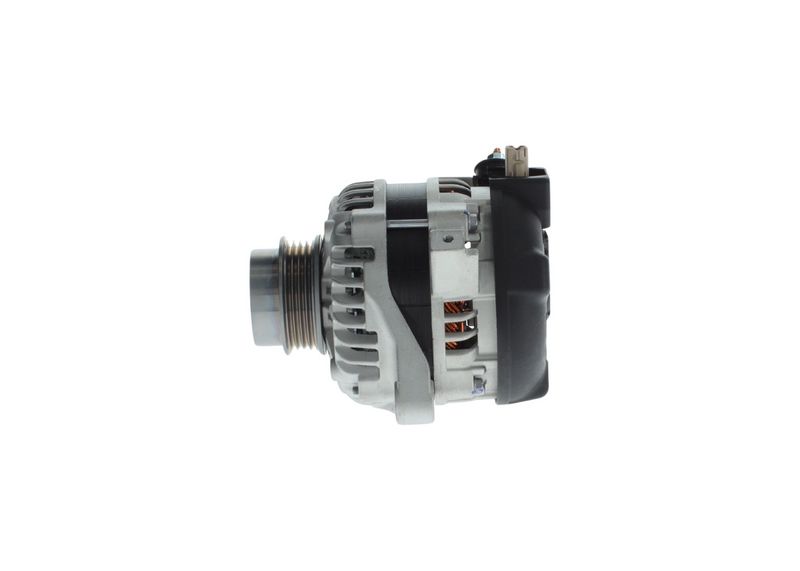

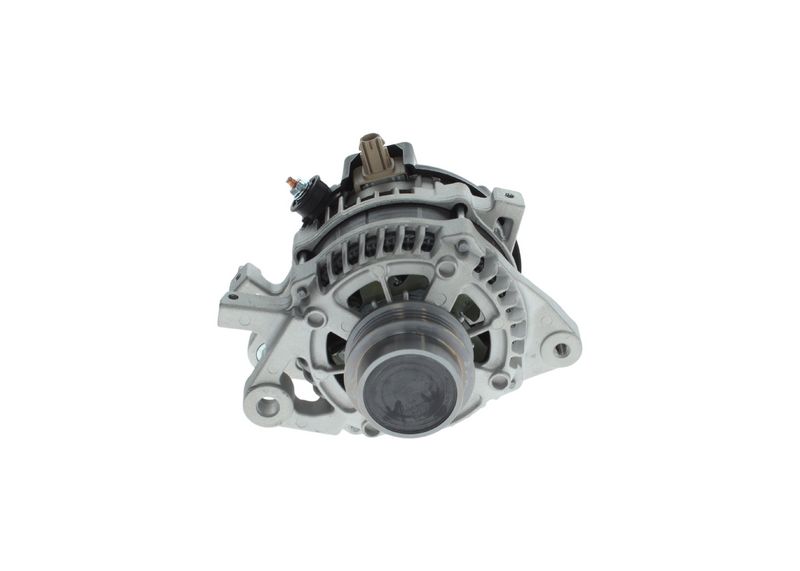

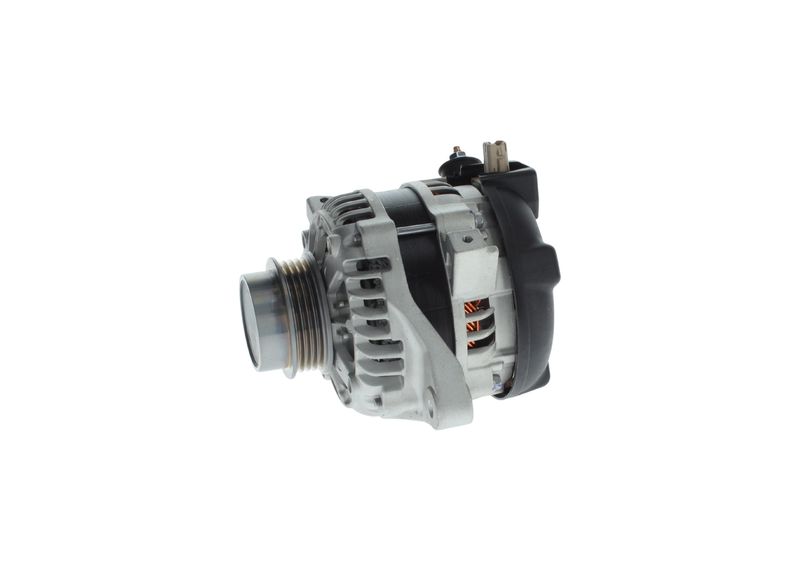

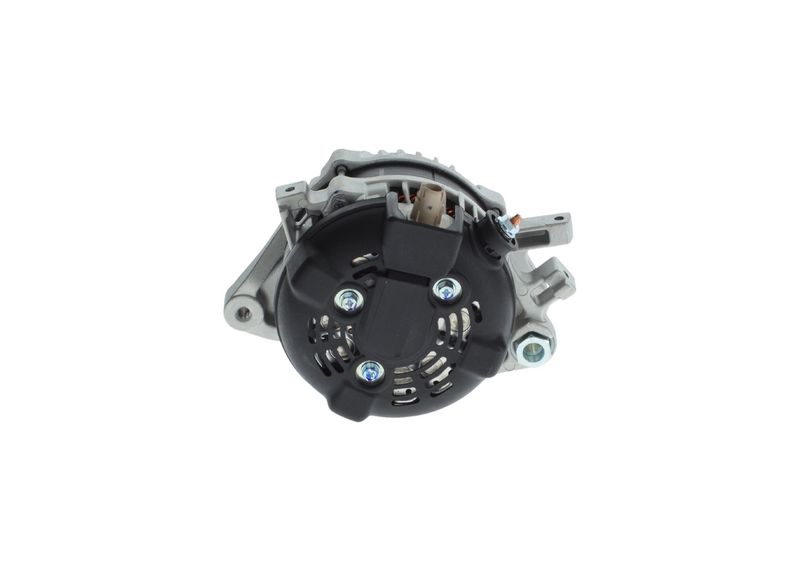

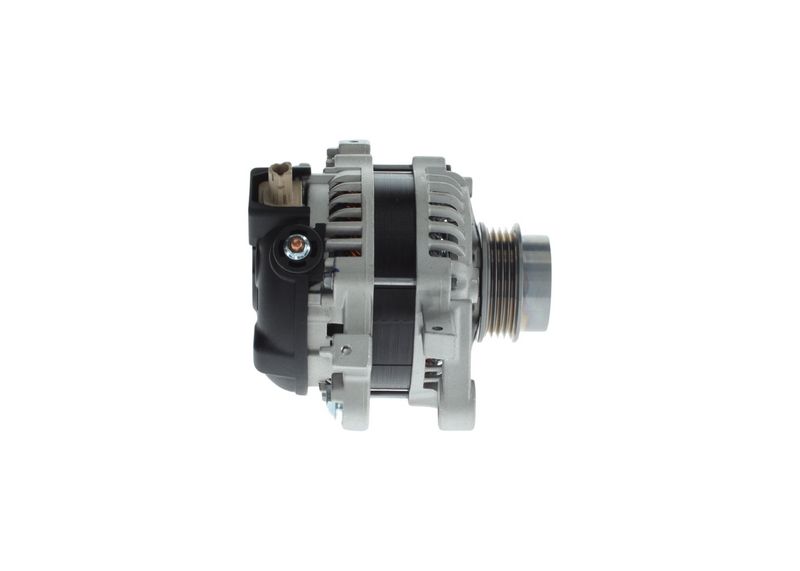

Bosch 1986A00637 Alternator
Your selected vehicle
Regular price
£354.35
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986A00637 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 204 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
100
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
29.5
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
4
Belt Pulley Ø [mm] :
62
Clamp :
B+(M6)
Plug Type ID :
204
Length [mm] :
163
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
1NR-FE
Construction Year to :
11.2018
Vehicle Equipment :
for vehicles with start-stop function
- Vendor BOSCH
- SKU 1986A00637
- TOYOTA : 270600Y130 270600Y160
- APEC : AAL1940
- BOSCH : 0 986 085 080
- Carwood Group : BREF0320986085080
- Carwood Group : BREF032116219
- Carwood Group : BREF0321986A00637
- NAPA : NAL1940
- WAI : 20947N
- WAI : A131.366
- BOSCH : ALT 14V 100A (R)
