BOSCH

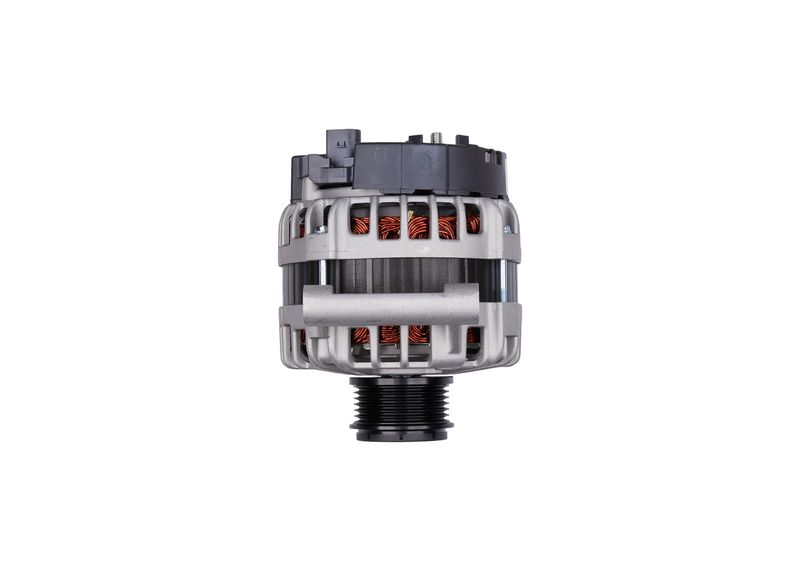

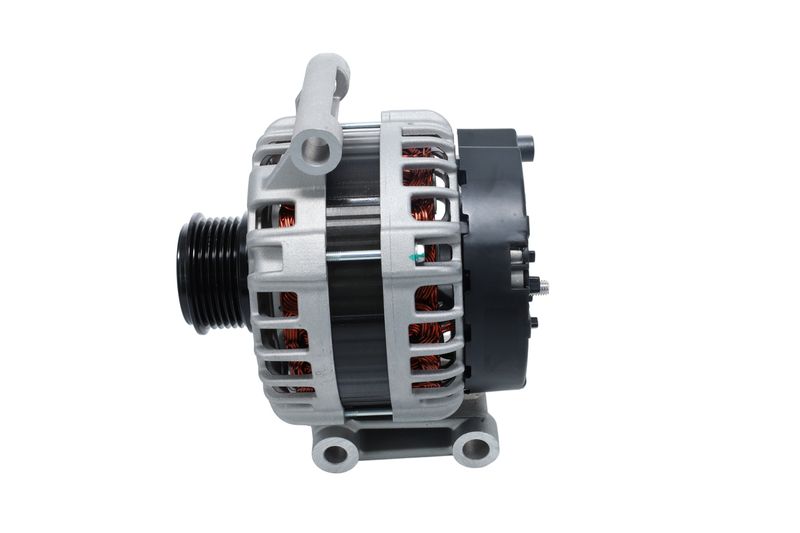

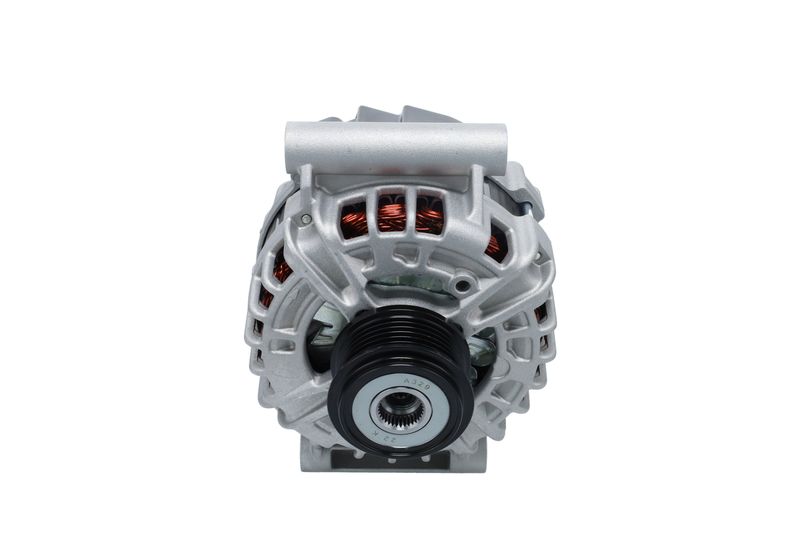

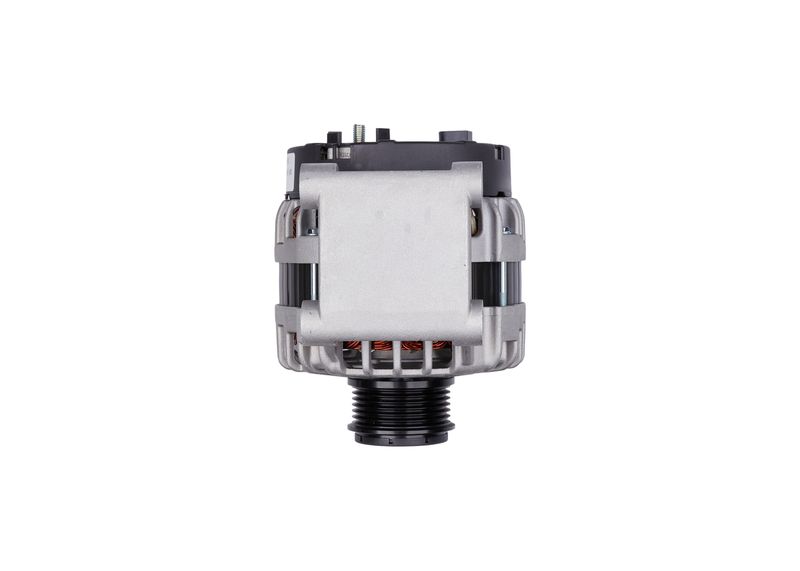

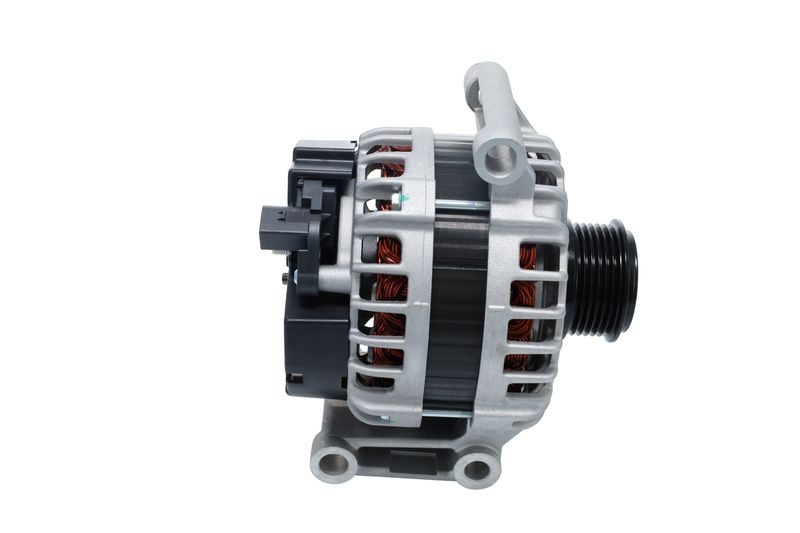

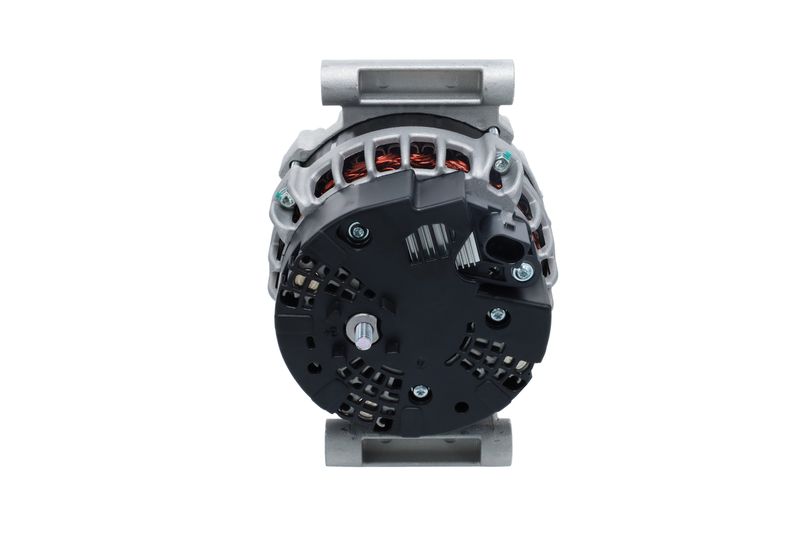

Bosch 1986A00682 Alternator

SKU: 1986A00682

Your selected vehicle

Out of stock

Out of Stock

£350.25 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TOURNEO CUSTOM V362 Bus (F3)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	09/2012 - 12/2015
2.2 TDCi	2198 CCM	125 HP	09/2012 - 12/2015
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015

TRANSIT CUSTOM V362 Bus (F3)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	09/2012 - 06/2016
2.2 TDCi	2198 CCM	125 HP	09/2012 - 12/2015
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015

TRANSIT CUSTOM V362 Van (FY, FZ)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	09/2012 - 06/2016
2.2 TDCi	2198 CCM	125 HP	09/2012 - 04/2016
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015

TRANSIT V363 Platform/Chassis (FED, FFD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	155 HP	08/2013 - 12/2018

TRANSIT V363 Bus (FAD, FBD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	155 HP	12/2014 - 12/2018

TRANSIT V363 Van (FCD, FDD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018

The Bosch 1986A00682 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 174 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 210

Fastening Type : Direct fastening

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 43.6

Rotation Direction : Clockwise rotation

Pulleys : with freewheel belt pulley

Number of grooves : 6

Belt Pulley Ø [mm] : 58.7

Clamp : B+(M8)

Plug Type ID : 174

Length [mm] : 187

Recommended additional repairs : V-Belt/V-ribbed Belt

Bosch 1986A00682 Alternator
