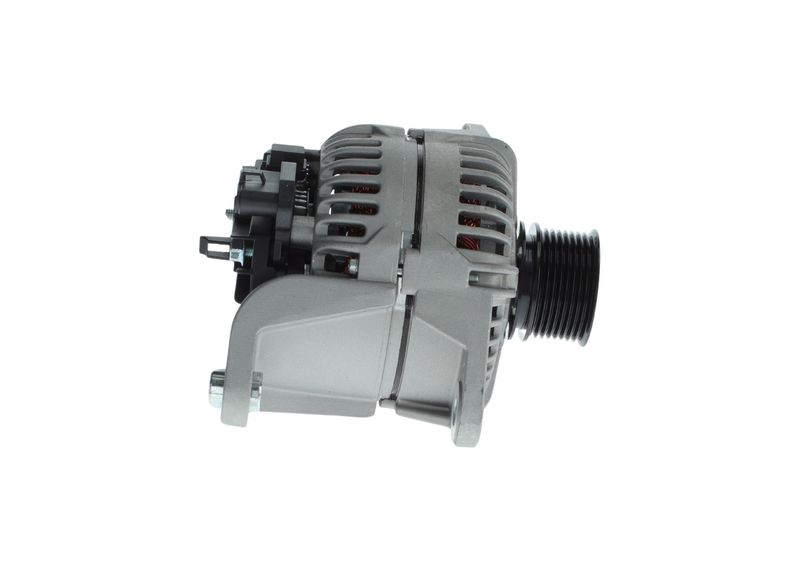

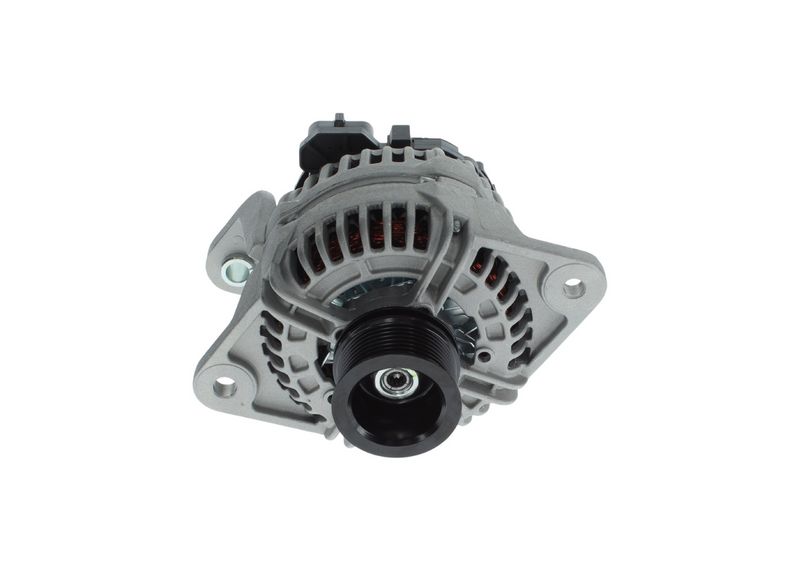

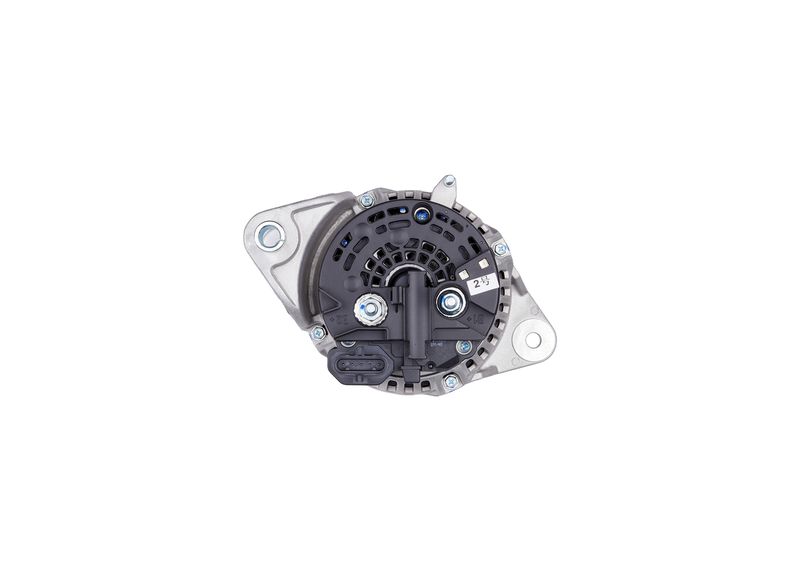

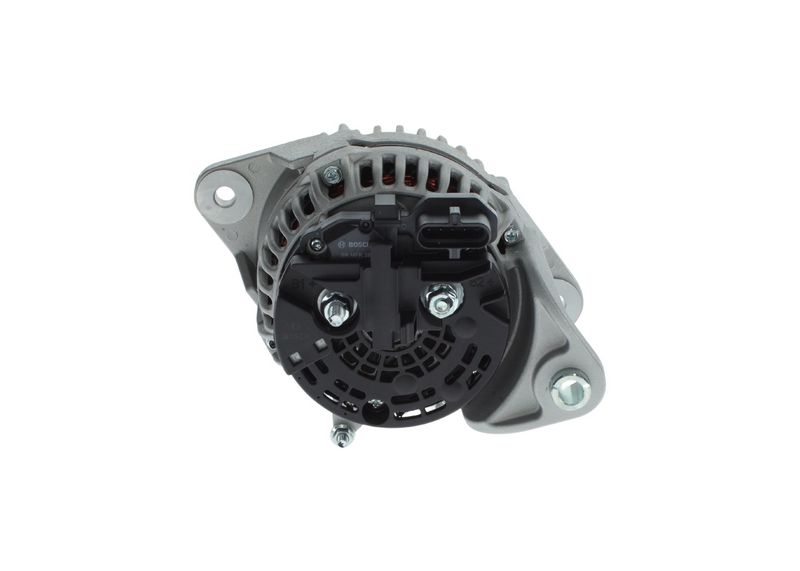

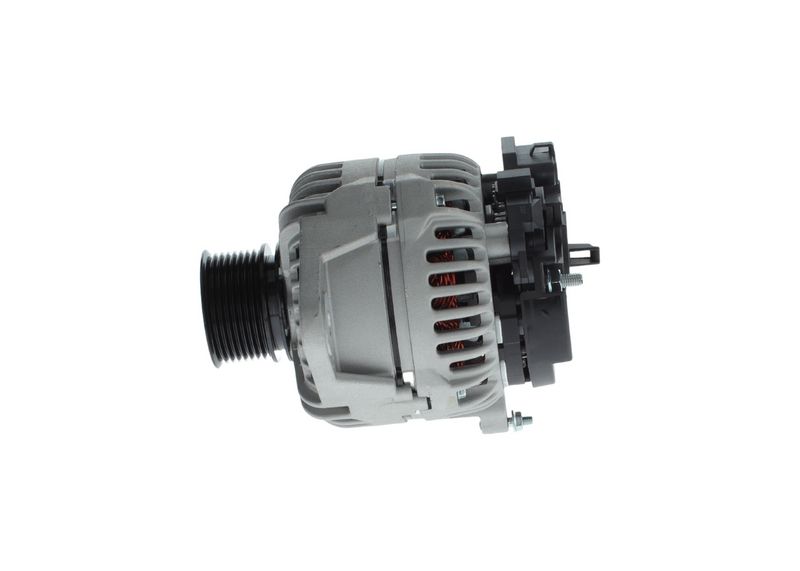

Bosch 1986A00917 Alternator
Your selected vehicle
Regular price
£250.35
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986A00917 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 217 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
80
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
44.5
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
8
Belt Pulley Ø [mm] :
62
Clamp :
B+(M8)
Length [mm] :
217
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 1986A00917
- DAF : 1524012R
- MAGIRUS-DEUTZ : 01182405 01182771 118 2405 118 2771
- RENAULT : 20409228 20849349 50 10 589 525 74 20 409 228 74 20 853 850
- VOLVO : 11170134 11170321 20409228 20409240 20409420 20849349 20849351 21429783 3803639 85000626
- RENAULT TRUCKS : 20409228 20849349 50 10 589 525
- JOHN DEERE : AT 30 332 0 AT 38 757 3
- LISTER : 12599 23877
- BORG & BECK : BBA32068
- BOSCH : 0 986 046 290
- Carwood Group : BREF0320986046290
- Carwood Group : BREF032114212
- Carwood Group : BREF0321986A00917
- FEBI BILSTEIN : 1001259
- FEBI BILSTEIN : 100525
- FEBI BILSTEIN : 48957
- HELLA : 8EL 012 584-101
- HELLA : 8EL 015 643-411
- LUCAS : LRA02801
- MAHLE : MG 800
- VALEO : 202014
- VALEO : 443206
- VALEO : 443511
- BOSCH : ALT 28V 80A (R)
