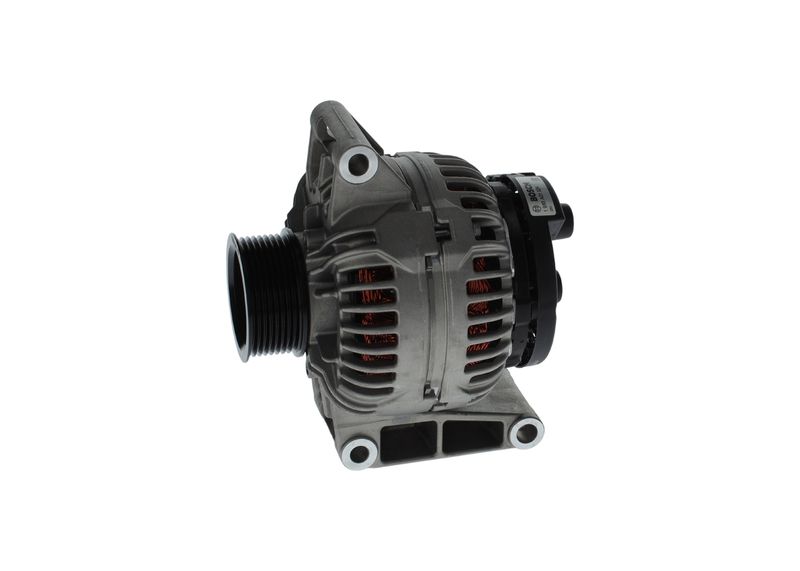

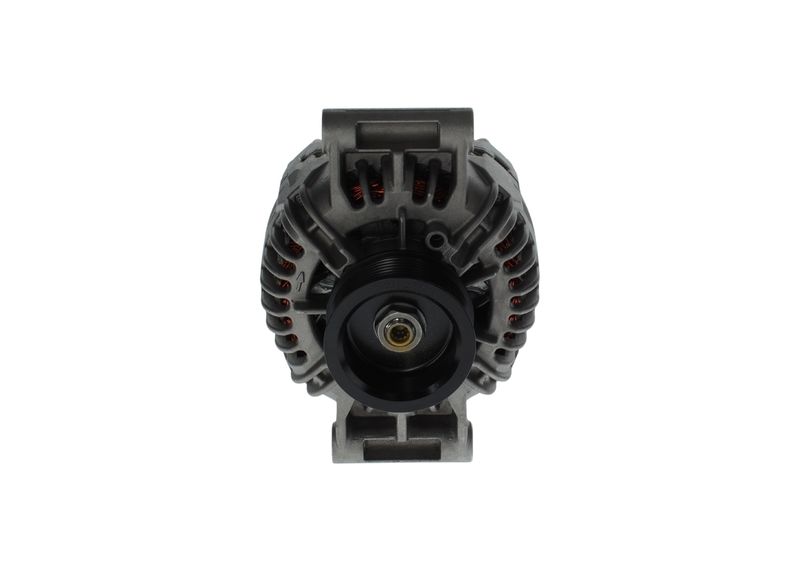

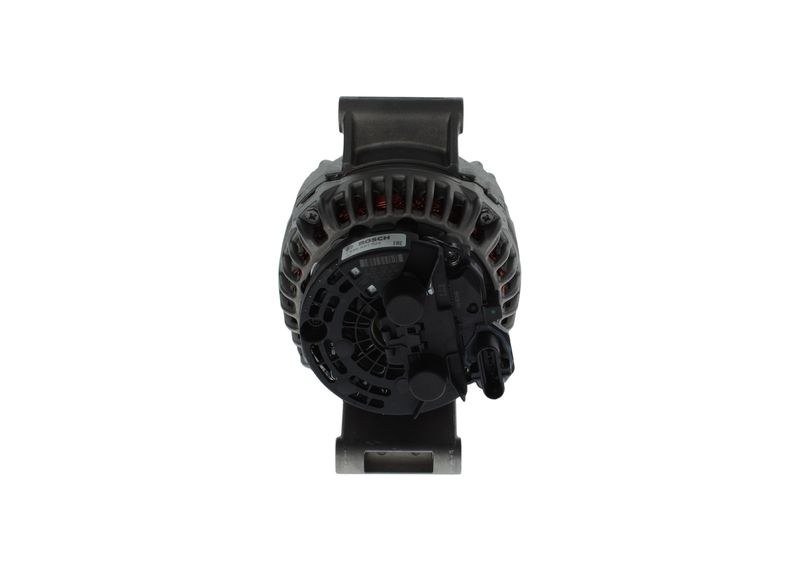

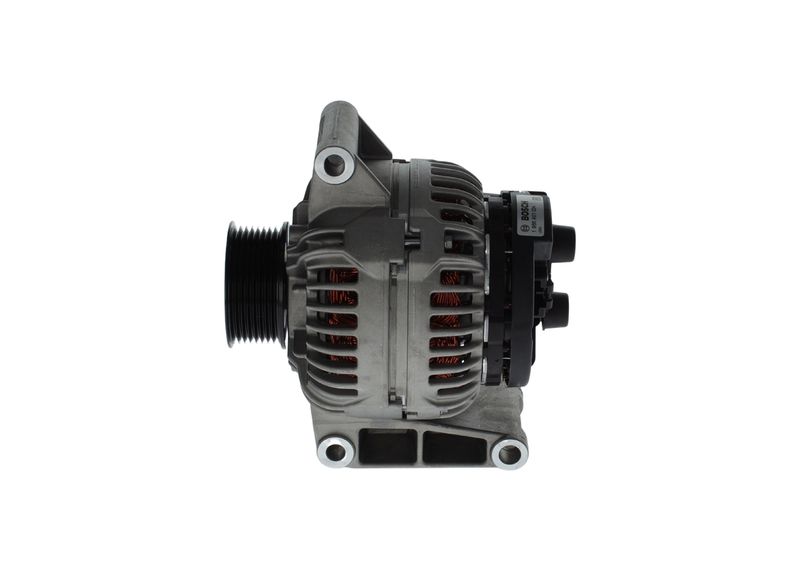

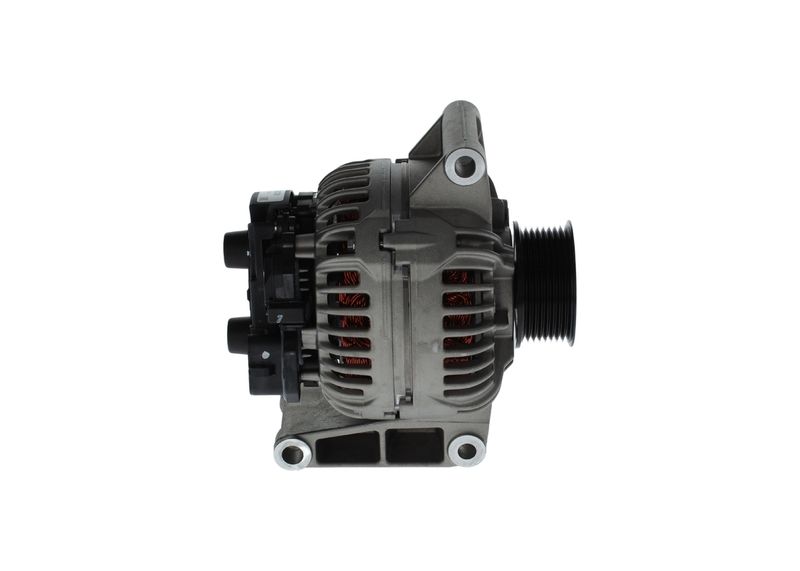

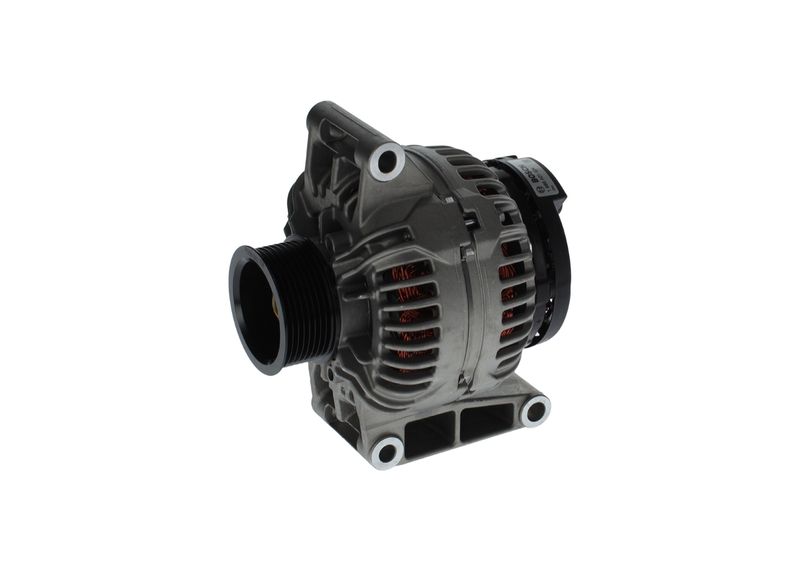

Bosch 1986A01024 Alternator
Your selected vehicle
Regular price
£316.09
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986A01024 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 82 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
120
Fastening Type :
Direct fastening
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
36.5
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
8
Belt Pulley Ø [mm] :
73
Clamp :
B+(M8)
Plug Type ID :
82
Length [mm] :
220
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 1986A01024
- BOSCH : 0 986 085 640
- Carwood Group : BREF0320986085640
- Carwood Group : BREF032116935
- Carwood Group : BREF0321986A01024
- FEBI BILSTEIN : 183198
- HELLA : 8EL 012 584-951
- LUCAS : LRA04614
- MAHLE : MG 936
- VALEO : 202023
- VALEO : 443479
- WAI : 21656N
- BOSCH : ALT 28V 120A (R)
