BOSCH

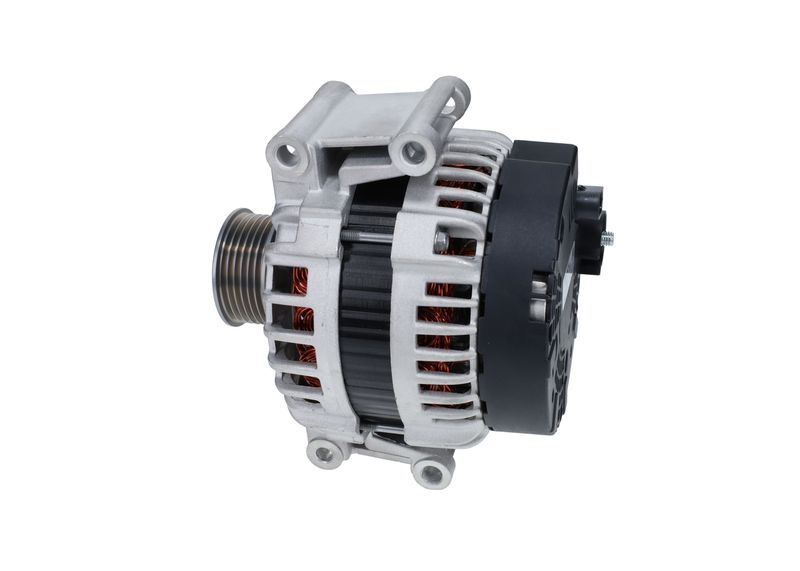

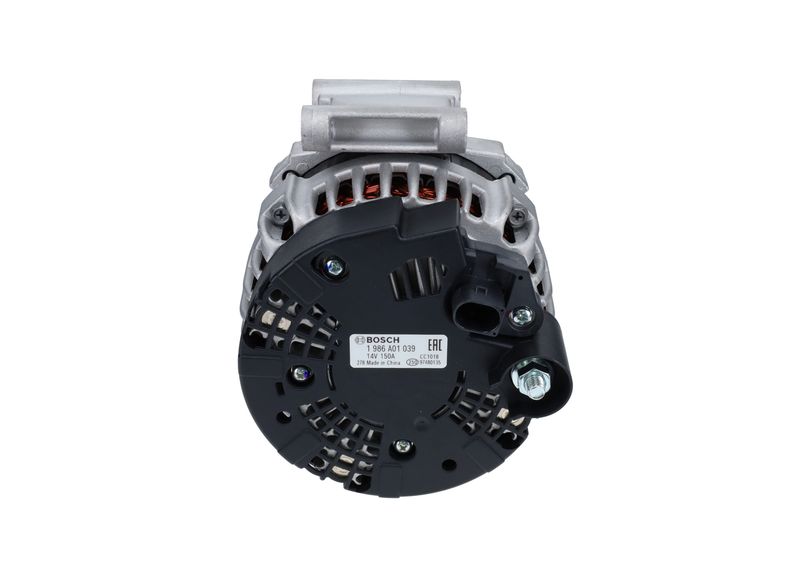

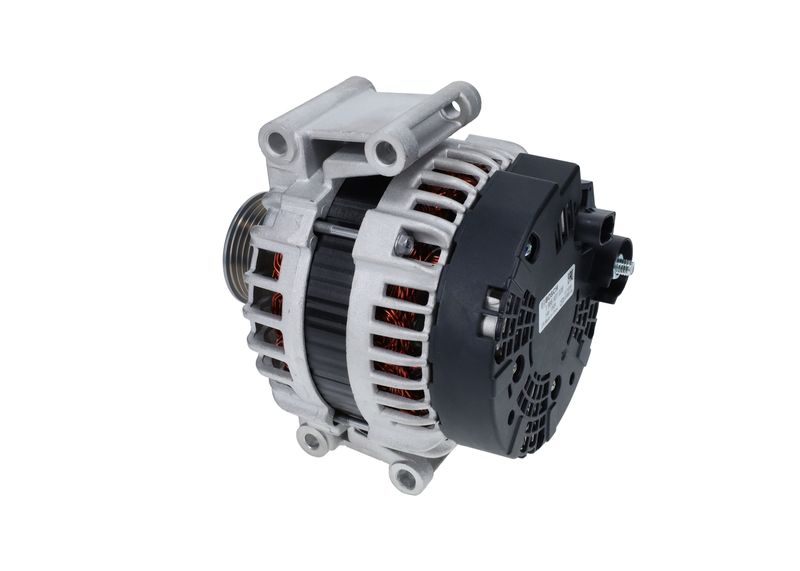

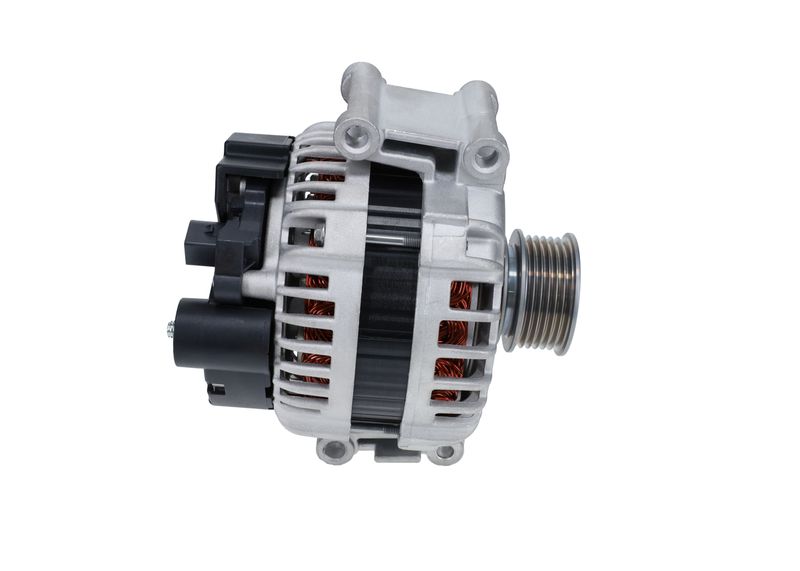

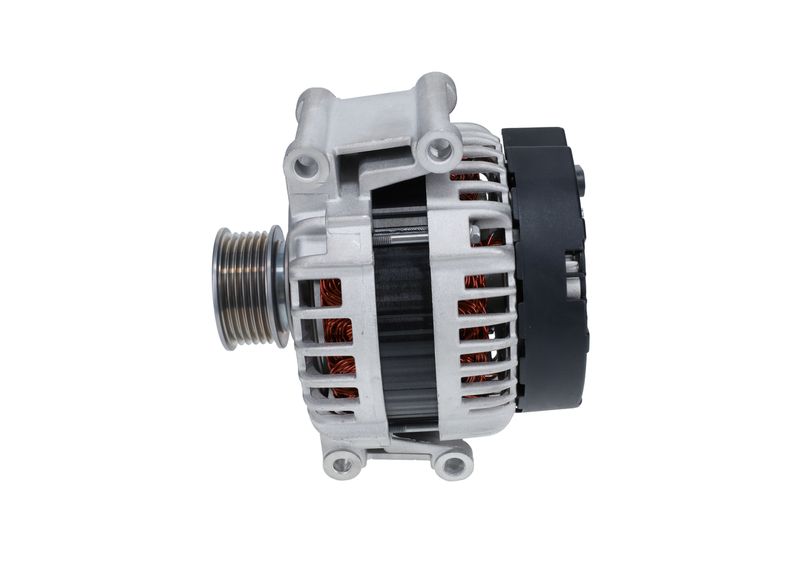

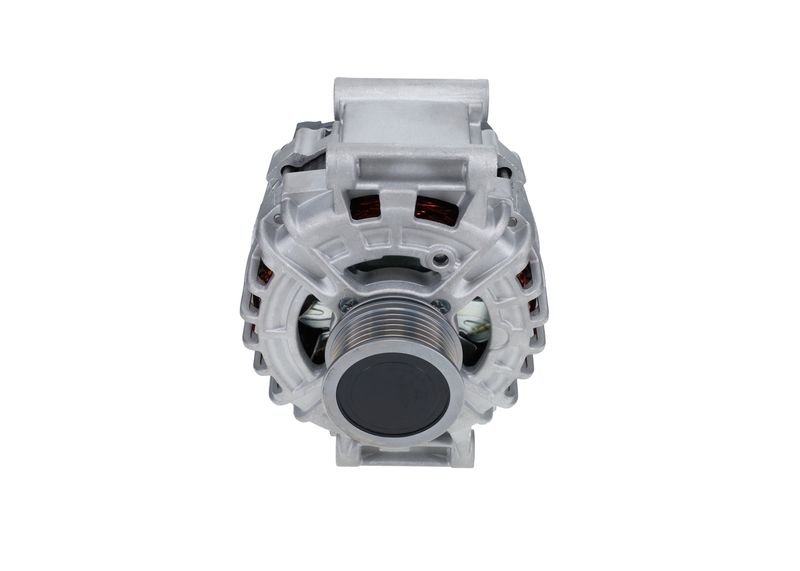

Bosch 1986A01039 Alternator

SKU: 1986A01039
Out of stock
Out of Stock
£339.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
AUDI
A4 B8 (8K2)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI quattro 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI 1798 CCM 120 HP 01/2008 - 12/2015
A4 B8 Avant (8K5)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI quattro 1798 CCM 170 HP 11/2011 - 12/2015
2.0 TFSI 1984 CCM 211 HP 06/2008 - 05/2013
1.8 TFSI 1798 CCM 120 HP 04/2008 - 12/2015
A4 Allroad B8 (8KH)
Description Cylinder Capacity Horse Power Year
2.0 TFSI quattro 1984 CCM 211 HP 04/2009 - 05/2016
2.0 TFSI quattro 1984 CCM 224 HP 05/2013 - 05/2016
A5 (8T3)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 10/2007 - 04/2016
2.0 TFSI 1984 CCM 180 HP 05/2008 - 03/2012
2.0 TFSI 1984 CCM 211 HP 06/2008 - 11/2013
A5 Sportback (8TA)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 08/2011 - 04/2016
2.0 TFSI 1984 CCM 180 HP 09/2009 - 03/2012
2.0 TFSI quattro 1984 CCM 211 HP 09/2009 - 12/2013
2.0 TFSI 1984 CCM 211 HP 09/2009 - 11/2013
A5 Convertible (8F7)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 09/2011 - 03/2016
2.0 TFSI 1984 CCM 211 HP 02/2009 - 12/2013
2.0 TFSI quattro 1984 CCM 211 HP 08/2009 - 12/2013
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
2.0 TFSI quattro 1984 CCM 180 HP 08/2009 - 05/2017
2.0 TFSI quattro 1984 CCM 224 HP 06/2012 - 05/2016
Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 29.3
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 56
Clamp : B+(M8)
Plug Type ID : 86
Length [mm] : 188
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : CDNC
Construction Year from : 04.2012
Construction Year to : 05.2013
Manufacturer Restriction : Bosch
Construction Year to : 04.2016
Engine Code : CDHA
Construction Year from : 06.2008
  • Vendor BOSCH
  • SKU 1986A01039
  • Barcode 4047026587104
  • AUDI : 06H 903 017 J 06H 903 017 JX 06H 903 017 T 06H 903 017 TX 06H 903 018 H 06H 903 018 J 06H 903 018 P
  • VW : 06H 903 017 J 06H 903 017 JX 06H 903 017 T 06H 903 017 TX 06H 903 018 J 06H 903 018 P 06H 903 018 PX
  • BOSCH : 0 986 083 150
  • Carwood Group : BREF0320986083150
  • Carwood Group : BREF032116201
  • Carwood Group : BREF0321986A01039
  • HELLA : 8EL 015 637-071
  • VALEO : 443301
  • VALEO : 444206
  • WAI : 11725N
  • BOSCH : ALT 14V 150A (R)
