BOSCH

Bosch 1986A01041 Alternator

SKU: 1986A01041
Your selected vehicle
Out of stock
Out of Stock
£246.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 200 (176.043) 1595 CCM 156 HP 06/2012 - 05/2018
A 250 (176.044) 1991 CCM 211 HP 06/2012 - 05/2018
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 220 4-matic (246.247) 1991 CCM 184 HP 05/2013 - 12/2018
B 250 (246.244) 1991 CCM 211 HP 05/2012 - 12/2018
B 200 Natural Gas Drive / B 200 c (242.848) 1991 CCM 156 HP 11/2012 - 12/2017
B 250 4-matic (246.246) 1991 CCM 211 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.346) 1991 CCM 211 HP 07/2013 - 03/2019
CLA 180 (117.342) 1595 CCM 122 HP 01/2013 - 03/2019
CLA 200 (117.343) 1595 CCM 156 HP 01/2013 - 03/2019
CLA 250 (117.344) 1991 CCM 211 HP 01/2013 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 180 (117.942) 1595 CCM 122 HP 01/2015 - 03/2019
CLA 200 (117.943) 1595 CCM 156 HP 01/2015 - 03/2019
CLA 250 (117.944) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.946) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
CLA 220 4-matic (117.947) 1991 CCM 184 HP 04/2016 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 200 (156.943) 1595 CCM 156 HP 12/2013 - 12/2019
GLA 250 (156.944) 1991 CCM 211 HP 12/2013 - 12/2019
GLA 250 4-matic (156.946) 1991 CCM 211 HP 12/2013 - 12/2019
GLA 180 (156.942) 1595 CCM 122 HP 02/2015 - 12/2019

The Bosch 1986A01041 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 181 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 30
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 5
Belt Pulley Ø [mm] : 52.3
Clamp : B+(M8)

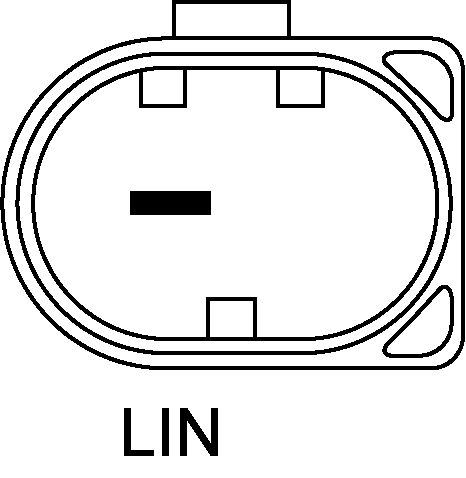

Plug Type ID : 181
Length [mm] : 186
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 1986A01041
  • Barcode 4047026550528
  • DAIMLER : 0009060022
  • MERCEDES-BENZ : A 000 906 00 22 A 000 906 19 03 A 000 906 19 03 0080 A 000 906 76 02 000 906 00 22 000 906 19 03 000 906 19 03 0080 000 906 76 02
  • VALMET : A0009061903
  • APEC : AAL1917
  • BOSCH : 0 986 082 160
  • BOSCH : 0 986 082 167
  • Carwood Group : BREF0320986082160
  • Carwood Group : BREF032116467
  • Carwood Group : BREF0321986A01041
  • FEBI BILSTEIN : 1003663
  • HELLA : 8EL 011 713-551
  • LUCAS : LRA03845
  • NAPA : NAL1917
  • VALEO : 443394
  • WAI : 20741N
  • WAI : A133.392
  • BOSCH : ALT 14V 150A (R)
  • BOSCH : AL0900N
