BOSCH

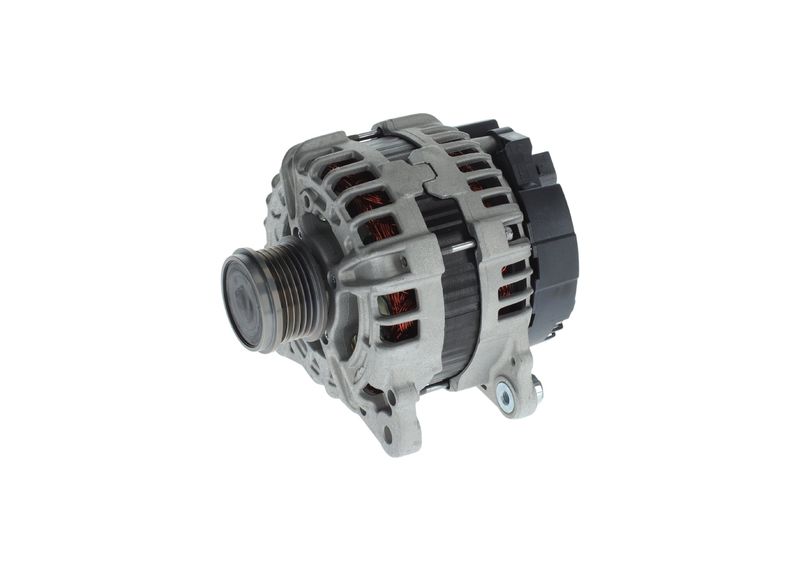

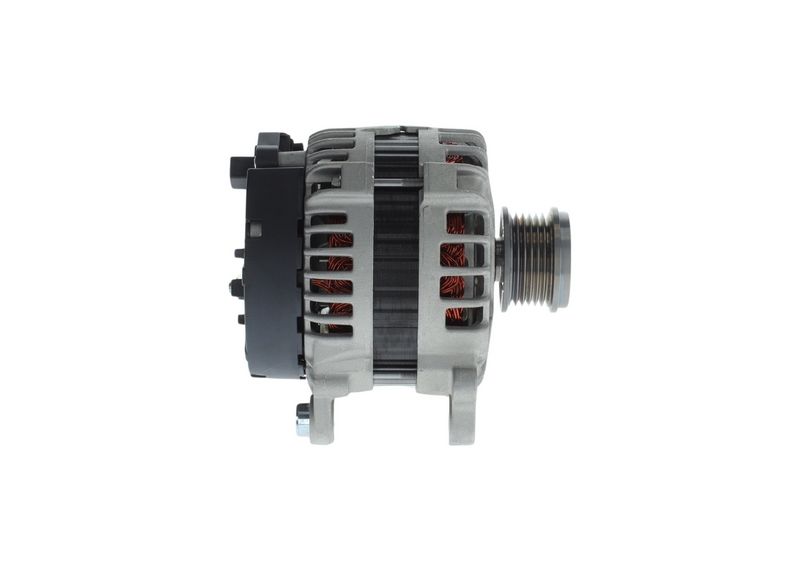

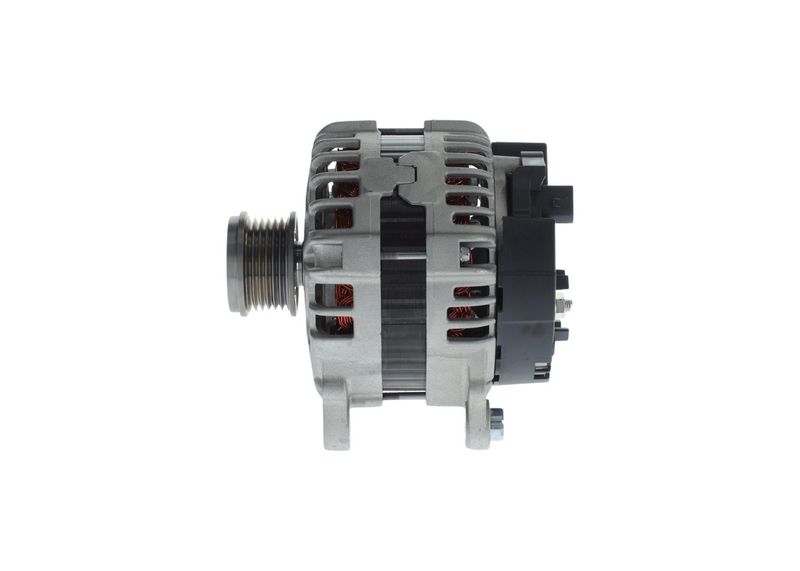

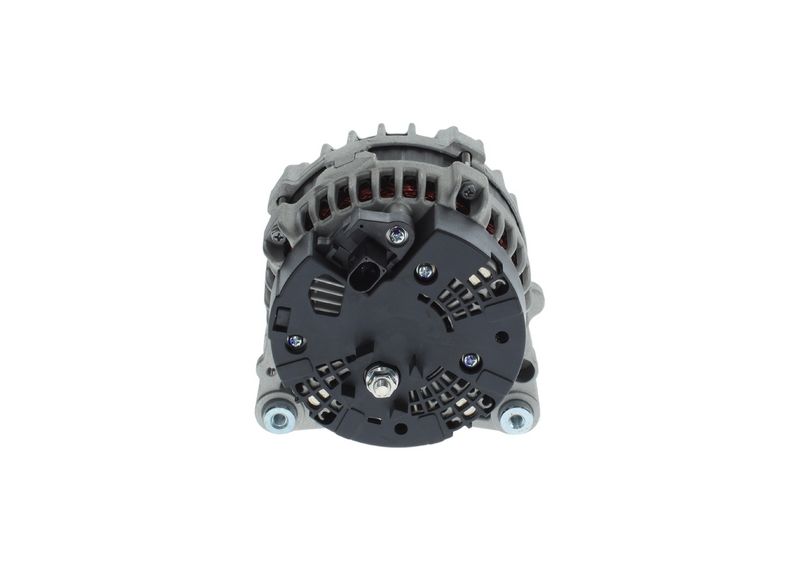

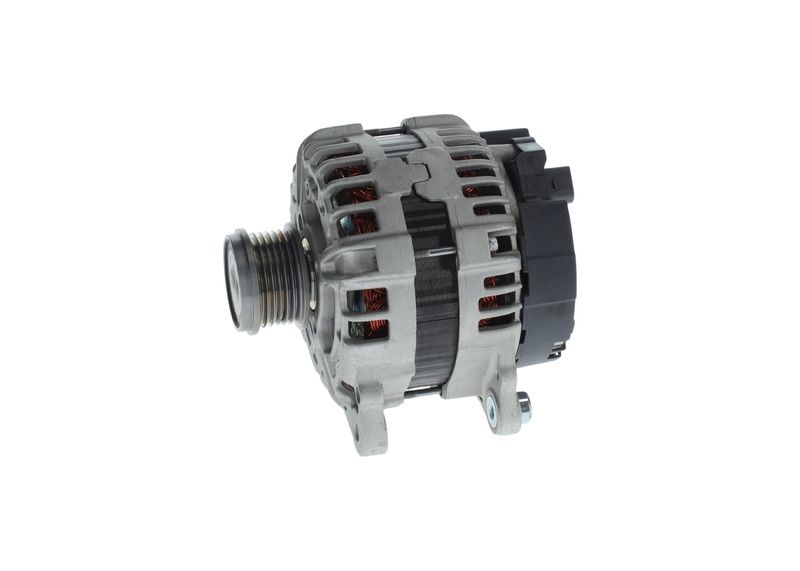

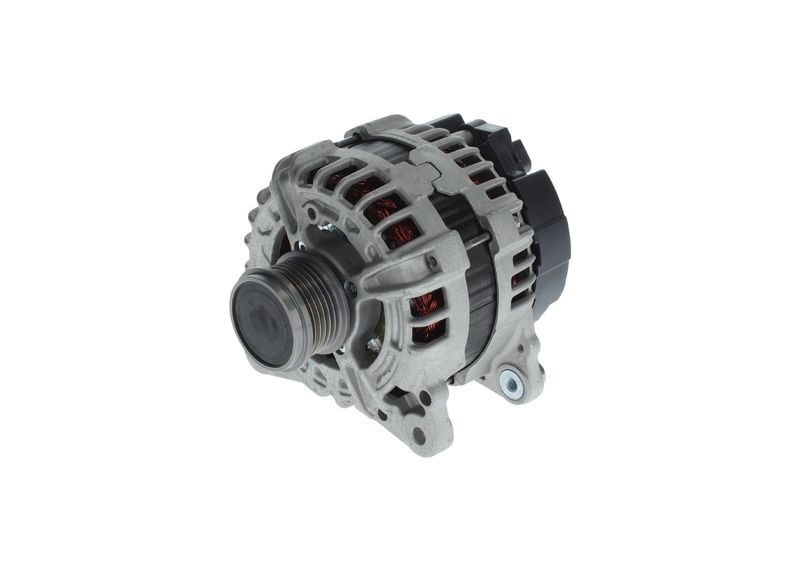

Bosch 1986A01044 Alternator

SKU: 1986A01044

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£273.81 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

PORSCHE

911 (991)

Description	Cylinder Capacity	Horse Power	Year
3.4 Carrera	3436 CCM	350 HP	12/2011 - 12/2019
3.8 Carrera S	3800 CCM	400 HP	05/2011 - 12/2019
3.8 Carrera S / GTS	3800 CCM	430 HP	07/2012 - 12/2019
3.4 Carrera 4	3436 CCM	350 HP	11/2012 - 12/2019
3.8 Carrera 4S	3800 CCM	400 HP	11/2012 - 12/2019
3.8 Carrera 4S / 4 GTS	3800 CCM	430 HP	11/2012 - 12/2019
3.8 GT3	3799 CCM	475 HP	08/2013 - 05/2017
3.8 Turbo	3800 CCM	520 HP	09/2013 - 05/2020
3.8 Turbo S	3800 CCM	560 HP	09/2013 - 05/2020
4.0 GT3 RS / R	3996 CCM	500 HP	04/2015 - 12/2020
3.8 Turbo	3800 CCM	540 HP	01/2016 - 05/2020

911 Convertible (991)

Description	Cylinder Capacity	Horse Power	Year
3.4 Carrera	3436 CCM	350 HP	03/2012 - 12/2019
3.8 Carrera S	3800 CCM	400 HP	03/2012 - 12/2019
3.8 Carrera S / GTS	3800 CCM	430 HP	07/2012 - 12/2019
3.4 Carrera 4	3436 CCM	350 HP	11/2012 - 12/2019
3.8 Carrera 4S	3800 CCM	400 HP	11/2012 - 12/2019
3.8 Carrera 4S / 4 GTS	3800 CCM	430 HP	11/2012 - 12/2019
3.8 Turbo	3800 CCM	520 HP	12/2013 - 05/2020
3.8 Turbo S	3800 CCM	560 HP	12/2013 - 05/2020
3.8 Turbo	3800 CCM	540 HP	01/2016 - 05/2020
3.8 Turbo S	3800 CCM	580 HP	01/2016 - 05/2020

911 Targa (991)

Description	Cylinder Capacity	Horse Power	Year
3.4 Carrera 4	3436 CCM	350 HP	05/2014 - 12/2019
3.8 Carrera 4S	3800 CCM	400 HP	05/2014 - 12/2019
3.8 Carrera 4S / 4 GTS	3800 CCM	430 HP	05/2014 - 12/2019

BOXSTER (981)

Description	Cylinder Capacity	Horse Power	Year
S 3.4	3436 CCM	315 HP	04/2012 - 05/2016
GTS 3.4	3436 CCM	330 HP	02/2014 - 05/2016

BOXSTER Spyder (981)

Description	Cylinder Capacity	Horse Power	Year
3.8	3800 CCM	375 HP	01/2015 - 05/2016

CAYMAN (981)

Description	Cylinder Capacity	Horse Power	Year
S 3.4	3436 CCM	325 HP	03/2013 - 05/2016
GTS 3.4	3436 CCM	340 HP	02/2014 - 05/2016
3.8 GT4	3800 CCM	385 HP	01/2015 - 05/2016

The Bosch 1986A01044 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 86 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 150

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 35.1

Rotation Direction : Clockwise rotation

Pulleys : with freewheel belt pulley

Number of grooves : 6

Belt Pulley Ø [mm] : 52.6

Clamp : B+(M8)

Plug Type ID : 86

Length [mm] : 186

Recommended additional repairs : V-Belt/V-ribbed Belt

Bosch 1986A01044 Alternator
