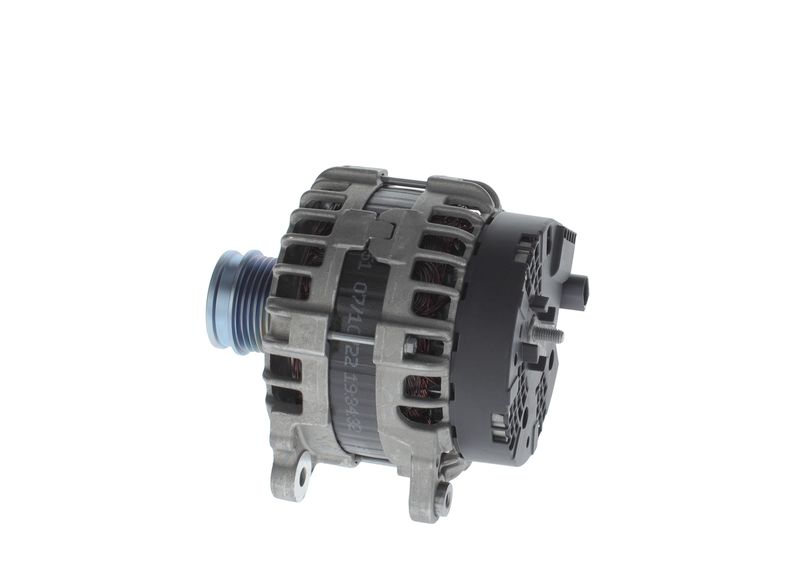

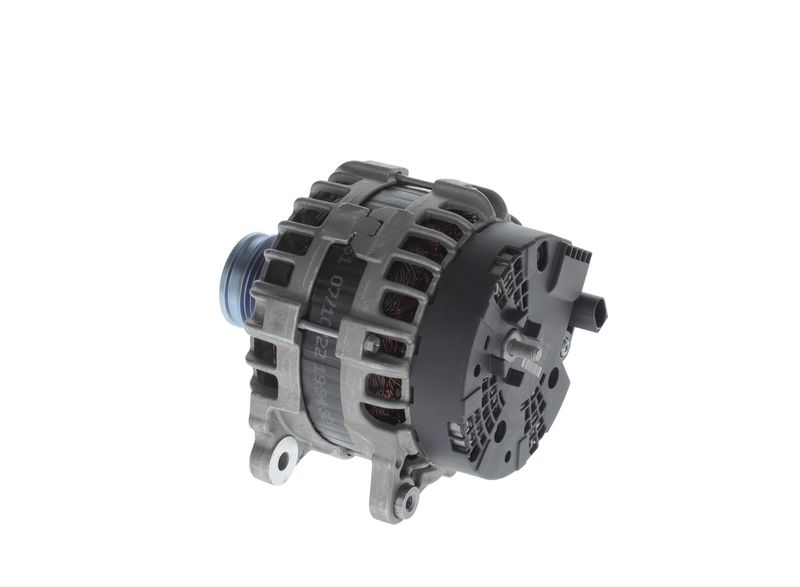

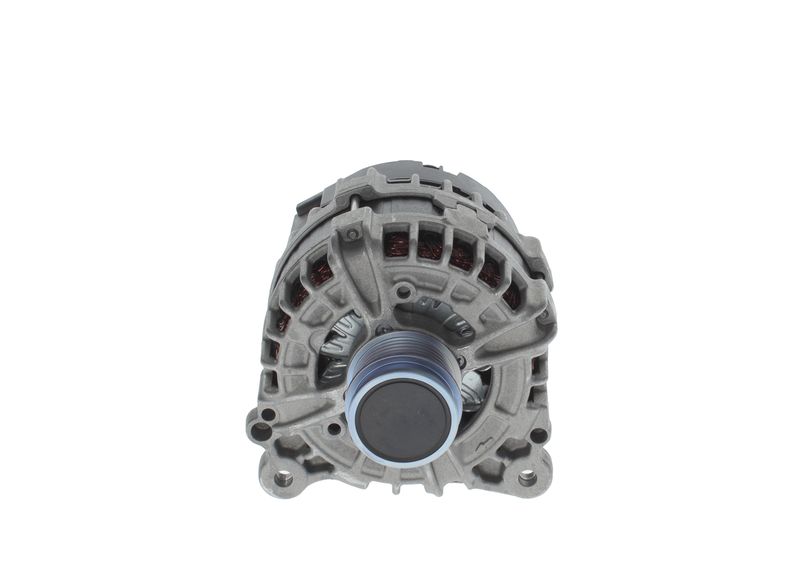

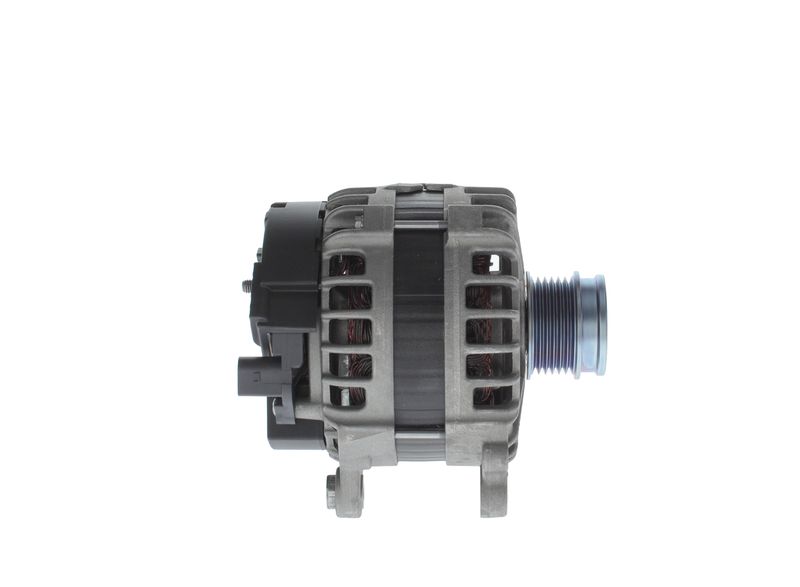

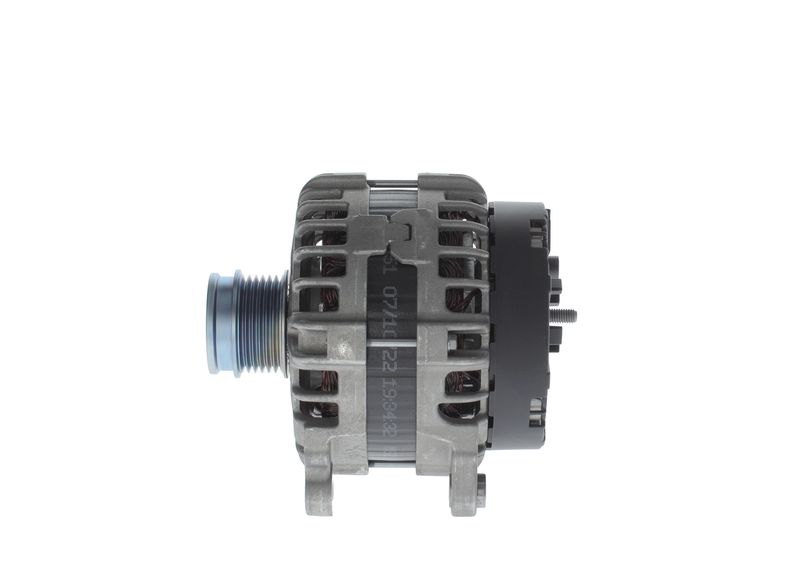

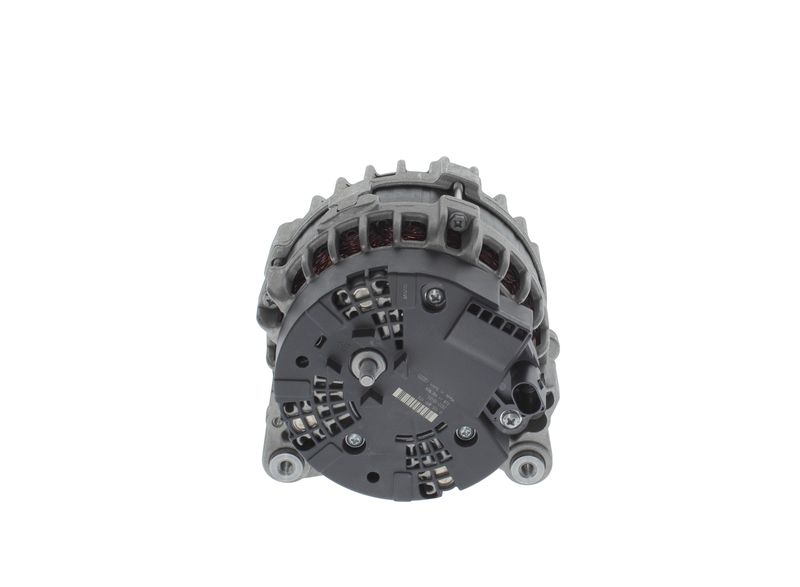

Bosch 1986A01223 Alternator
Your selected vehicle
Regular price
£297.64
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986A01223 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 125 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
180
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
30
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
52
Clamp :
B+(M8)
Plug Type ID :
125
Recommended additional repairs :
V-Belt/V-ribbed Belt
Construction Year from :
10.2016
Manufacturer Restriction :
Bosch
Engine Code :
CHZJ
Engine Code :
DKRF
Construction Year to :
12.2020
- Vendor BOSCH
- SKU 1986A01223
- APEC : AAL2084
- LUCAS : LRA03891
- NAPA : NAL2084
- WAI : 20642N
- WAI : A132.131
- BOSCH : ALT 14V 180A (CW)
