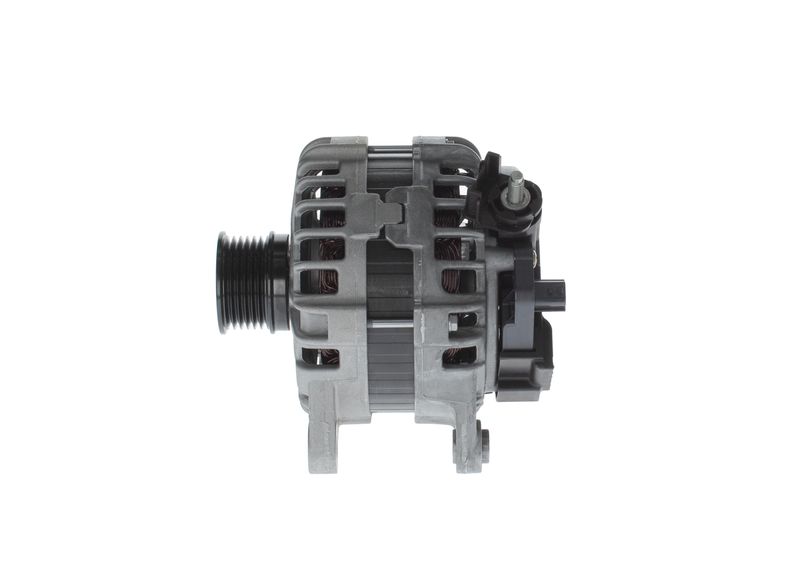

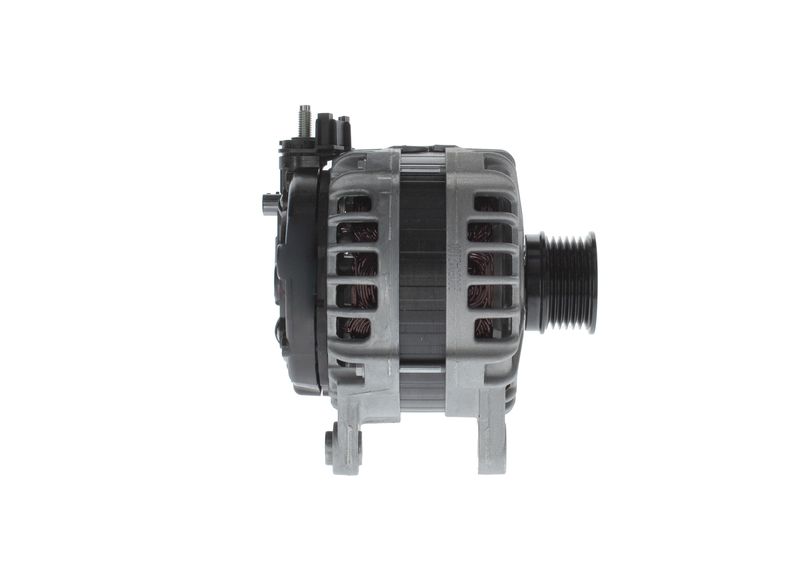

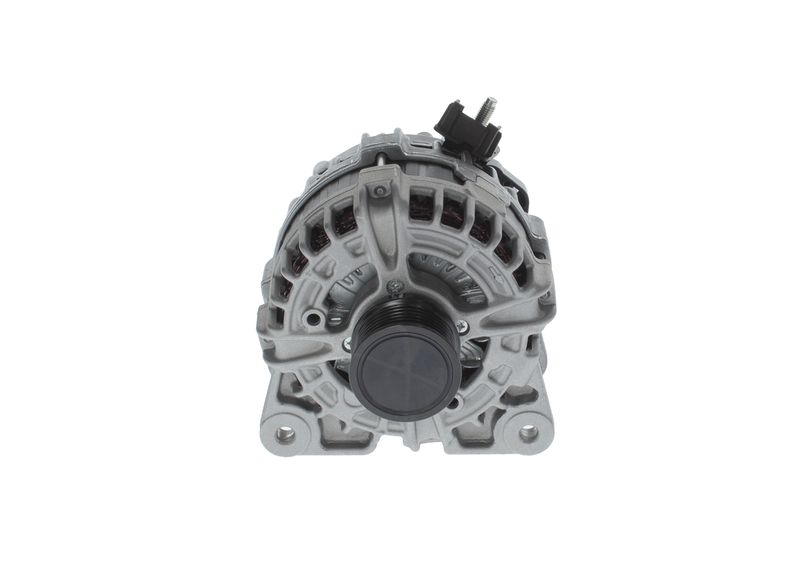

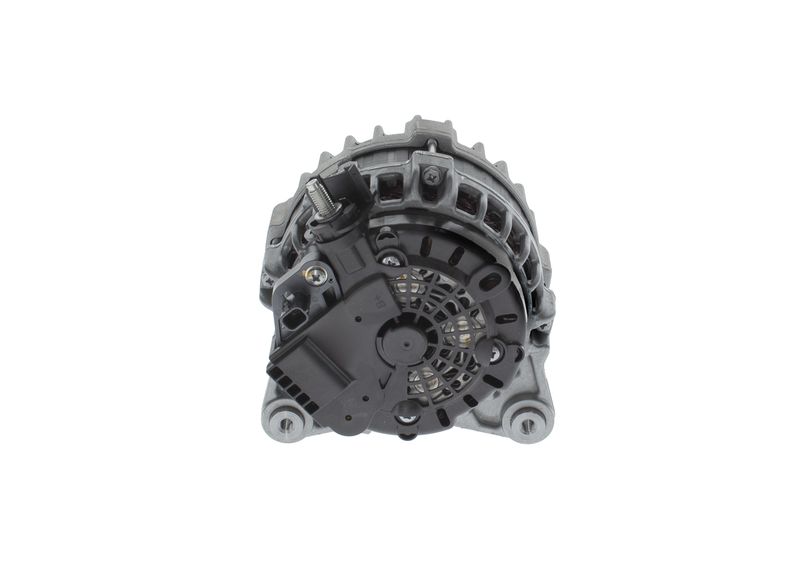

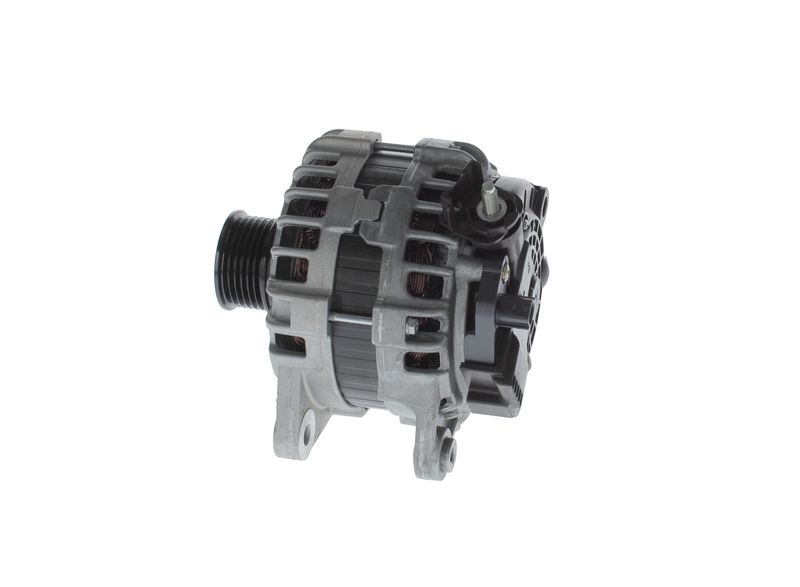

Bosch 1986A01382 Alternator
Your selected vehicle
Regular price
£303.80
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986A01382 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 382 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
150
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
38.6
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
49
Clamp :
B+(M8)
Plug Type ID :
382
Length [mm] :
183
Recommended additional repairs :
V-Belt/V-ribbed Belt
Construction Year to :
09.2019
Construction Year to :
12.2020
Construction Year to :
12.2017
- Vendor BOSCH
- SKU 1986A01382
- NISSAN : 231004PA0A
- RENAULT : 23 10 04P A0A
- APEC : AAL2109
- BOSCH : 0 986 086 300
- Carwood Group : BREF032116841
- Carwood Group : BREF0321986A01382
- LUCAS : LRA04252
- NAPA : NAL2109
- WAI : 24171N
- WAI : A130.716
- BOSCH : ALT 14V 150A (R)
