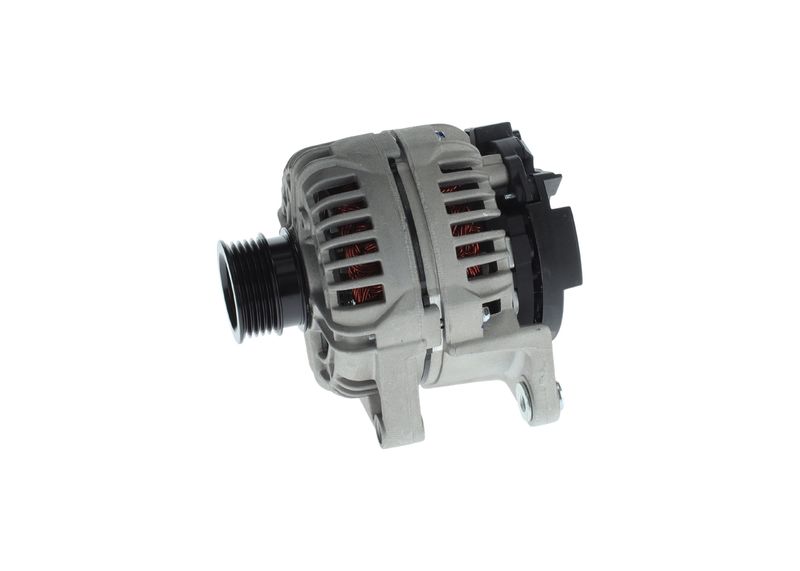

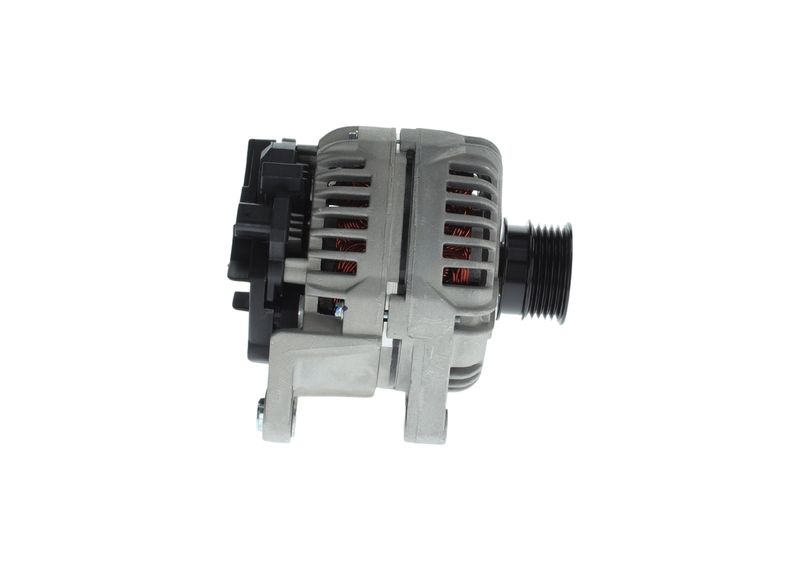

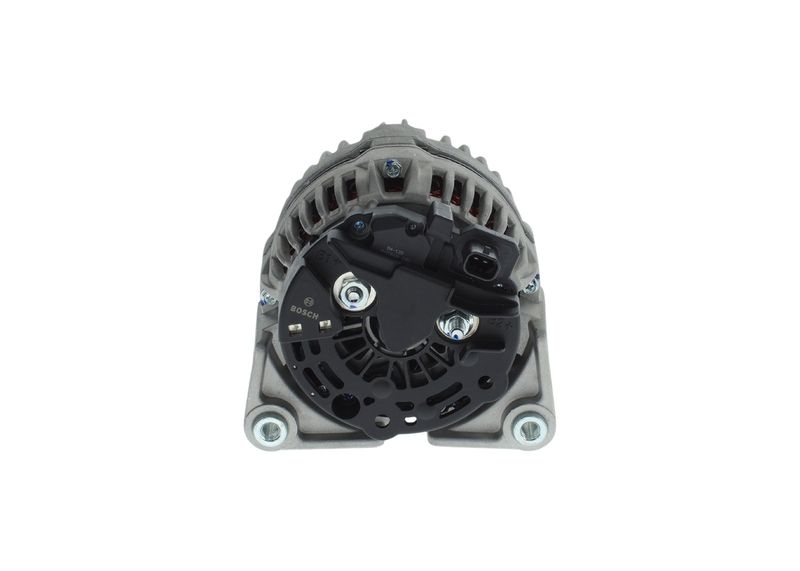

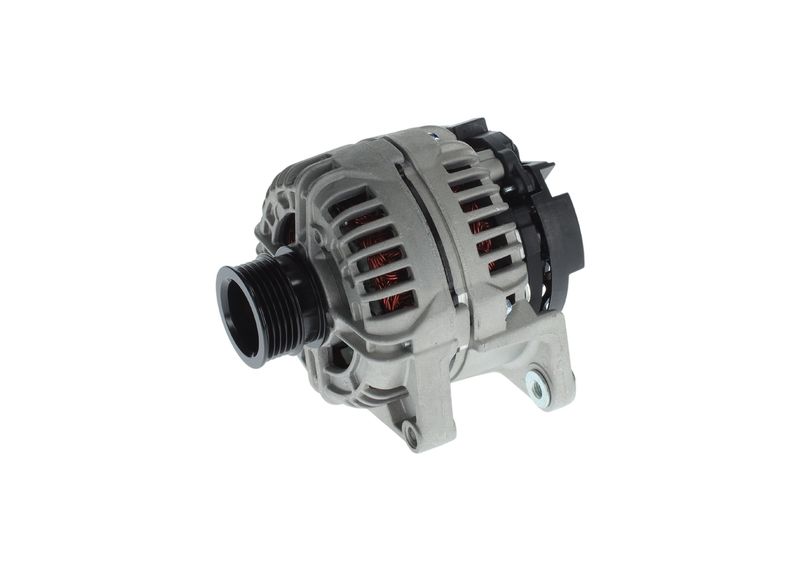

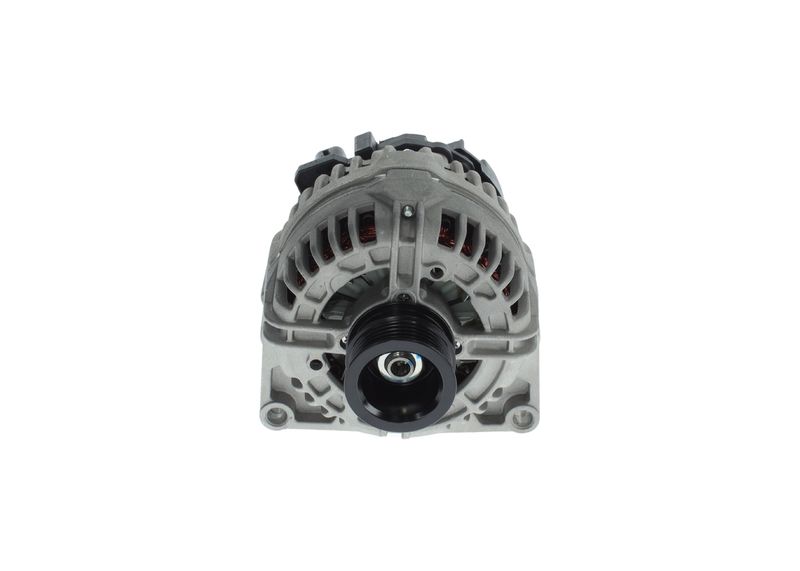

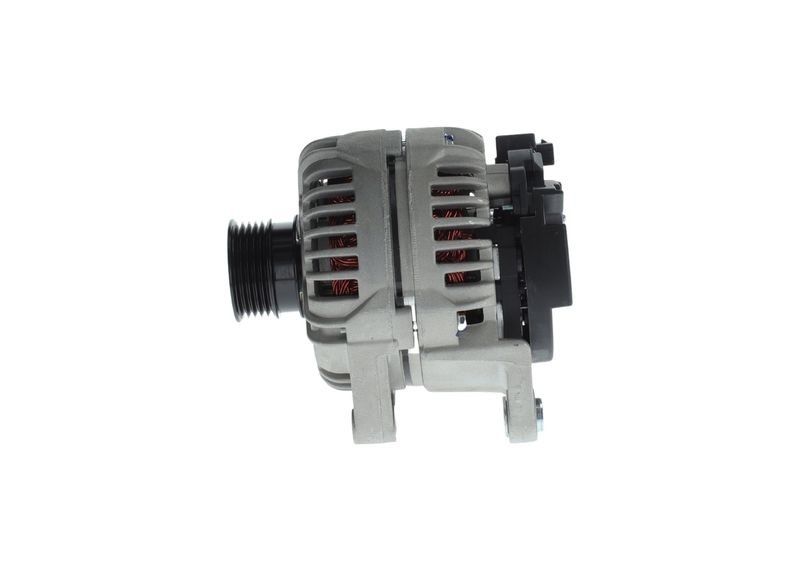

Bosch 1986A01484 Alternator
Your selected vehicle
Regular price
£311.46
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 1986A01484 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 75 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
120
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
64.3
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
5
Belt Pulley Ø [mm] :
54
Clamp :
B+(M8)
Plug Type ID :
75
Length [mm] :
184
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
Z 16 XER
Construction Year from :
01.2007
Construction Year to :
03.2010
Vehicle Identification Number (VIN) from :
72094719
Vehicle Identification Number (VIN) from :
75086480
Vehicle Identification Number (VIN) from :
78048188
Engine Code :
A 16 XER
Construction Year from :
07.2010
Construction Year to :
08.2013
for OE number :
93190829
Engine Code :
Z 18 XER
Engine Code :
A 18 XER
Construction Year from :
03.2007
Construction Year from :
01.2011
- Vendor BOSCH
- SKU 1986A01484
- APEC : AAL1191
- Carwood Group : BREF032115306
- Carwood Group : BREF0321986A01484
- FEBI BILSTEIN : 193120
- NAPA : NAL1191
- VALEO : 849161
- WAI : 11475N
- WAI : A130.284
- BOSCH : ALT 14V 120A (R)
