BOSCH

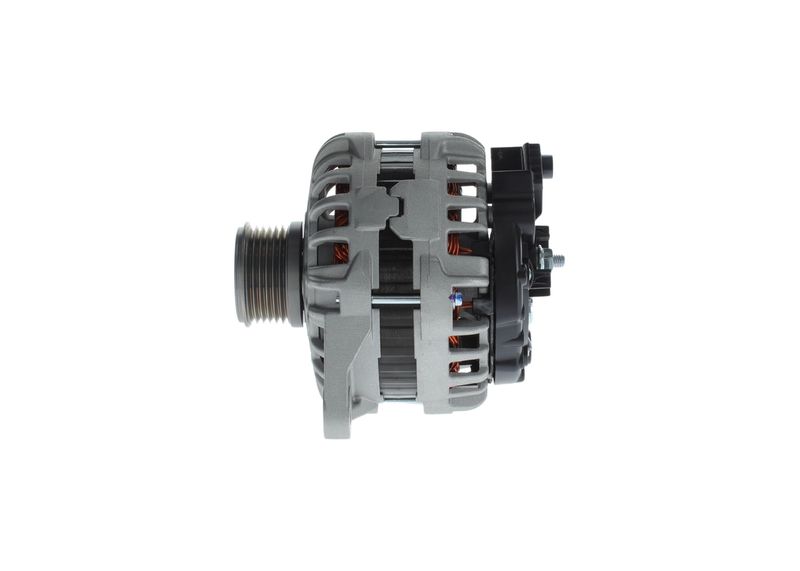

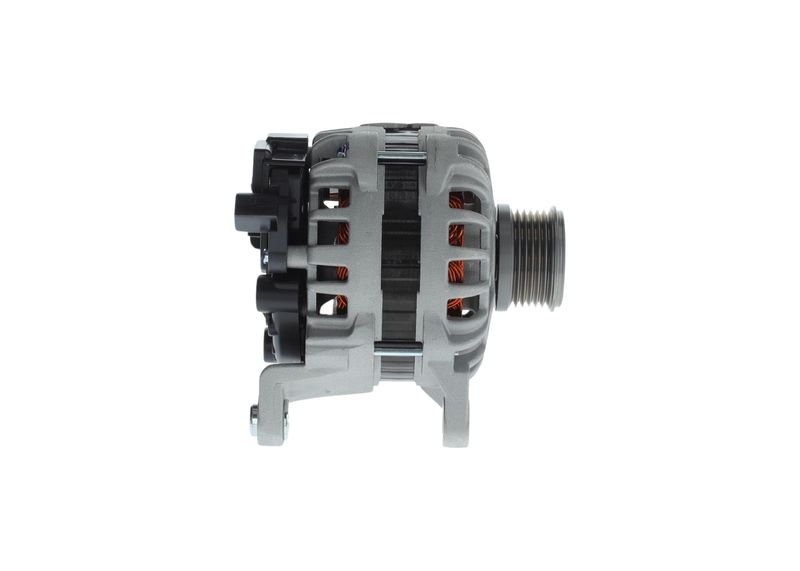

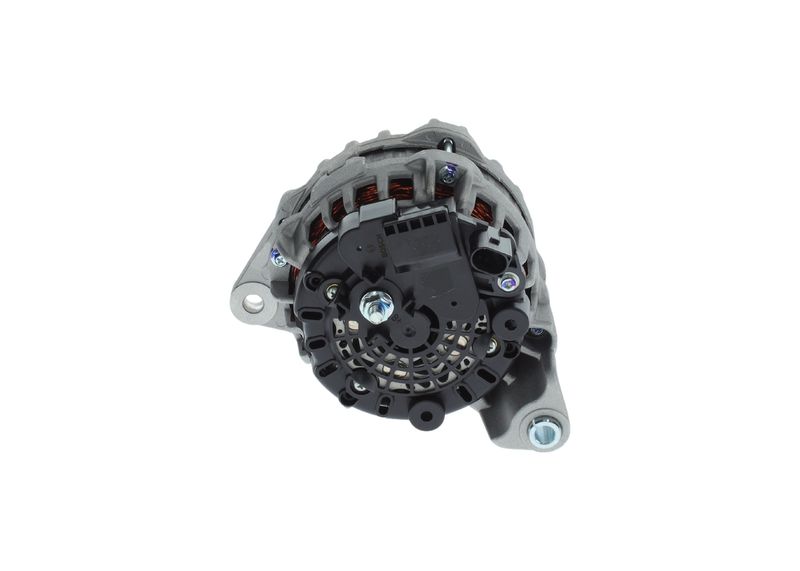

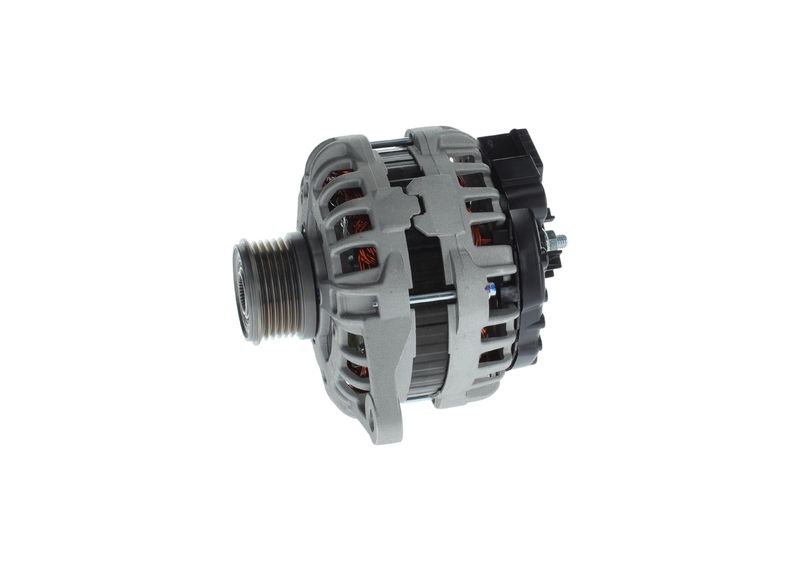

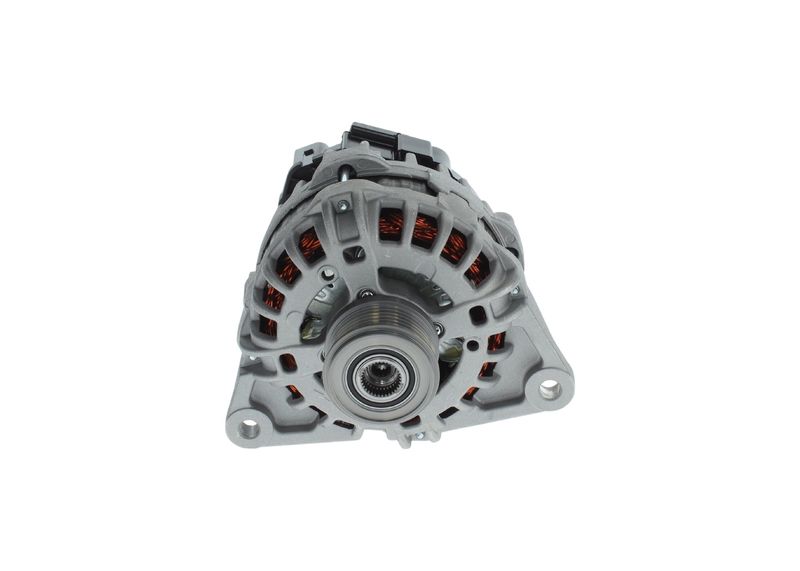

Bosch 1986A01984 Alternator

SKU: 1986A01984

Your selected vehicle

Out of stock

Out of Stock

£243.02 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

IVECO

DAILY VI Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 60C5, 65C15,...	2998 CCM	146 HP	From 03/2014
35S17, 35C17, 40C17, 45S17,45C17, 50C17, 60C17, 65C17,...	2998 CCM	170 HP	From 03/2014
35S21, 35C21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21	2998 CCM	204 HP	From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C	2998 CCM	136 HP	From 03/2014
35S17, 55S17 4x4	2998 CCM	170 HP	From 03/2014
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15	2998 CCM	150 HP	From 04/2016
35S18, 35C18, 40C18, 45C18, 50C18, 60C18, 65C18, 70C18	2998 CCM	180 HP	From 04/2016
35S18, 55S18, 55C18, 70S18, 70C18 4x4	2998 CCM	180 HP	From 04/2016

DAILY VI Bus

Description	Cylinder Capacity	Horse Power	Year
40C15, 50C15, 60C15	2998 CCM	146 HP	From 03/2014
40C17, 50C17, 60C17	2998 CCM	170 HP	From 03/2014
40C15, 50C15, 60C15	2998 CCM	150 HP	From 04/2016
40C18, 50C18, 60C18	2998 CCM	180 HP	From 04/2016
50C21, 60C21	2998 CCM	207 HP	From 07/2021
50C18, 60C18	2998 CCM	175 HP	From 07/2021

DAILY VI Van

Description	Cylinder Capacity	Horse Power	Year
35S15, 35C15, 40C15, 45C15, 50C15, 65C15, 70C15	2998 CCM	146 HP	From 03/2014
35S17, 35C17, 40C17, 50C17, 55C17, 60C17, 65C17, 70C17	2998 CCM	170 HP	From 03/2014
35S21, 35C21, 40C21, 50C21	2998 CCM	204 HP	From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C	2998 CCM	136 HP	From 03/2014
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15	2998 CCM	150 HP	From 04/2016
35S18, 35C18, 40C18, 50C18, 60C18, 65C18, 70C18	2998 CCM	180 HP	From 04/2016

The Bosch 1986A01984 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 384 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 150

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 37.7

Rotation Direction : Clockwise rotation

Pulleys : with freewheel belt pulley

Number of grooves : 6

Belt Pulley Ø [mm] : 55

Clamp : B+(M8)

Plug Type ID : 384

Length [mm] : 179.5

Recommended additional repairs : V-Belt/V-ribbed Belt

Bosch 1986A01984 Alternator
