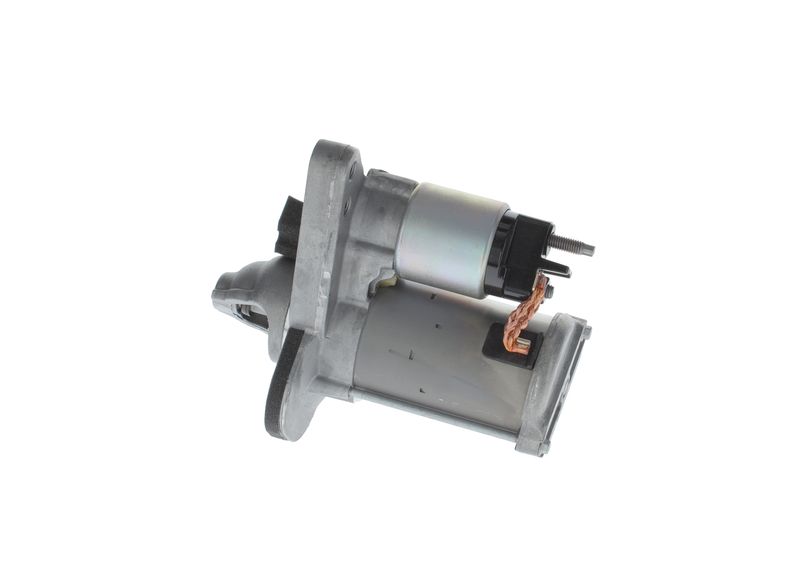

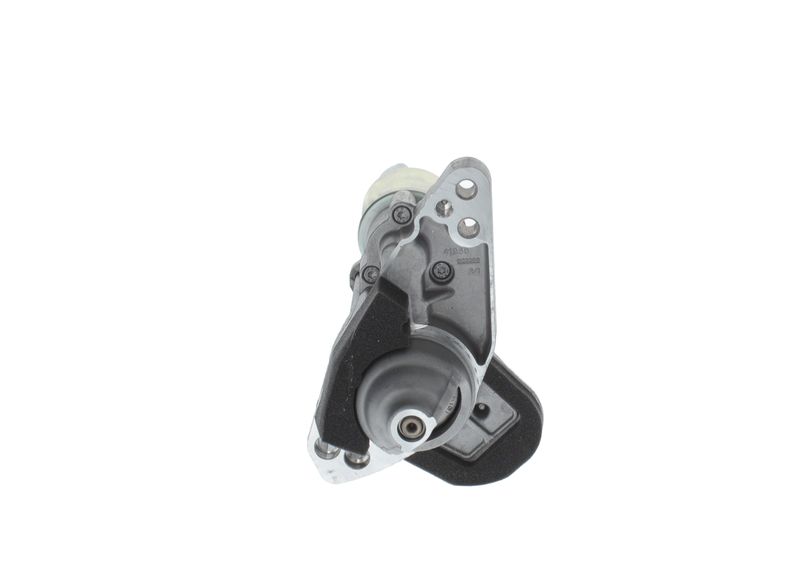

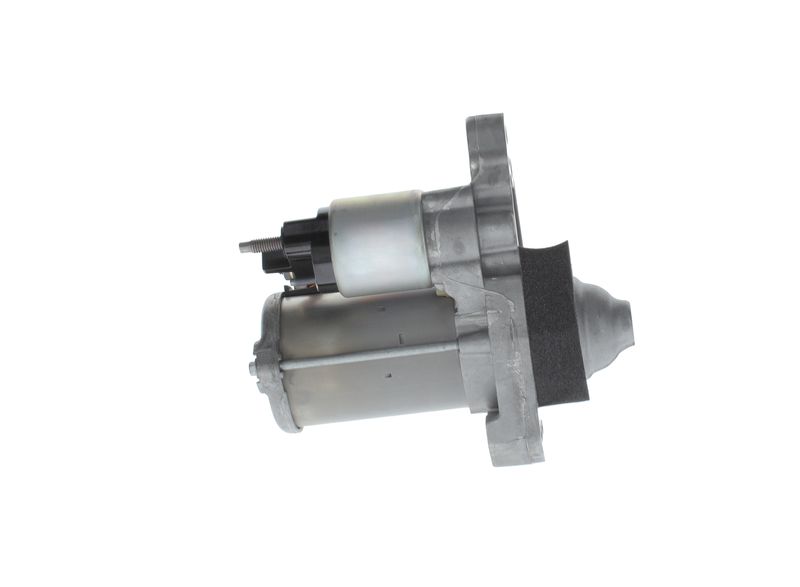

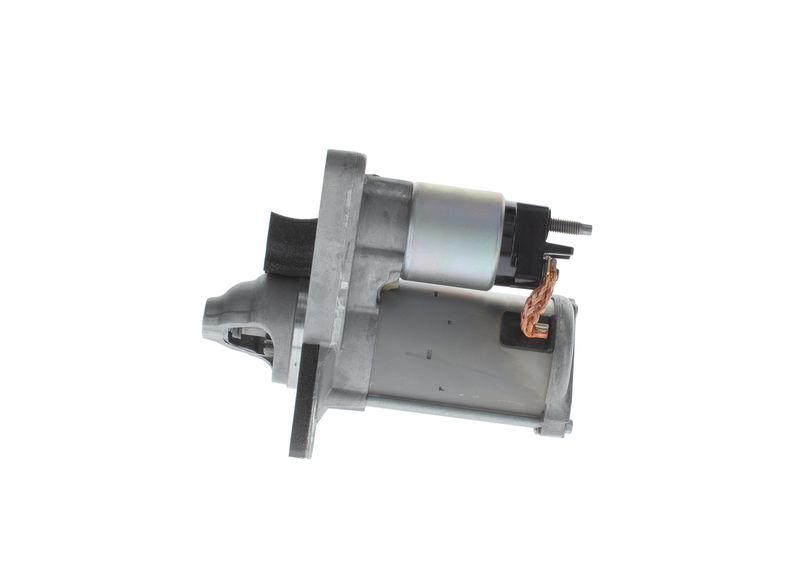

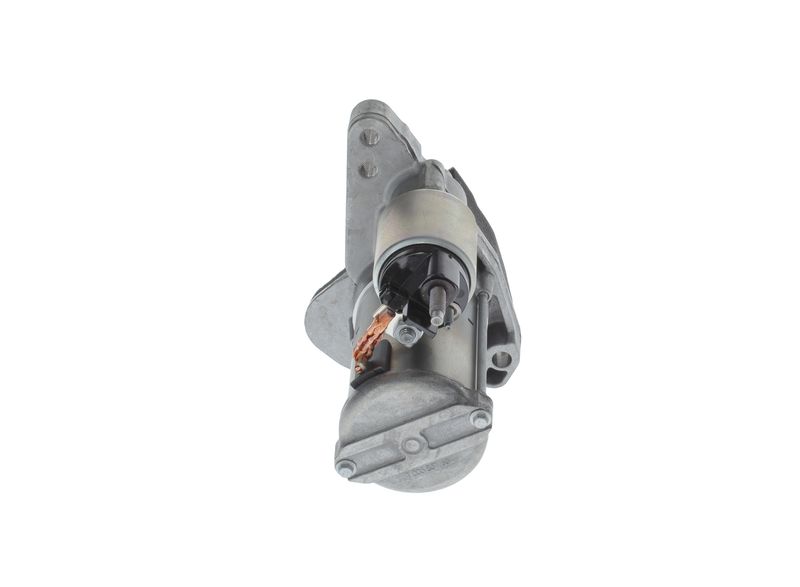

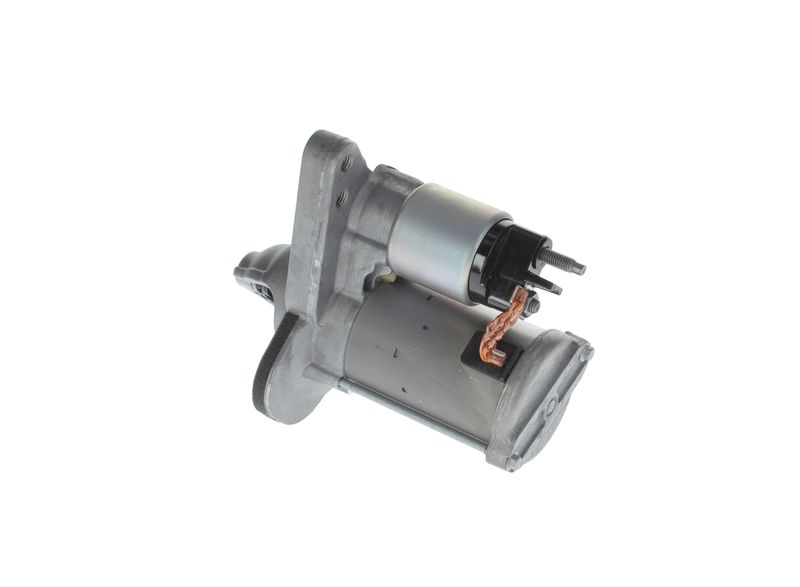

Bosch 1986S00161 Starter Motor
Your selected vehicle
Regular price
£175.60
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00161 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.2
Number of mounting bores :
2
Number of threaded holes :
3
Number of Teeth :
11
Clamp :
30
Flange Diameter [mm] :
62
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
19.8
Starter Type :
Self-supporting
Thread Size 1 :
M10 X 1,5
Thread Size 2 :
M10 X 1,5
Bore Diameter [mm] :
8
Bore Ø 4 [mm] :
11
Length [mm] :
198
Position/Degree :
rechts
Mounting Angle [degrees] :
13
Jaw opening angle measurement [Degree] :
69
Mounting bore angle measurement [degree] :
13
Construction Year to :
12.2022
Engine Code :
H4D 460
Construction Year to :
12.2021
- Vendor BOSCH
- SKU 1986S00161
- NISSAN : 233004646R
- RENAULT : 23 30 046 46R
- LUCAS : LRS04354
- WAI : 31145N
- BOSCH : ST 12V 1,2KW (R)
